100W CO2 Laser Engraving Machine Laser Tube

100W CO2 Laser Engraving Machine Laser Tube

$1,079.00 USD
$1,079.00 USD
Sale Sold out
Shipping calculated at checkout.

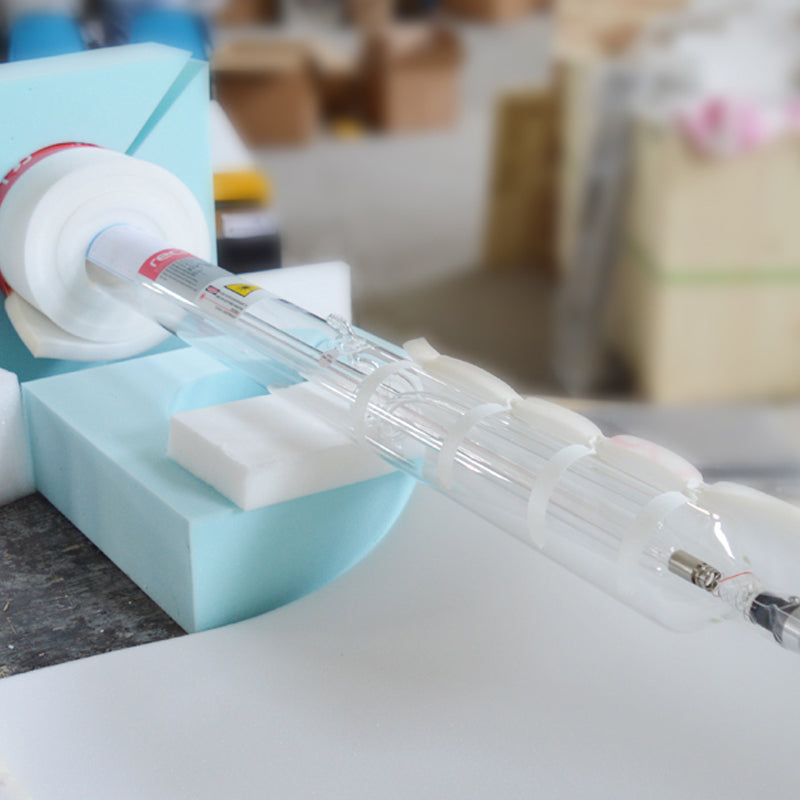

100W CO2 Laser Engraving Machine Laser Tube
Laser tube is one of the essential parts of laser equipments. Output Power: S4 rated power 100w and Maximum Power 130w. The production process of the tube is standardized, so the output power and output model are guaranteed. Long life span: We have catalyst plating in the inner wall of the laser tube. Designing lifespan is 10,000 hours .
Power output(W)：100
Max power is 130w
Wavelength:10600nm
　
  • Lengt(mm):1400
  • Cooling System: Water Cooling.
    Triggering voltage(KV):22
    Operating voltage(KV):16
    Operating current(mA):0-27
    Outer diameter(mm):80
    Power stability: ±5%
    Water Cool

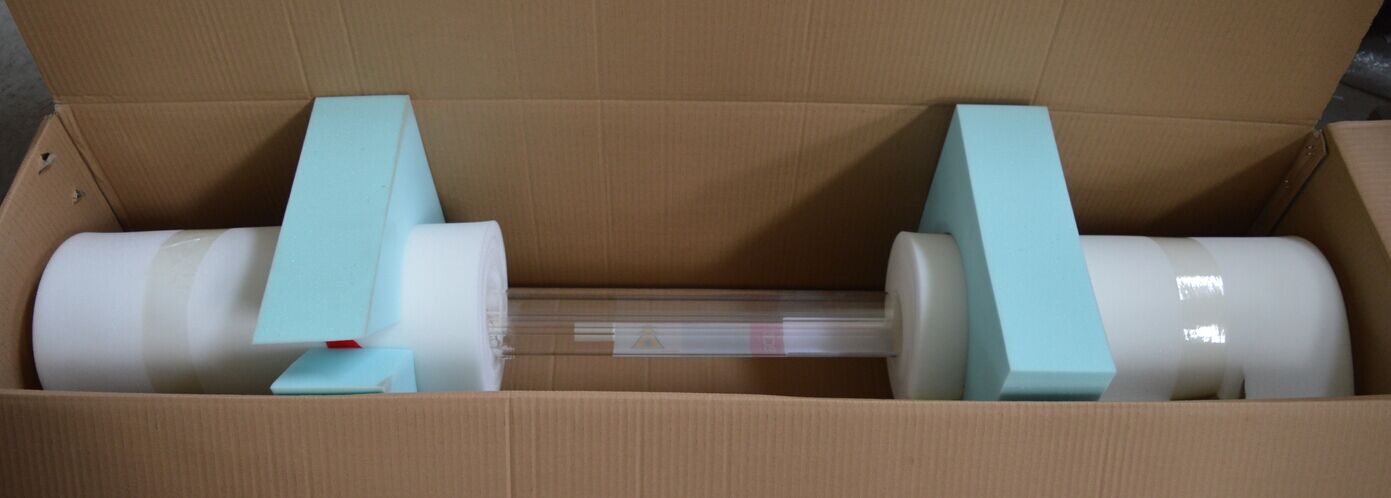

    Package including: 1x100W laser tube
    		•  You can't leave cooling water in laser tube after power off, it will freeze at Cold areas. Optimum working water temperature is 5-40 degrees. working lifetime up to 10000 hours (According to the water temperature, continuous workload, the use of laser intensity and other aspects to determine) The Laser tube after generally work 3-4 hours should to pause for about 30 minutes. Low power can extend the life of the tube.
