10KG Welding Positioner
10KG Welding Positioner
Regular price
$479.00 USD
Regular price
Sale price
$479.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
 |
|||
|

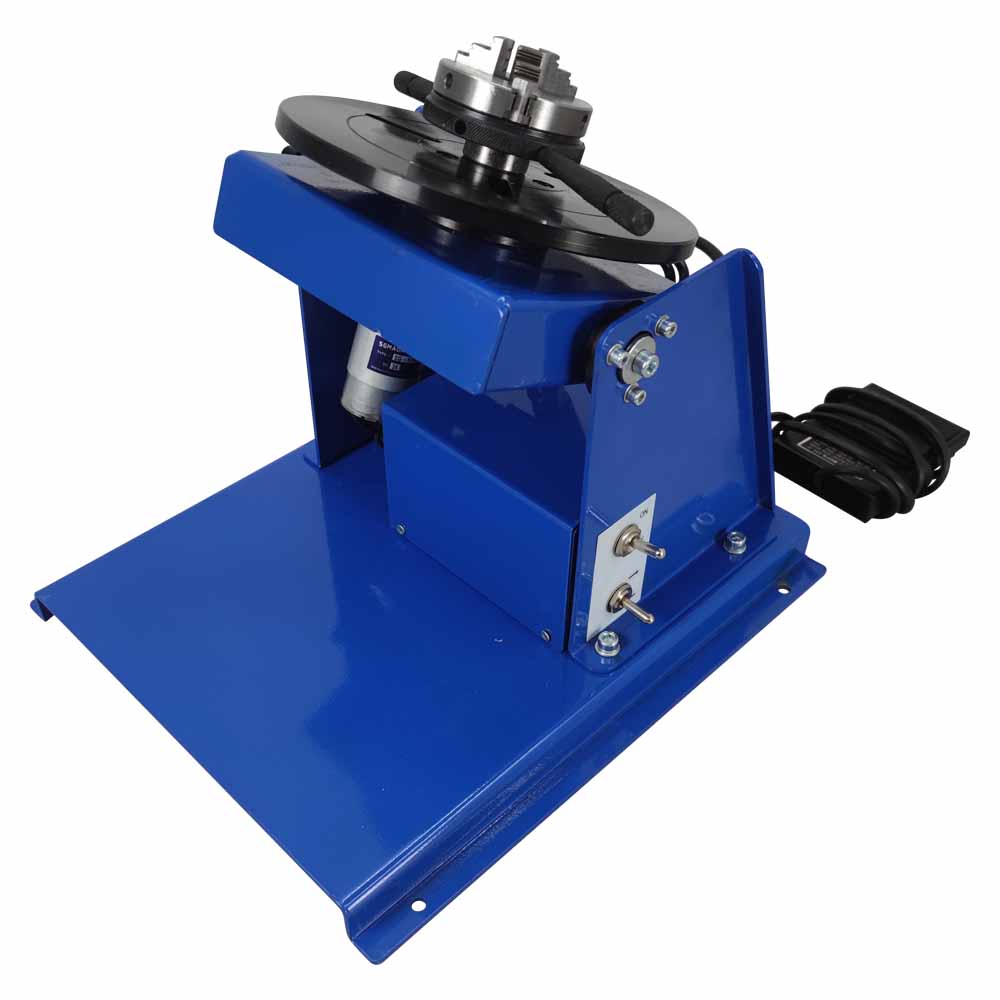

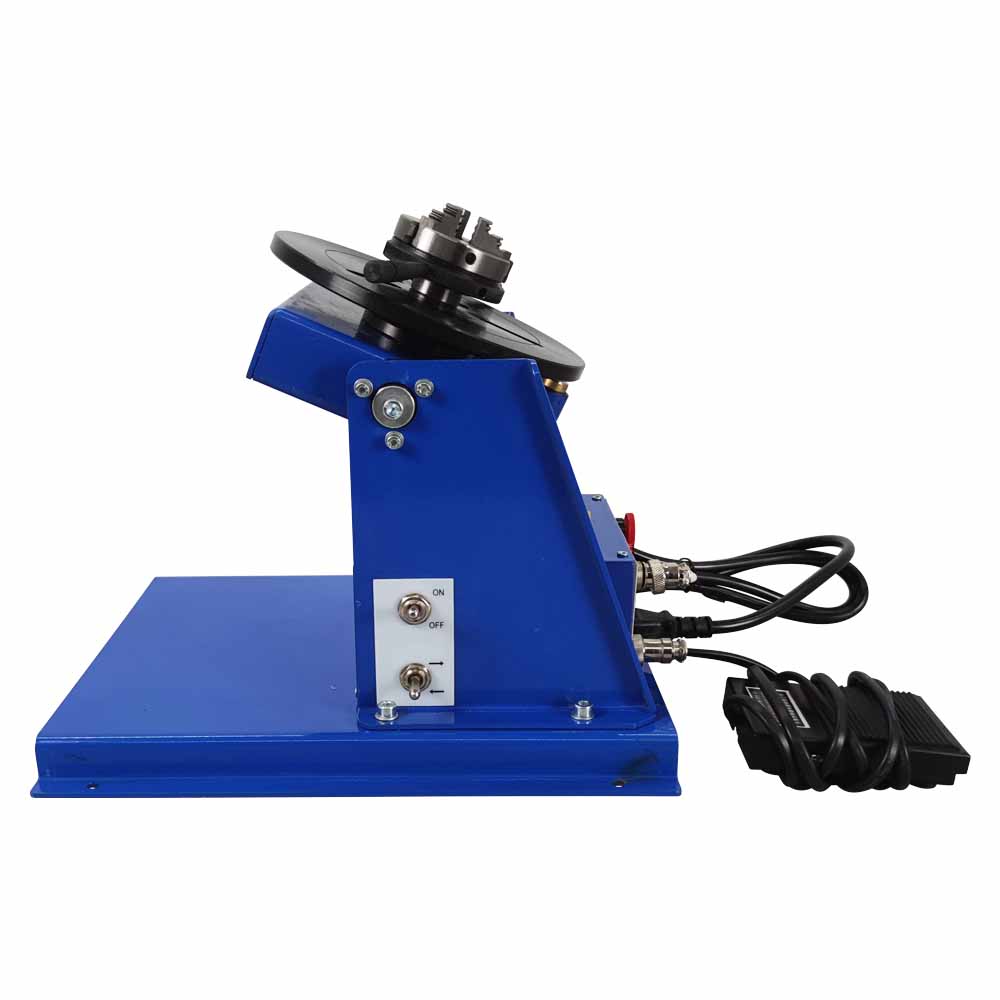

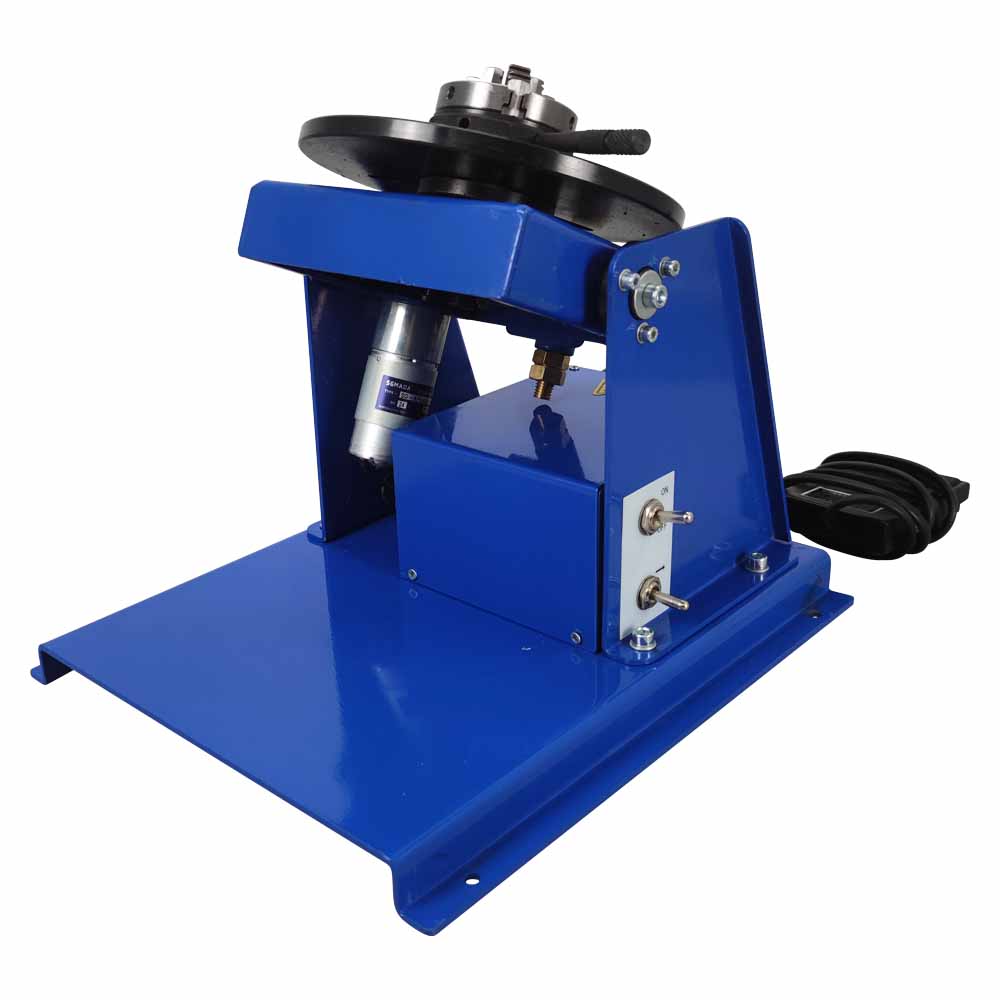

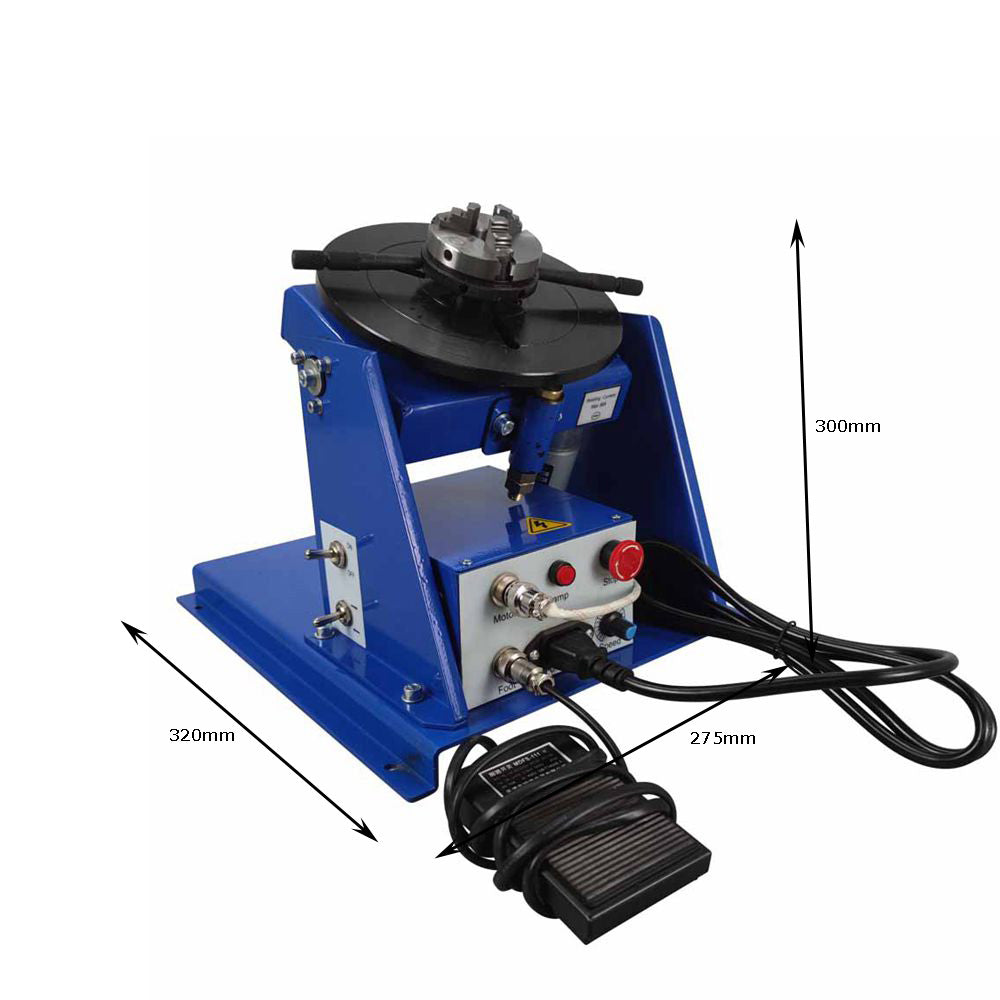

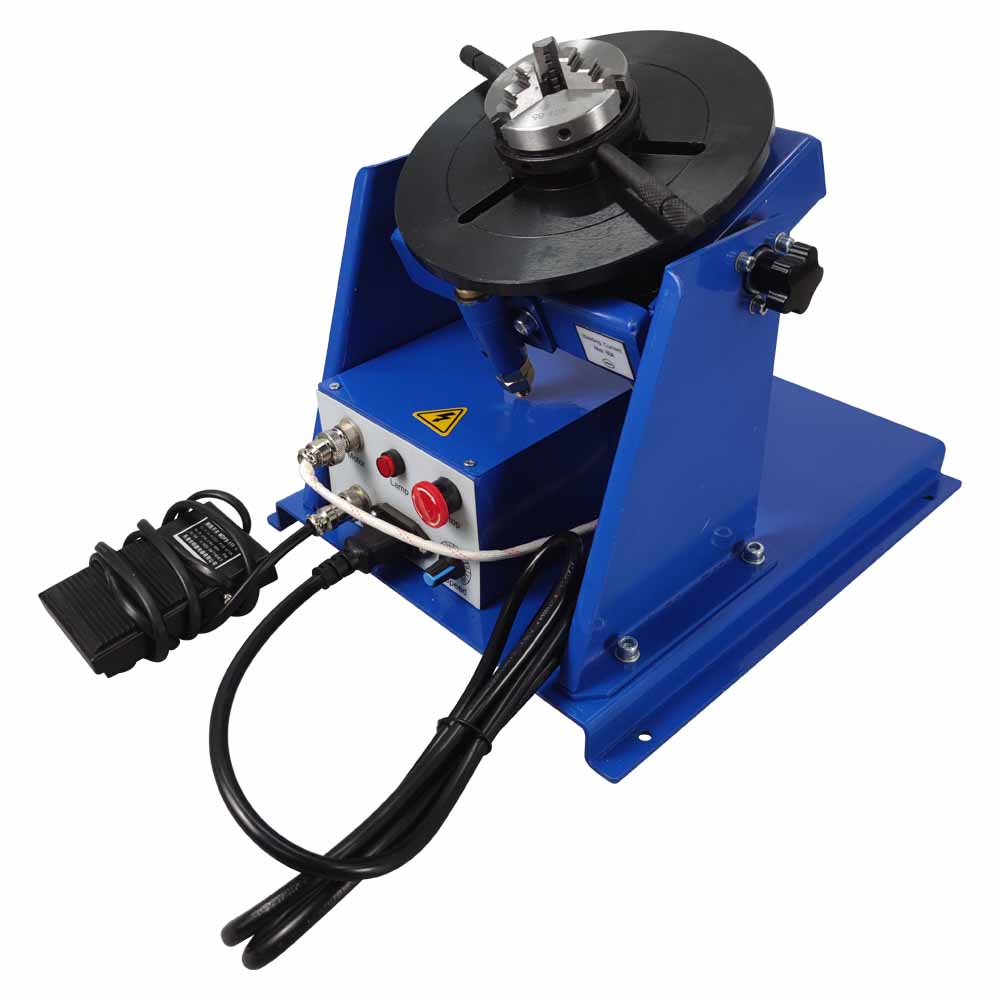

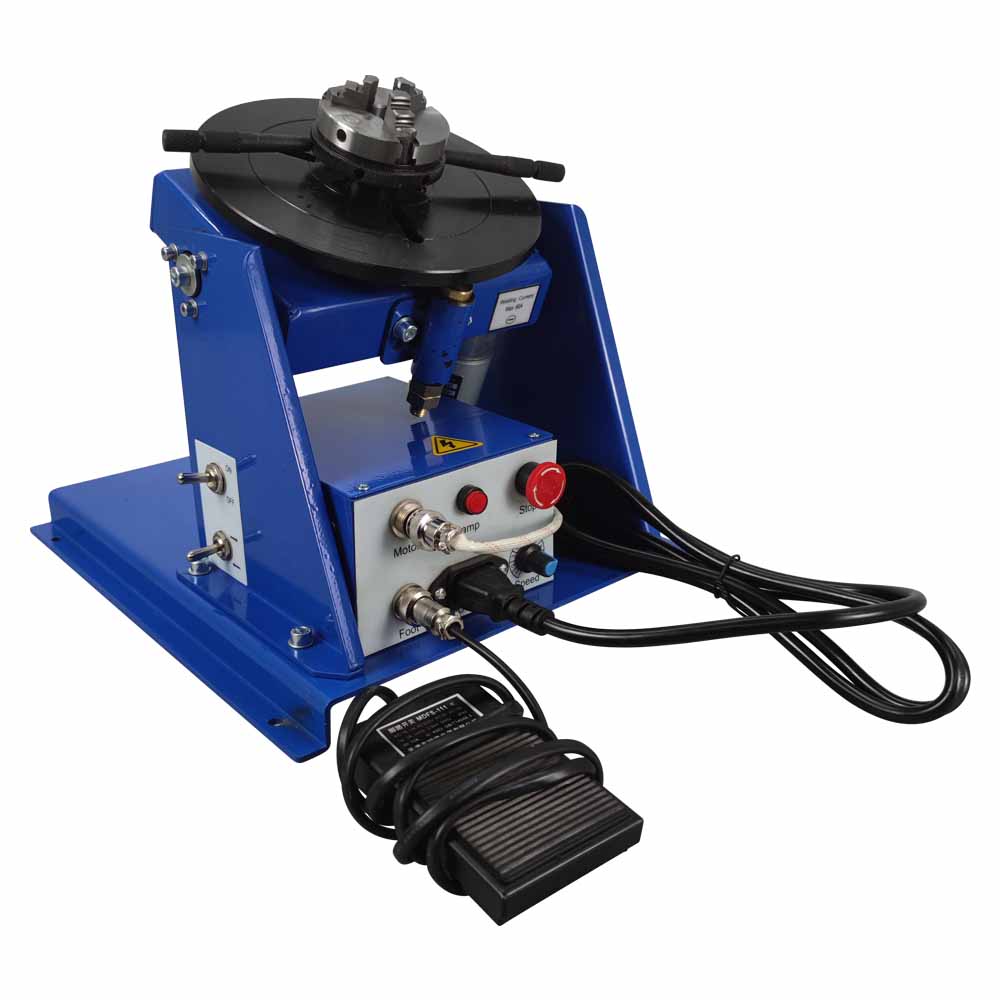

10KG Welding Positioner Turntable with 65mm Chuck |
|||
 |
|||
 |
|||
| The rotation structure is driven by name-brand DC motor, while stepless speed regulation can be achieved. | |||
| The tile range of rotary table is 0~90, worker can set the shaft, so the welding at arbitrary angle can be achieved. | |||
| Special design of anti-electromagnetic, which reduce the high frequency interference of TIG’S welding, at the same time can improve the welding quality effectively. | |||
| A time- controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder. | |||
| The adjustable-welding gun support can be furnished to fix the position of the welding torch. | |||
| The welding chuck and air-powered tailstack can be furnished to achieve the function of self holding to the workpiece. | |||
| Specification: | |||
| NO. | ITEM | UNIT |
BWJ-10
|
| 1 | Horizontal loading capacity | Kg | 10 |
| 2 | Vertical loading capacity | Kg | 5 |
| 3 | Working table diameter | mm | 180 |
| 4 | Working table height | mm | 230 |
| 5 | Working table tilting angle | 0-90 | |
| 6 | Working table speed | r/min | 2-16 |
| 7 | Rated welding current | A | 80 |
| 8 | Input voltage | V | AC110V 50Hz |
| 9 | Drive motor | 24V 15W | |
| 10 | Net weight | Kg | 8 |
 |
|||
 |
|||
 |
|||
 |
|||
 |
|||
| Item Included: | |||

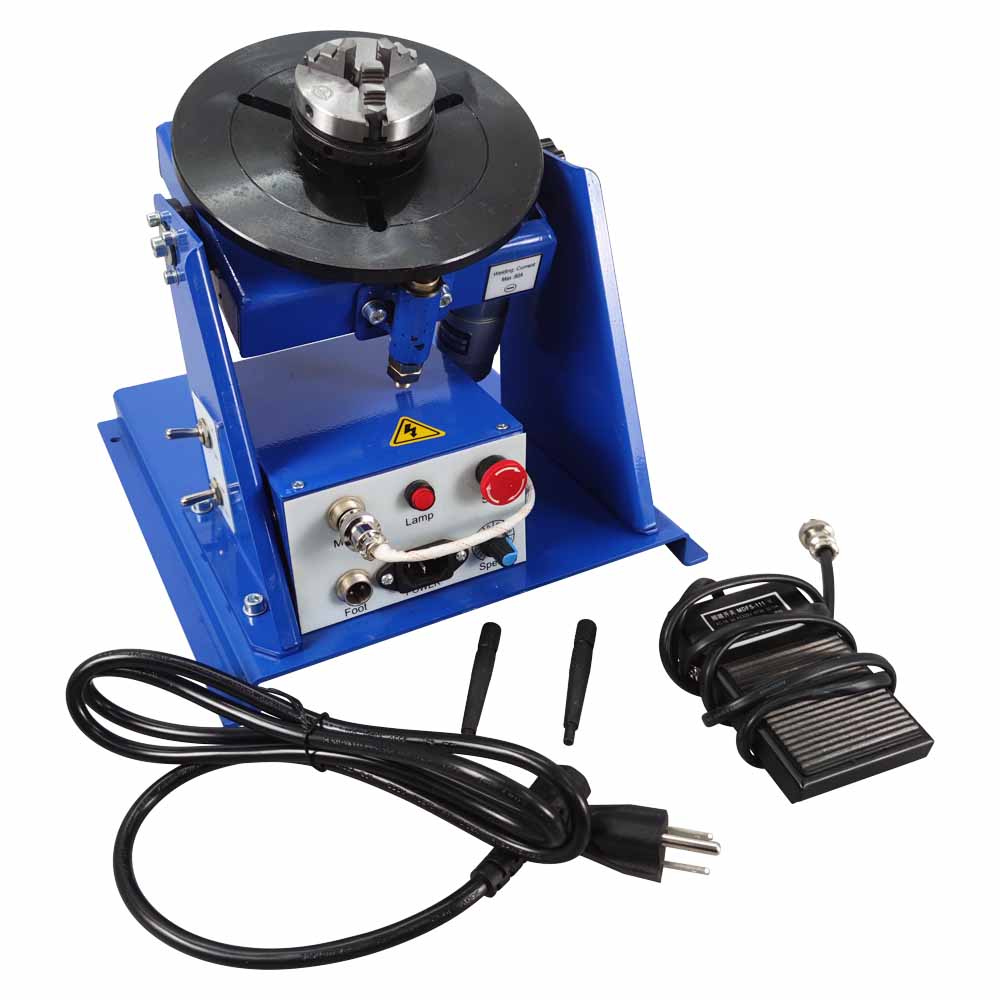

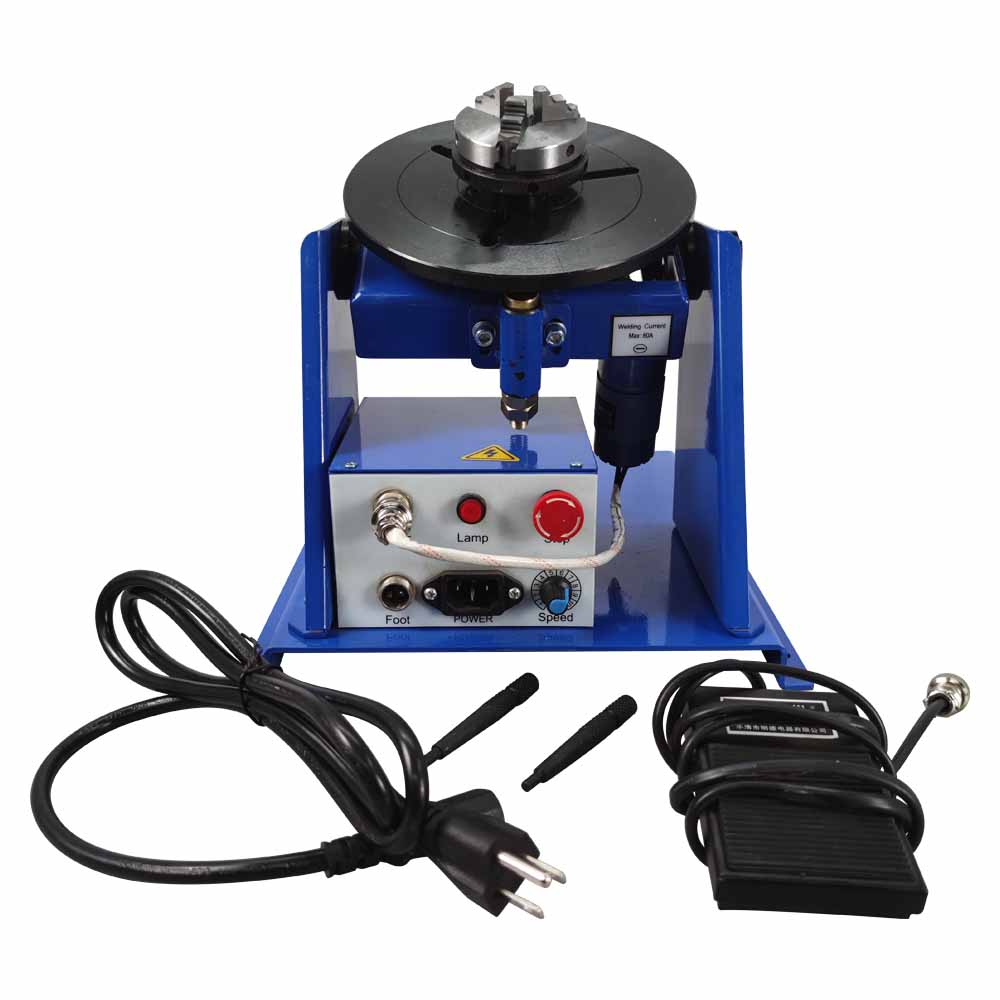

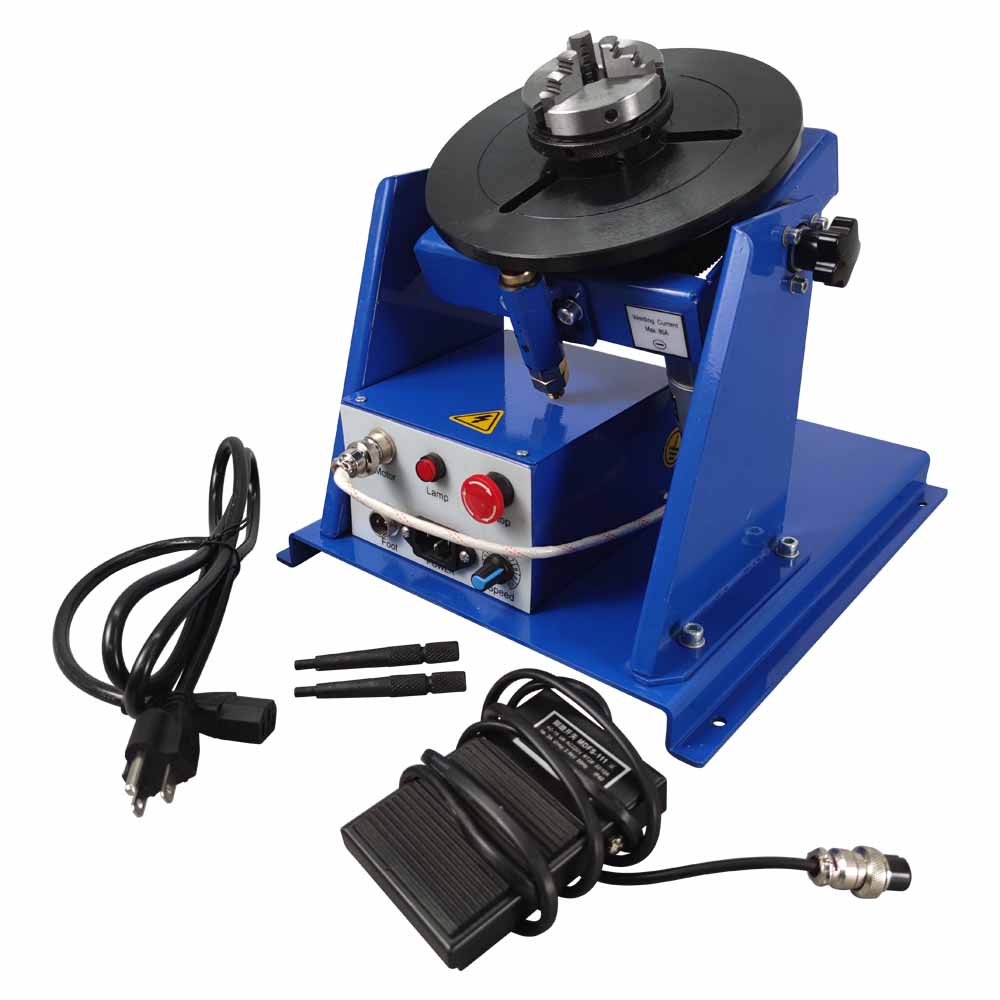

| One Set 10KG Welding Positioner Turntable with 65mm Chuck (251028) | |||
