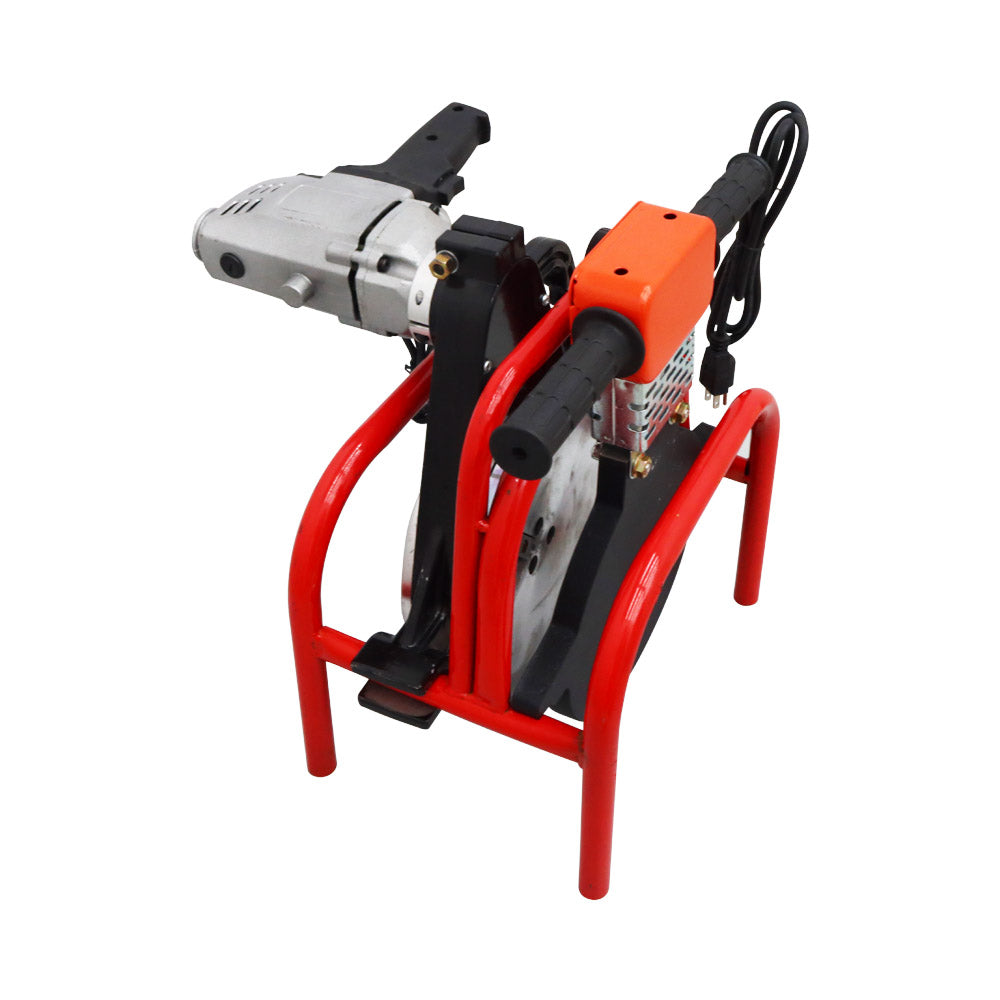

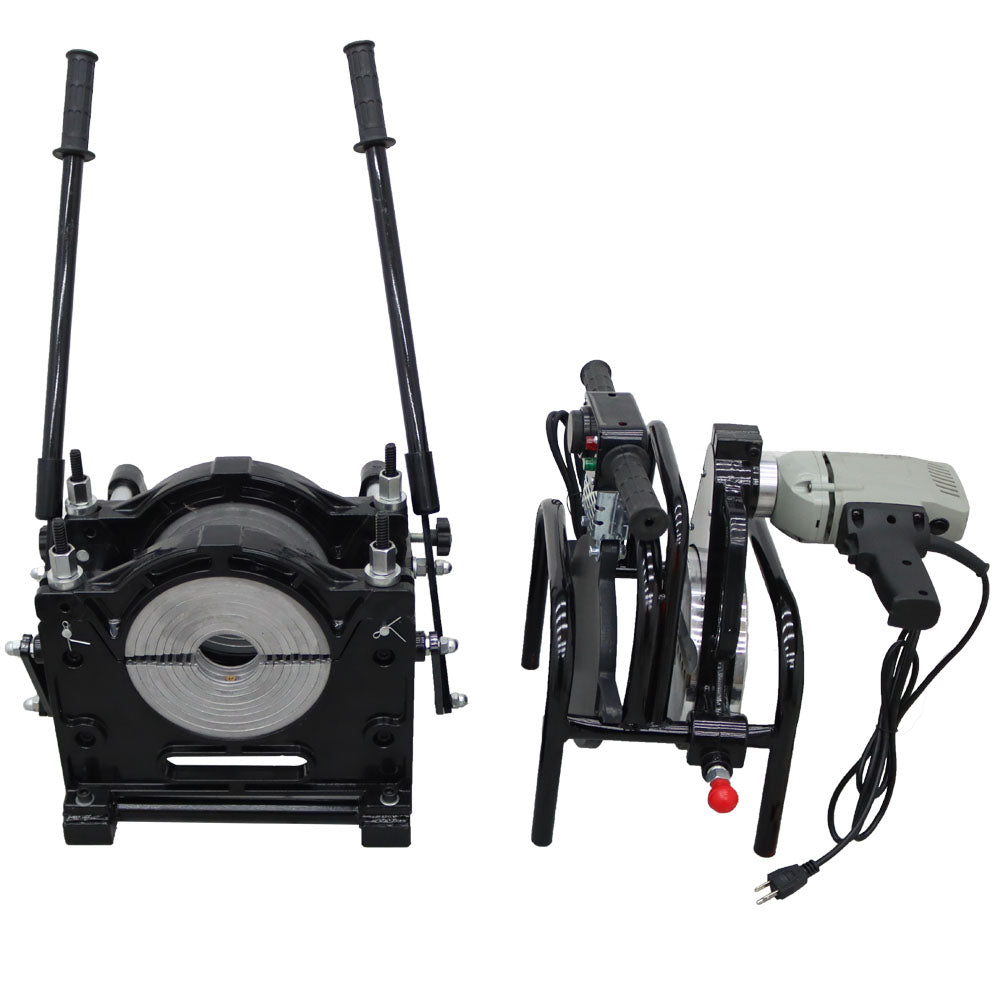

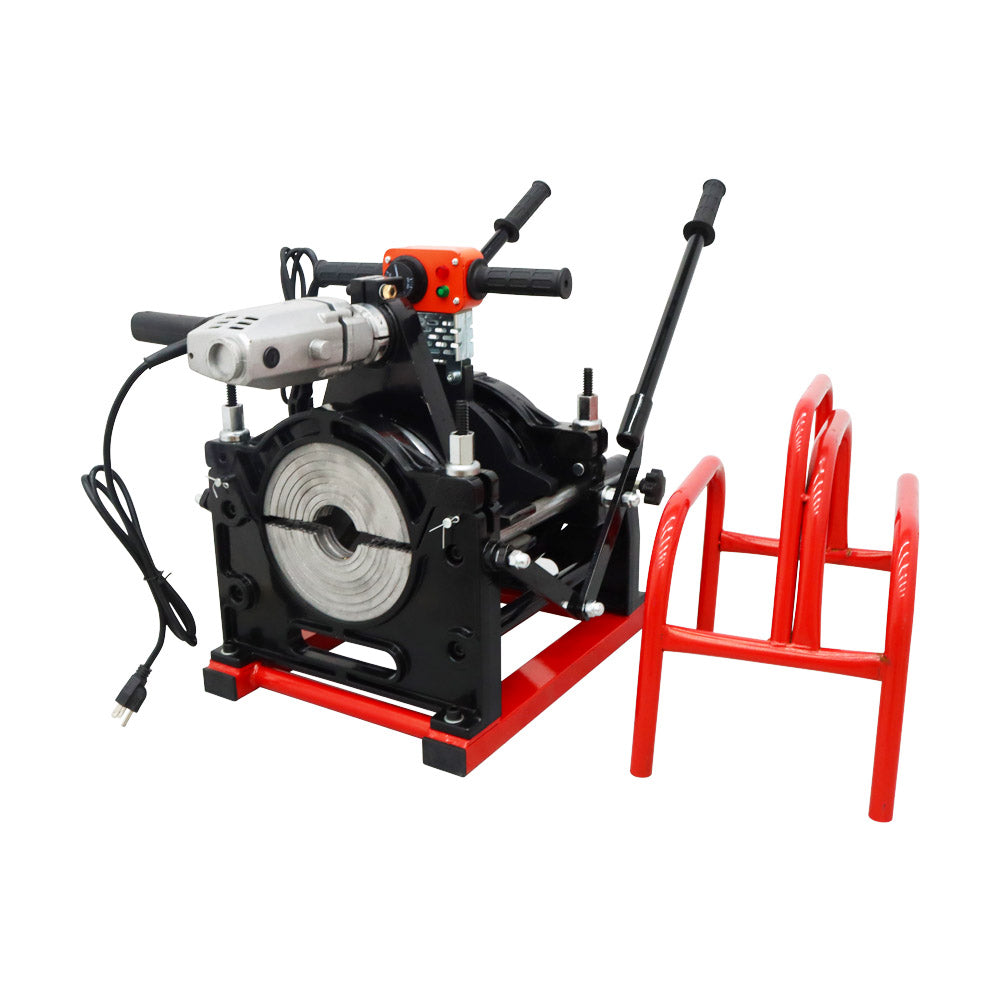

110V Butt Fushion Welding Machine

110V Butt Fushion Welding Machine

$570.00 USD
$570.00 USD
Sale Sold out
Shipping calculated at checkout.

Butt Fusion Welding Machine 110V 2.48-7.87”
Description：
Manually operated butt fusion welding machine is suitable for PE and PB pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.

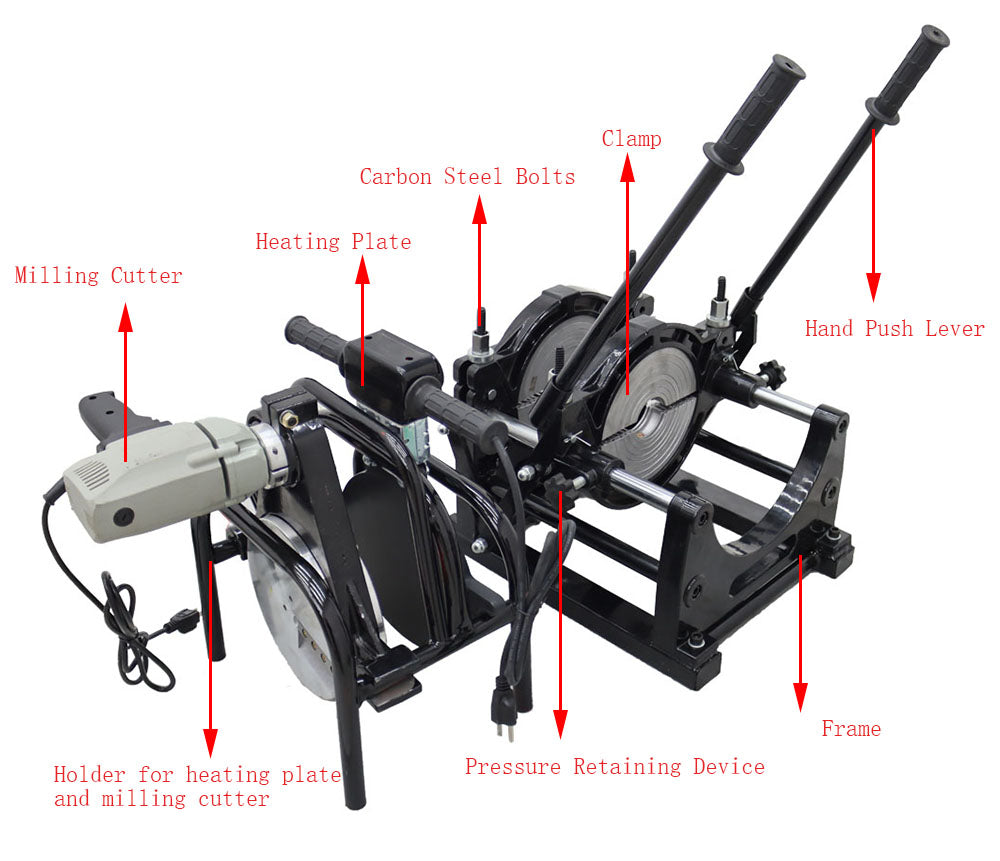

Advantage:

1.Widen and thickened clamp, more stable during welding.
2.Lengthened and thickened frame, better bearing and more stable.
3.The hand push rod makes it easier to adjust the fixture distance.
4.The support of heating plate and milling cutter is provided as a bonus. After use, the heating plate can be placed to prevent burns.
5.With automatic pressure maintaining device, welding is more convenient without holding hands.
6.Milling cutter adopts high power motor, cutting more smoothly.Thickened anti sticking heating plate, durable.
http://topseller365.com/data/prd/145/013/14.jpg
http://topseller365.com/data/prd/145/013/012.jpg
Specifications:
Model No. 2.48-7.87”(63-200MM) four rings manual
Materials Aluminum alloy casting, 45# steel
Welding level(Φ, mm)

Outer dia

  63mm(2.48”)、75mm(2.95”)、90 mm (3.54”)、
 110 mm (4.33”)、125 mm (4.92”)、140 mm (5.51”)、160 mm (6.30”)、180 mm (7.09”)、200mm(7.87”)
Docking deviation ≤0.3mm
Power of Heater 2.5KW/110V
Power of Milling Cutter 1.1KW/110V
Working temperature 300°c
Temperature deviation ±5°c
Environment temperature -5 - 40°c
Time required to reach soldering temperature <20min
Materials can be welded PE PPR PB PVDF

　

 http://topseller365.com/data/prd/145/013/19.jpg
http://topseller365.com/data/prd/145/021/36.jpg
Details:
http://topseller365.com/data/prd/145/013/26.jpg
http://topseller365.com/data/prd/145/013/27.jpg
http://topseller365.com/data/prd/145/013/28.jpg
http://topseller365.com/data/prd/145/013/25.jpg

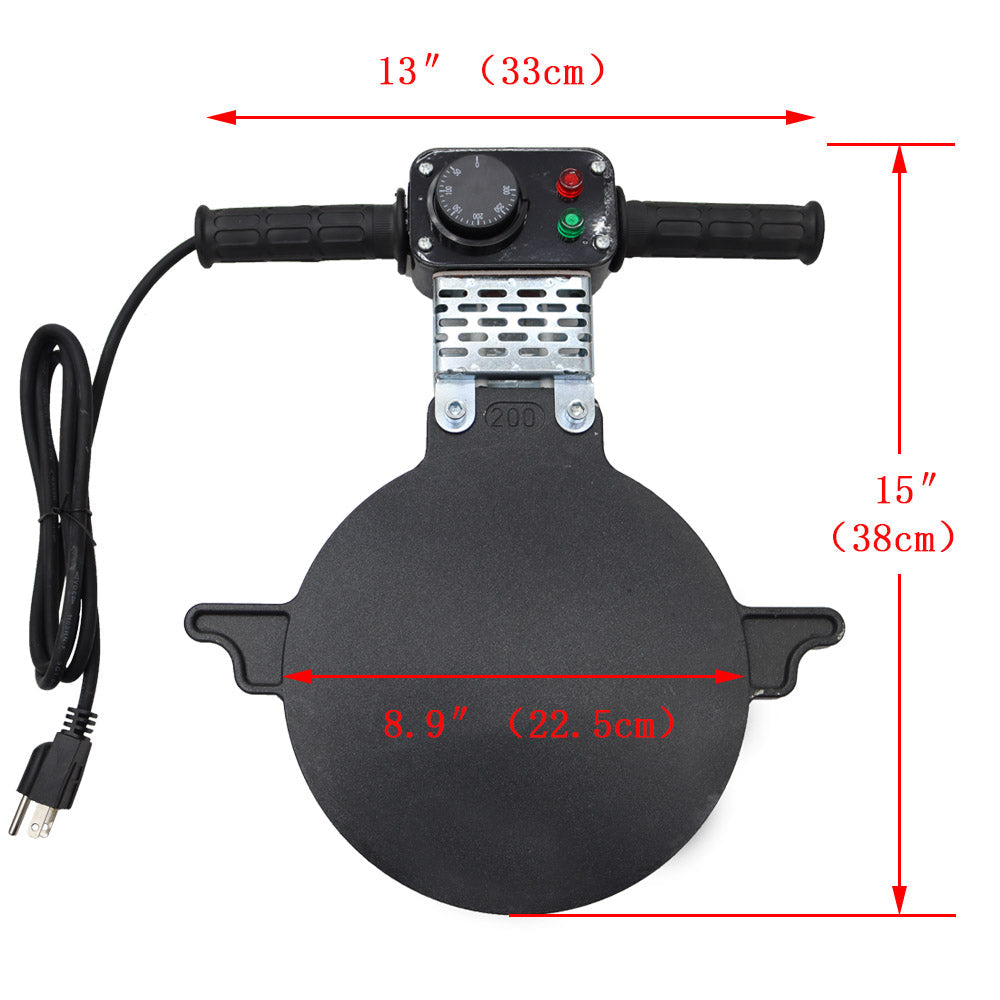

http://topseller365.com/data/prd/145/013/30.jpg
Item Number: Butt Fusion Welding Machine 110V 2.48-7.87” 145013

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
