110V Electric Tube Pipe Bender
110V Electric Tube Pipe Bender
Regular price
$1,969.00 USD
Regular price
Sale price
$1,969.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
|
110V 60Hz Electric Tube Pipe Bender |
| Product Overview |
| The machine is mainly used in building decoration, agricultural plastic pipe shed and other industries.Main bending stainless steel and other metal thin-walled round tube, square tube, rectangular tube.Bend it into any radian as needed.No heating or sand filling process is required when bending the pipe.The curved products have the characteristics of smooth arc, uniform, clear and small deformation. |
| Product Parameters |
| Model: | HHW-G76 |
| Voltage: | 110V/60Hz |
| Max round pipe thickness: |
Stainless steel:0.5-2.0mm
Mild steel:0.8-2.3mm |
| Max square pipe thickness: |
Stainless steel:0.5-1.5mm
Mild steel:0.8-1.8mm |
| Round dies sets: | 16mm/19mm/22mm/25mm/32mm/38mm/51mm/63mm/76mm（5/8"，3/4"，7/8"，1"，1-1/4"，1-1/2"，2"，2-1/2"，2-7/8"） |
| Square dies sets: | 16mm/19mm/22mm/25mm/30mm/38mm/40mm/50mm（5/8"，3/4"，7/8"，1"，1-3/16"，1-1/2"，1-9/16"，2"） |
| Motor type: | Single Phase Asynchronous |
| Power: | 1.5KW |
| Color: | green |
| Gross weight: | 550lbs |
| Suitable Conditions |
| Round dies sets | Square dies sets | ||||||||||||||||
| Mould specifications（mm） | 16 | 19 | 22 | 25 | 32 | 38 | 51 | 63 | 76 | 16 | 19 | 22 | 25 | 30 | 38 | 40 | 50 |
| Stainless steel pipe wall thickness（mm） | 0.5 | 0.8 | 1.0 | 1.0 | 1.2 | 1.2 | 1.5 | 1.6 | 2 | 0.5 | 0.8 | 1.0 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 |
| Mild steel pipe wall thickness（mm） | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 | 1.5 | 1.8 | 1.8 | 2.3 | 0.8 | 1.0 | 1.2 | 1.2 | 1.5 | 1.5 | 1.8 | 1.8 |
| Product Presentation & Details |
| Item Included（053326） |

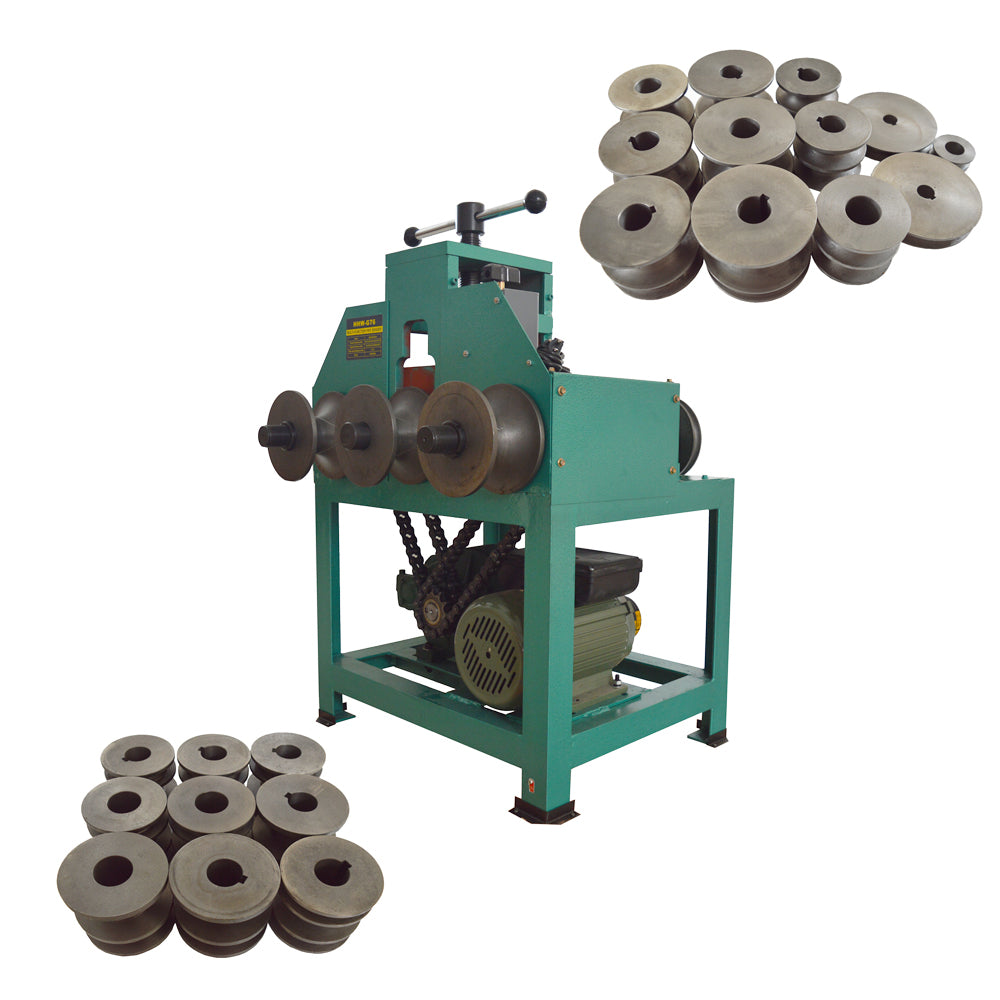

| Pipe bending machine *1 One set of round molds *1 One set of square tube molds *1 English instruction *1 |
