110V Paste Liquid Filling Machine 1000-5000ml

Name: 110V Paste Liquid Filling Machine 1000-5000ml
Brand: 160408
SKU: 160408
Price: 1439.00 USD
Availability: InStock

$1,439.00 USD

Sale Sold out

Shipping calculated at checkout.

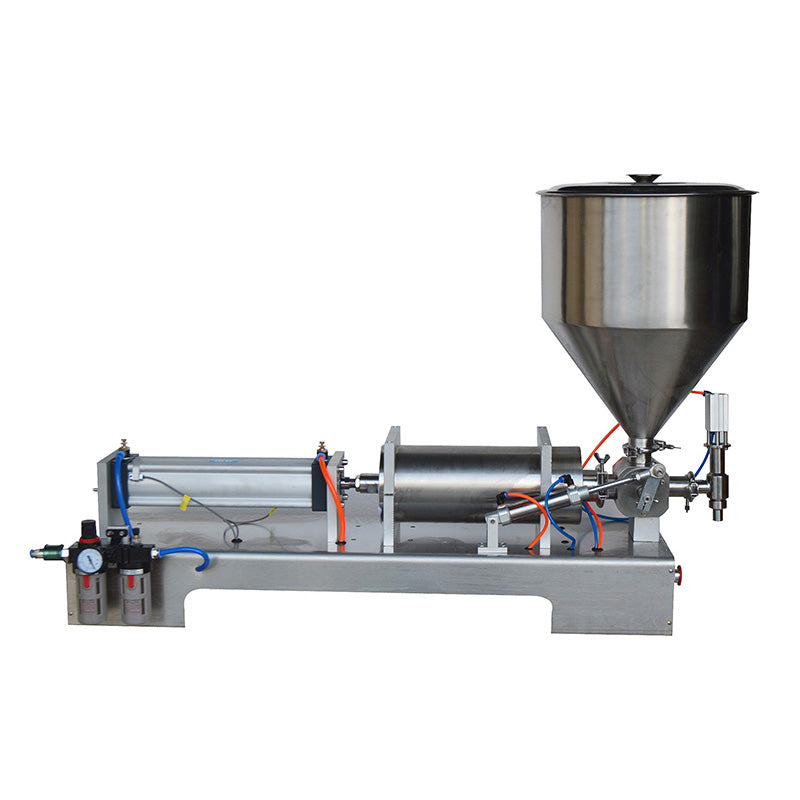

110V Paste Liquid Filling Machine

This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.

The filling volume range is between 1000ml - 5000ml. And the machine should connect air compressor for working.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

Feature:

1. Voltage: 110V/60Hz
2. The surface is stainless steel
3. Full pneumatic
4. Filling volume (ml): 1000-5000ml
5. Filling accuracy (FS): ±0.5%
6. Production capacity (cycle/min): 1-25
7. Applicable tolerance (m3/min): ≥0.1
8. Exterior sizes:
49.2"x16.5"x18.9" (125*42*48 cm)
9. Net weight:57kg （125 lb）
10. Applicable pressure (Mpa): 0.4-0.9

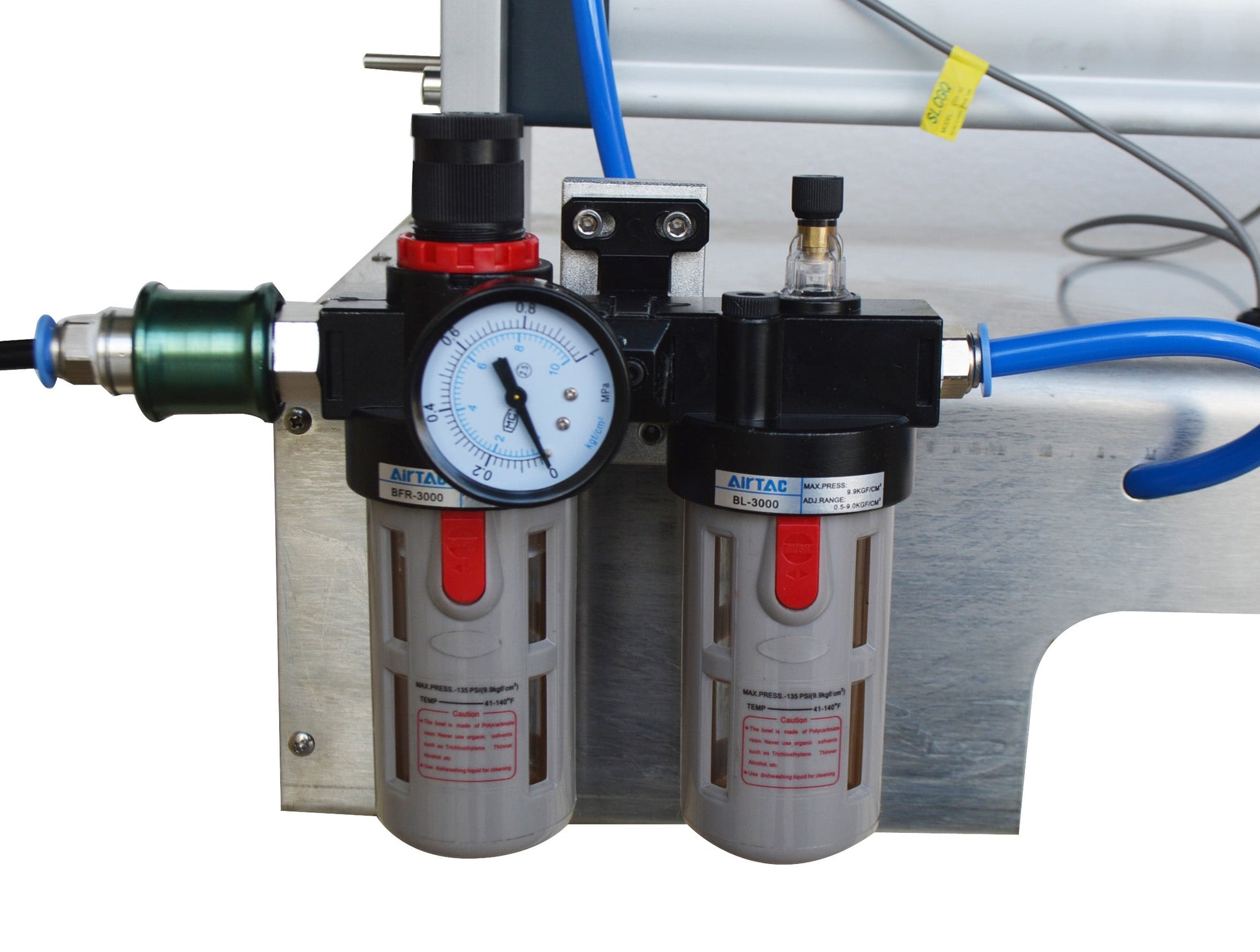

1. Air supply treatment
2. Power socket
3. Power on/off
4. Inching/auto option switch
5. Inching switch jack
6. Filling volume regulation hand wheel
7. Magnetic switch (back)
8. Fastening screw
9. Piston
10. Cartridge

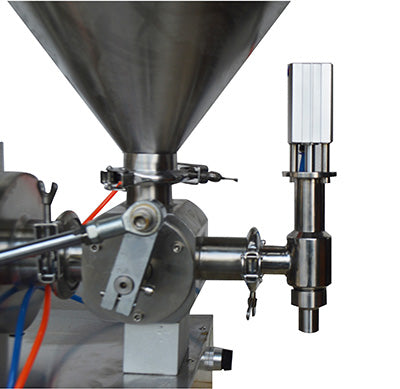

11. Rotary disk valve
12. Discharge nozzle
13. Emergency stop switch
14. Cartridge cylinder
15. Rotary disk cylinder
16. Hopper
