PEX-b Radiant Heat Tubing

PEX-b Radiant Heat Tubing

$389.00 USD
$389.00 USD
Sale Sold out
Shipping calculated at checkout.
　
https://buyyou.net/cbe/data/prd/251/999/998.jpg

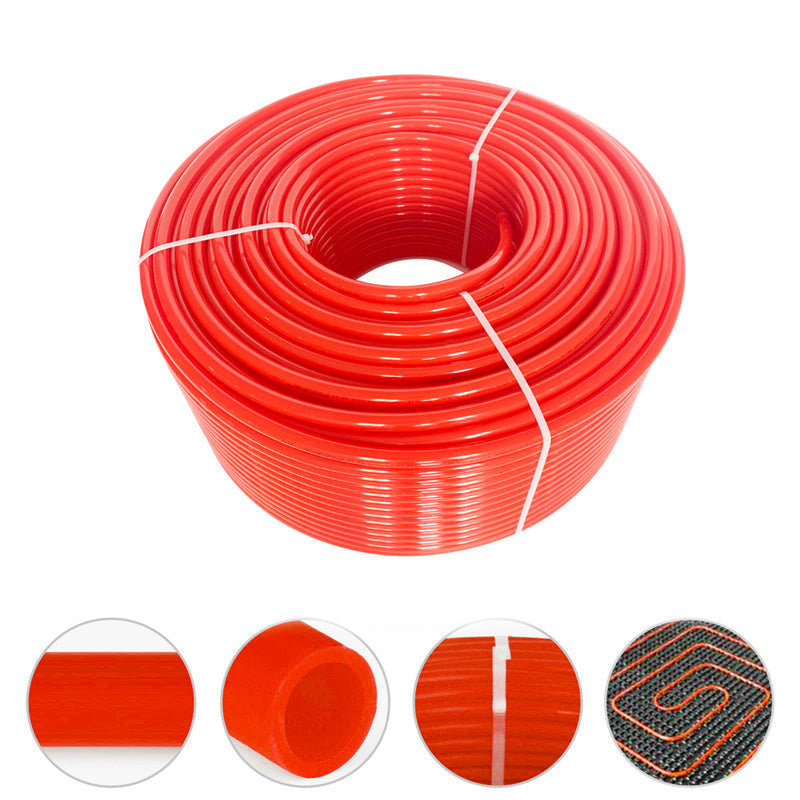

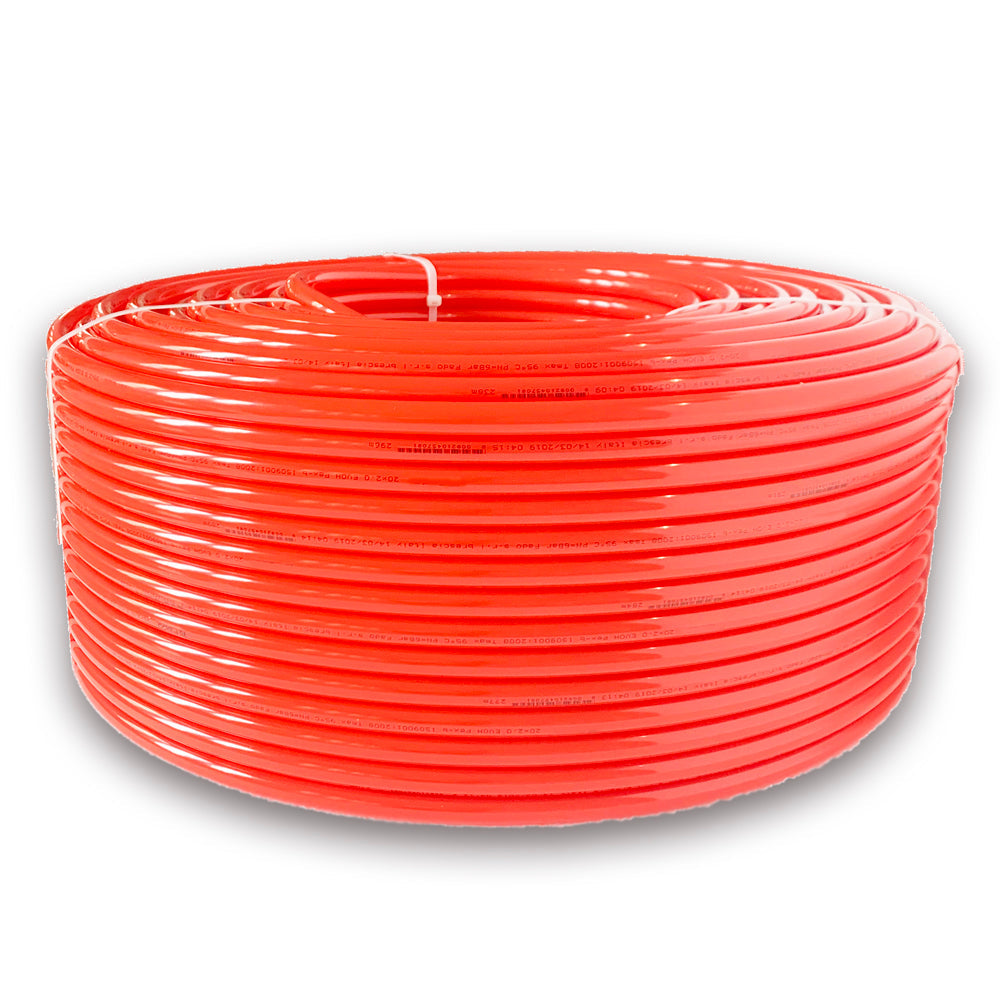

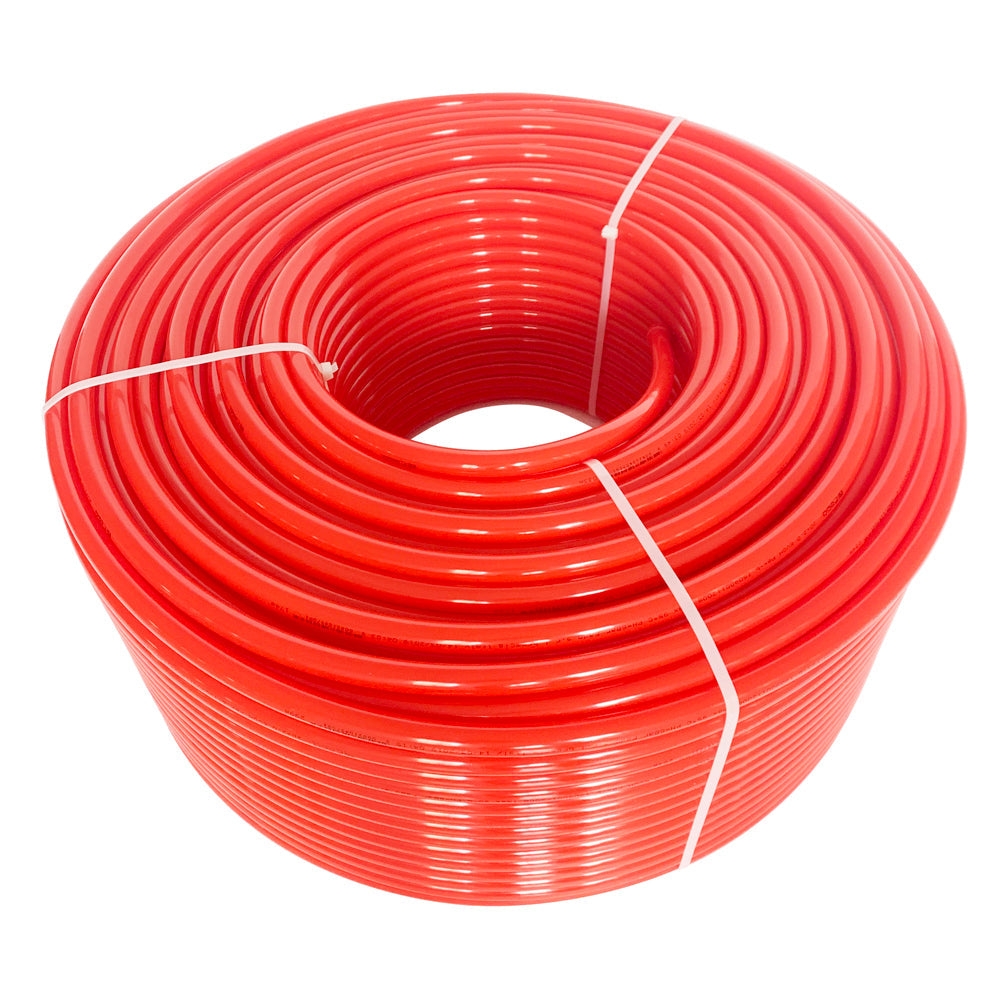

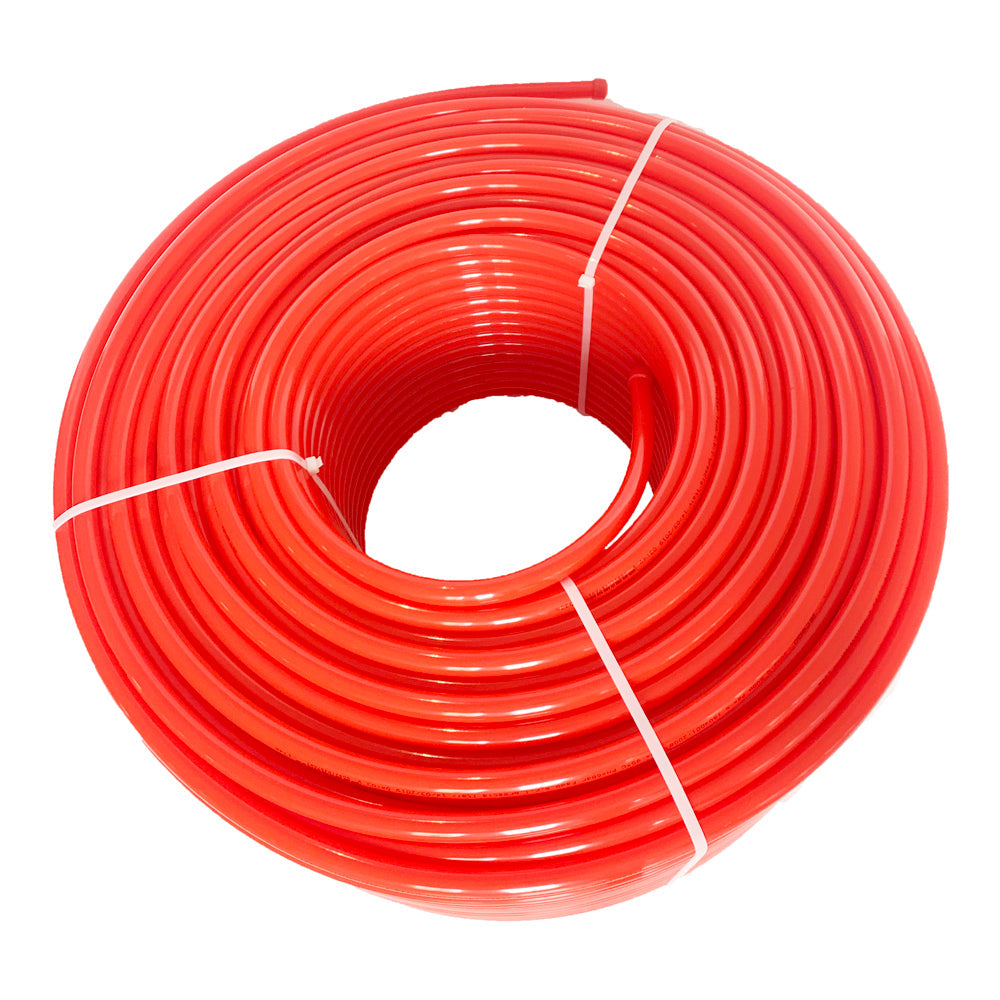

 3/4 "x 1000' EVOH PEX-b Radiant Heat Tubing
https://topseller365.com/cbe/data/prd/028/291/0.jpg

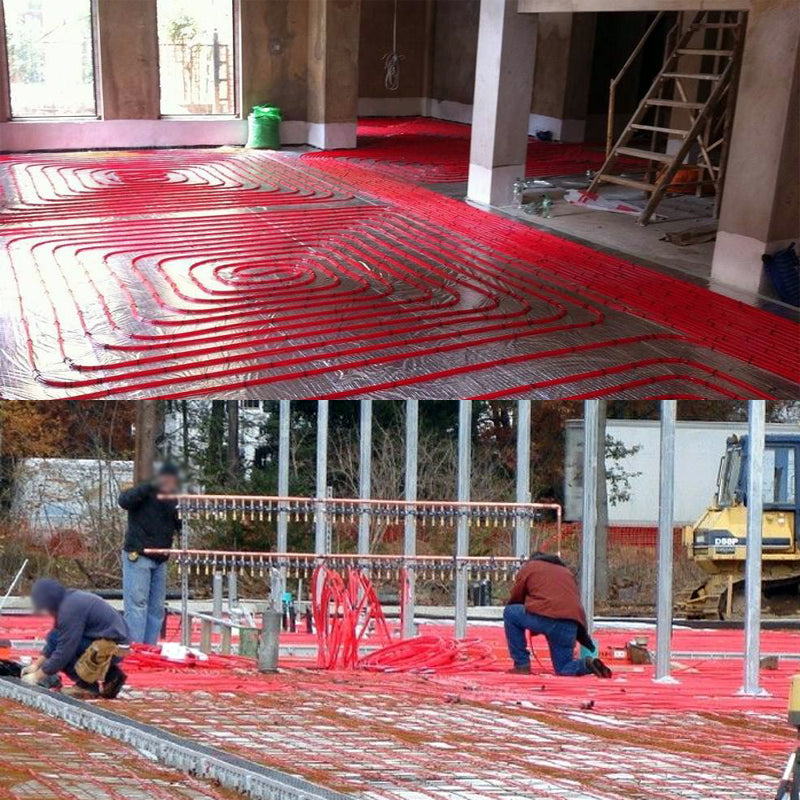

This Oxygen Barrier Radiant PEX tubing in Red is 1000 feet long and is 3/4 inch. It is is commonly used for plumbing, radiant & hydronic systems, can be used in most radiant heating installation method such as Thick/Thin concrete slabs, under -sub-floor, Hanging Floor, Snow Melting and solar heating applications.
It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.
https://buyyou.net/cbe/data/prd/259/006/02.jpg

PEX anti UV Tubing：3/4 "x 1000' PEX anti UV Tubing with specifications of 20x2.0,keep quick & constant hot/cold water flows. Big pressure capacity: 188-217psi at 20℃; 101-108psi at 95℃. Temperature Range: -45 to 110℃(-47℉ to 230℉).
Robust O2 Resistant: It is covered by EVOH, which would block the O2, making the metal components anti-corrosion, to the maximum extent, lengthened the life span of the heating system. The inner pipe is smooth and anti-scalling, endowing the product with high heat diffusion efficiency and perfect energy-saving performance.
Quick to Install: Compatible with different connection system & floor type, such as: Crimp connection system (crimp tool + crimp rings + crimp fittings); Cinch (clamp) connection system (cinch tool + St. steel clamps + crimp fittings); Press system (by Viega); Compression PEX Fittings.
Reliable Material: Min.7" bending radius, this radiant floor heating system is easy to bend for different ground situation.
Commercial & Home Use：Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water transmission. Keep quick hot & cold water flows.

Note:
Although the PEX has UV resistance, PEX should not be placed in the sun or have UV exposure.

Type: PEX-b Tube(Oxygen Barrier)
Color: Red
Total Length: 1000FT
Nominal Diameter: 3/4"
Inside Diameter: 0.63"
Outside Diameter: 0.78"
Tube Thickness: 0.08"
Temperature Range: -45 to 110℃/ -47℉ to 230℉
Pressure Rate: 188-217psi at 20℃; 101-108psi at 95℃
Min. Bending Radius: 7"
Coiled: Yes
Warranty: 2 Years
https://buyyou.net/cbe/data/prd/259/006/03.jpg
https://topseller365.com/cbe/data/prd/028/291/1.jpg
https://topseller365.com/cbe/data/prd/028/291/2.jpg
https://topseller365.com/cbe/data/prd/028/291/5.jpg
https://topseller365.com/cbe/data/prd/028/291/6.jpg
Item include:
3/4 "x 1000' EVOH PEX-b Tubing (028291)
