30KG Welding Positioner

30KG Welding Positioner

$799.00 USD
$799.00 USD
Sale Sold out
Shipping calculated at checkout.

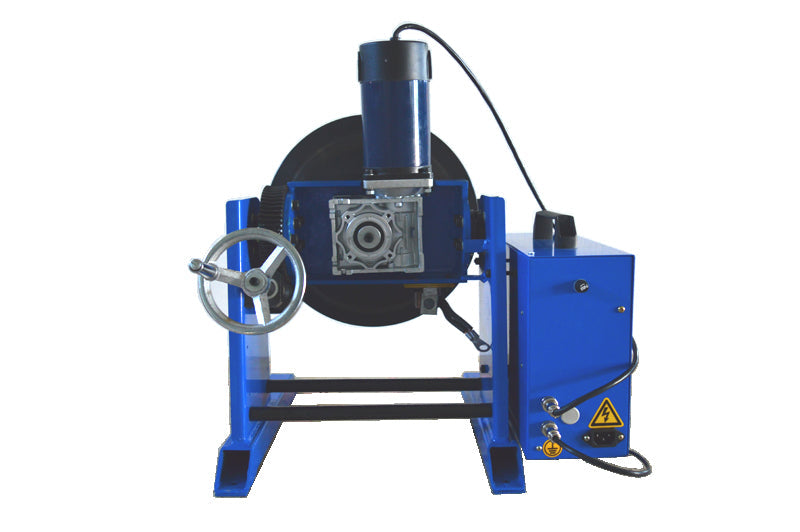

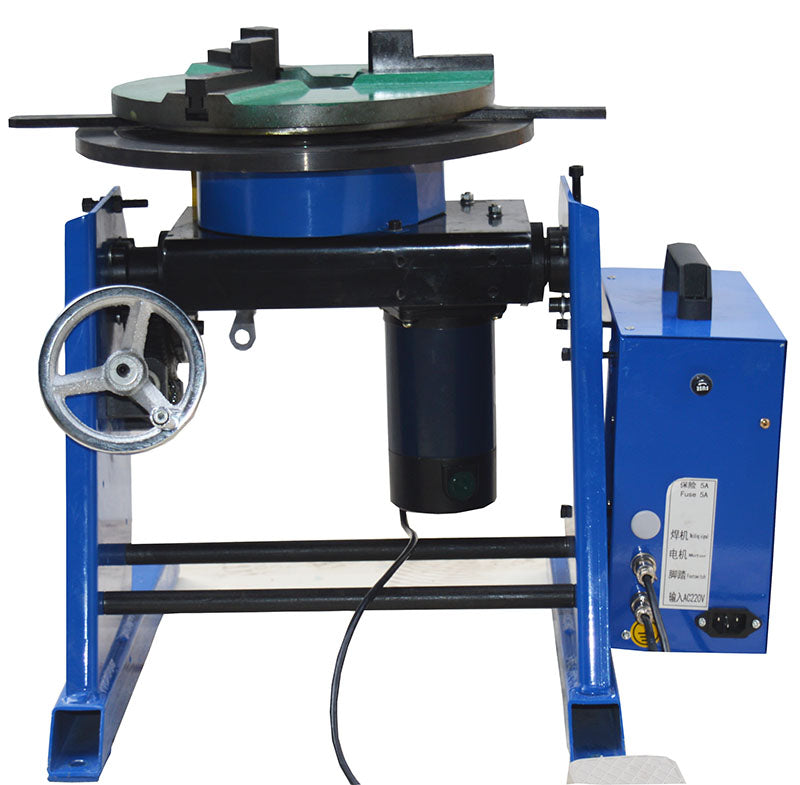

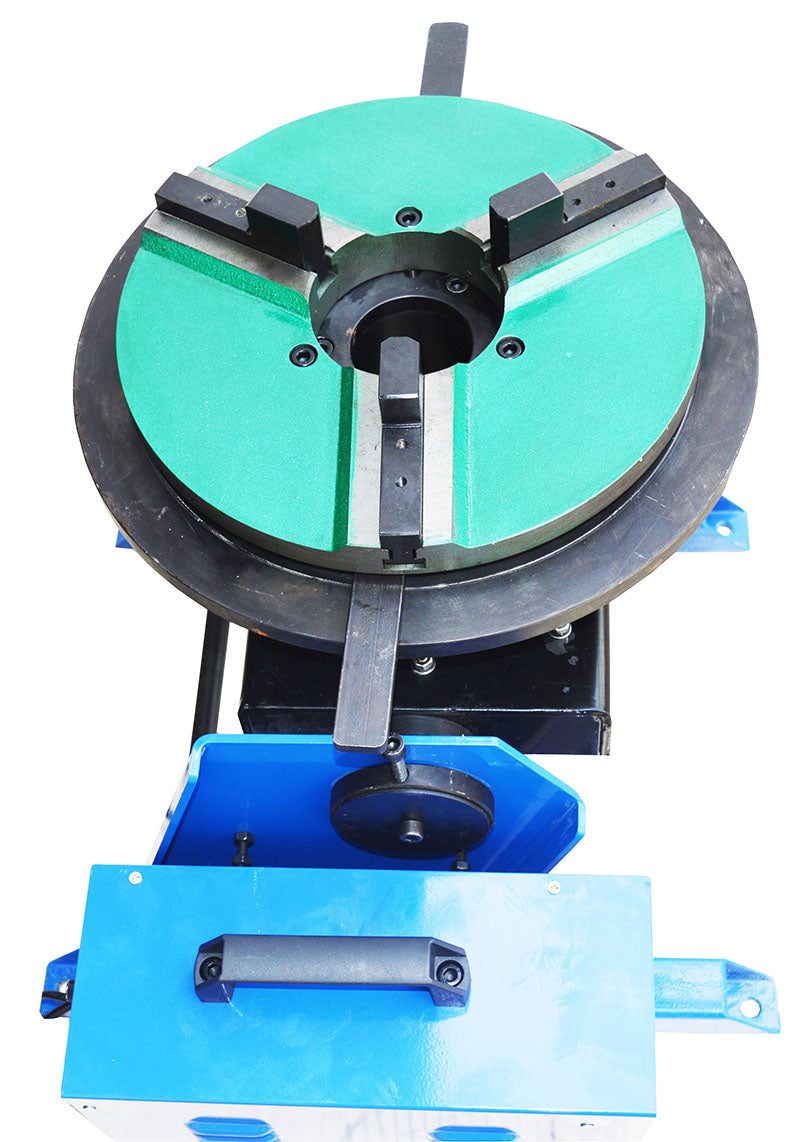

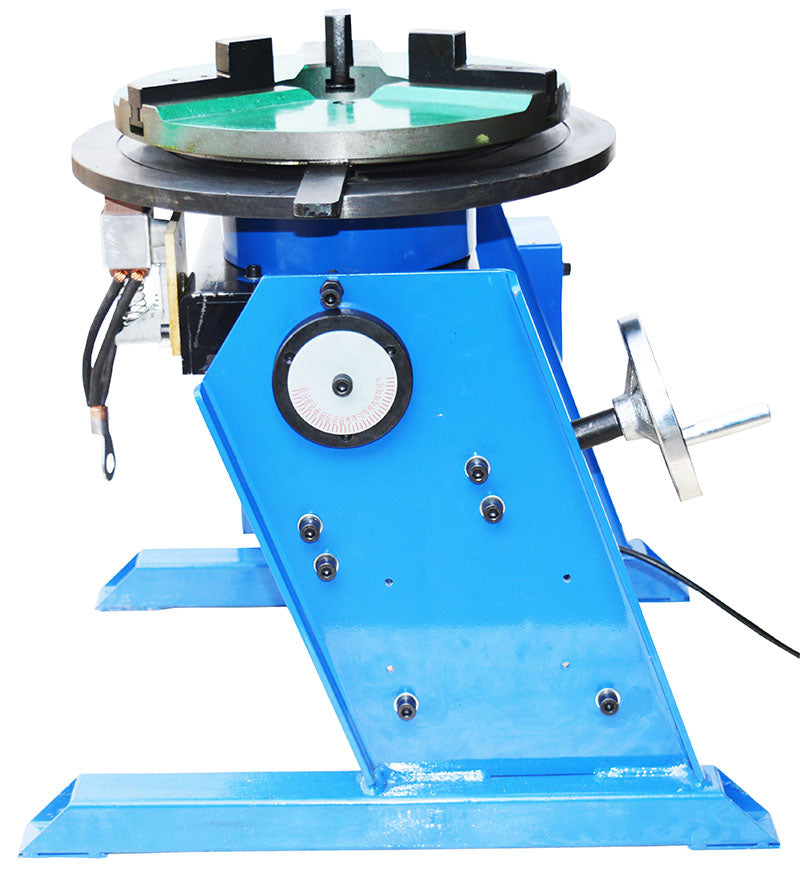

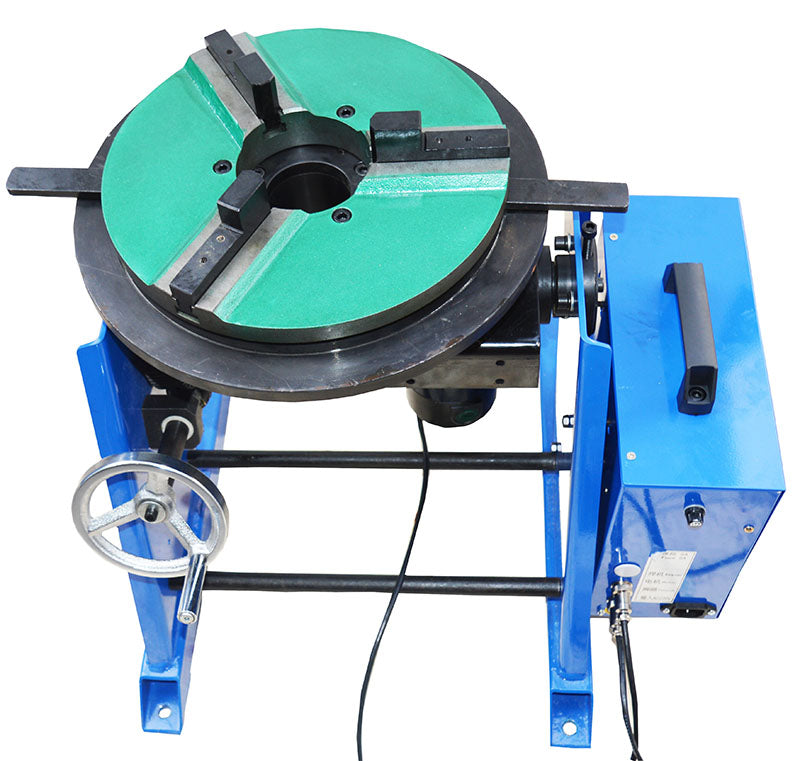

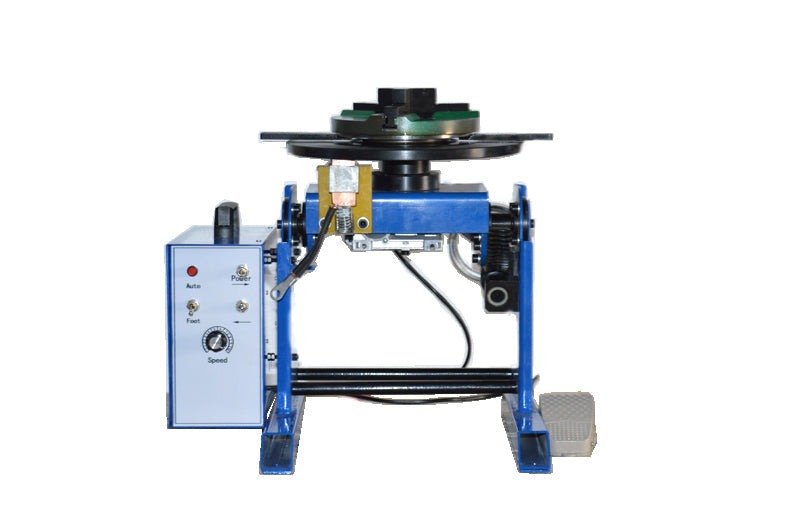

30KG Welding Positioner Turntable with 200mm Chuck
https://buyyou.net/cbe/data/prd/251/139/DSC_0454.jpg
https://buyyou.net/cbe/data/prd/259/006/01.jpg　
Model: BWJ - 30

Base load  : 30kg

Flip speed: Manually Flip

Turn Angle: 0-90

Table diameter: 310mm

Height of the center of rotation: 400mm

Rotary motor power: 0.12 KW

Appearance size: 380 * 360 * 400mm
N.W:30KG
https://buyyou.net/cbe/data/prd/259/006/03.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0469.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0465.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0471.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0477.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0492.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0480.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0486.jpg
https://buyyou.net/cbe/data/prd/251/139/DSC_0490.jpg

https://buyyou.net/cbe/data/prd/259/006/02.jpg
1.The rotation structure is driven by name-brand DC motor, while stepless speed regulation can be achieved
2.The tile range of rotary table is 0~90, worker can set the shaft, so the welding at arbitrary angle can be achieved.
3.Special design of anti-electromagnetic, which reduce the high frequency interference of TIG’S welding, at the same time can improve the welding quality effectively.

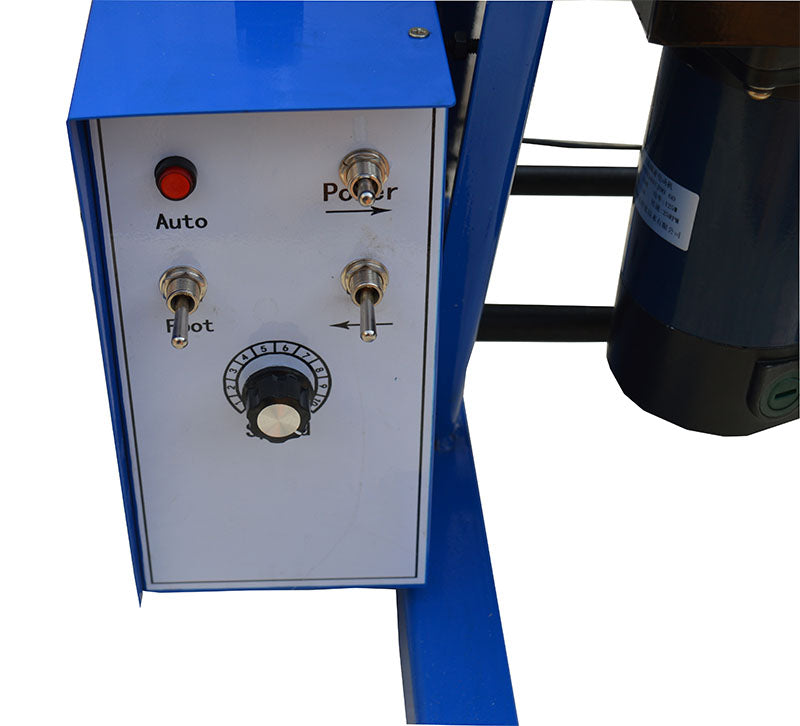

4.A time- controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5.The adjustable-welding gun support can be furnished to fix the position of the welding torch.

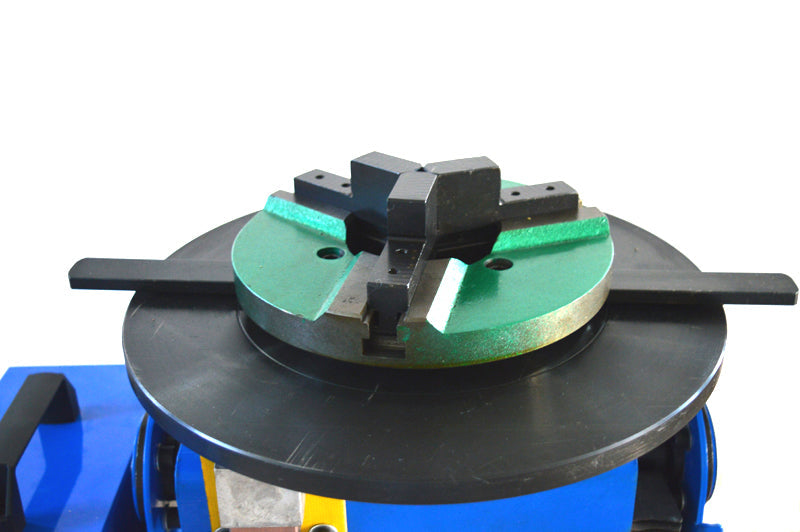

6.The welding chuck and air-powered tailstack can be furnished to achieve the function of self holding to the workpiece.
Item Included:
One Set 30KG Welding Positioner Turntable with 200mm Chuck (251144)
