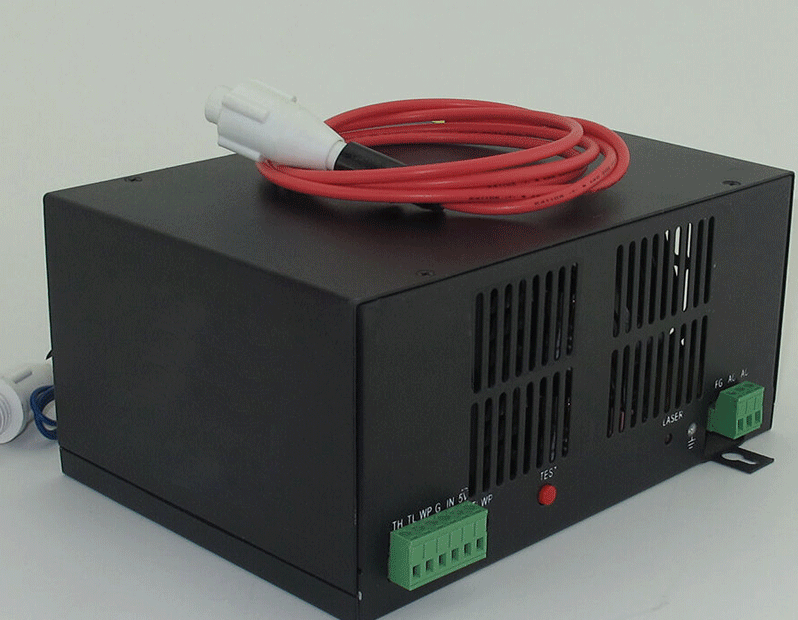

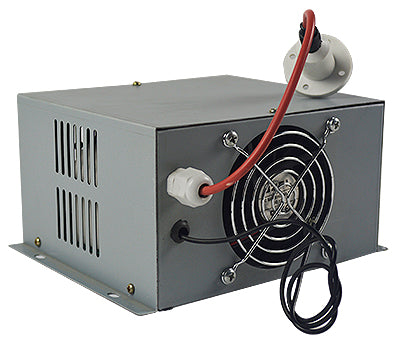

50W Power Supply for CO2 Laser Engraver

Input

Input Voltage

 AC110V

AC frequency

47—440HZ

Cold Surge Current

≤60A(AC220V Input)

≤30A(AC110 Input)

Current Leakage

≤0.7mA（AC220V Input）

≤0.4mA(AC110V Input)

Output

Maximum Output Voltage

DC 30KV

DC 5V

DC 24

Maximum Output Current

DC 25mA

1A

1A

Efficiency

≥90﹪（full load）

Mean Time Between Failure (MTBF)

≥20000H

Response Speed

≤1ms（from the switch Signal is given to the output current up to 90% of the setting current）

Control Interface

TTL level switch control (details refer to the control terminal specification)

Pressure-proof

Input-Output, Input-Shell: AC1500V 10MA 60S

Protection

can work in open-circuit condition for a short time （Require a good protective earthing and avoid arc between the positive and the machine shell）

Environmental

Operating Temperature：-30~65℃），Relative Humidity (RH) ：≤90﹪

Cooling Way

Natural air cooling
