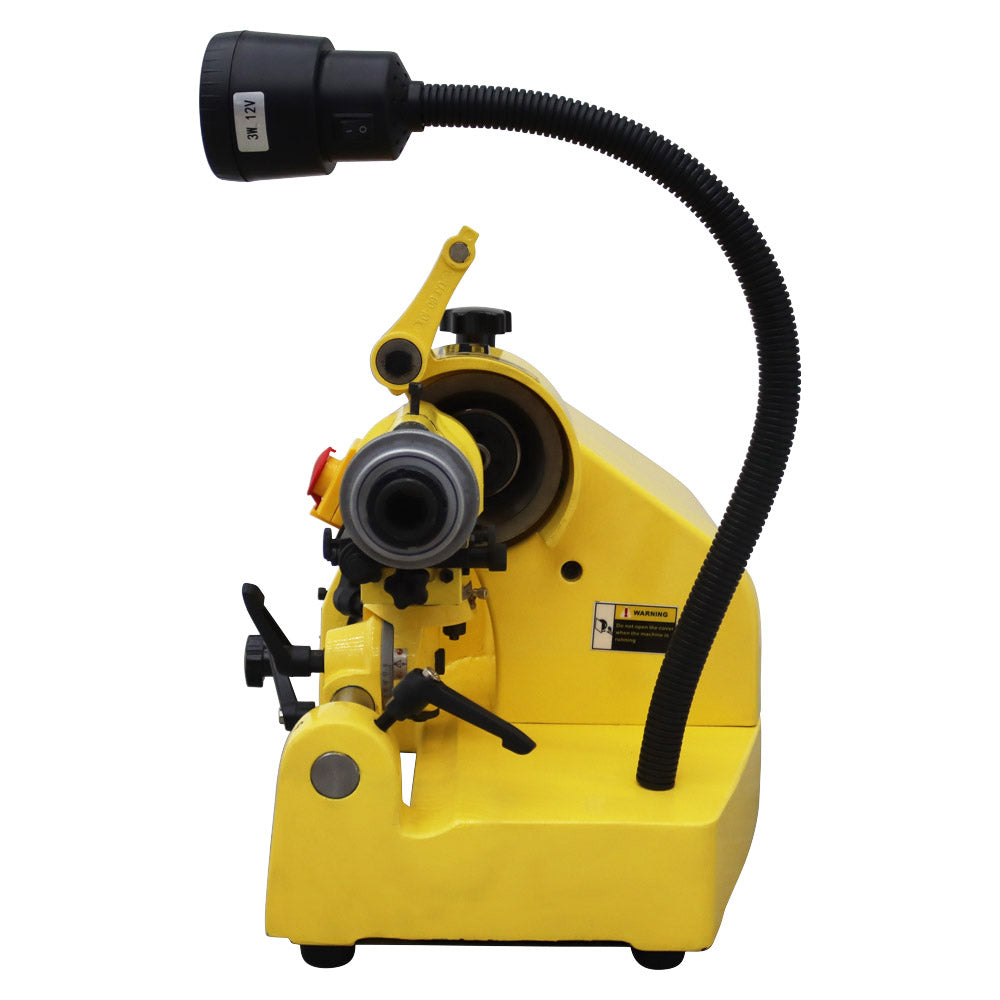

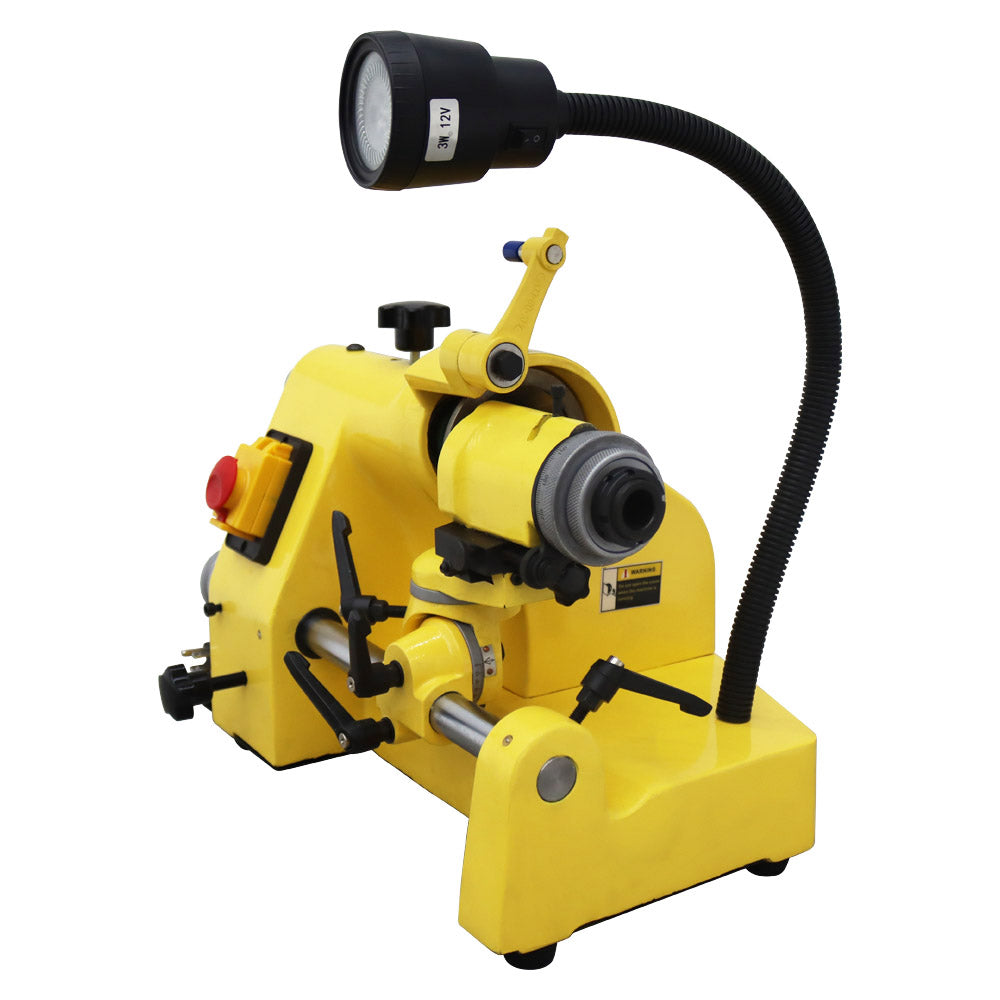

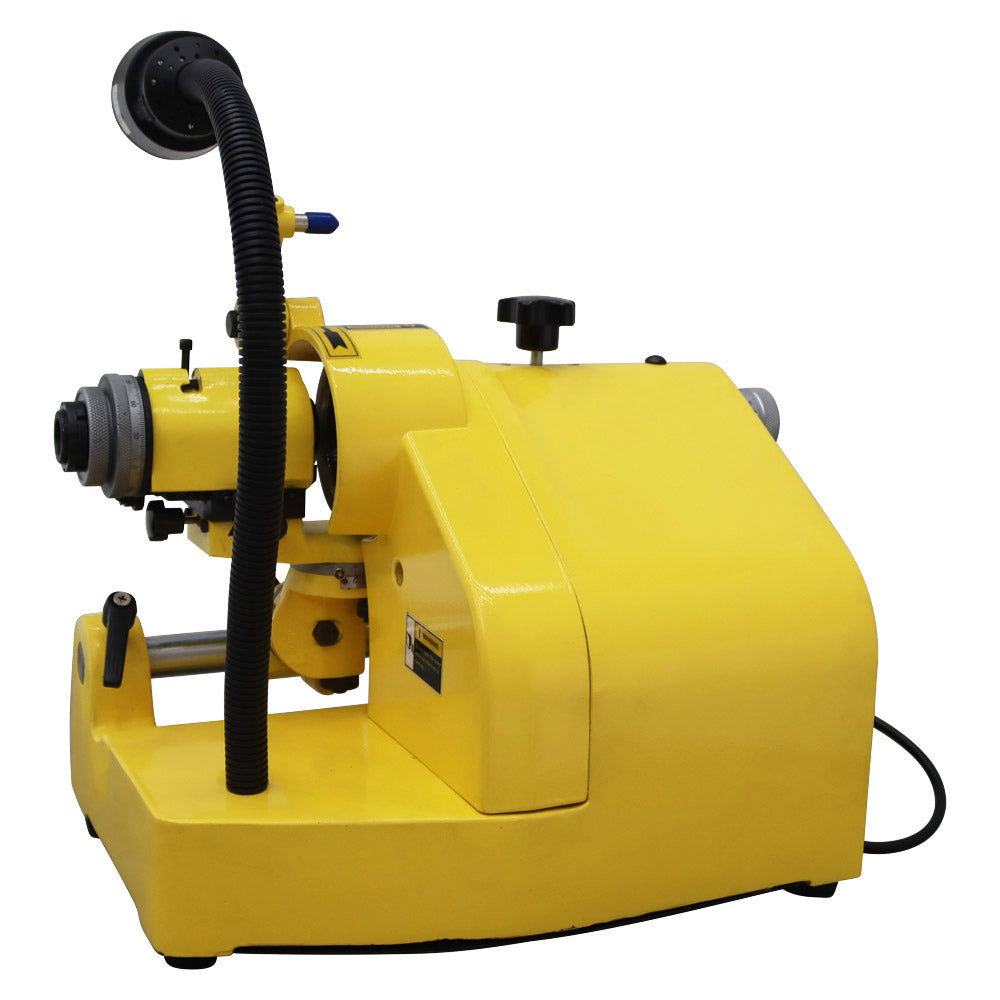

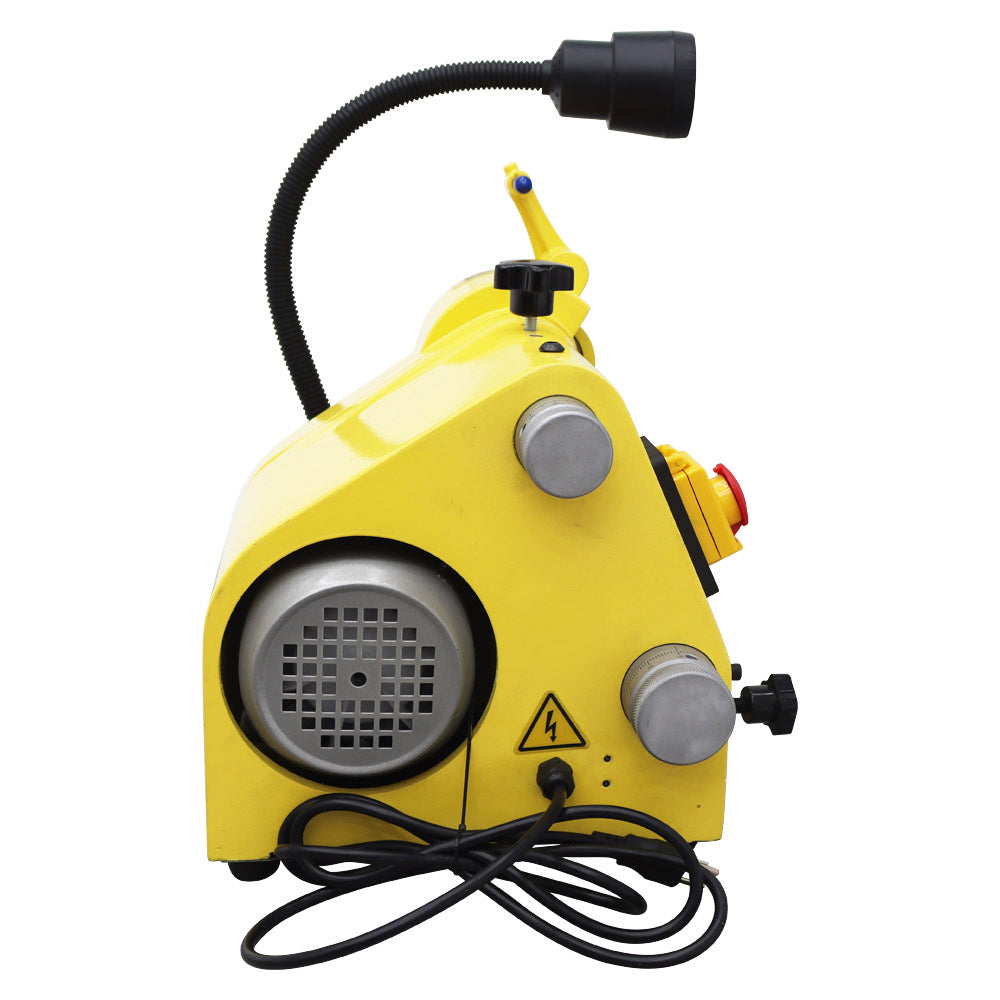

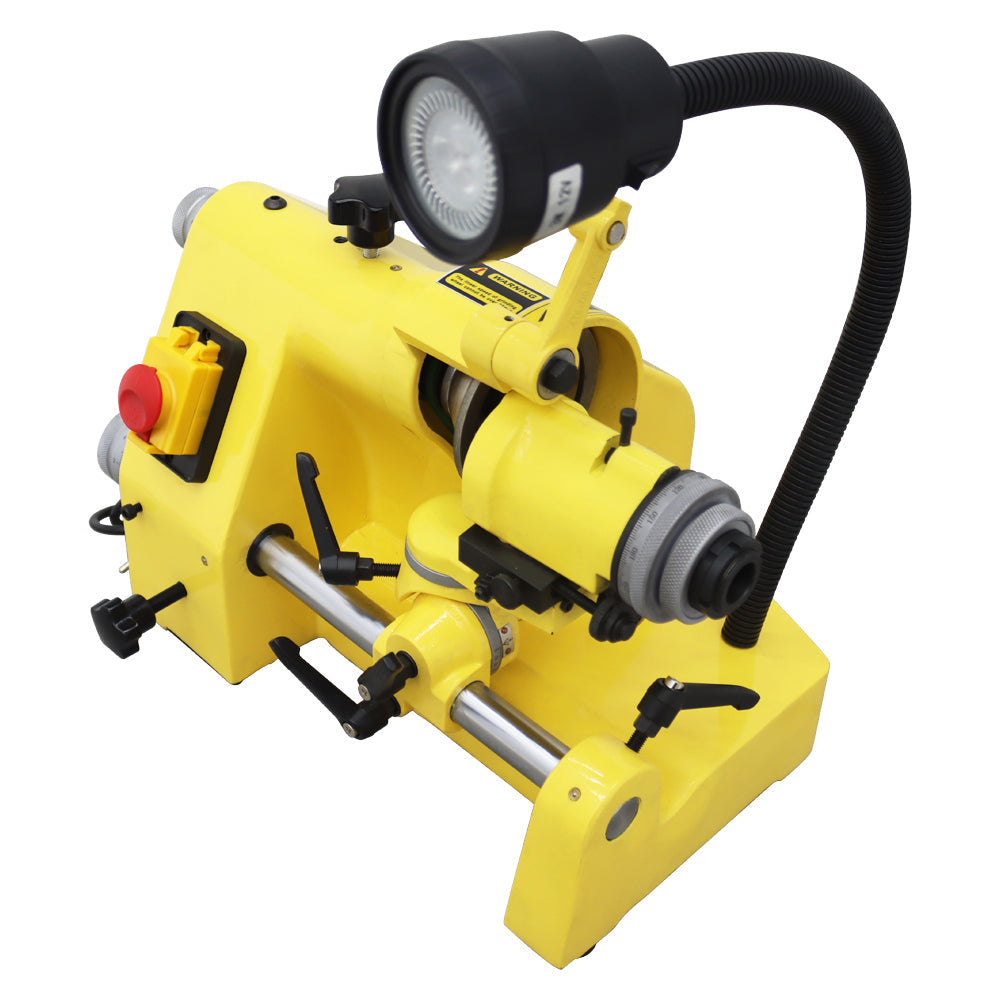

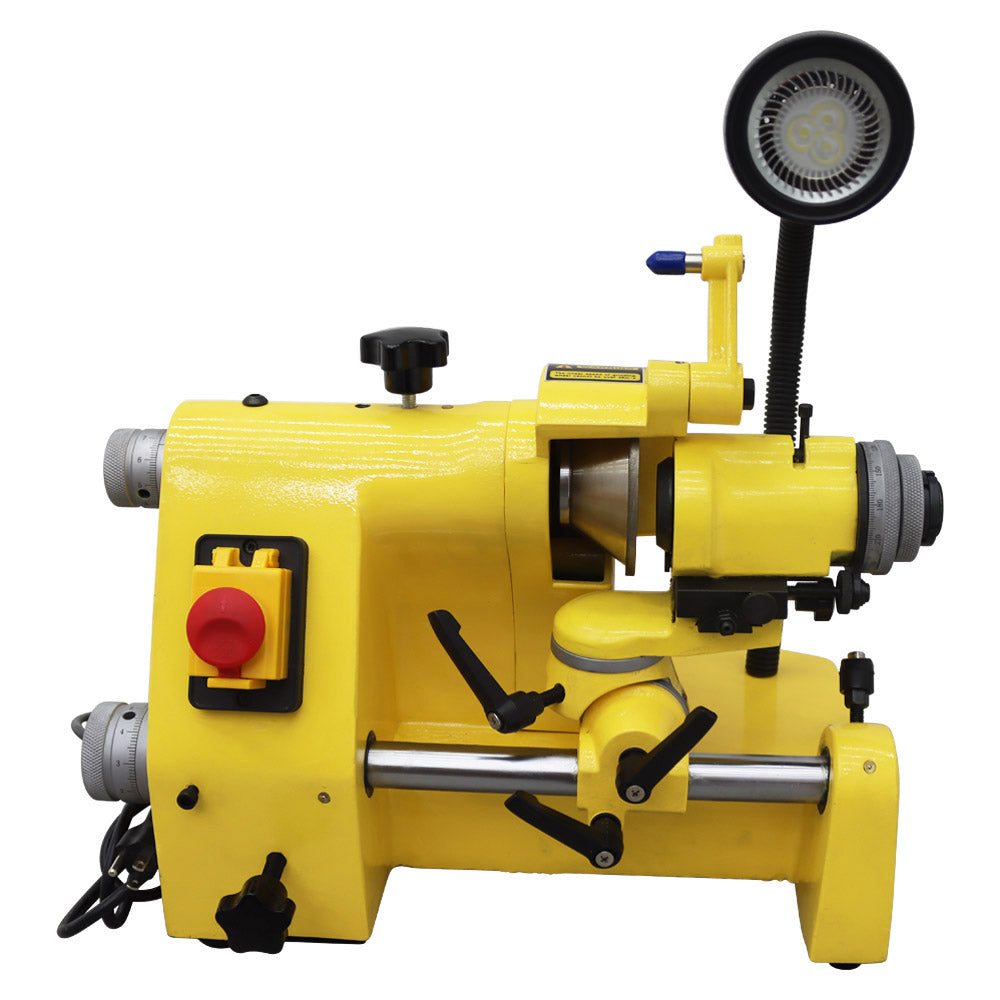

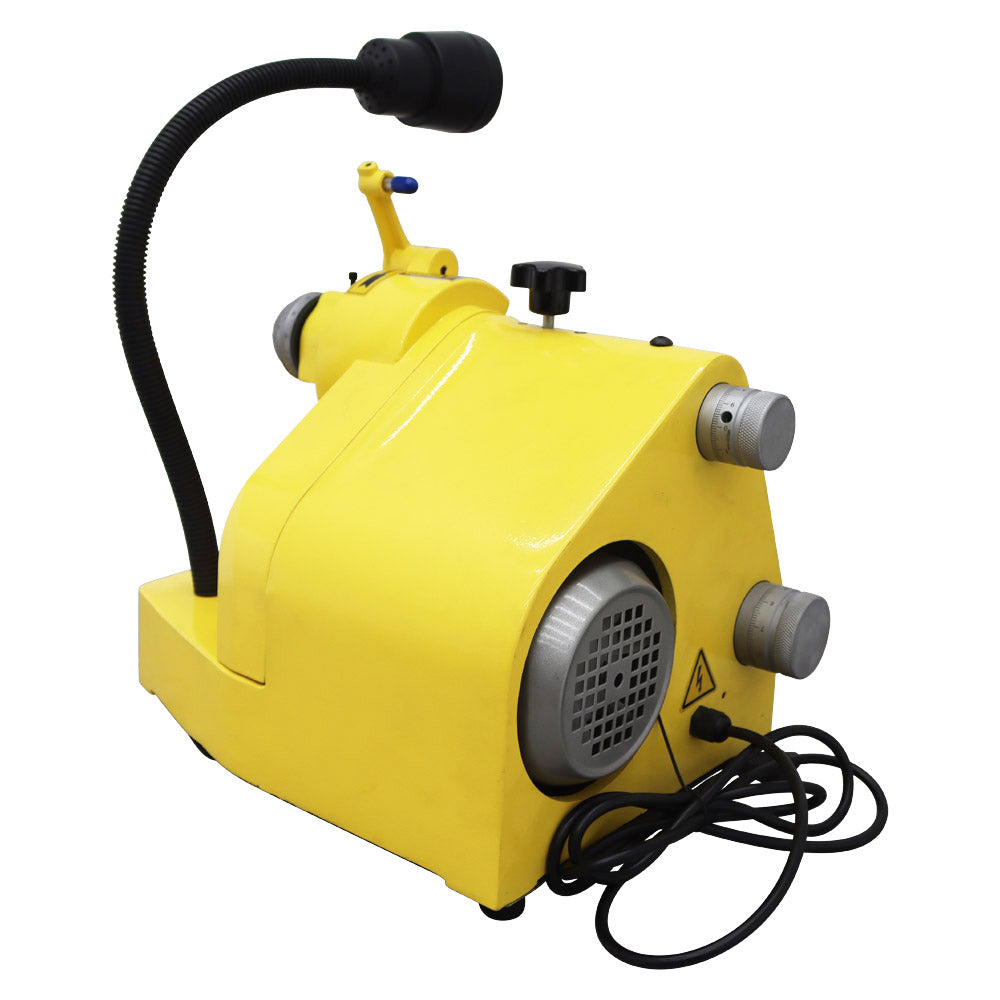

5C Universal Cutter Grinder Sharpener |
|
|
|
|
It is a mchine used for grindering. Suitable for different kind of cutters, such as drill bit, lathe bit by using
different acceories.
|
 |
| Parameter |
| 5 kinds of collet clips |
0.15''=4mm, 0.2''=6mm, 0.3''=8mm, 0.4''=10mm, 0.5''=12mm. |
| Max. collet capacity |
φ18mm |
| Maximum grinding diameter |
φ28mm |
| Motor |
110V |
| Power |
370W |
| Grindingcone angle range |
0°-180° |
| Relief angle |
0°-45° |
| Negative angle |
0°-25° |
| Grinding Spindle |
5200r.p.m. |
| Grinding wheel |
φ100*50*φ20(3.9*2.0*0.8") |
|
| Feature |
|
1.Multiple needs in one machine quickly
We adhere to quality, strictly follow the production standards, and carefully polish every detail, so that you
can buy and use peace of mind.
|
 |
|
2.Various workpieces can be ground
Simple operation, can grind a variety of similar semi-rounded or anti-cone Angle of high-speed steel, carbide
engraving tools and multilateral tools
|
 |
|
3.Copper core motor power is strong
5200rpm High speed, efficiency guarantee; The dense ventilation hole has strong heat dissipation, can work
for a long time, and refuses to burn the machine.
|
 |
|
4.Full bearing tool holder ensures accuracy
The tool head is built with imported NSK precision bearing, which can effectively ensure the sharpening
efficiency and reduce the error.
|
 |
| Accessories |
|
Grind turning tools within 20 * 20
High speed steel and carbide cutting tools can be
fixed on attachments, and the cutting tool must
be positioned by the fan shape of the attachment.
The fan shape is replaceable, and its task is to
clamp the cutting tool in the center position of
the attachment and maintain the required height.
|
 |
|
Grinding 3-16mm milling cutter end edges
and side cutters
For end milling cutters, a release device is required
to rotate the attachment to the desired angle,
guide the horizontal movement of the rod, and
adjust the positioning according to the diameter
of the end milling cutter.
|
 |
|
Grind 3-8mm drill bits
High speed steel and carbide cutting tools can be
fixed on attachments, and the cutting tool must
be positioned by the fan shape of the attachment.
The fan shape is replaceable, and its task is to
clamp the cutting tool in the center position of
the attachment and maintain the required height.
|
 |
 |
