A Chuck Molding Ring

A Chuck Molding Ring

$119.00 USD
$119.00 USD
Sale Sold out
Shipping calculated at checkout.

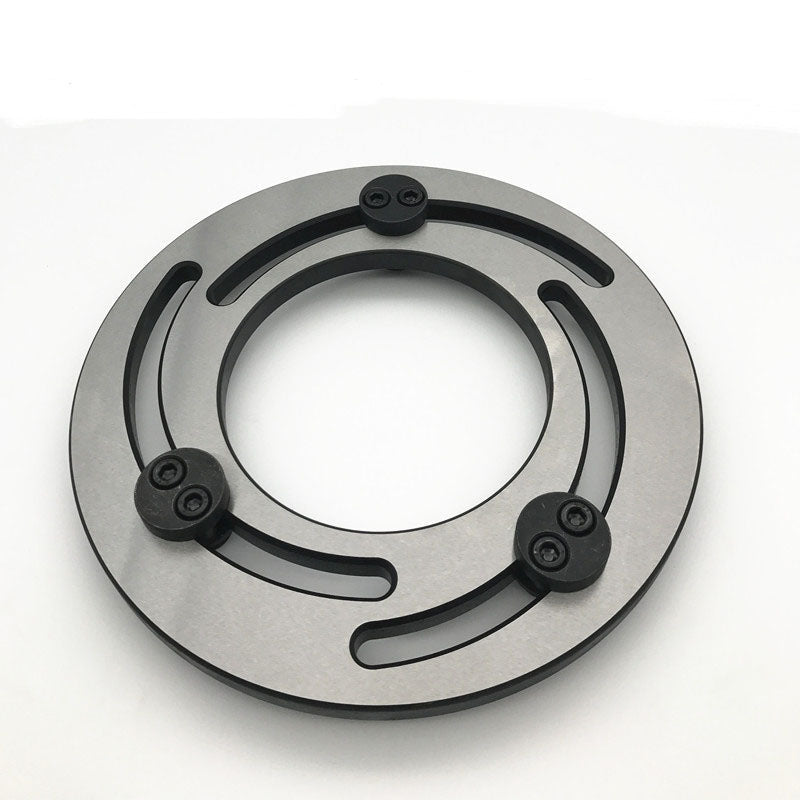

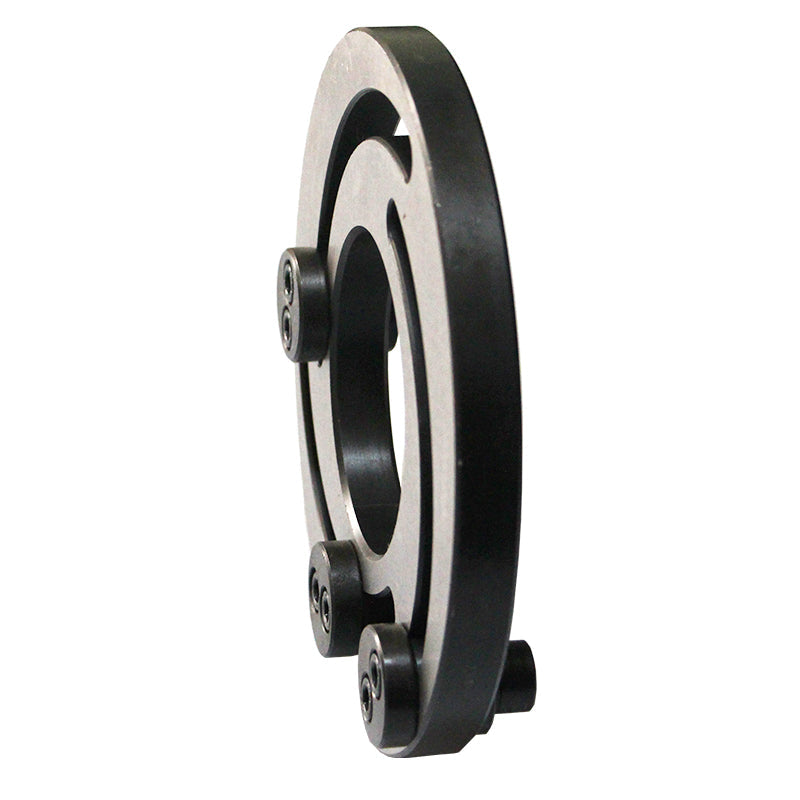

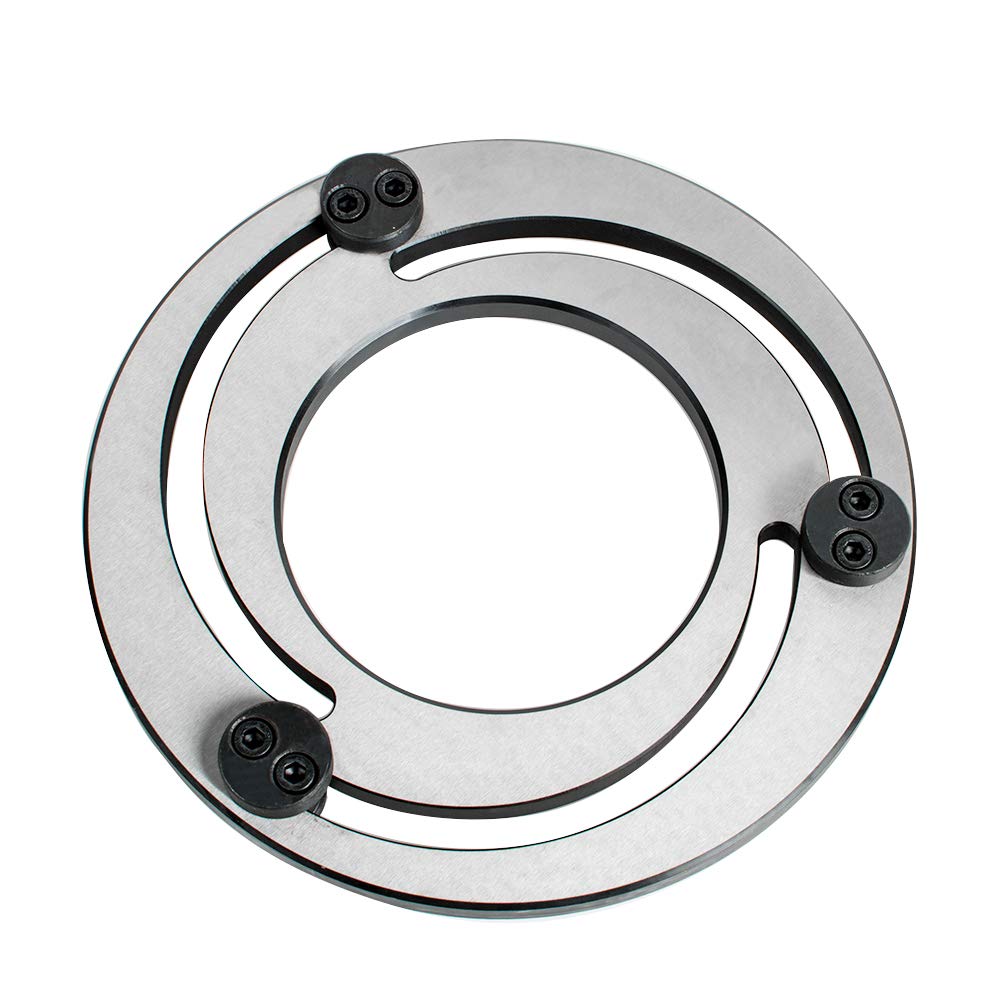

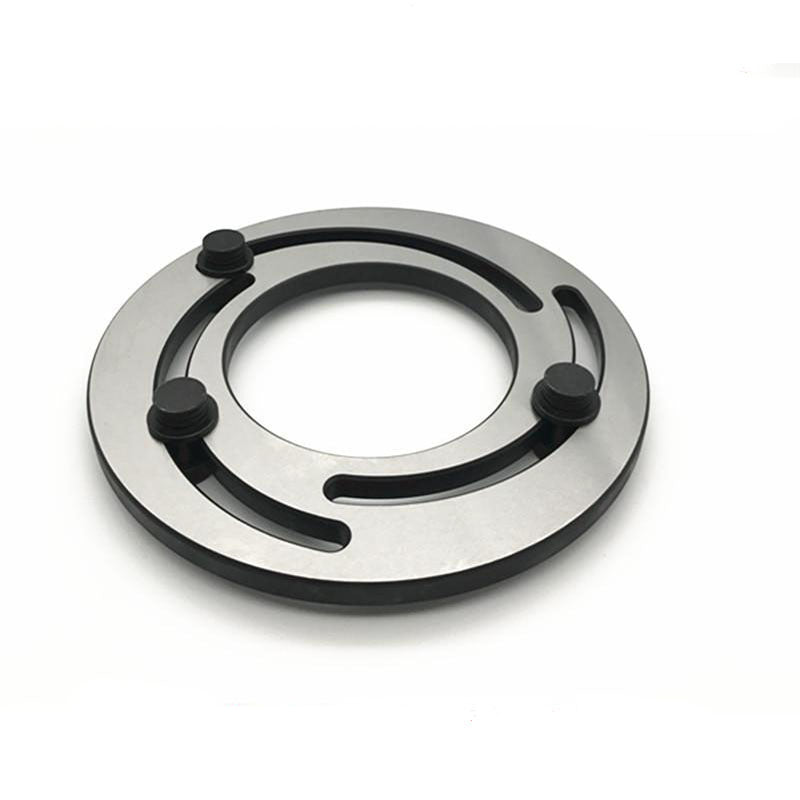

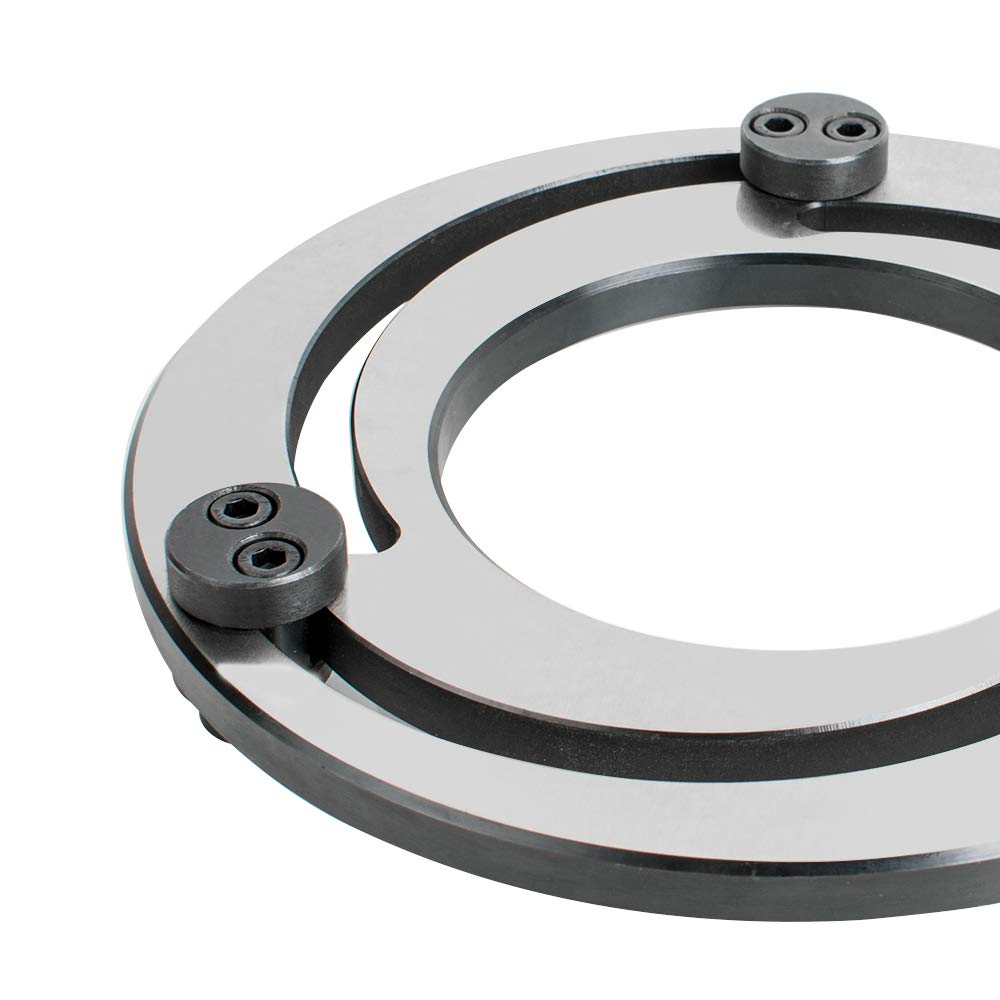

A chuck molding ring

Product  description

Chuck Size: 8"

Material:  40 Cr-Mn alloy steel, 38-42 degree quenching vacuum heat treatment, more  refined and more durable

  • Designed to fit 8" size Kitagawa B208 type or  similar CNC power chucks and manual chucks in soft jaw machining

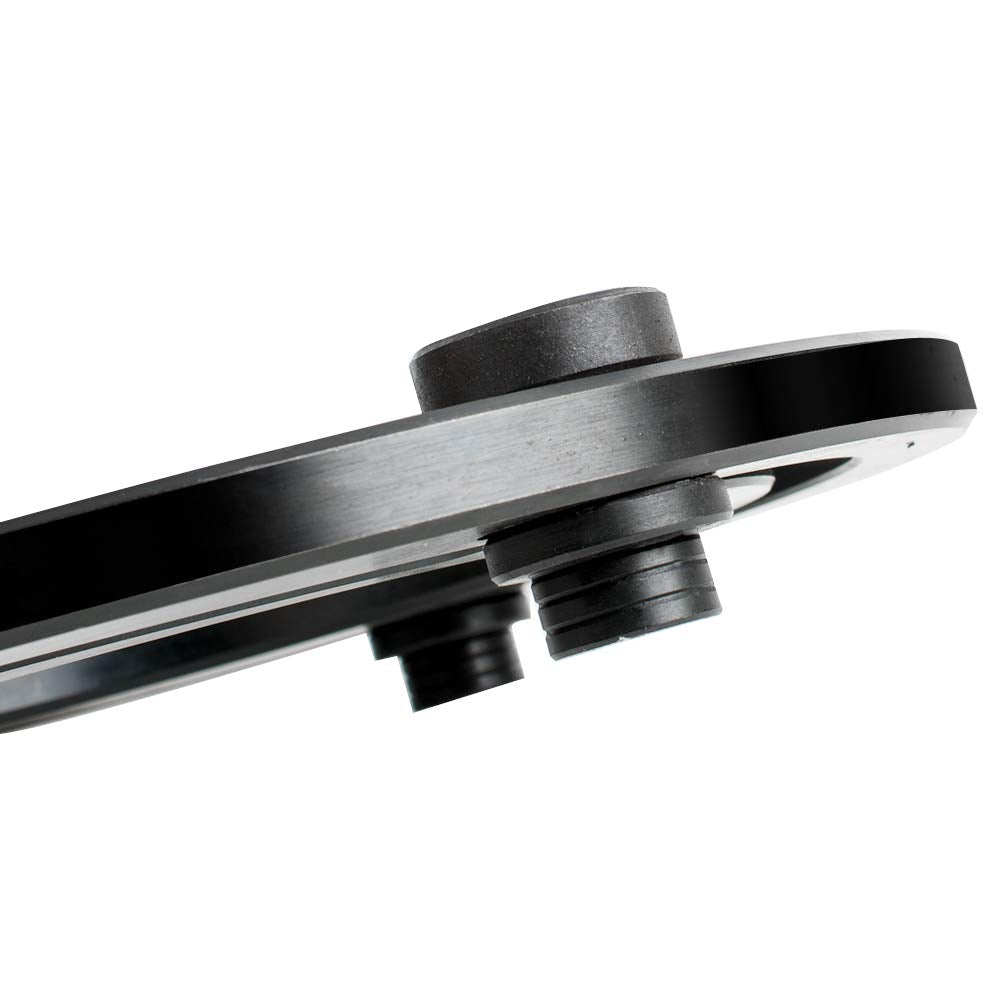

  • 3 independently adjustable pins fit into soft jaw's  counterbore to allow for even pressure clamping on each,  eliminating jaw lifting
  • Without discs or bungs used to clamp jaws, through  boring of jaw is possible
  • Boring ring will give you better concentricity and a  truer soft jaw bore

　
https://buyyou.net/cbe/data/prd/054/032/1.jpg
　
https://buyyou.net/cbe/data/prd/054/032/TB2YpbCmnnI8KJjSszgXXc8ApXa_!!2124293622.jpg
https://buyyou.net/cbe/data/prd/054/032/rpa74lzh.bmp

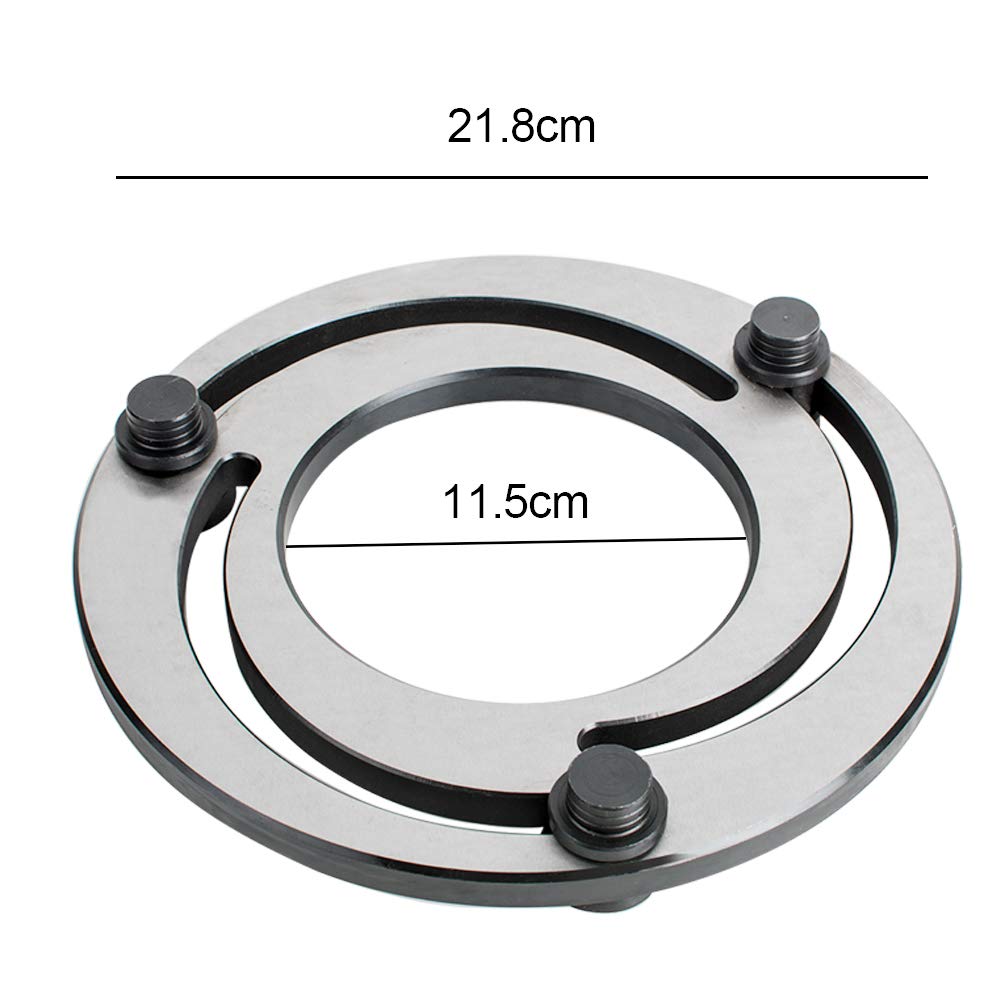

A B C D E F G
0.47" 8.6" 4.53" 0.59" 1.42" 0.35" 0.73"

　

Item Included:

A chuck molding  ring(054032)
