Acrylic Heat Bending Machine
|
|
|
|
|
|
|
|
| Attention |
1. Machine should be placed in dry, clean, ventilated position, the operation of the machine placed in a horizontal position and smooth. Keep away from flammables and explosives.
2.For safety reasons, must be connected to a reliable safety grounding device must have three feet with ground connection.
3. The heating process leads to high temperature, so avoid contacting the heating area with fingers or skin.
4. Unplug the power cable/cord, if the machine will not be used in a long time. |
| Description |
- The acrylic bending machine heater is the core part of bending machine. You can assemble various kinds of ideal practical acrylic bender with this heater.
1.Processing Material: Acrylic, Plastic, PVC, Plexiglass.
2.Used for: This acrylic bending machine heater can be widely used in decoration engineering, sign making, display cabinet, aquarium wrapping, lighting LED channel letter, bending the supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates.
3.The acrylic bending machine heater can bend all kinds of plastic sheet. If the thickness of acrylic sheet is beyond 6mm, you can use two heaters heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet.
4.You can also use many acrylic bender heaters to heat more bents at the same time.
|
| Parameter |
- Voltage: 110V
Frequency: 50/60Hz
Power: 300W
- Other model selection:800W/1500W/2000W

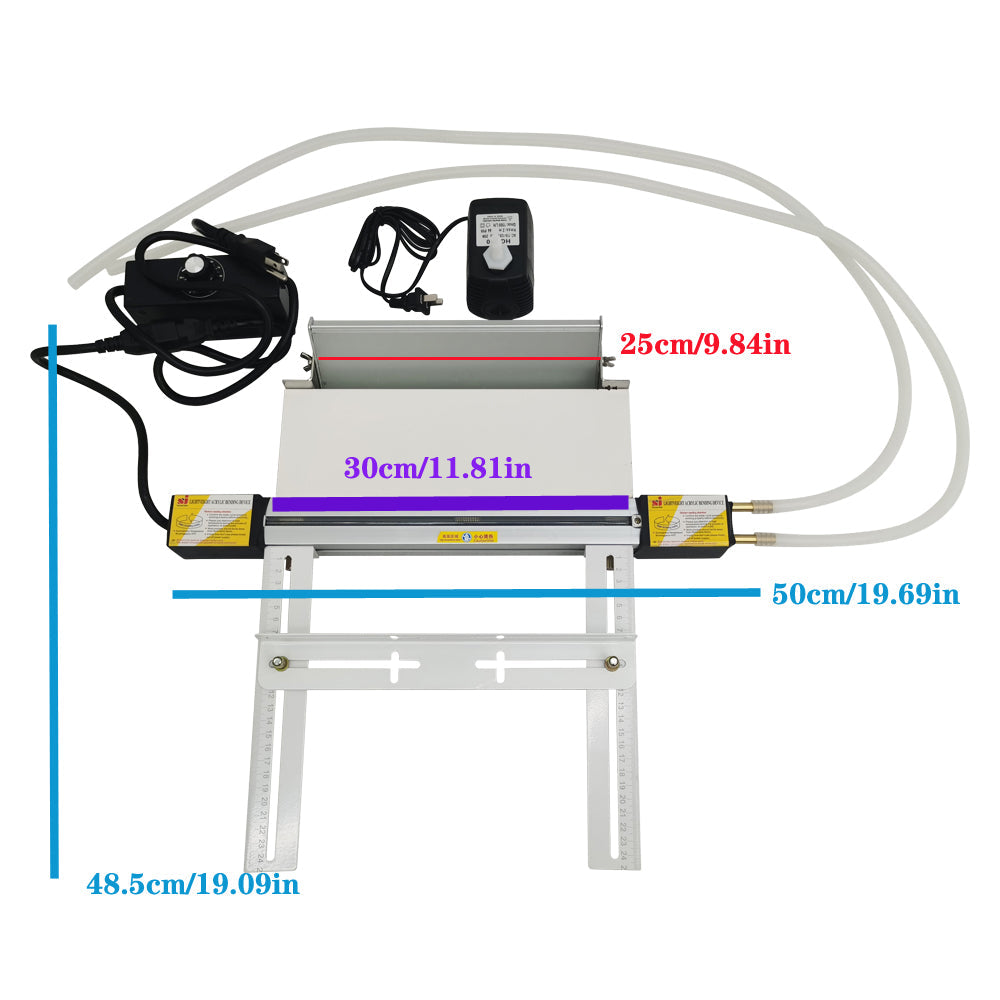

- Maximum heating Width: 11.81in(300mm)
- Other model selection:23.62in(600mm)/48.03in(1220mm)/70.87in(1800mm)
- Heating Thickness:within0.24" (6mm)
- Angle plate length:9.84in(25cm)
- Package Type：Cardboard Box
- Please note that the cooling water temperature should not exceed 40 ℃.
|
| Feature & Advantage |
- 1.Reasonable design, small size, compact structure and beautiful appearance.
2.Heat even and temperature adjustable.
3.With circulating cooling water system on both sides of heating pipe.
4.Power supply joint and water pipe joint are at the same end.
5.The body is made of special aluminum extrusions.
6.Portable, small occupation, low consumption and reliable operation.
7.Light and practical with low cost, value-priced.
8.Circulating cooling water system can make sure other parts (no heating is required) won't get thermal deformation.
9.Free plugging and unplugging, easy to storage and assembles to worktable very conveniently.
|
| Recommended temperature for some regular materials: |
Acrylic: 210℃
Perspex: 195℃
PVC sheet: 155℃
ABS: 190℃
PET: 160℃
NOTE: Just for reference, and users may modify them according to their materials and working habits. |
 |
|
|
| Operation and installation video |
|
https://youtu.be/ho_EnaGmOds
|
|
Item Number:022436
|
|
|
You can make
order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost.
|
