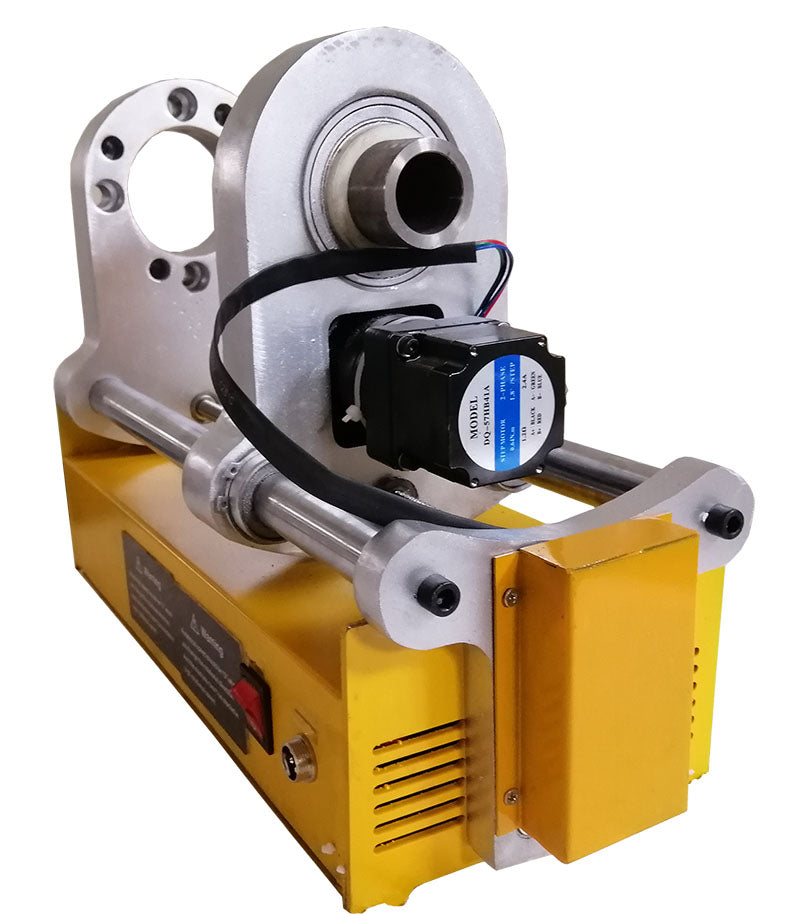

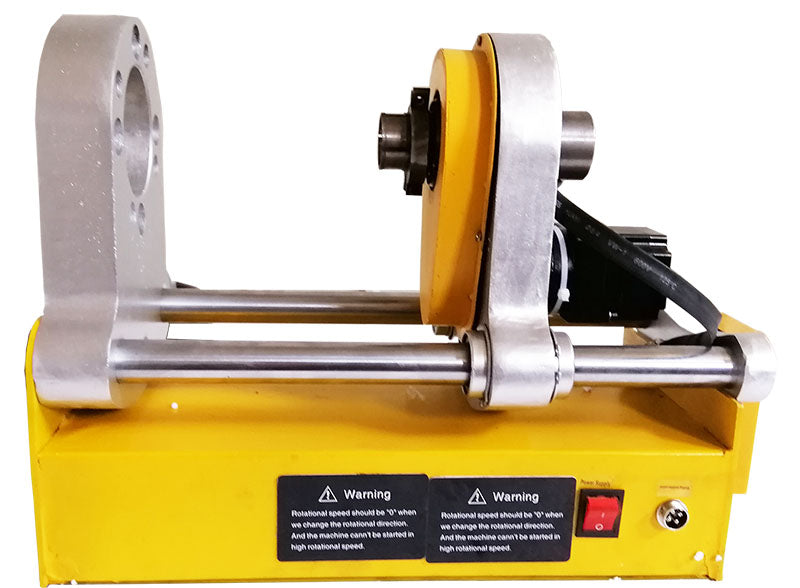

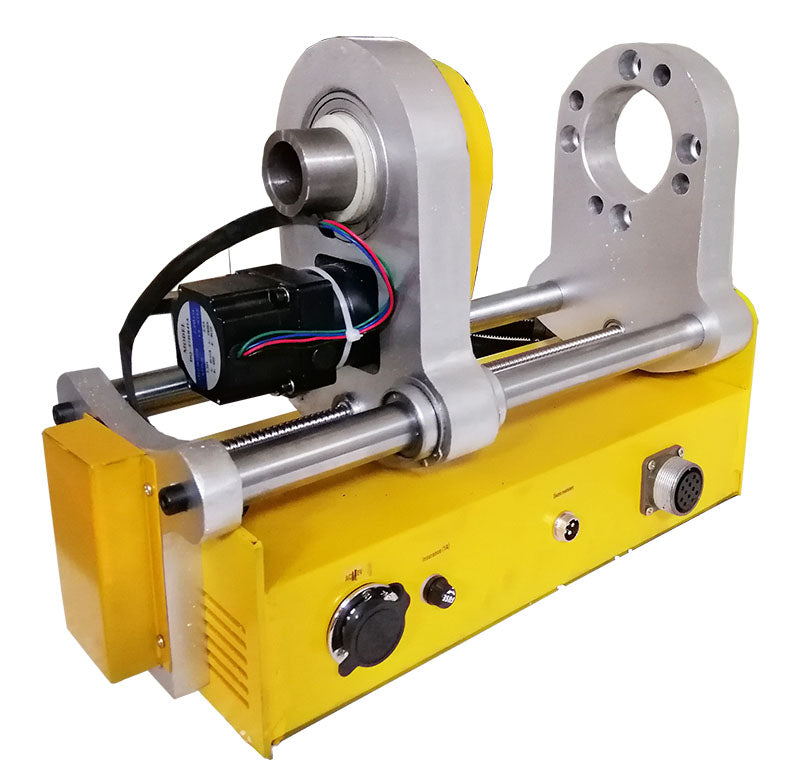

110V Auto Rotary Inner Boring Welder

It has many advantages, such as small size, light weight, easy to carry, good welding quality, and has less demanding on the environment and the use of space. It is widely used in large-scale equipment, pin hole construction machinery, such as the hole in the bearing bore welding repair, a short distance of the longitudinal seam weld. In short, the portable automatic bore welding is an essential tool for the mining industry and the maintenance of the project site.

Specification

Operating Voltage：AC 110V/50hz

Maximum Power：100W

Total Weight：23.5KG

Spindle Speed：CVT 0--40r/min

Welding Range：Φ55-220mm

Axial Travel：0-280mm

Wire Diameter：1.0mm

Welding machine: European connector

Note:

This machine needs to be used with a boring machine.

If you are not a boring machine purchased from our company, please pay attention to the supporting dimensions of the boring machine.

Work Environment

Ambient Temperature：-10℃～+55℃

Storage temperature：-25℃～+70℃

Relative humidity：≤85％

Direction

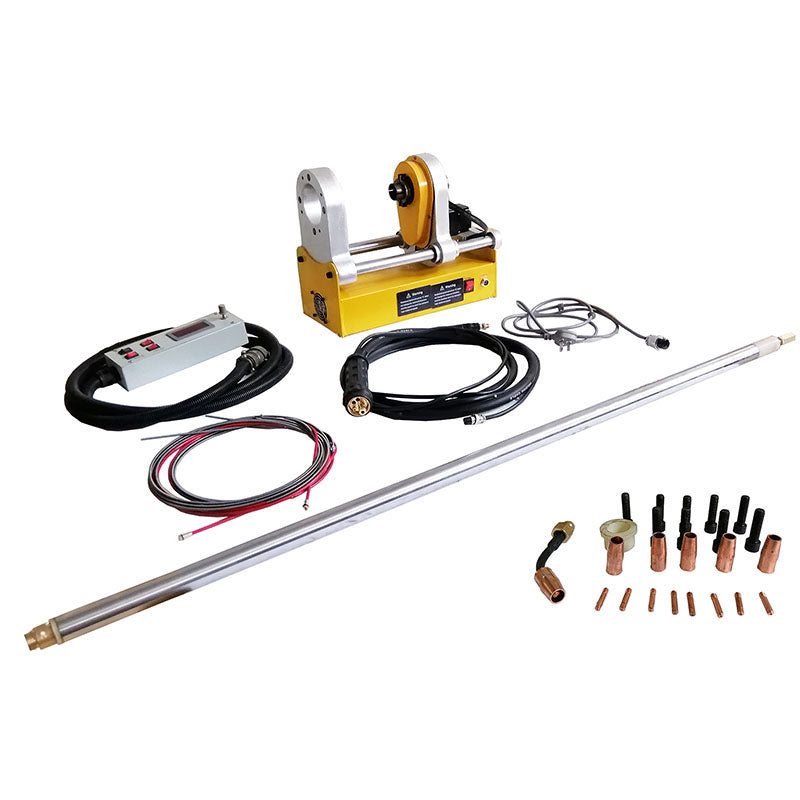

• One set Auto Rotary Inner Boring Welder Portable Line Machine
