053259
110V Tape Winding Machine
110V Tape Winding Machine
Regular price
$2,039.00 USD
Regular price
Sale price
$2,039.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

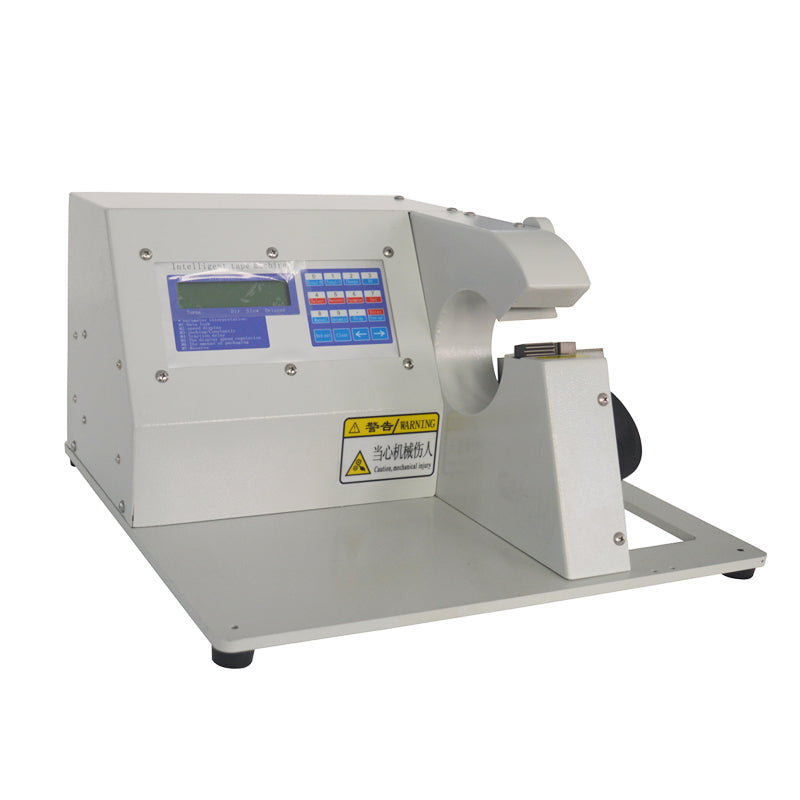

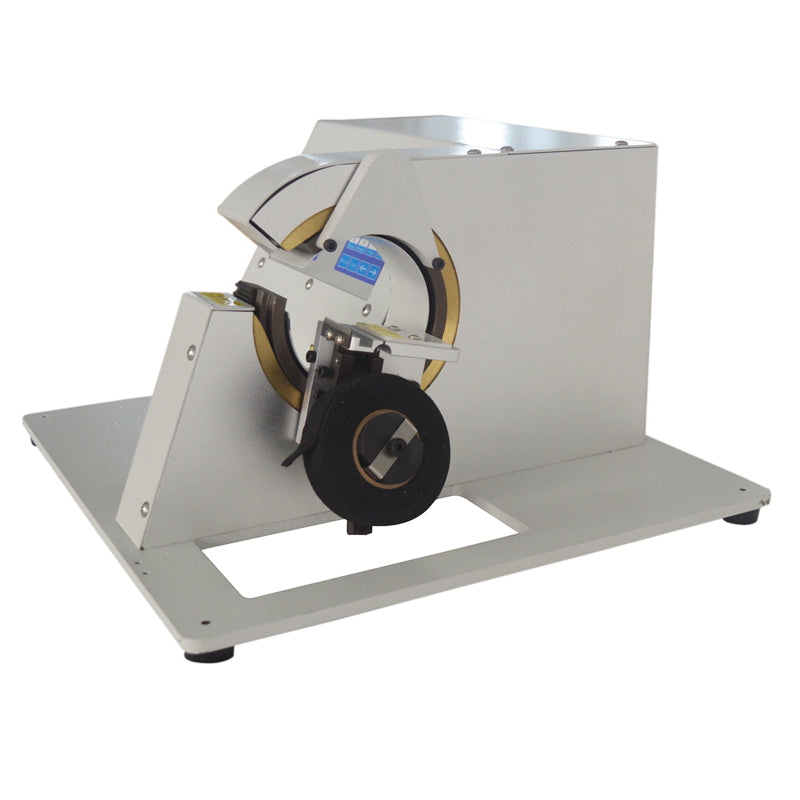

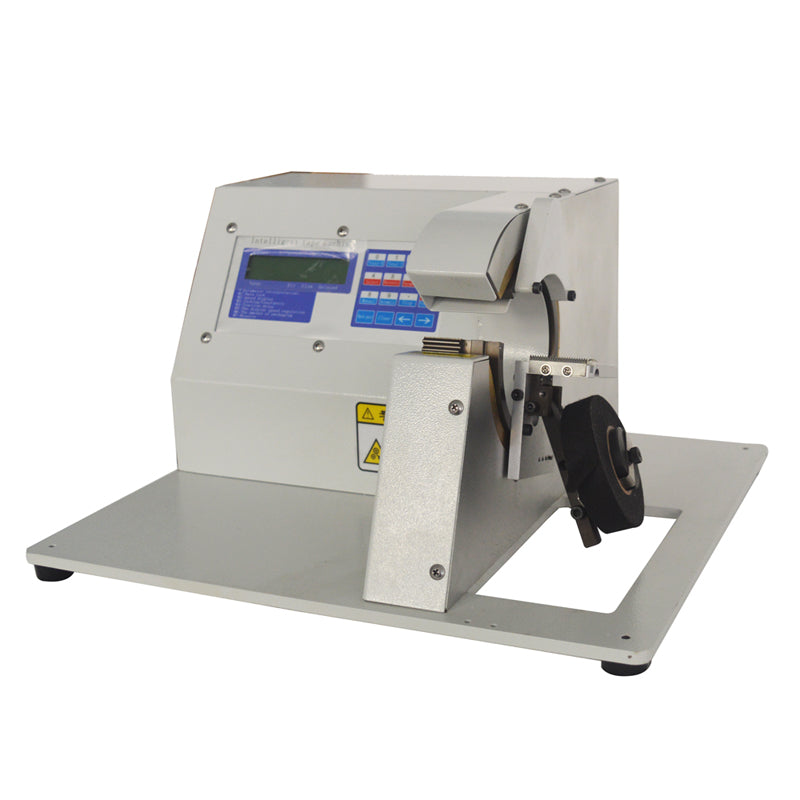

| 110V Automatic Automotive Wiring Harness Tape Winding Machine |
 |
| Product Overview |
| Automatic tape winding machine is a very important automatic device in complex wire harness forming and mechanical harness industry winding work. It can ensure the whole production workflow to reach a high automation standard, which can greatly reduce the work labor intensity, improve the production efficiency and reduce the production and operation cost, it is a very excellent tool! |
| Product Parameters |
| Voltage: | AC110V/60Hz |
| Tape width: | 0.20"-0.98"(5mm-25mm) |
| Diameter of wire: | 0.12"-1.18"(3mm-30mm) |
| Diameter of the inner hole of the tape: | 1.46"(37mm) |
| Rotate speed: | 300rpm-2500rpm |
| Winding length: | Infinite length |
| Scope of applicaiton: | Cloth tape, Acetate tape, Electrical tape, Polyester tape |
| Package size: | 21.6"*19.7"*13.8"(55cm*50cm*35cm) |
| Net weight/Gross weight: | 37.5LB(17kg)/44.1LB(20kg) |
| Product Features & Advantages |
 |
 |
 |

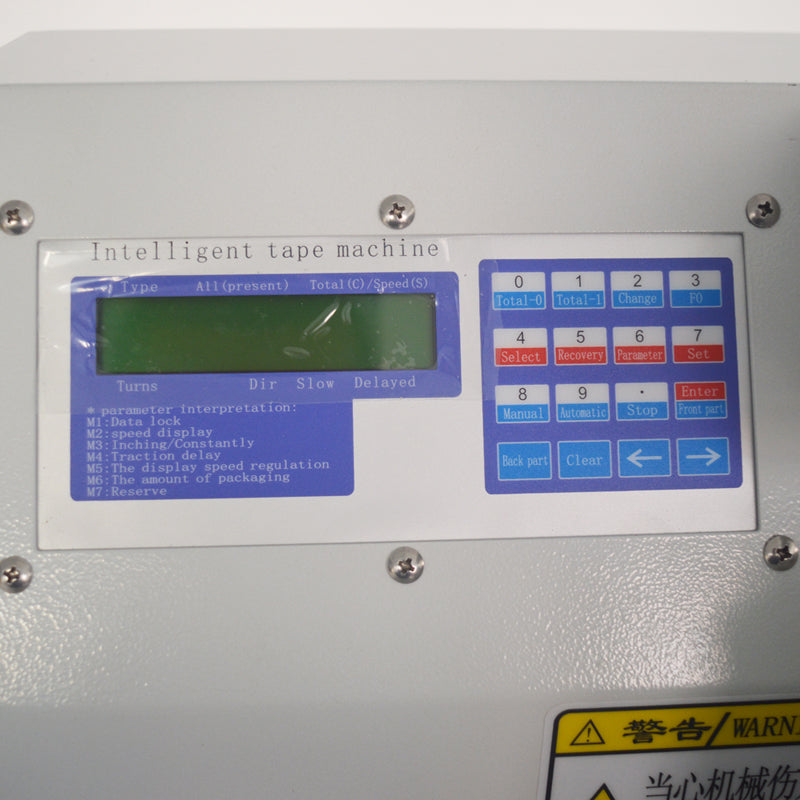

| - Small size, does not take up space; Smooth operation, low noise. - Using stepper motor, can quickly start/stop, high precision and small error, can work continuously for a long time. - The adhesive tape holder can be customized according to the diameter of the inner hole of the belt to meet different needs. - It can realize the switch of different winding modes to meet different needs. If you have special needs, you can contact us to customize. - Can realize the winding number and speed setting, with output display function. |
| Product Presentation & Details |
 |
 |
 |
 |
 |
 |

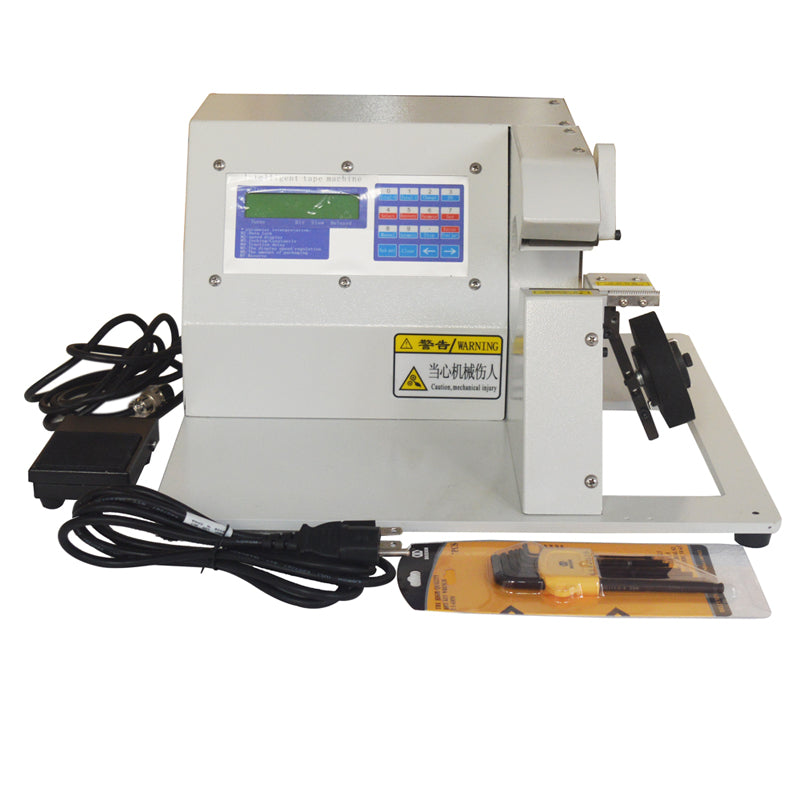

| Item Included(053259) |
| Tape Winding Machine *1 | Hex Wrenches *9 | English Manual *1 |
| Foot Switch *1 | Power Cord *1 |
|
You can make order with no worry. |
