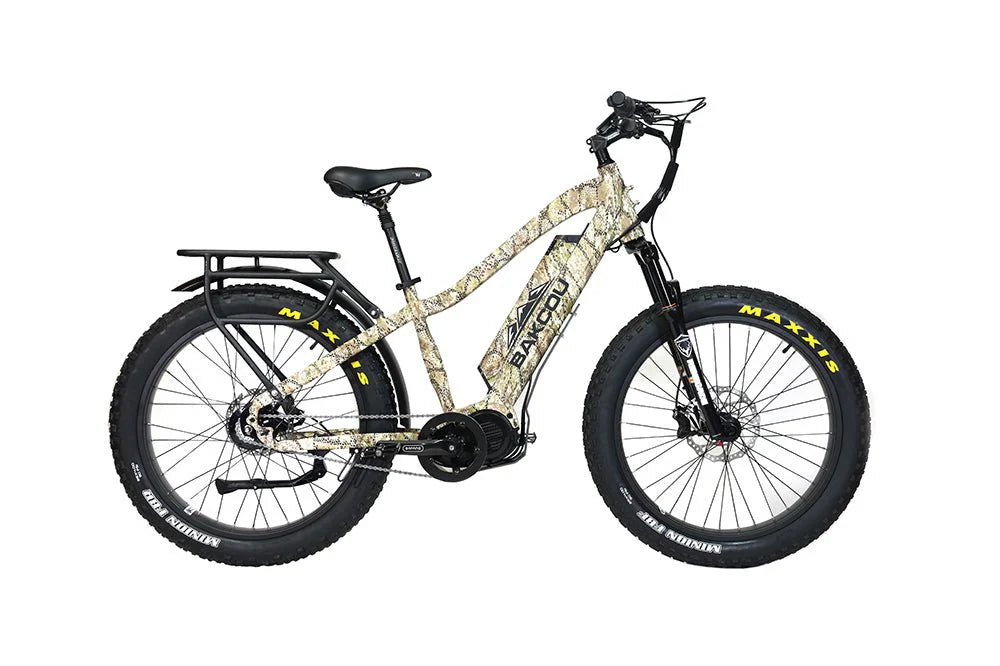

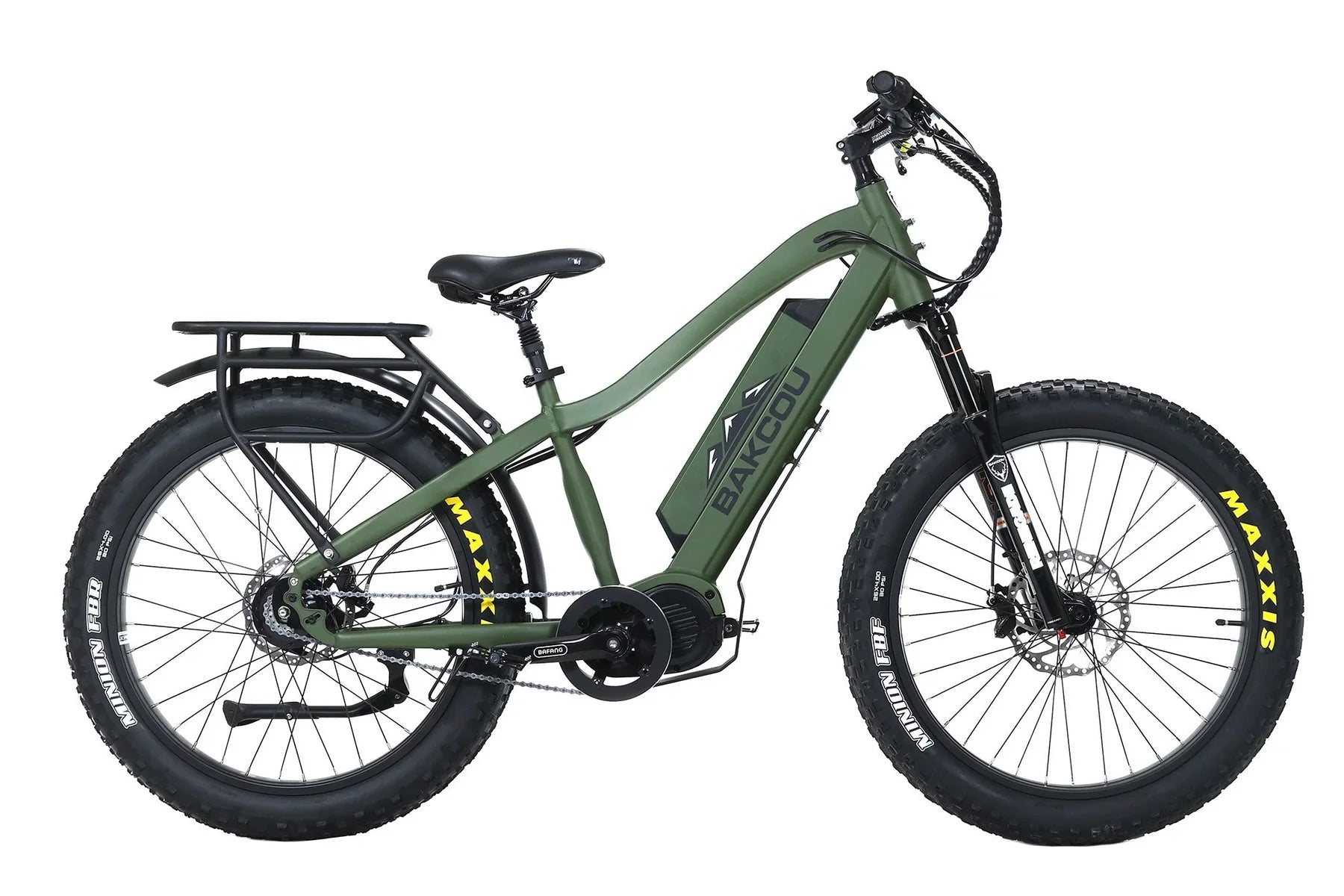

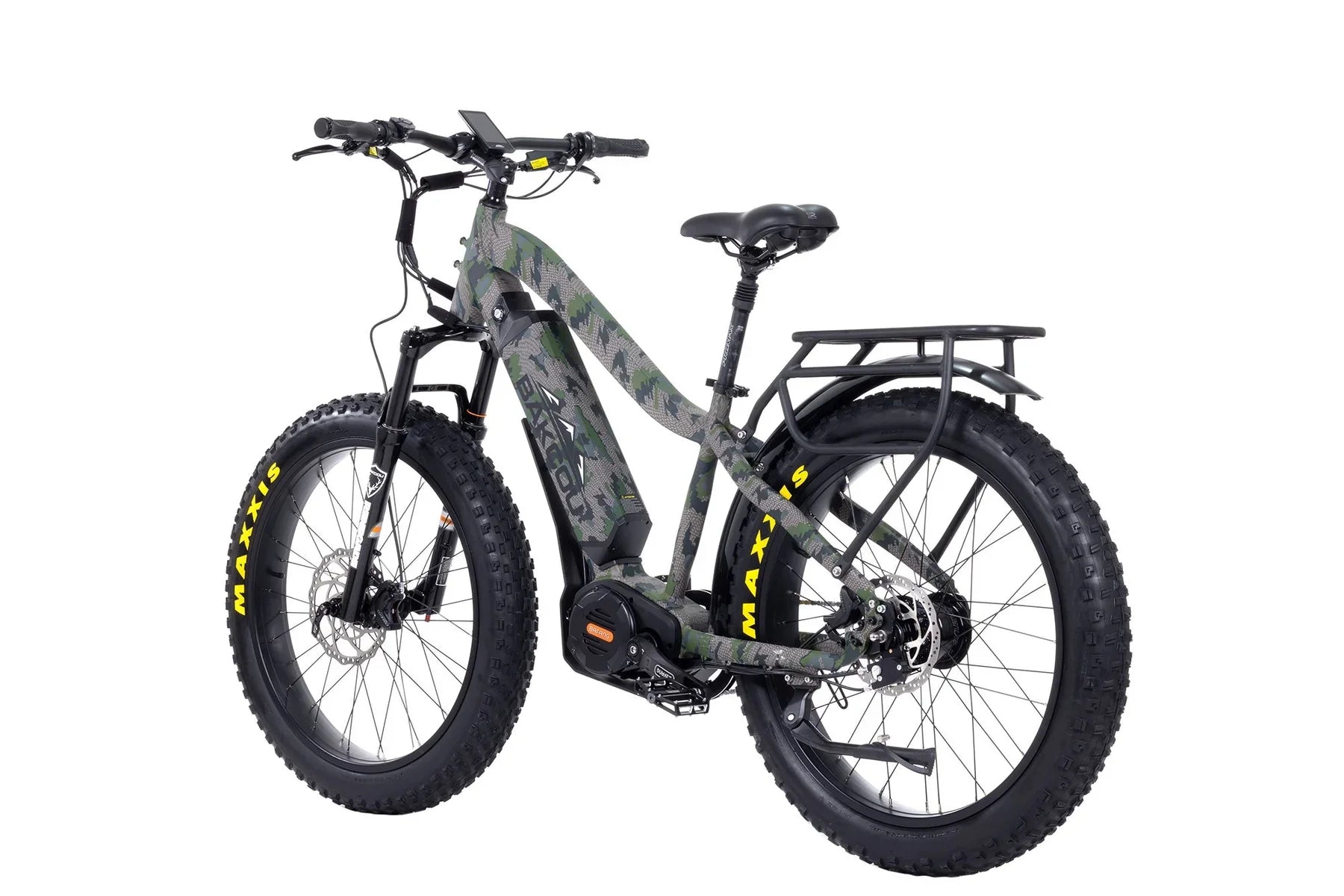

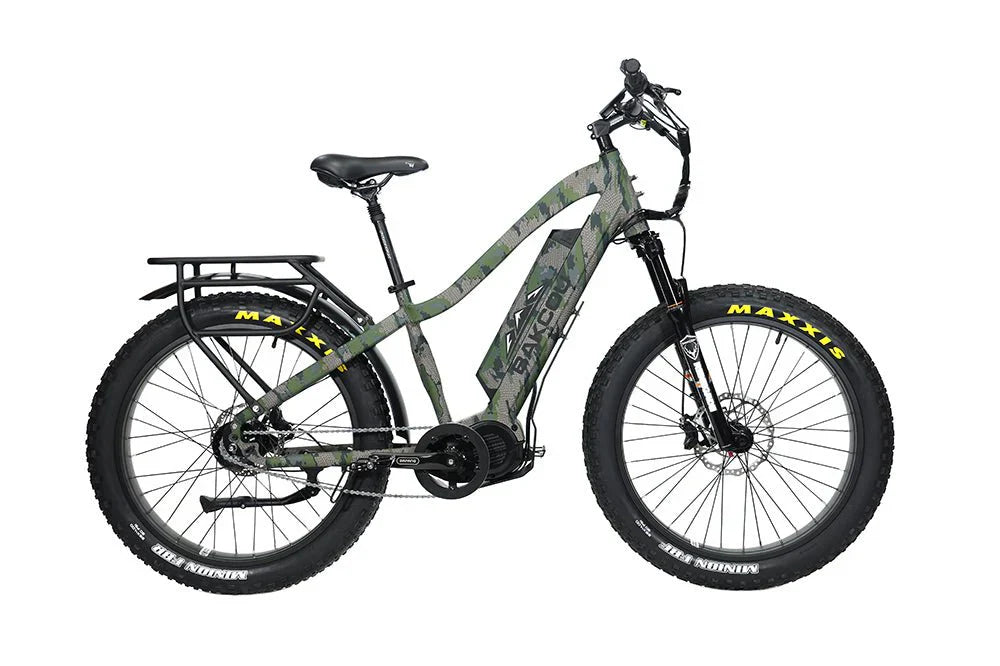

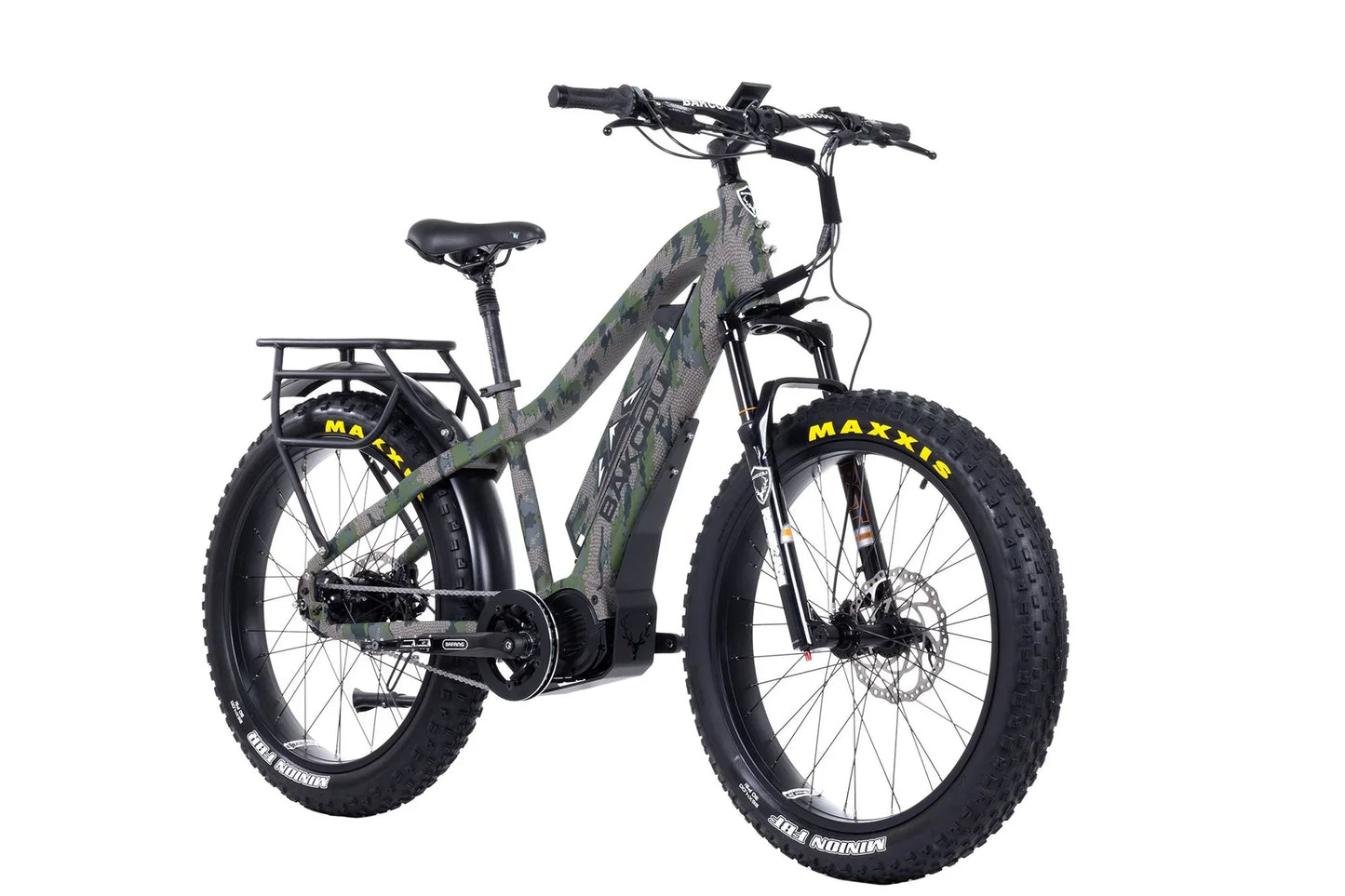

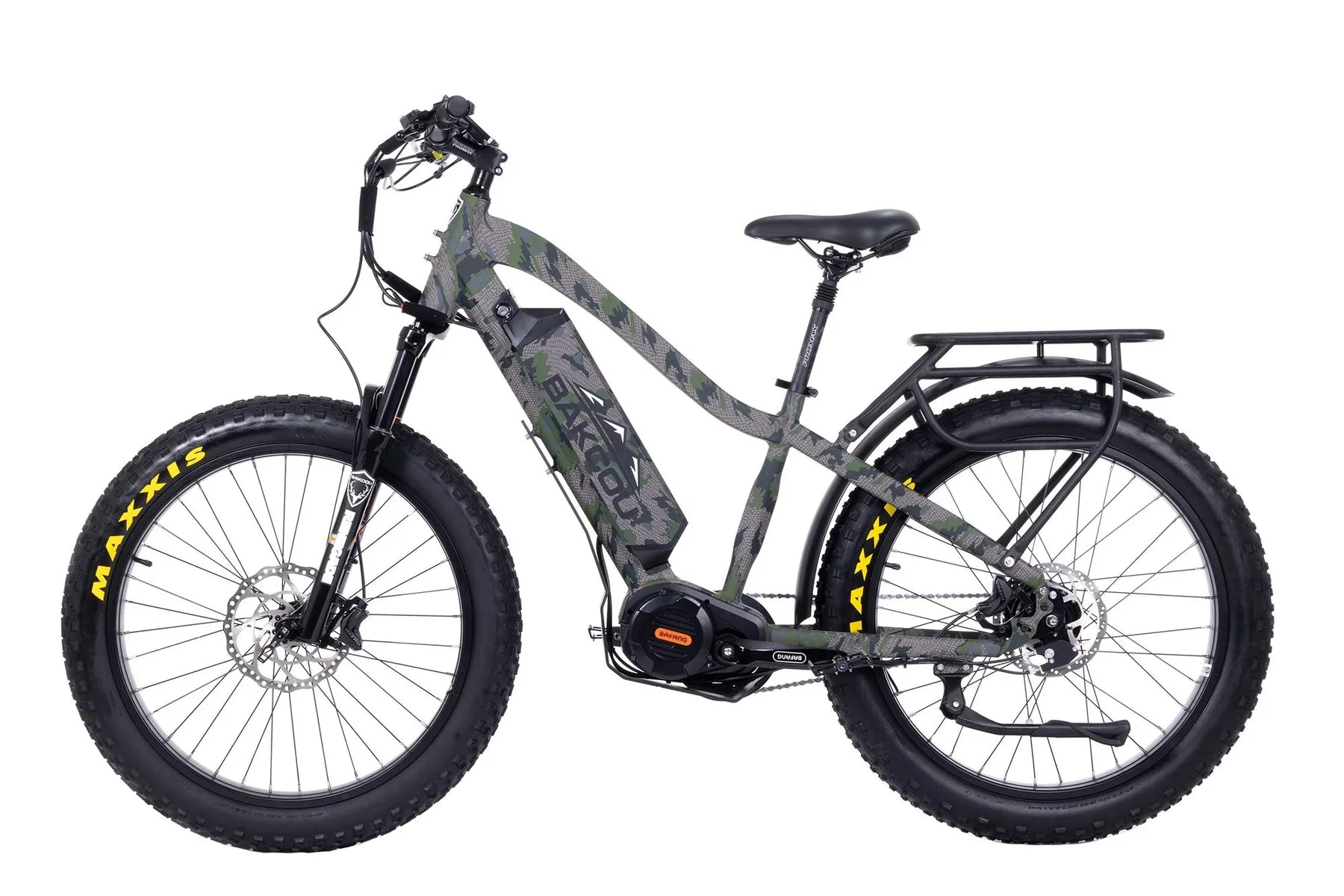

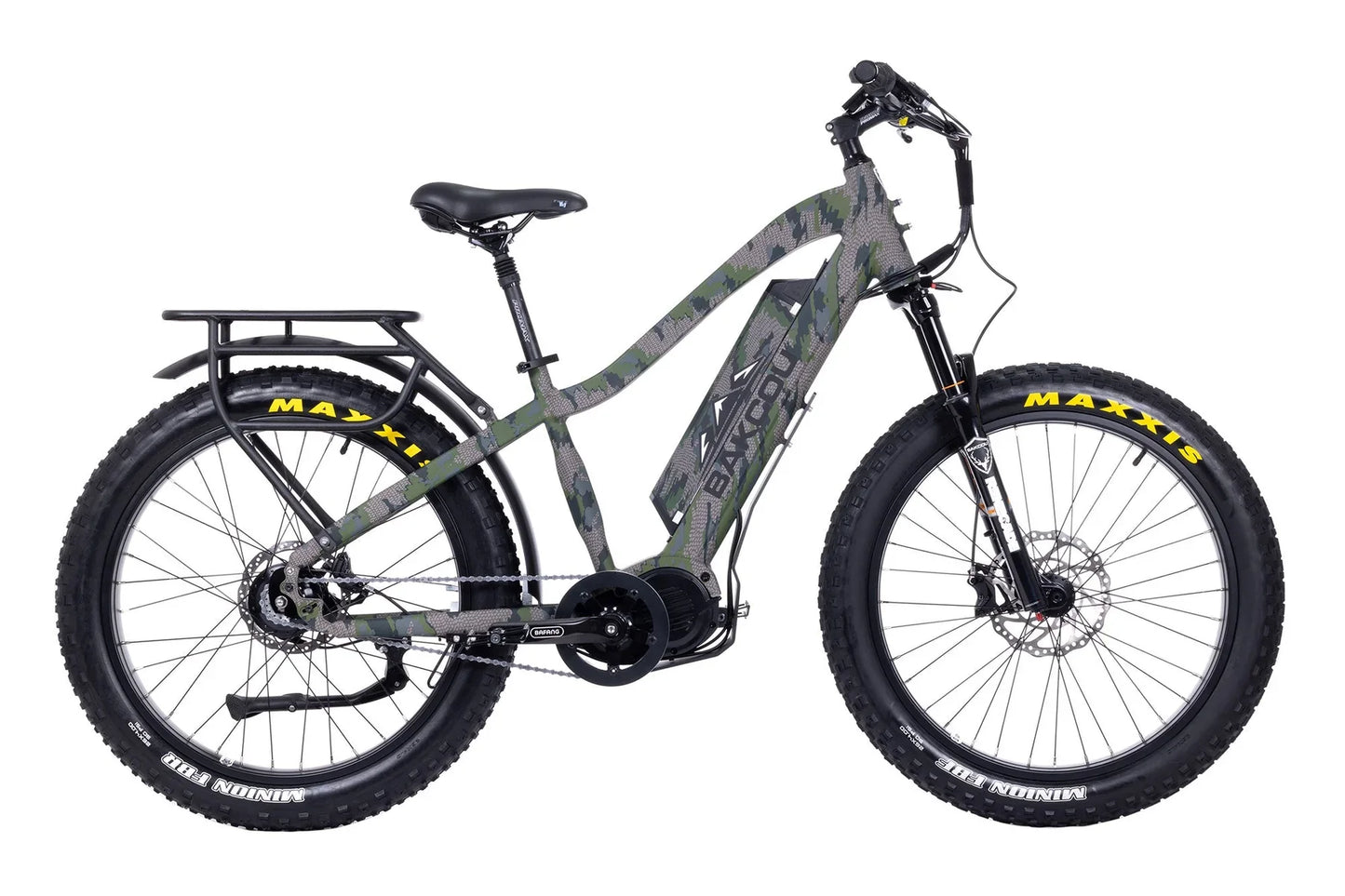

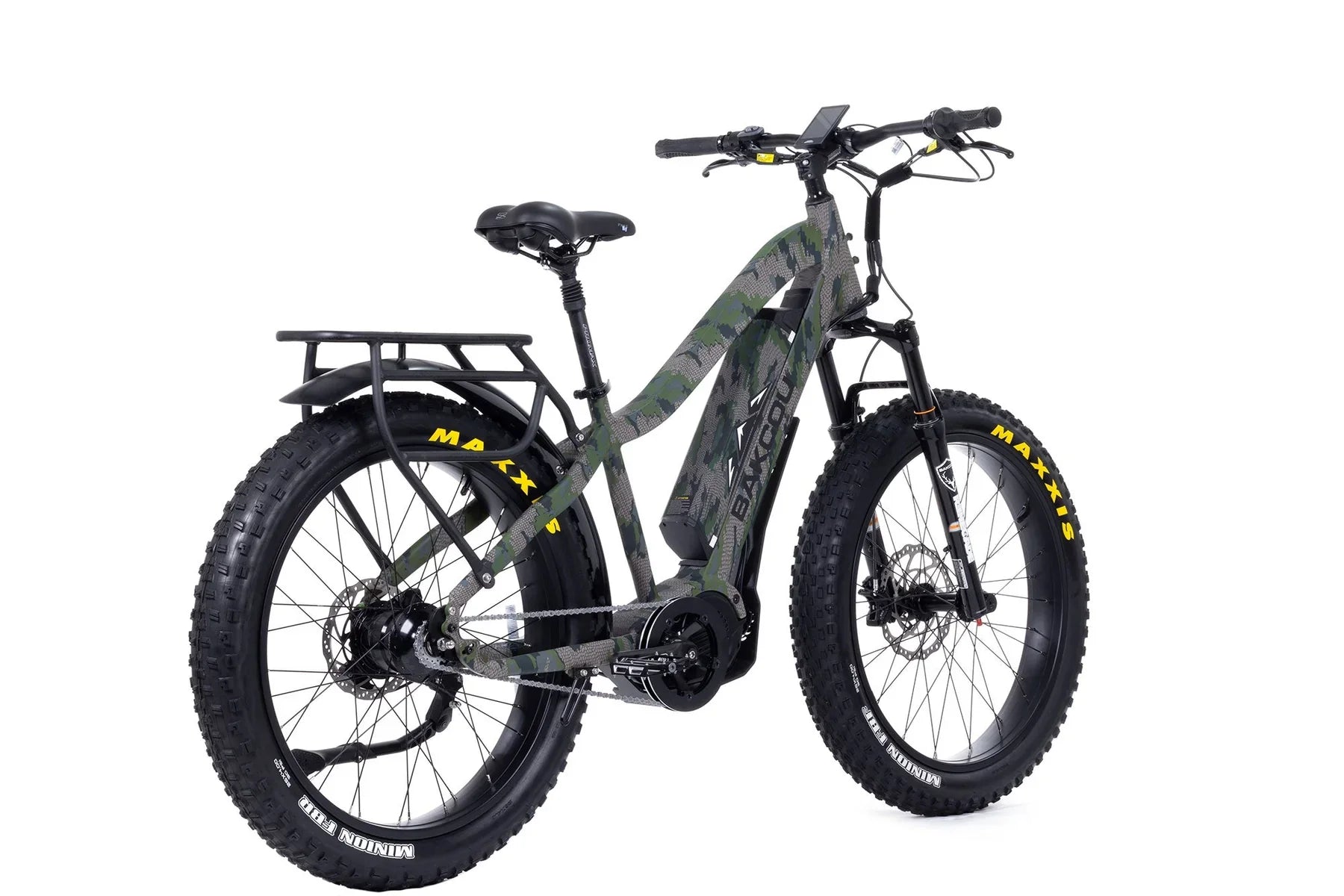

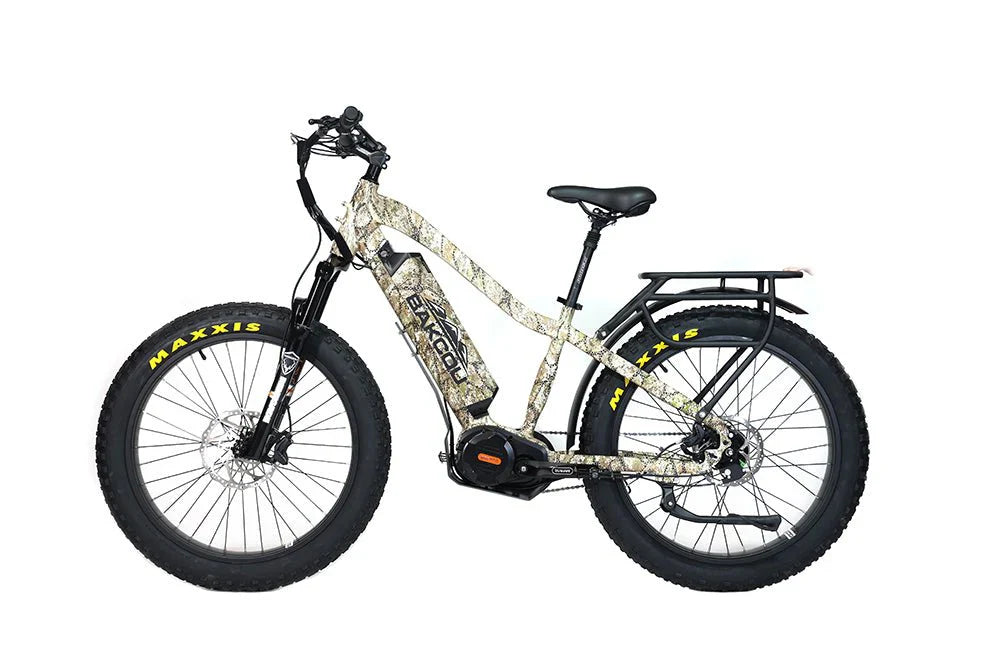

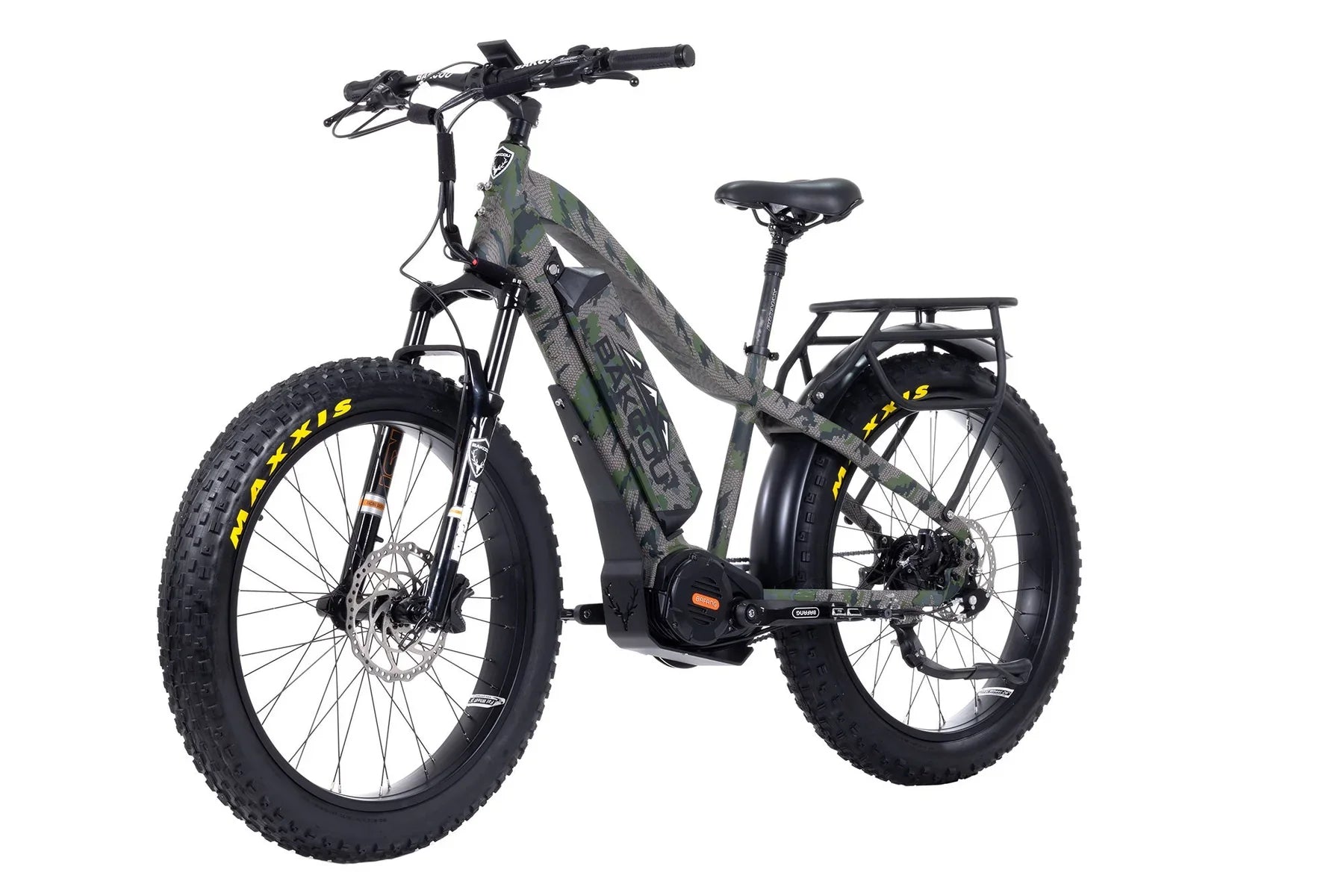

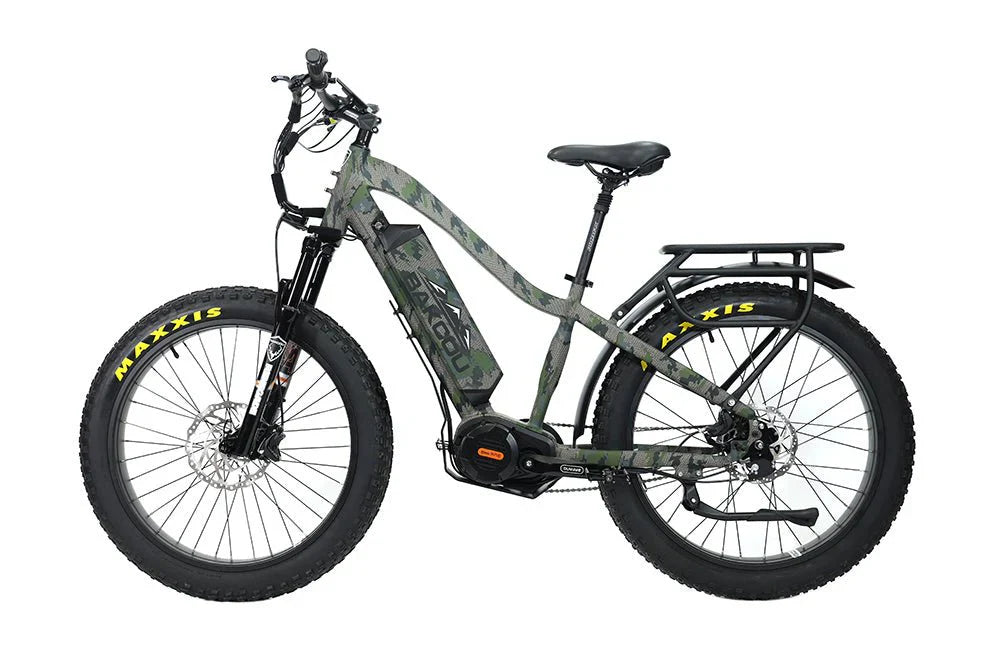

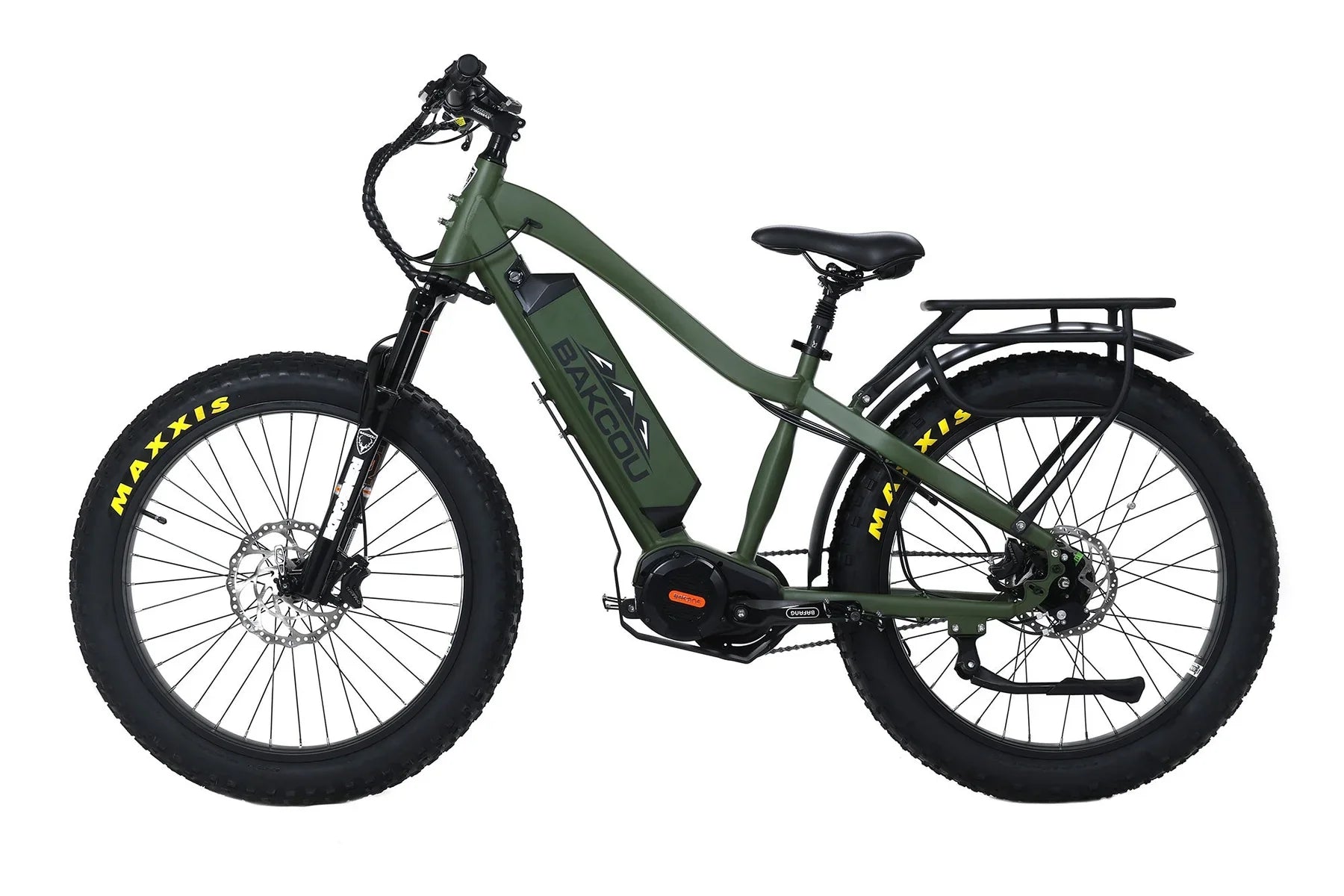

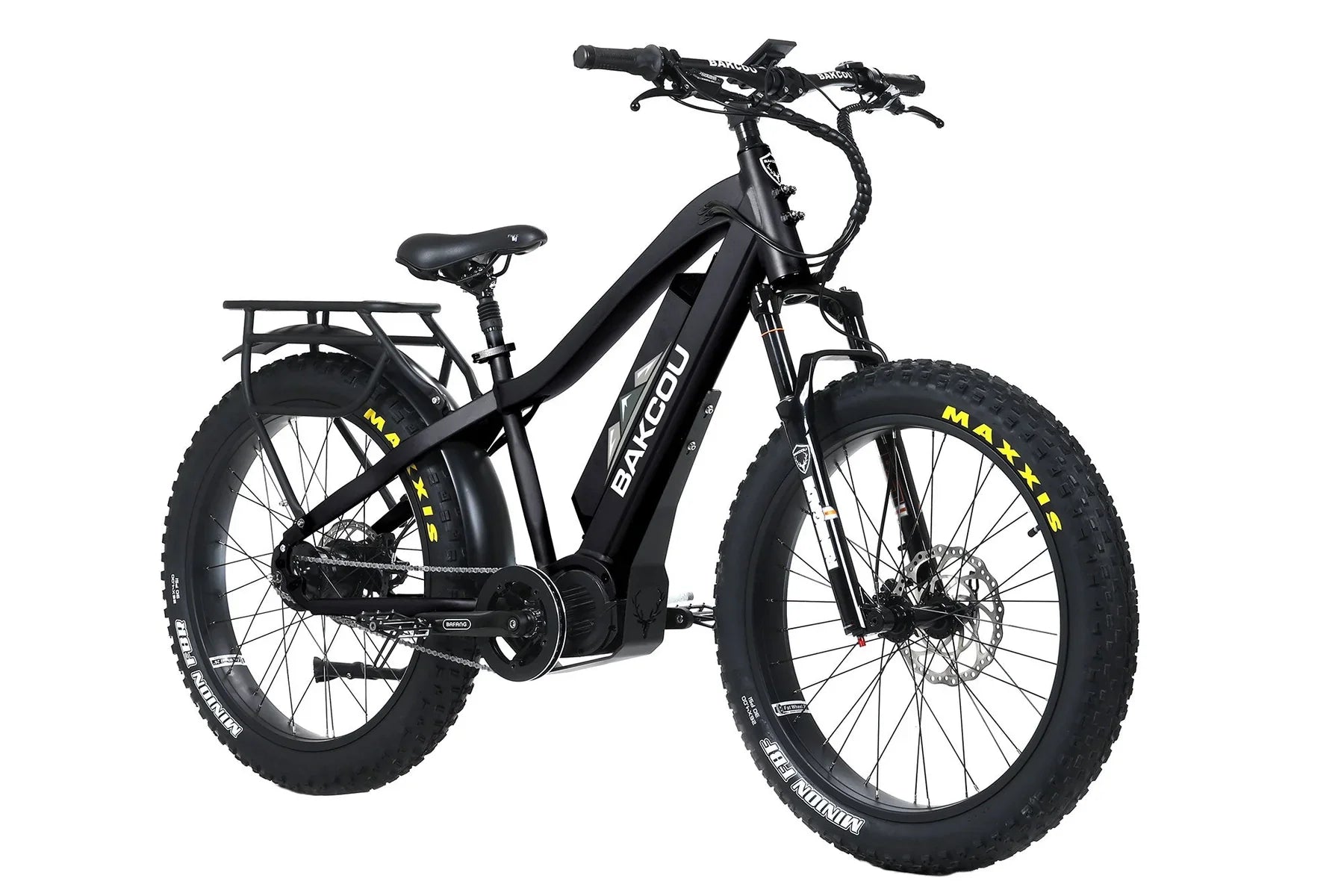

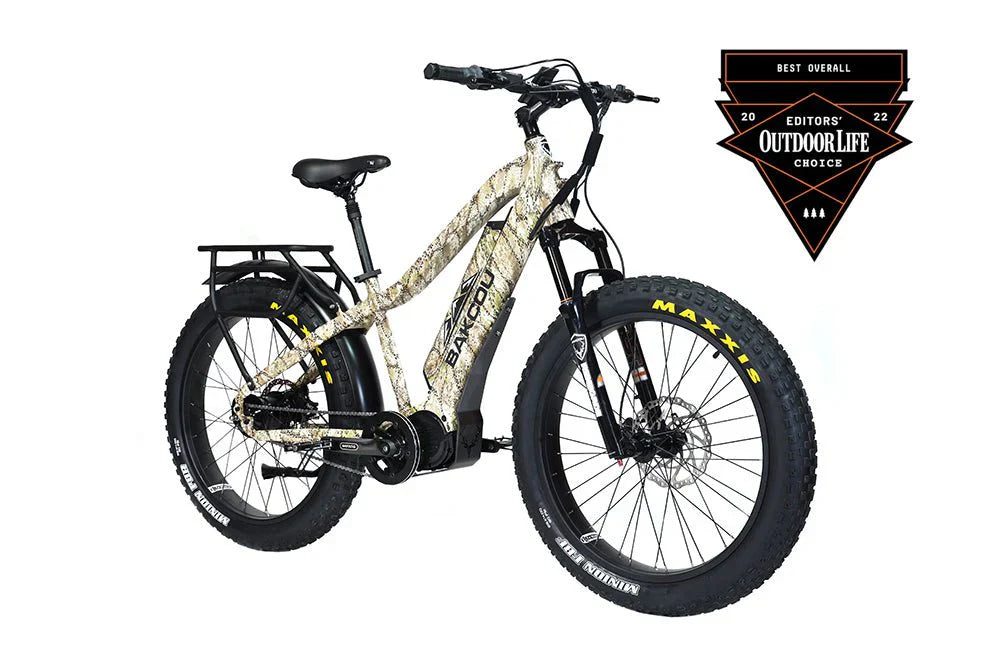

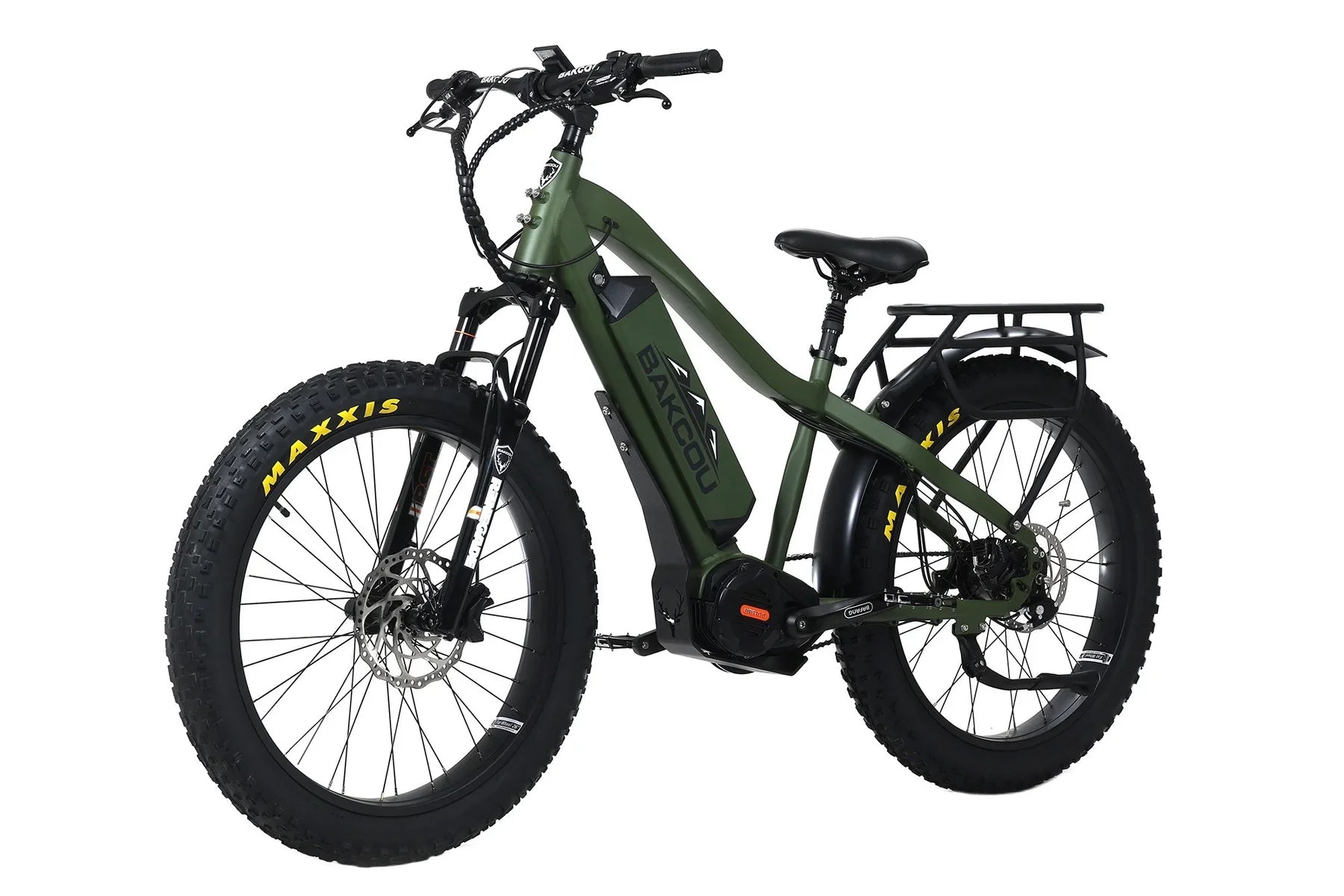

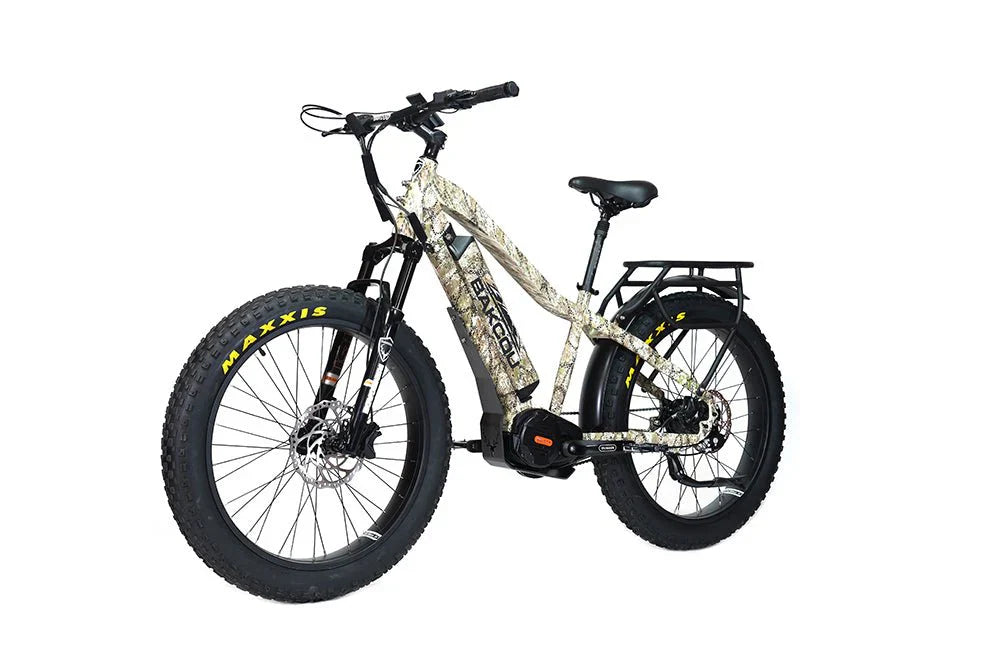

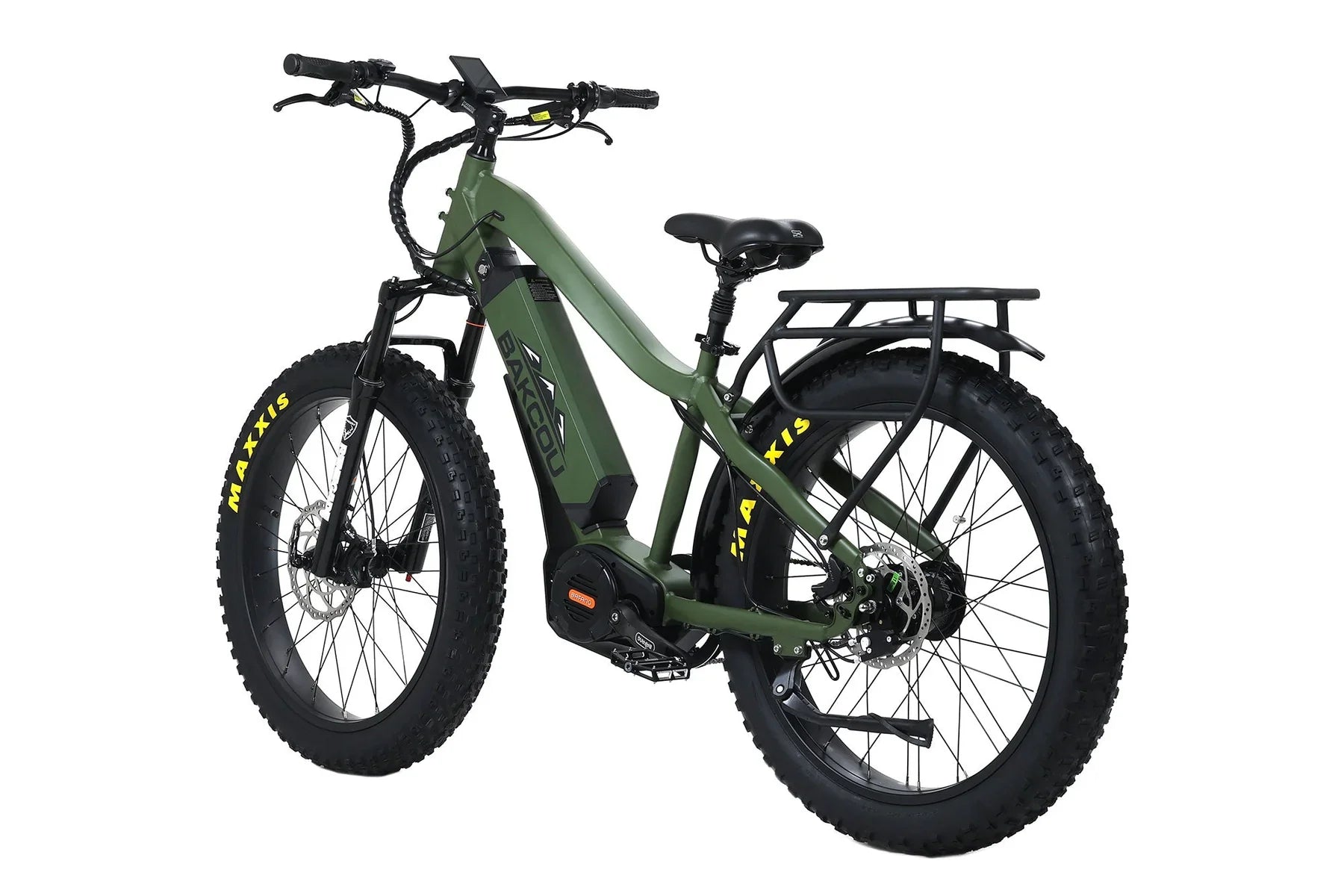

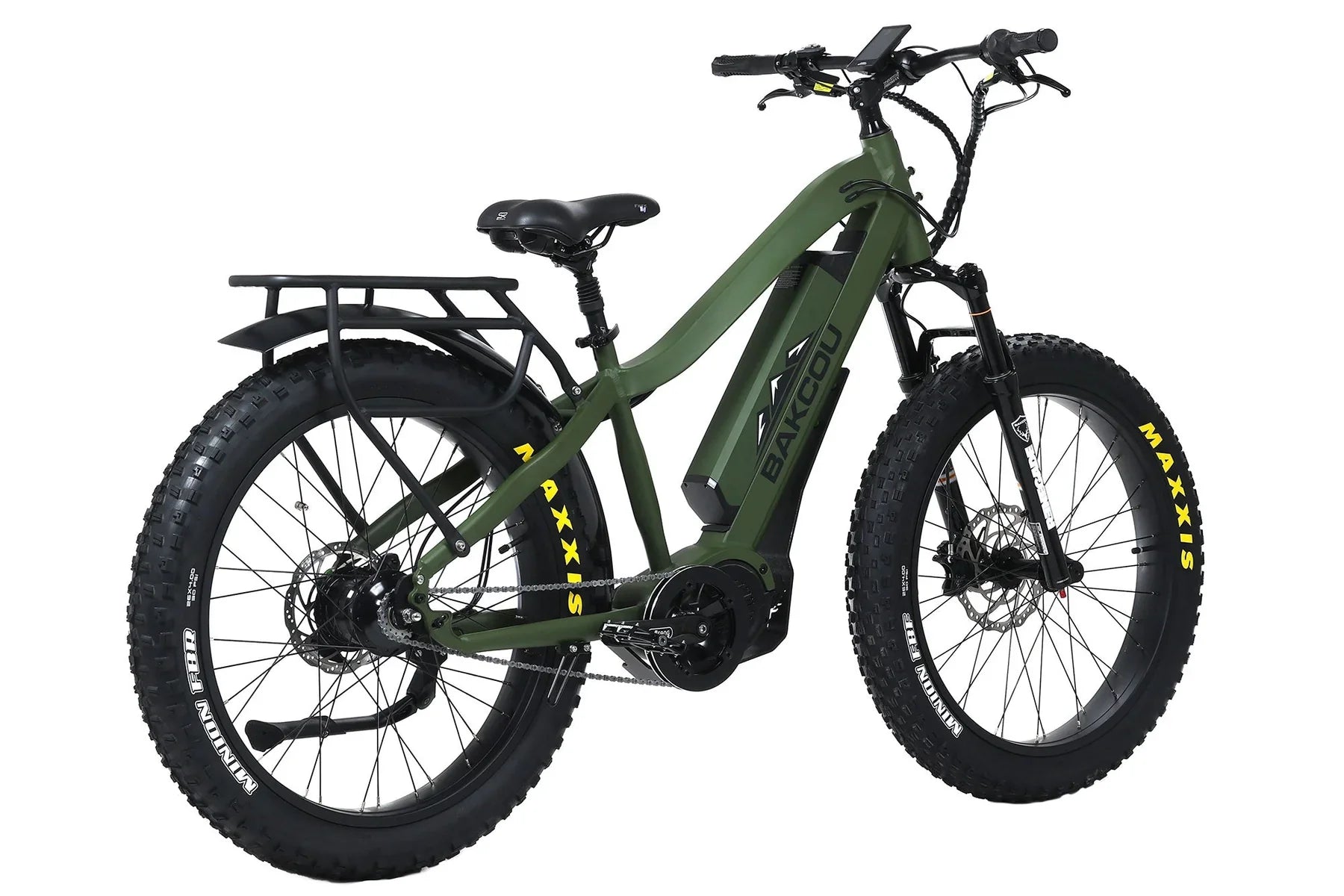

MULE JÄGER: RELIABLE BACKCOUNTRY EBIKE WITH ROHLOFF HUB

For absolute peace of mind when traveling in the backcountry, the Mule Jäger is your ultimate companion. Built on the rock-solid and proven Mule frame, the Mule Jäger elevates reliability with the addition of an internal gear hub.

The Rohloff Speed Hub boasts a 526% gear range, allowing you to shift through all 14 gears without pedaling. Without a derailleur, you can charge through heavy foliage and rugged terrain without worry.

Designed to carry like a mule and equipped with superior suspension and gearing, the Mule Jäger ensures you reach your destination quickly, whether it's a short trail ride or a week-long backcountry adventure.

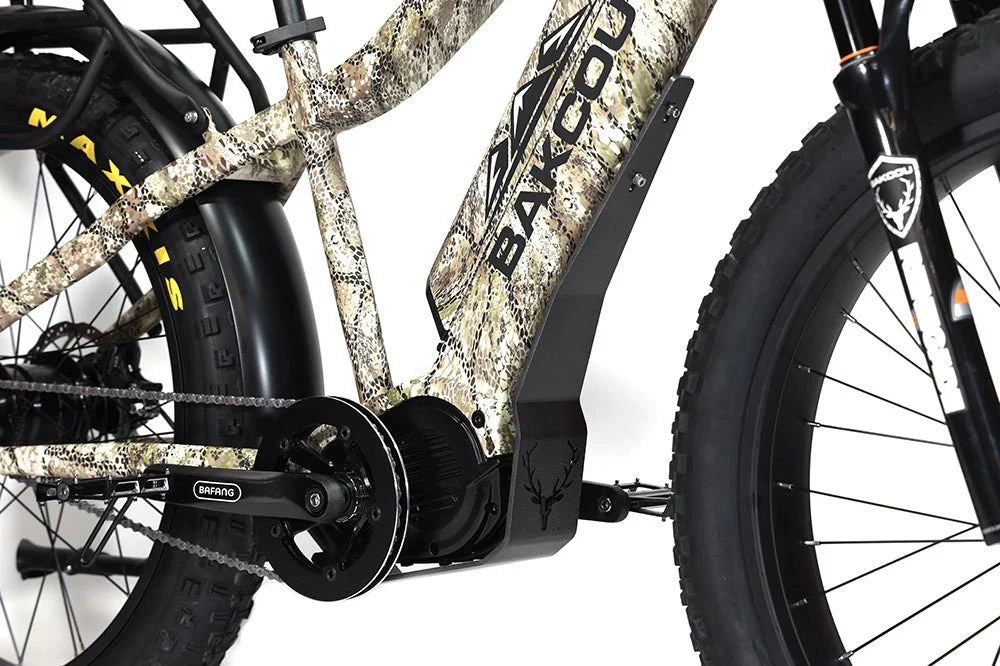

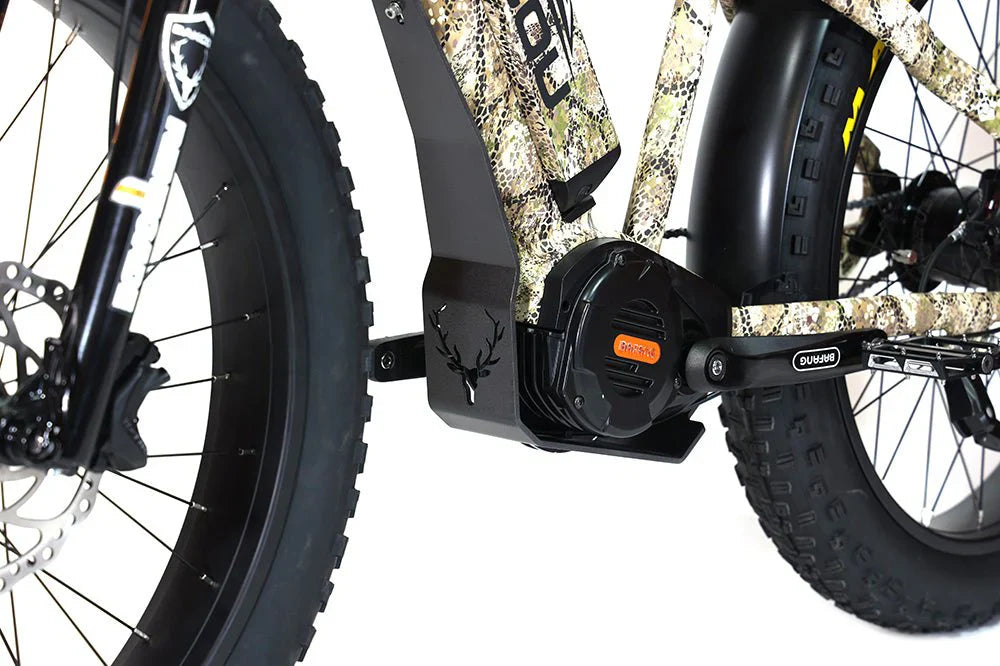

Powered by Bafang's ULTRA mid-drive motor, renowned as the "diesel engine" of mid-drive motors, the Mule Jäger is built to endure. The all-metal, heavy-duty gearing, combined with an integrated torque sensor, makes the Ultra motor the most capable, durable, and efficient on the market.

The Ultra motor is also a "smart motor," with sensors for speed, cadence, shift, brake, and torque that continuously communicate with the motor to deliver precisely what you need. This results in a natural ride feel, even with immense torque and power output.

We took everything that made the Mule our best-selling eBike and enhanced it. The Mule Jäger is everything you want—and everything you didn’t know you needed—in one rugged package.

Please note, the front fender and headlight are not included with the Mule Jäger. For a compatible headlight, consider the 2200 Lumen GoPro Mount Headlight available here.

NOTE: Mule Jäger does NOT come with a front mud fender or headlight. If you would like to purchase a headlight, we recommend the 2200 Lumen GoPro Mount Electric Bike Headlight.

Features

FEATURES

• Motor: Bafang M620 Ultra This smart torque sensing G510 motor, powered by Bafang, is capable of falling under all 3 Classifications of ebike laws. Toggle between 750 watts, and 1,000 continuous watts with a max power output of 1,500 watts.  How is that possible? For a video tutorial watch video below

• Battery: Extended Distance 48v 17.5ah, 19ah, 21ah or 25ah lithium-ion
• Range: see “eBike Range Explained"
• Performance:  160NM of Torque / 1500 Peak Wattage Output
• Display: Bafang DP C18.UART Full Color LCD
• Brakes: Powerful Tektro HD E750 Quad Piston Hydraulic, 203mm Front & 180mm Rear rotor
• Suspension: RST Renegade 100mm AIR Fork
• Frame: High Grade Aluminum Alloy 6061
• Size: Mule, 18” (Stand Over Height: 29.5”)
• Throttle: Left Thumb
• Wheels: 150mm 12mm Thru Axle Front Hub/ Rear Hub 3/8x 26 tpi 190mm
• Tires: Unparalleled Traction and Control Maxxis Minion 26” X 4.0
• Gearing: Rohloff E-14 (500/14) Speed Hub
• Top Speed: 35+ mph
• Steering: Wide 740mm Handlebars for Greater Stability
• Load Capacity: 300 lbs
• Locking Ergonomic Handlebar Grips
• Shock Absorbing Suspension Seat Post
• Saddle: SR Sport Saddle
• Aggressive Skid-Proof Wide Stance Pedals
• Weight: 67 lbs without battery. 17Ah= 10lbs  25Ah= 12lbs2oz
• Skid Plate: Powder-coated Aluminum
• Puncture Proof Tire Liner ($47 value)
