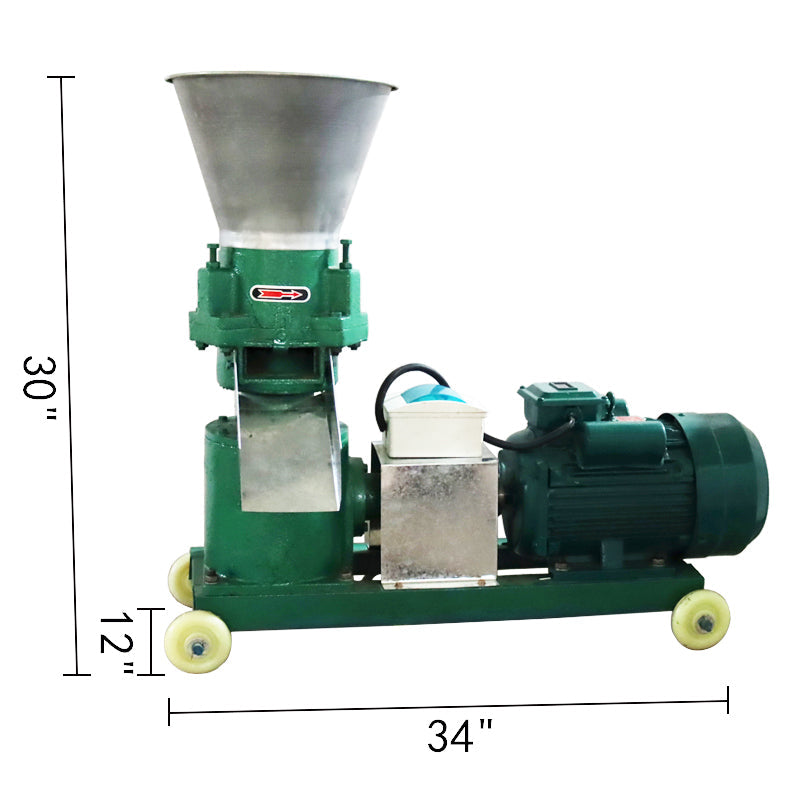

Chicken Feed Pellet Mill Machine 8MM 4.5KW

        Chicken Feed  Pellet Mill Machine 220V

Precautions

  1.When using, it should be noted that there should be no foreign matter such as stones and ironblocks in the raw materials. After the pellet machine has been working continuously for morethan ten shifts, the pressure roller oil hole, the universal joint oil hole, and the linkage shaft oilhole need to be filled with high-temperature lubricating grease to make the pressure roller Goodworking performance and extended bearing life.
  2.During granulation, it is strictly forbidden for the pressure roller to contact with the templateto run idly, and the continuous feeding can not be interrupted.At the same time, the pressureroller shaft nut is locked to avoid loosening and damaging the spindle keyway.
  3.When granulating, there is no granulation, no discharge, the template should be removed, andafter opening one by one, some fiber feed can be added appropriately to restart the granulation.

  4.Always check the tightness of the screws in each part of the machine. If there is oil leakage inthe gearbox, replace the oil seals in time, and check whether the bearings in the machine headare short of oil.
  5.When the pellet machine is working, do not reach into the feeding port with your hands. Ifnecessary, use wooden sticks to help feed the pellets.
  6.Before turning on the machine, it is necessary to add less material before turning on the
machine. When shutting down, leave a small amount of feed in the machine to prevent the pressroller of the machine from contacting the template from idling.
  7.If the machine is stuck in operation, stop it immediately, press the pressure roller until thebolt is flat,and then restart the machine.
  8.Each time the work is completed, the adjusting pressure roller bolts must be loosened.

Usage and specification:

1: It applies to chicken industry.

2:Corn particles can be put into the machine directly. The feed  processed by the machine is smooth and has moderate hardness. The  temperature-change during the process is slight so the nutrition can be  contained very well.

3:The practical’s diameter of the holes can be divided into: Φ2, Φ2.5,  Φ3, Φ3.5, Φ4, Φ5, Φ6, Φ7, Φ8, Φ12.

4:The microorganism and parasite can be killed during the process by  extrusion.

Operation:

1: Add oil into gearbox before start.

2:Double-check the belt and the screws before operation.

3:Clean up the rest after use to prevent damage to the machine.
