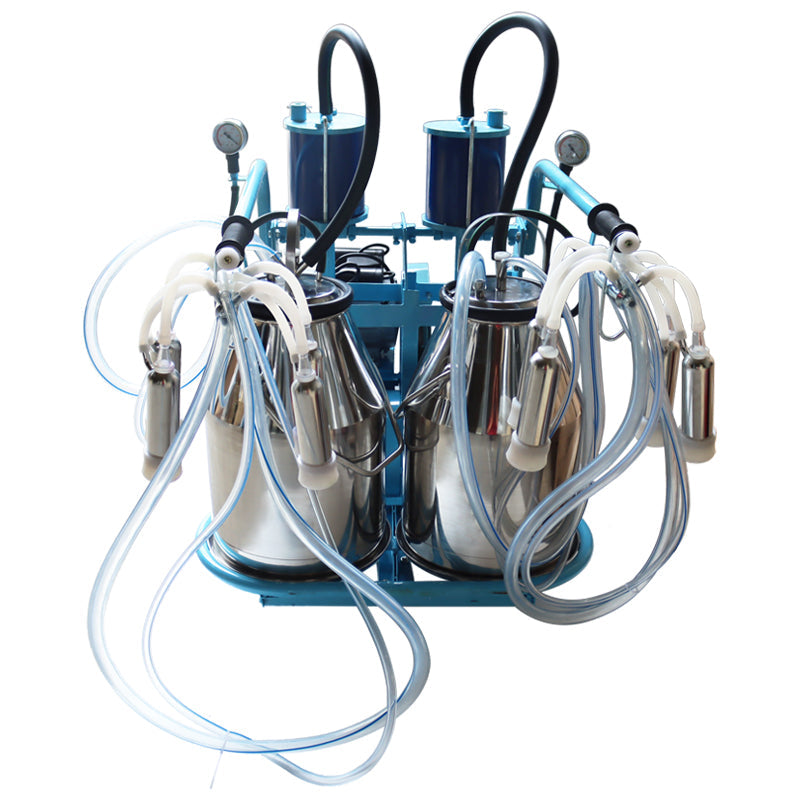

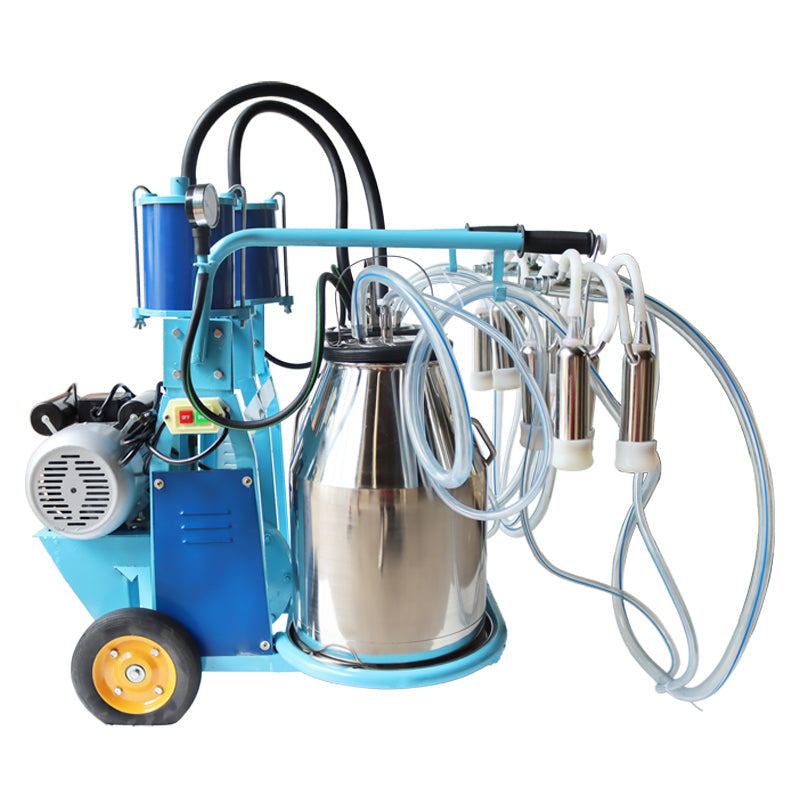

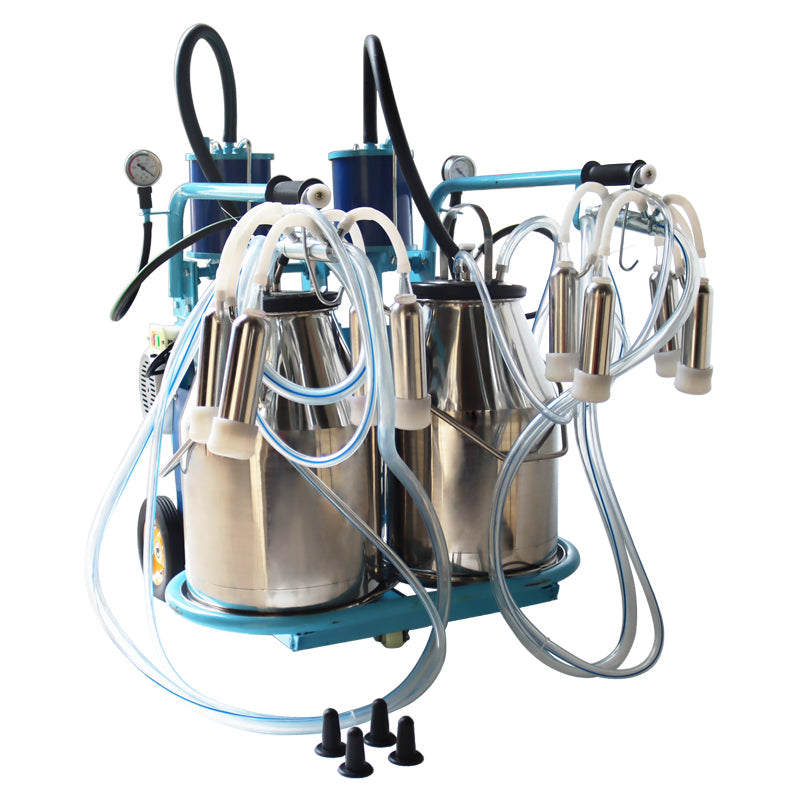

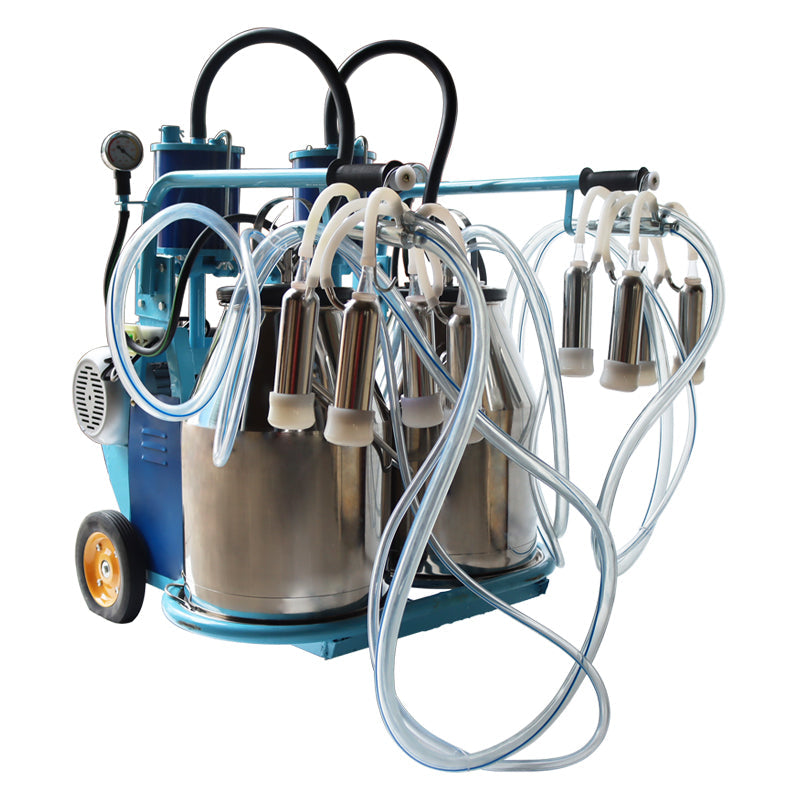

Double Barrel Piston Milking Machine

Name: Double Barrel Piston Milking Machine
Brand: 170053
SKU: 170053
Price: 1049.00 USD
Availability: InStock

$1,049.00 USD

Sale Sold out

Shipping calculated at checkout.

Double barrel piston milking machine for cattle

304 stainless steel bucket
Three-Prong plug,water-proof switch
High-precision piston, faster milking speed
First-class product quality and after-sales service

Parameter:

Operating Vacuum Degree :0.04-0.05MPa
Pulsation Times:64 times per minute
Power Fitted: 0.55KW -0.75KW
Voltage :110V
Motor Speed :1440 rpm per minute
The Number of Milk Bucket:tow( capacity of 25kg )
The Number of Milking Cattle Per Hour:20-24cows per hour
Employees Needed When Milking:one
The Number of Milking Cup Group:two sets

Features:

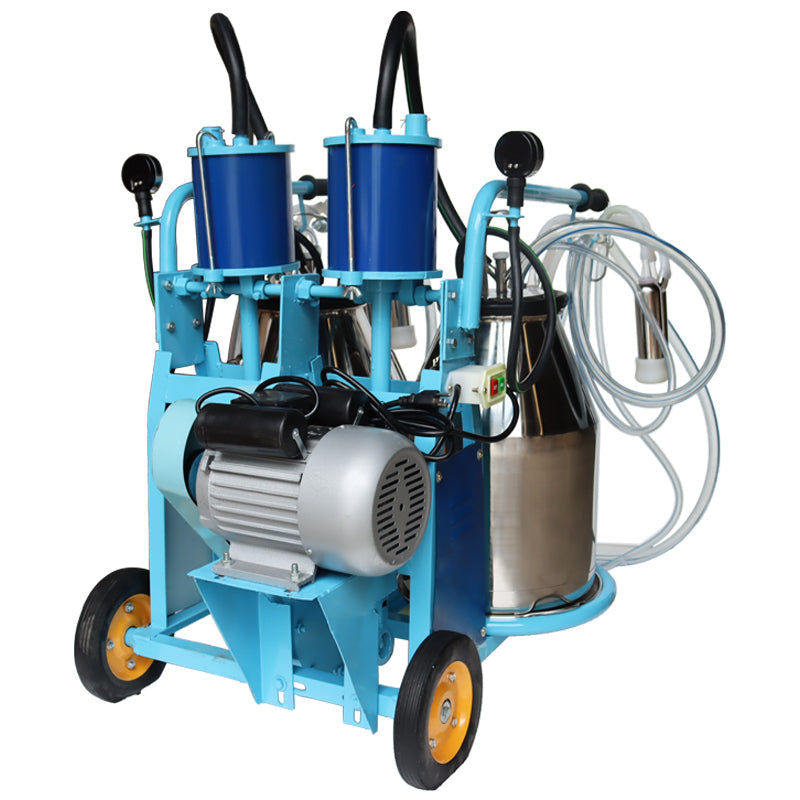

The machine is made up of 1.trolley frame,2.milk barrel,3.complete milking set,4.vacuum gauge,5.piston pump,6.reducer and gearing.

Milk barrel is made up of barrel and barrel cover.The cubage of milk barrel is 25L and can contain fresh milk of 20 kilograms.There is a non-return three way valve welded in the middle of the barrel cover.

After operating milk machine,keep the empty running for 3-5 minutes.There is no block and abnormal noise among all the moving parts.The convert the cluster,namely,all the connecting inlet of the claw is upward and the teat up inlet upward.One minute later,the indicator of the vacuum gauge should reach 0.04-0.045MPa.Adjust the inlet valve on the claw when the vacuum is too high or too low,Milking can start until the cooperation of long-and short space between the steel ball and pressure reed reaches 0.04-0.045MPa.

Question:

1.Add lubricating oil to the inner edge, about once every ten days.
