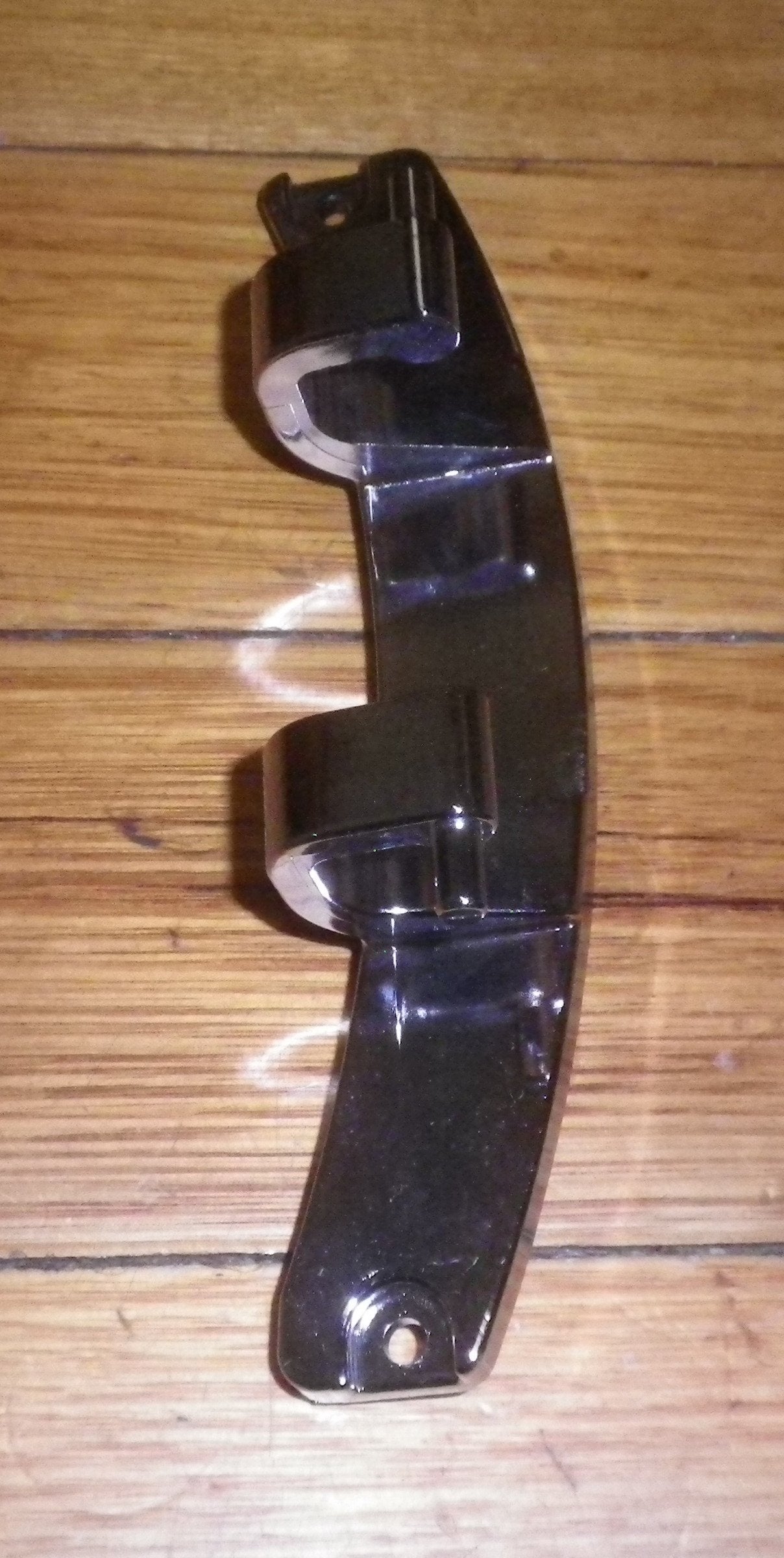

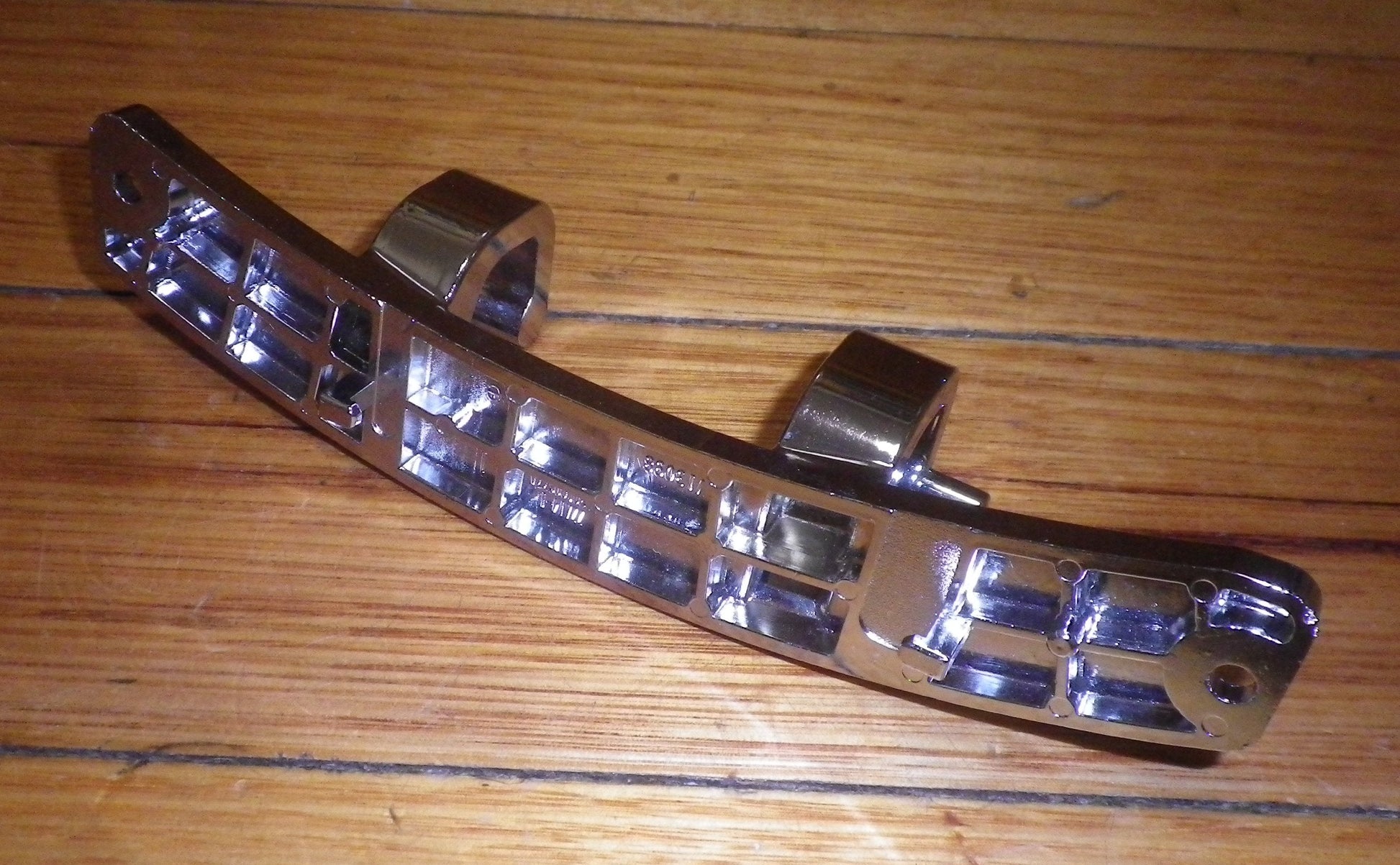

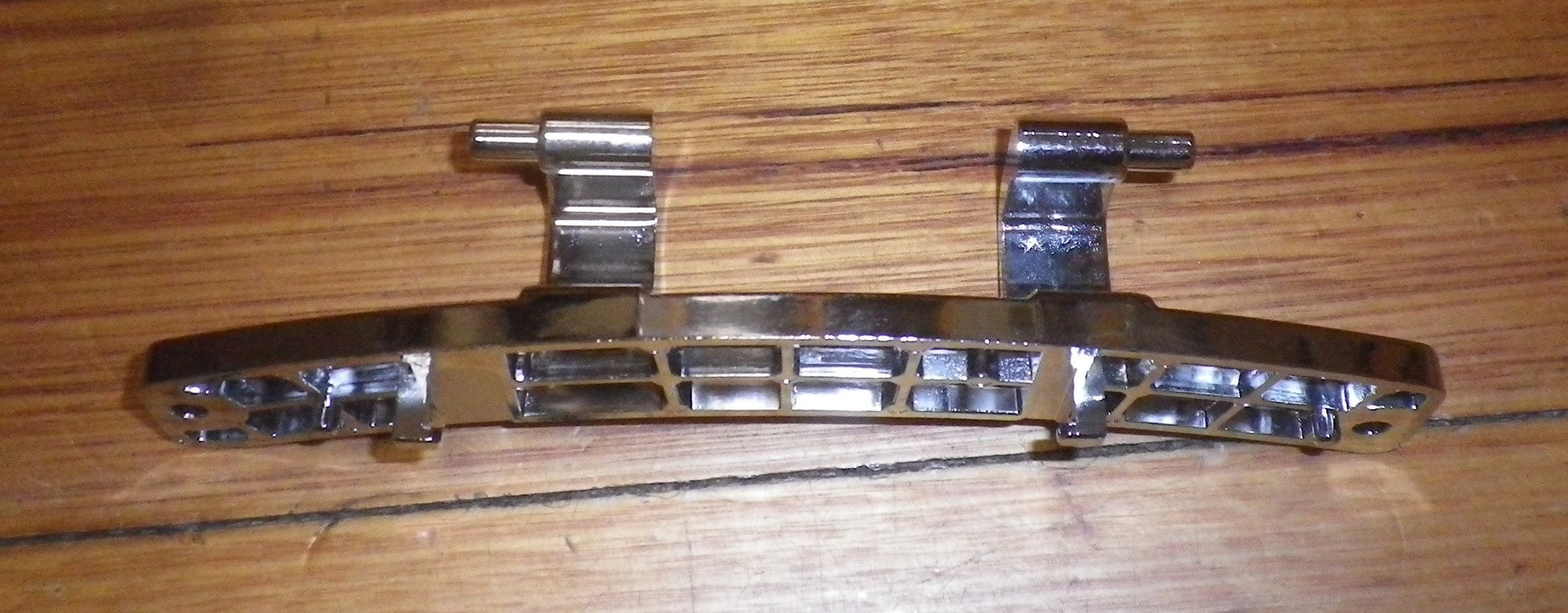

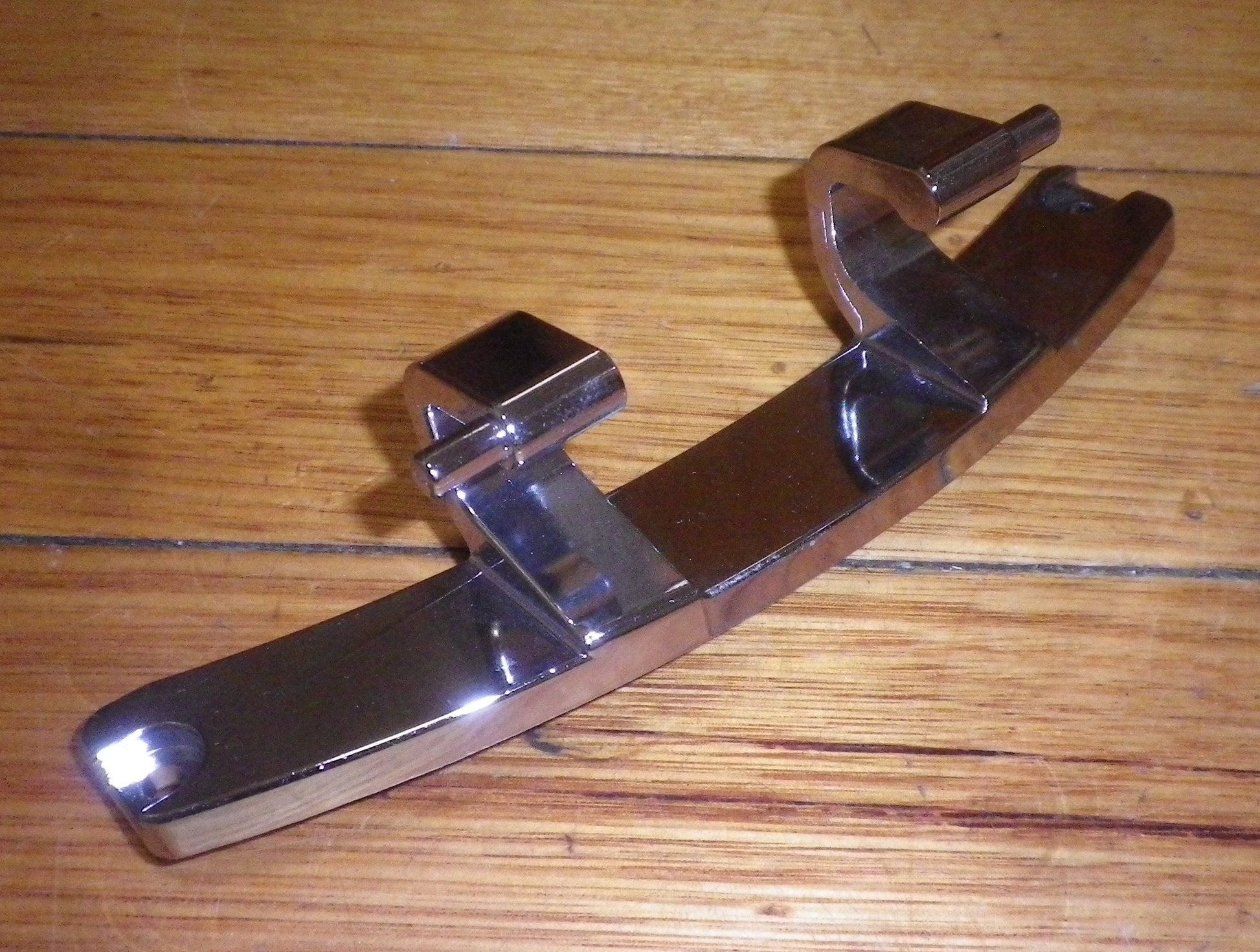

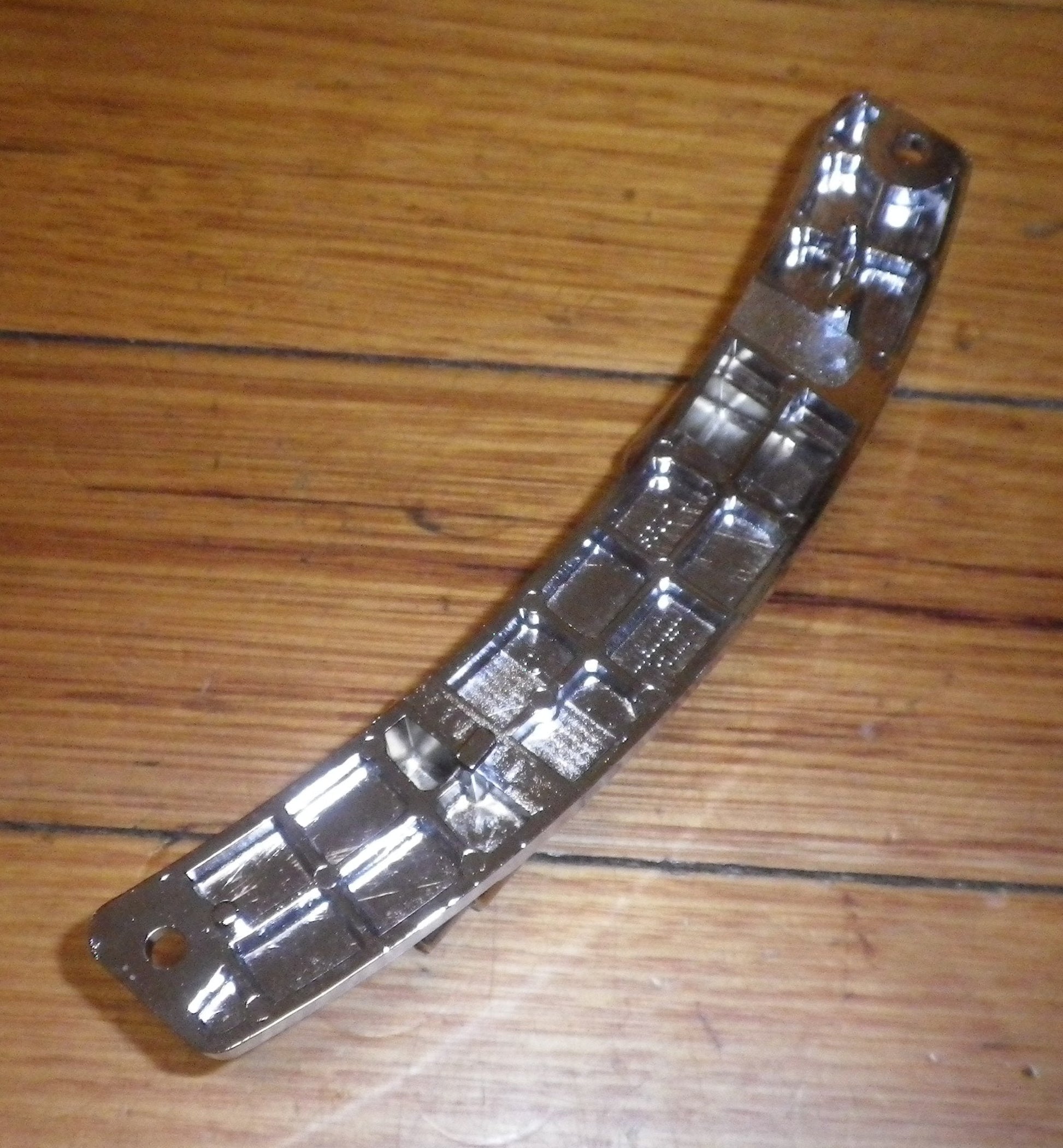

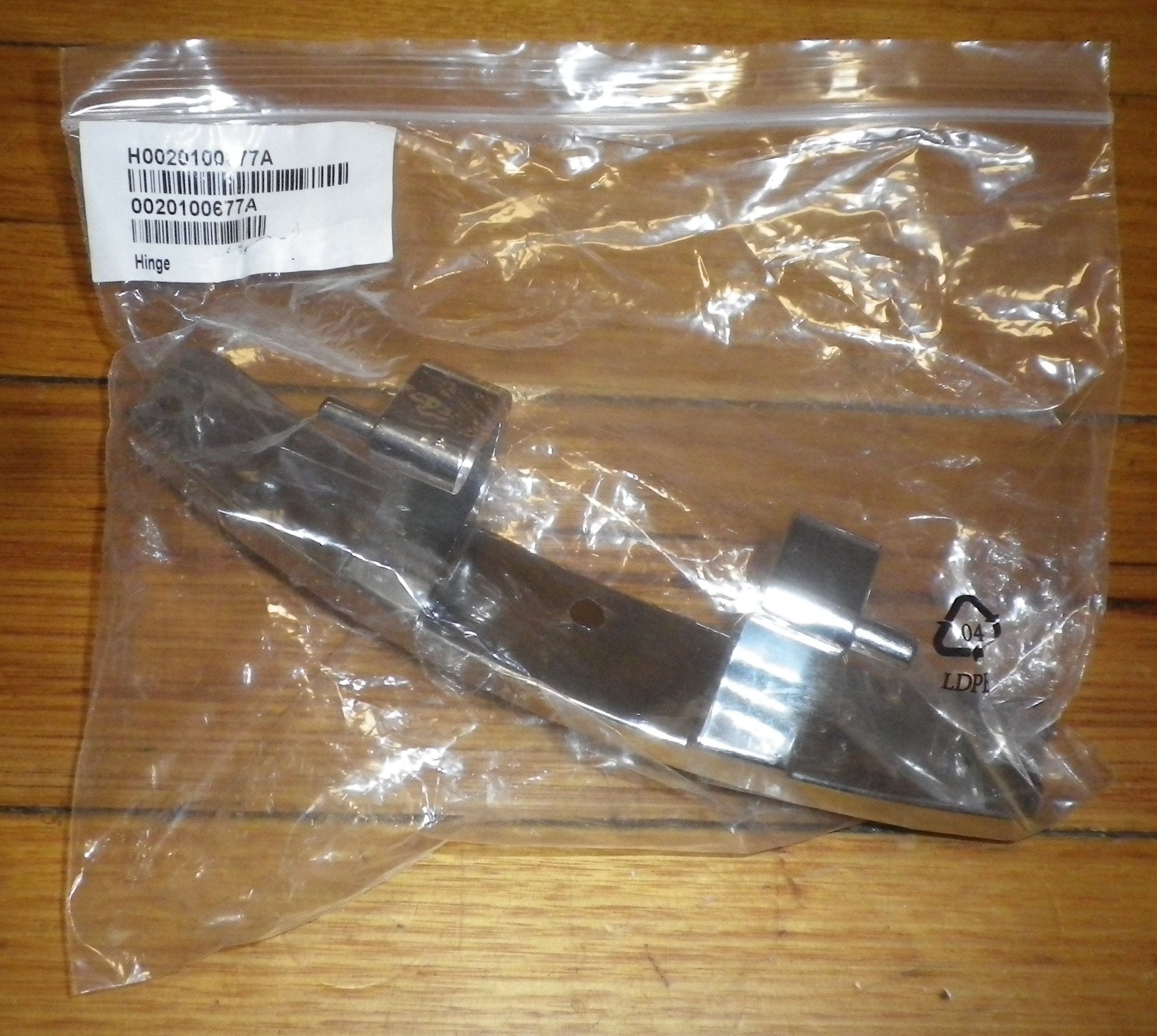

Fisher & Paykel, Haier Front Load Washing Machine Door Hinge.
Part No. H0020100677A.
Door hinge assembly to suit F&P, Haier HWF75AW1 (61381-A), HWF75DW1 (61399-A), HWF75SW2 (61396-A), HWF80BW1, HWF80BW1 (61382-A), HWF80BW2 (61398-A), HWF85AW1, HWF85AW1 (61380-A), HWF85BW1 (61397-A), HWF85DW1 (62300-A), HWF90BW1 (92341-A), HWM75-B12266 (61365-A), HWM85-B14266, HWM85-B14266 (61364-A), HWX8040DW1, HWX8040DW1 (61383-A), WH7560J3 (92236-A), WH7560J3 (93249-A), WH7560P2 (92230), WH7560P2 (92230-A), WH7560P2 (93247-A), WH8060F1 (93228), WH8060F1 (93228-A), WH8060F1 (93255-A), WH8060P1 (93161-A), WH8060P2 (93229), WH8560J3 (93236-A), WH8560J3 (93246-A), WD7560P1 (92237-A), WD8560F1 (93235-A), WH2424F1 (96235-A), WH2424P1 (96236-A), WH7560J1 (92137), WH7560J3 (92239-A), WH7560J3 (95125-A), WH7560P1 (92136), WH75660J2 (93230-A), WH8060P1 (98112-A), WH8060P2 (93229-A), WH8060P2 (93248-A), WH8560F1 (92228), WH8560F1 (92228-A), WH8560F1 (93245-A), WH8560J1 (92142), WH8560J2 (92231-A), WH8560P1 (92141), WH8560P2 (92229), WH8560P2 (92229-A), WH8560P2 (93254-A) front loader washing machines.
Mounting holes are 168mm apart.
Easy to fit. Fully guaranteed.
