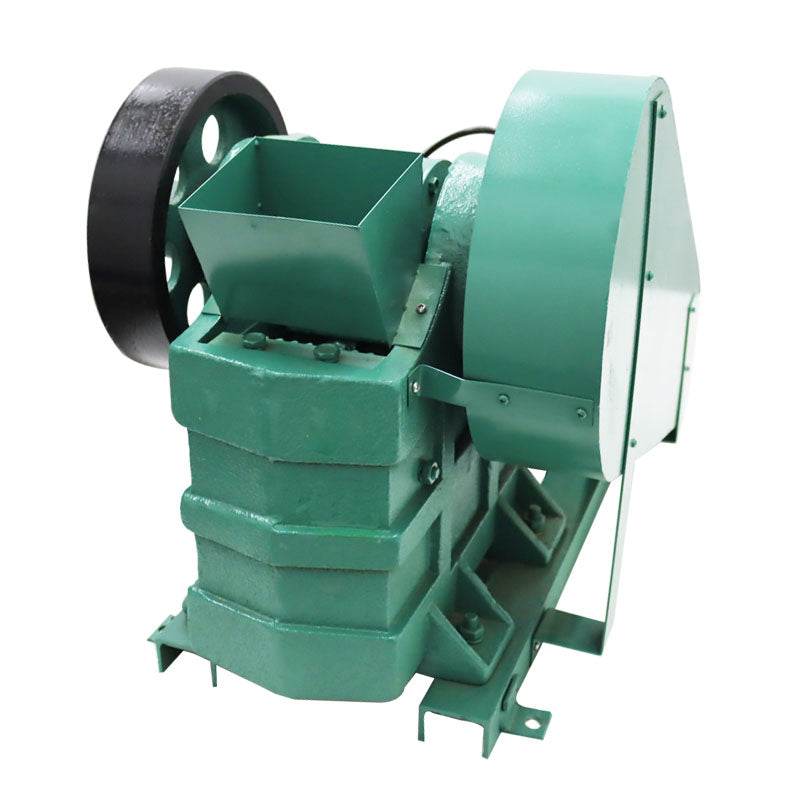

220V 100X60 Mini Jaw Crusher

220V 100X60 Mini Jaw Crusher

$859.00 USD
$859.00 USD
Sale Sold out
Shipping calculated at checkout.

100X60 Mini Jaw Crusher 220V

　


This jaw crusher is made of manganese steel which has more hardness than carbon steel.

It is applicable to medium and fine crushed materials for the purposes of laboratory and production and primarily provided as environmental protection equipment for coal, electric power, mine, geology, chemical, metallurgy,  building material and other industries.

Suitable for crushing materials: Calcite, talcum, cabblestone, kaolin, slag, steel slag, diabase, coom, coalgangue, maifanstone, basalt, iron ore, quartz  sand, CaCO3, bentonite ect.

https://buyyou.net/cbe/data/prd/021/088/1.jpg

Function

　

Some of crushing materials:

 https://buyyou.net/cbe/data/prd/021/088/2.jpg

Character

Attentions:

1.Install the machine on a sturdy base to avoid uneven force.

2.Put the side of strap against the wall for safety.

3.For the convenience of outlet, install the machine on a proper height.

4.Check the screws and strap before testing machine.

5.No-load test. It’s available to use after half an hour of test.

6.It’s better to crush medium-hard materials for prolonging the lifespan of the machine.

7.There’s a sample power line on the motor, replace a new line in the same way.

https://buyyou.net/cbe/data/prd/021/088/3.jpg
Parameters:

　

Voltage : 220V

Power:1.5KW

Feeding Inlet Size : 60*100mm

Feeding size: ≤55mm

Output size: 2mm~10mm (Adjustable)

Rotating Speed: 1400 RPM

Capacity: 250kg/h

Maximum Input size 3.9 * 2.3inch,

Output size 0.078-0.393inch

　

Shipped by a wooden box.

Package size: 30.3"x18.5"x20.8" (77x47x53cm)

Package Volume:0.19m³

Gross weight：98KG(216lbs)

 　

Crushing size can be adjusted.

https://buyyou.net/cbe/data/prd/021/088/4.jpg

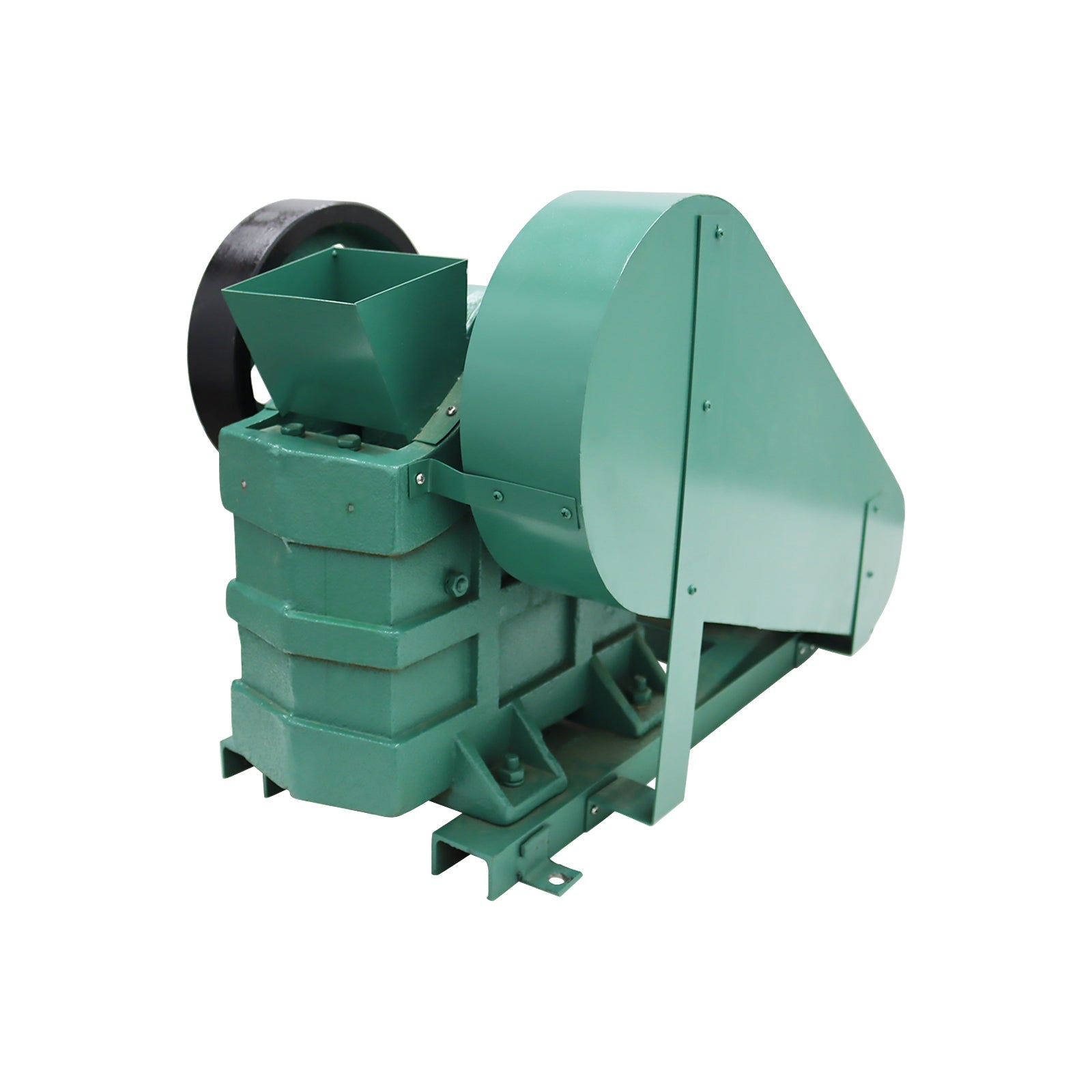

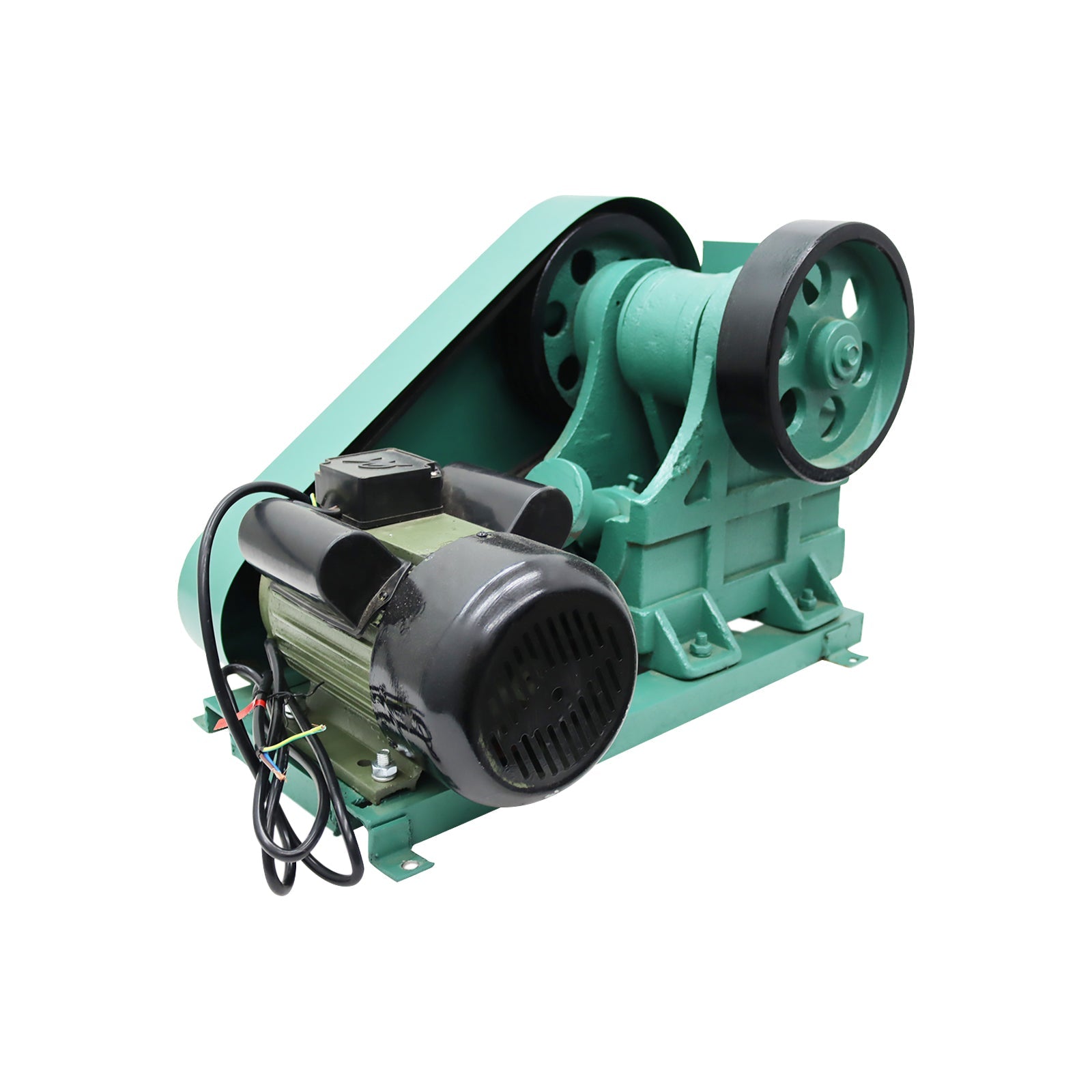

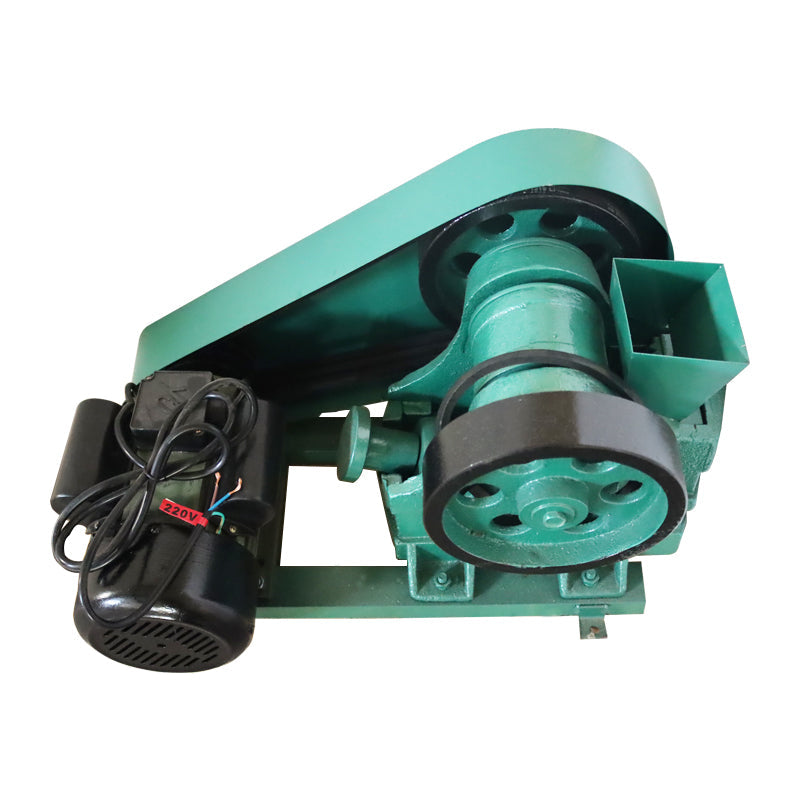

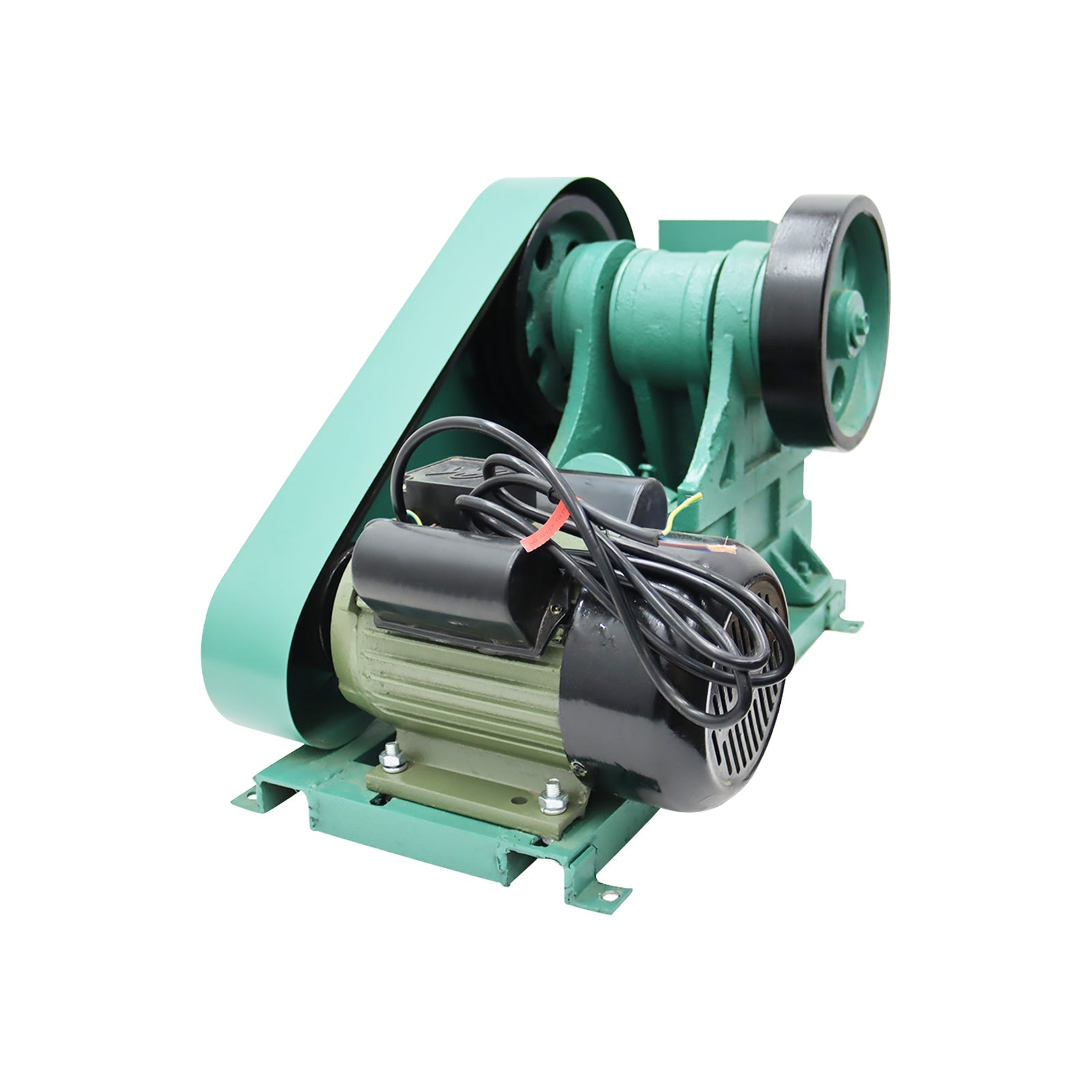

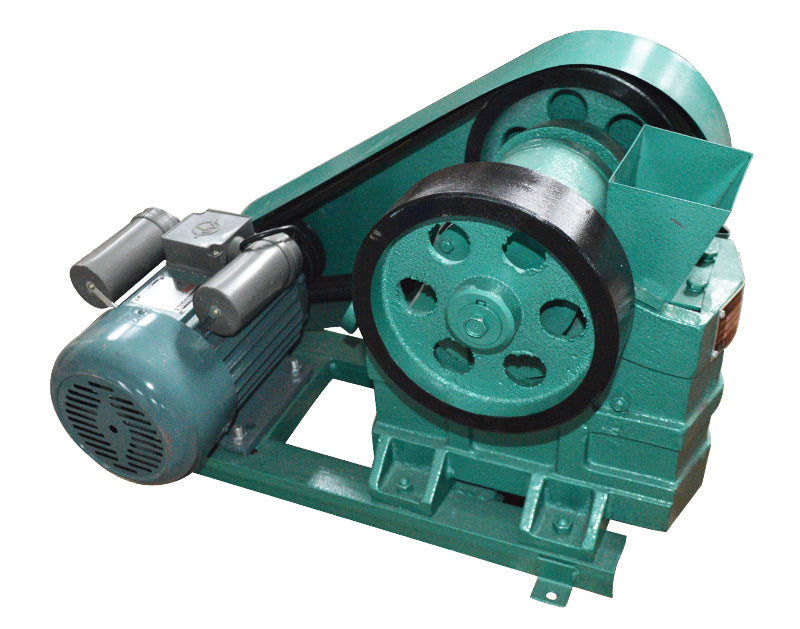

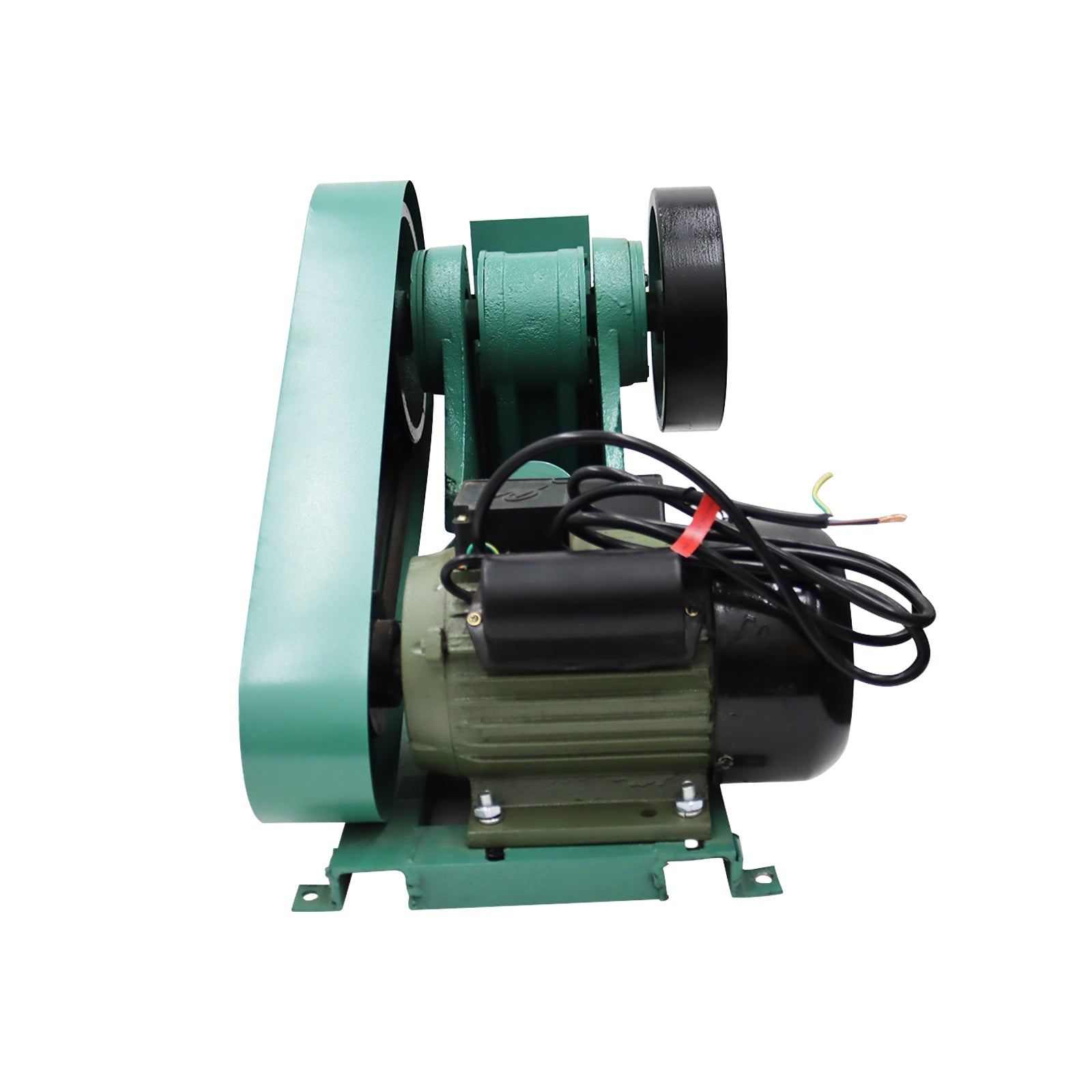

Product Details

http://topseller365.com/data/prd/021/088/3-1.jpg

http://topseller365.com/data/prd/021/088/7.jpg

Note:This machine has no plug and needs to be connected to the air switch for use by the customer (we have a video of the wiring, if you can't wire it, you can contact us for a video reference)
Items included:

1 set of 220V 100X60 Mini Jaw Crusher (021088)

https://buyyou.net/cbe/data/prd/021/088/82.jpg
Item# Description QTY Unit Note
021088 220V 100X60 Mini Jaw Crusher 1 Set 　
　　
Item Number:

You can make order with no worries.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
