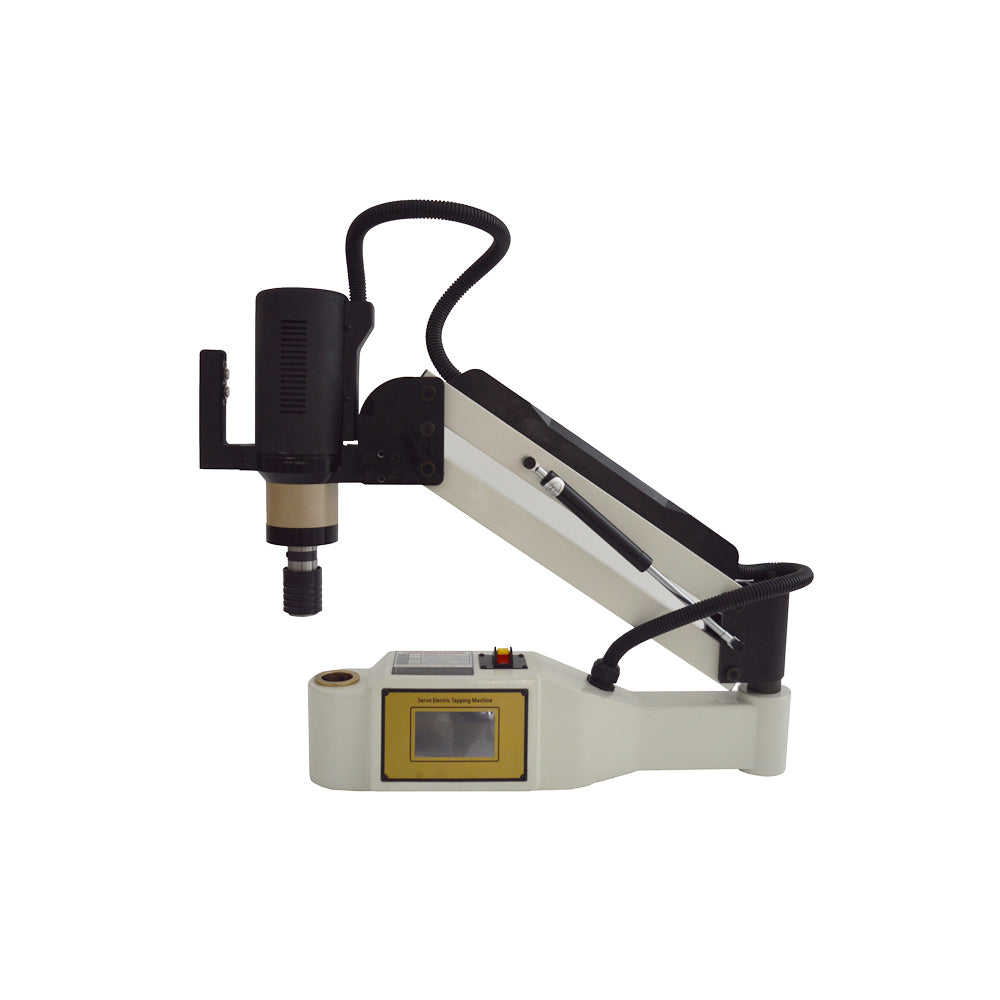

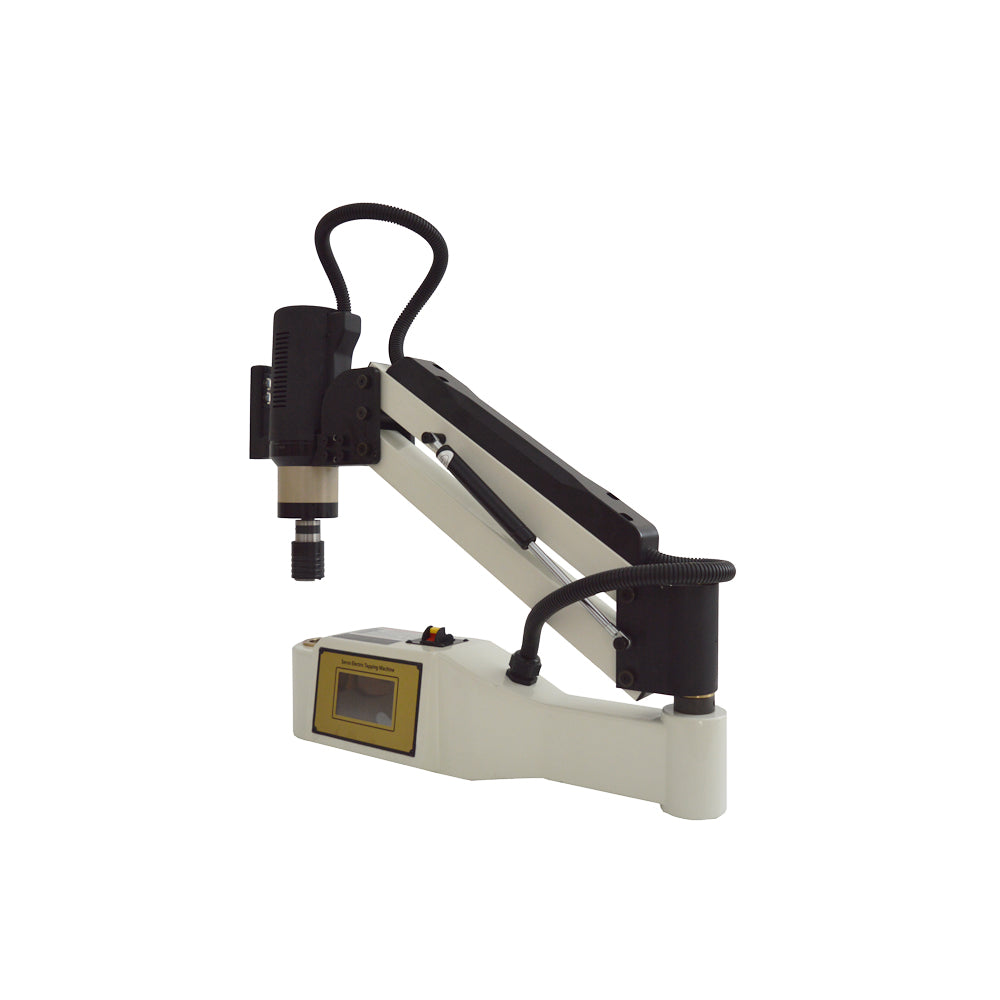

M3-M16 Universal Touch-Sreen Electric Tapping Machine

Name: M3-M16 Universal Touch-Sreen Electric Tapping Machine
Brand: 056222
SKU: 056222
Price: 999.00 USD
Availability: InStock

$999.00 USD

Sale Sold out

Shipping calculated at checkout.

https://buyyou.net/cbe/data/prd/056/348/K3.jpg

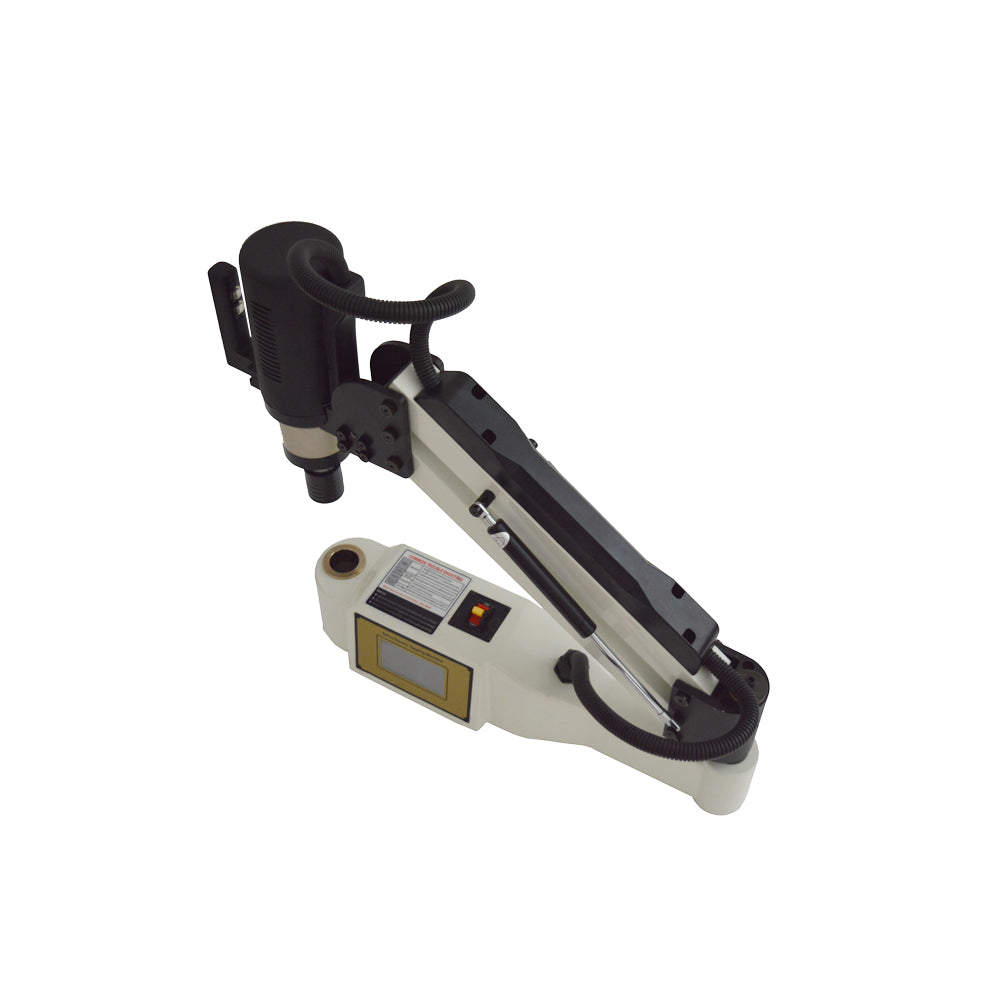

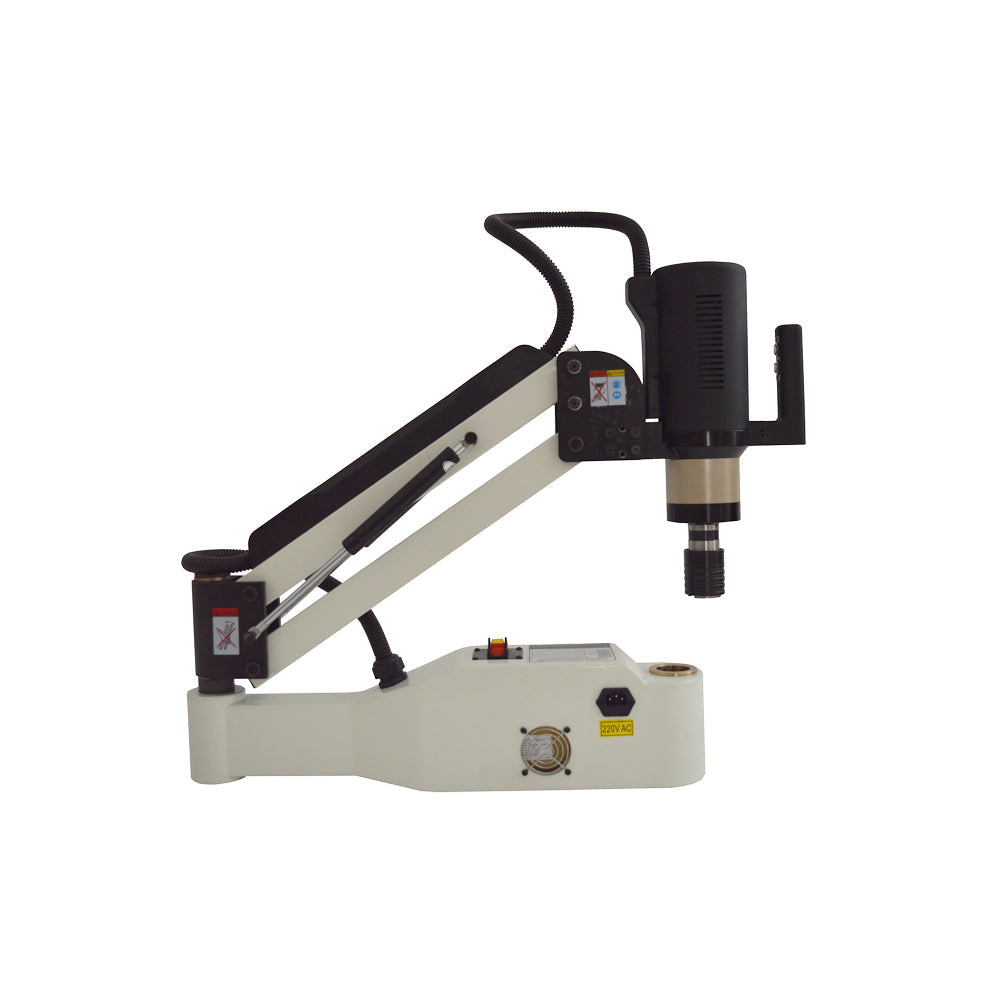

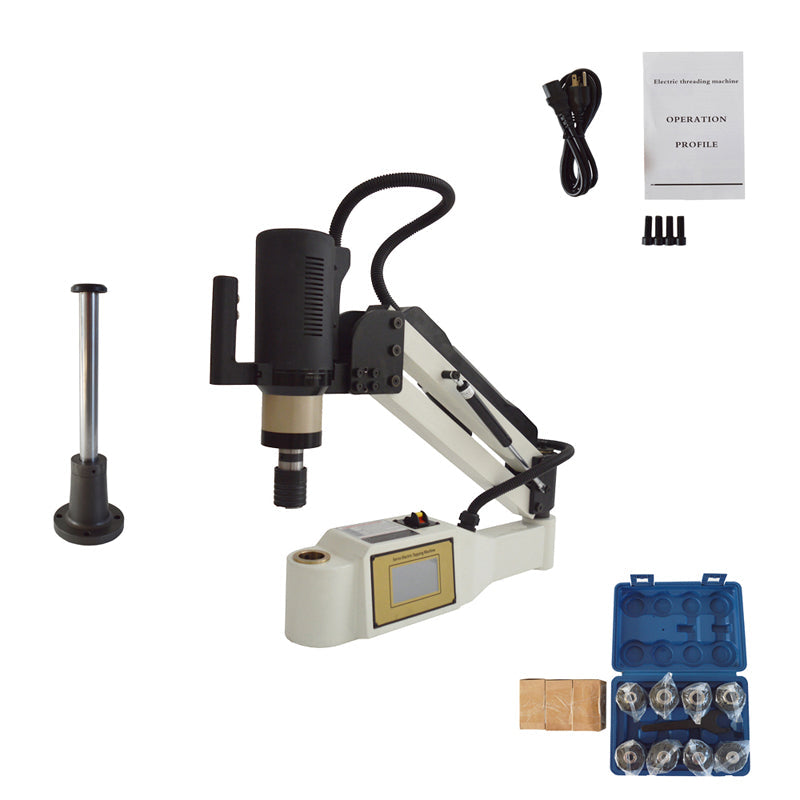

M3-M16 Universal Touch-Sreen Electric Tapping Machine

https://buyyou.net/cbe/data/prd/056/222/1.jpg

Product Overview

Electric tapping machine is used in factory workshops, woodworking, DIY work, mold manufacturing, etc. for steel tapping, aluminum tapping, copper tapping, iron tapping, wood tapping, plastic tapping, etc.

Product Parameters

Tapping capacity:	M3-M16
Voltage \ power:	220V\600W

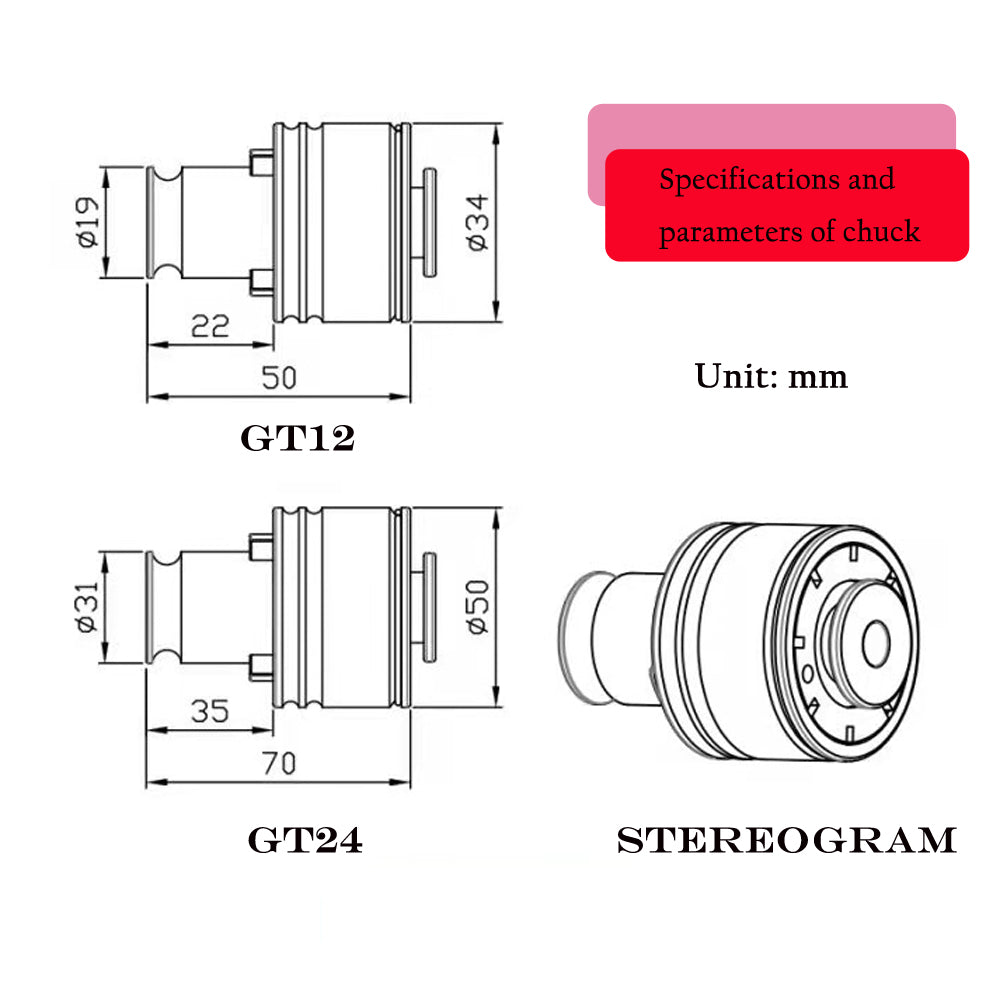

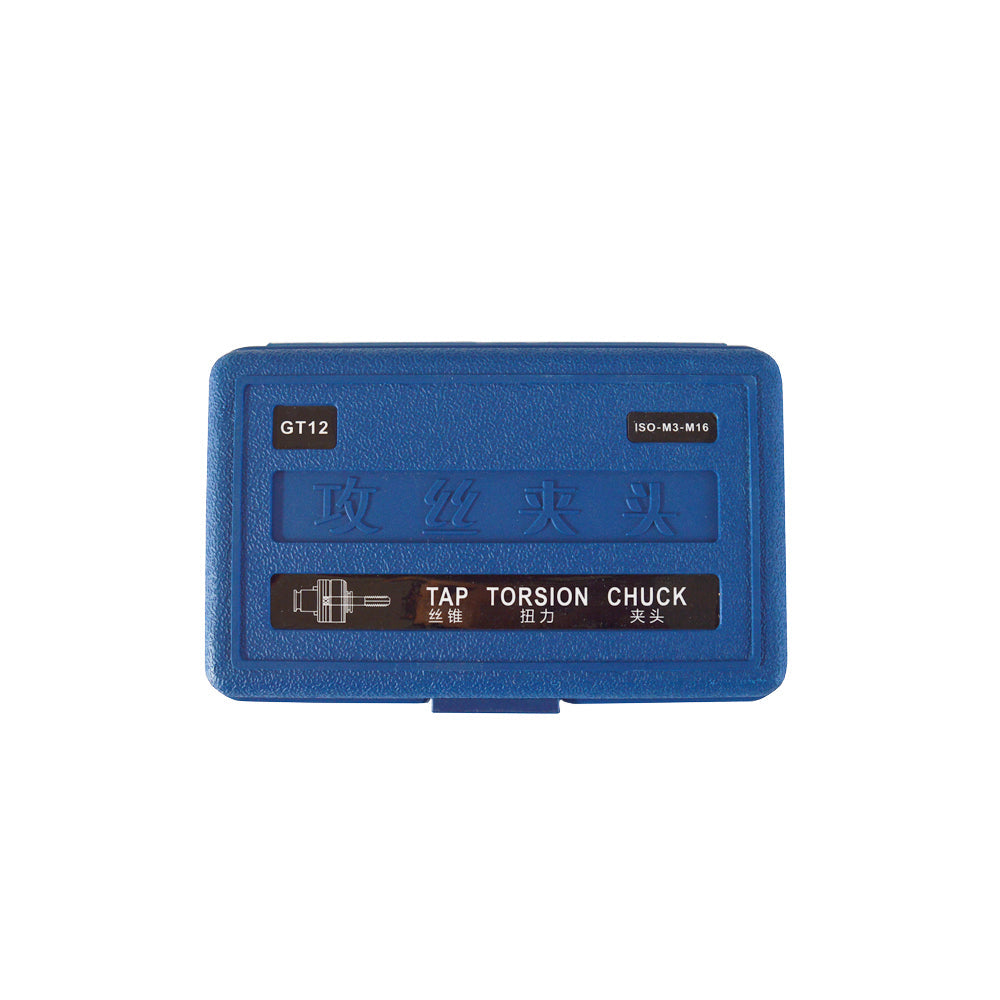

Chuck type:	GT12
Available inch tap specifications:	1/8、5/32、5/16、PT1/8、1/2、9/16、5/8
Maximum speed:	156rpm/min
Horizontal stretch:	1.1M
Vertical extension:	0.55M
Maximum spindle stroke:	500mm(19.7")
Colour:	White
Tapping angle:	Universal
Gross weight:	66LBS

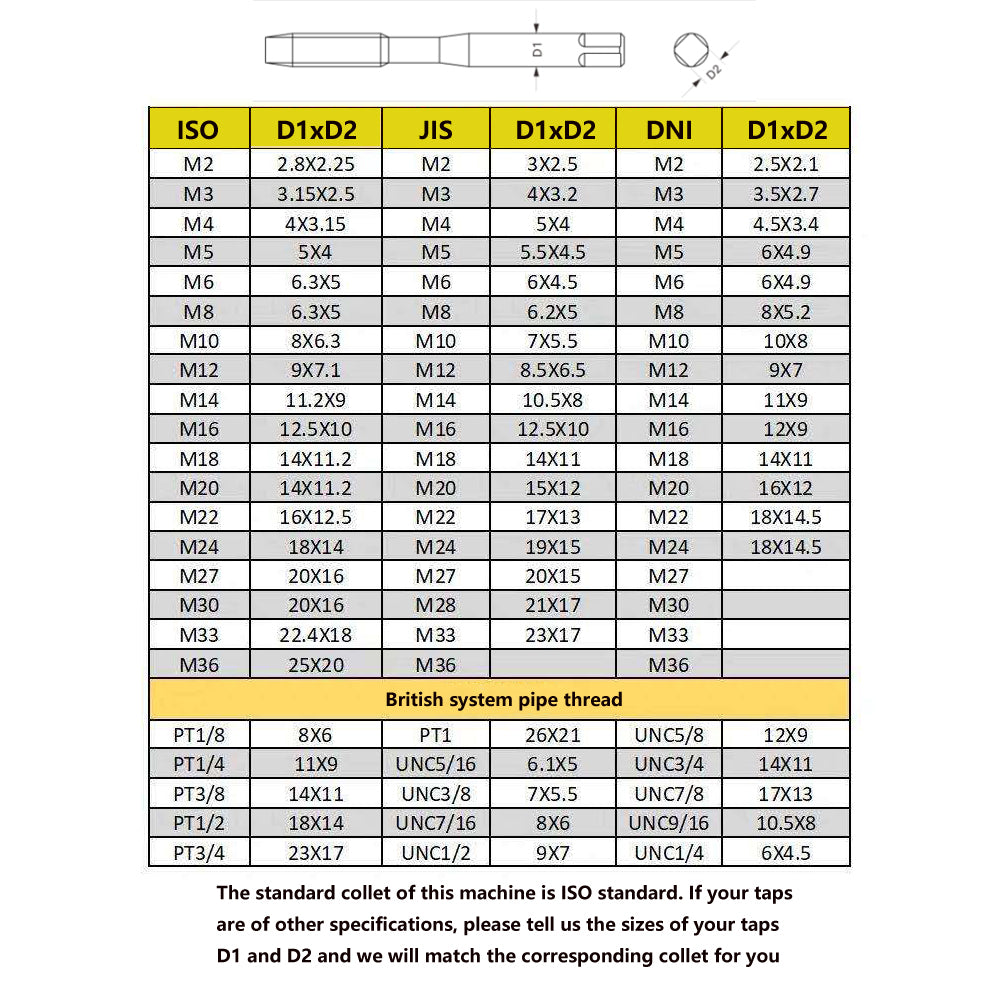

Metric tap specifications	British system tap specifications	D1*D2（mm）
M3		3.15*2.5
M4	1/8	4.0*3.15
M5	5/32	5.1*4.0

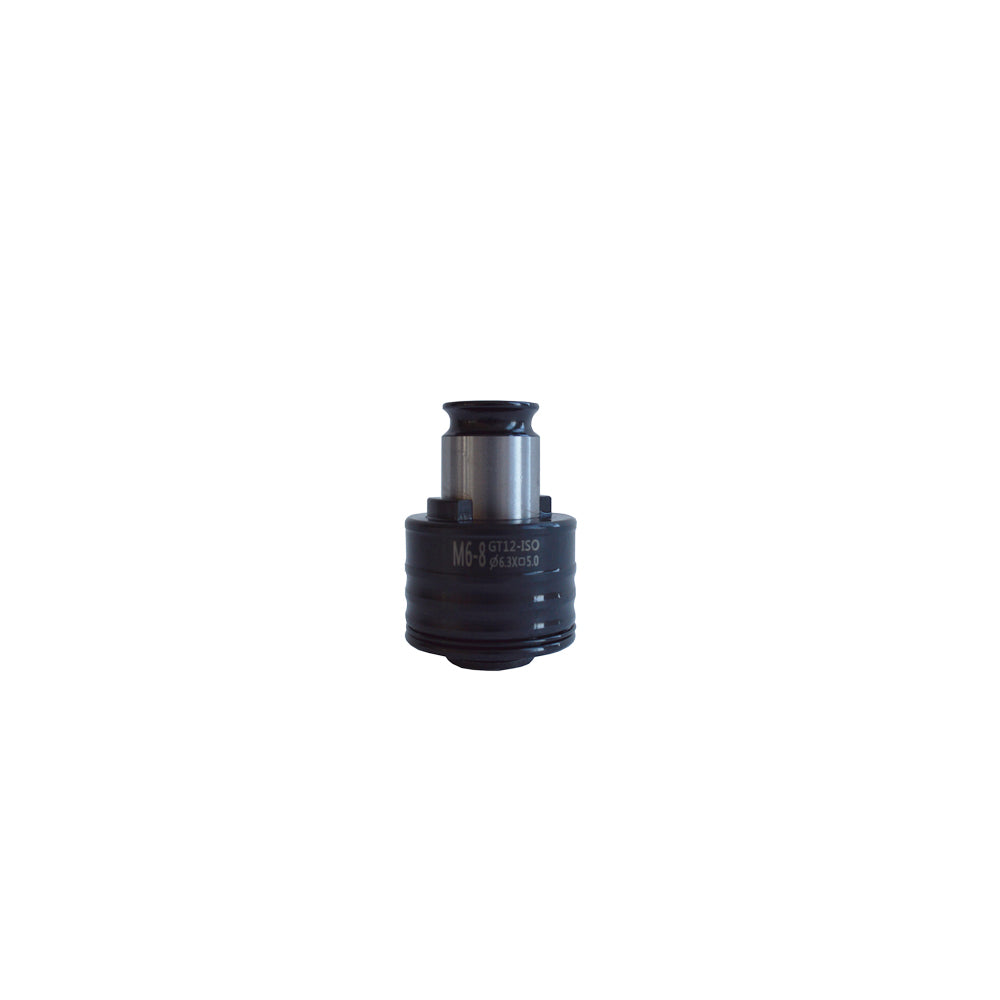

M6-M8	5/16	6.3*5
M10	PT1/8	8.0*6.3
M12	1/2	9.0*7.1
M14	9/16	11.2*9
M16	5/8	12.5*10

Product Features & Advantages

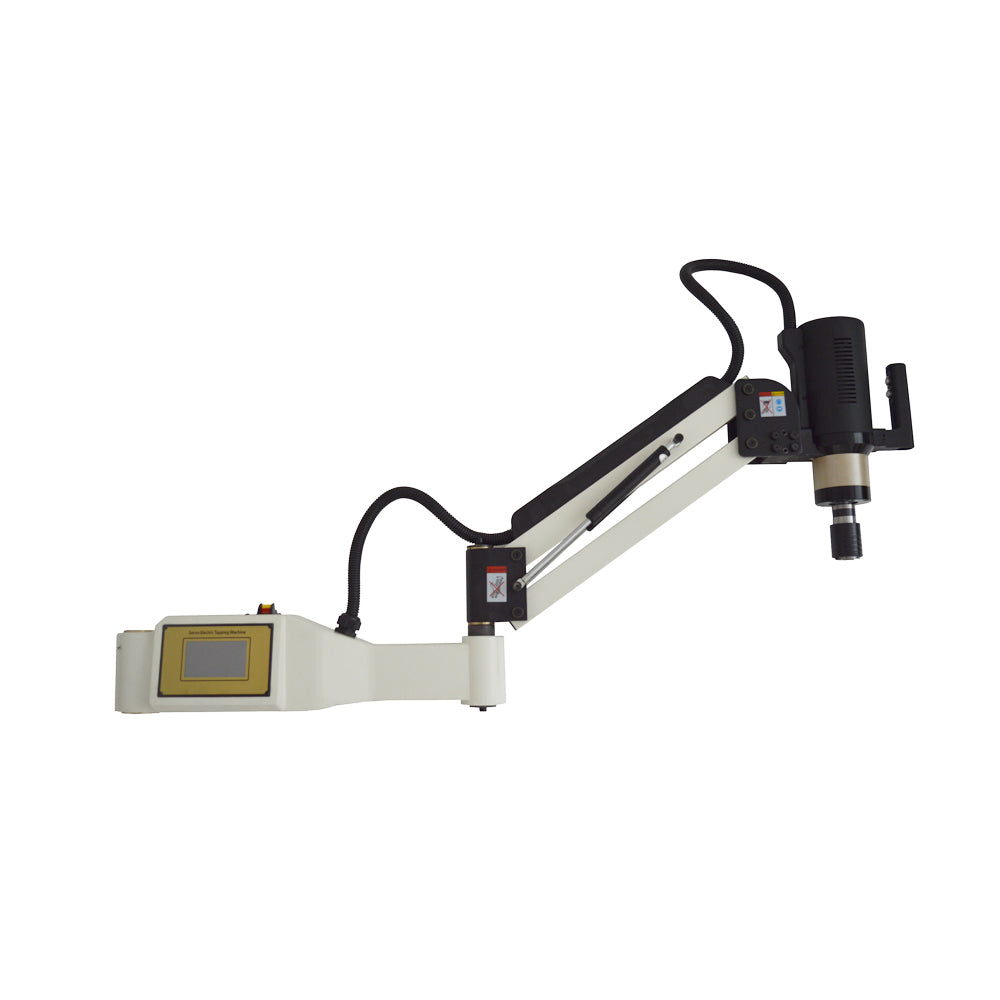

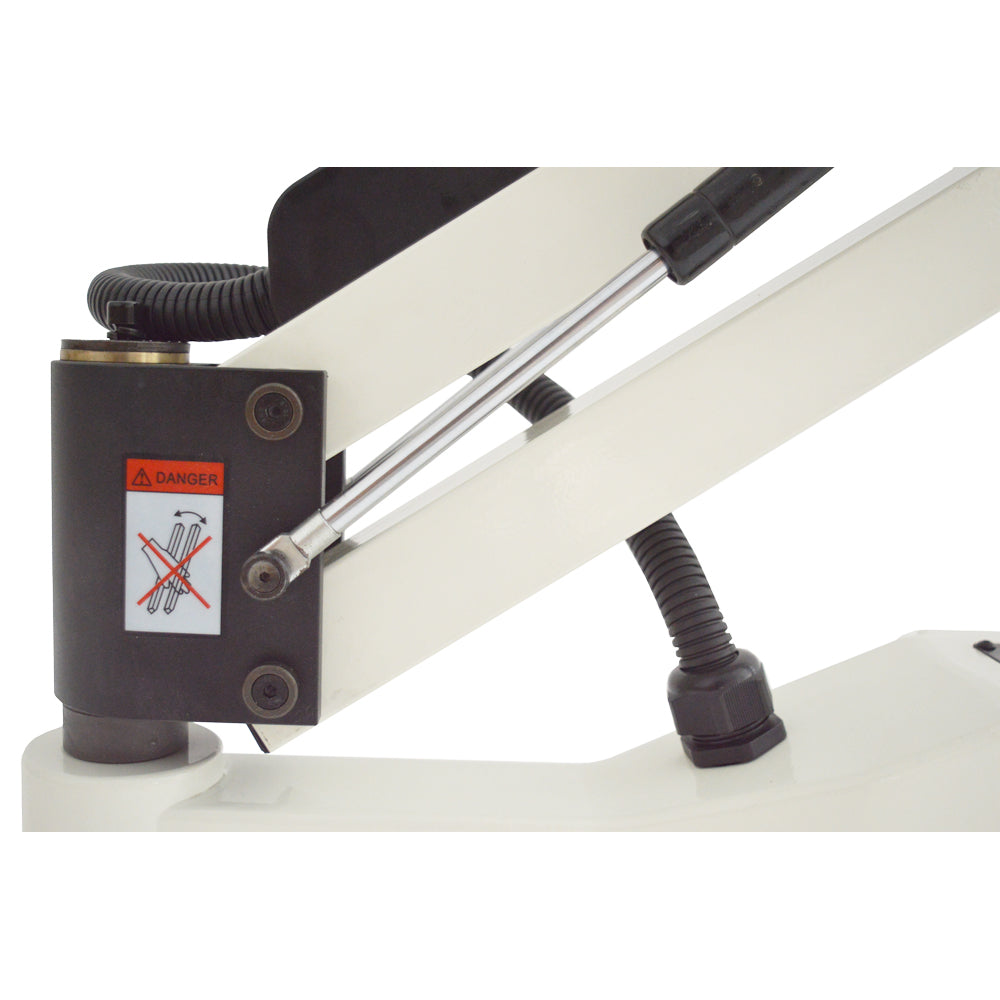

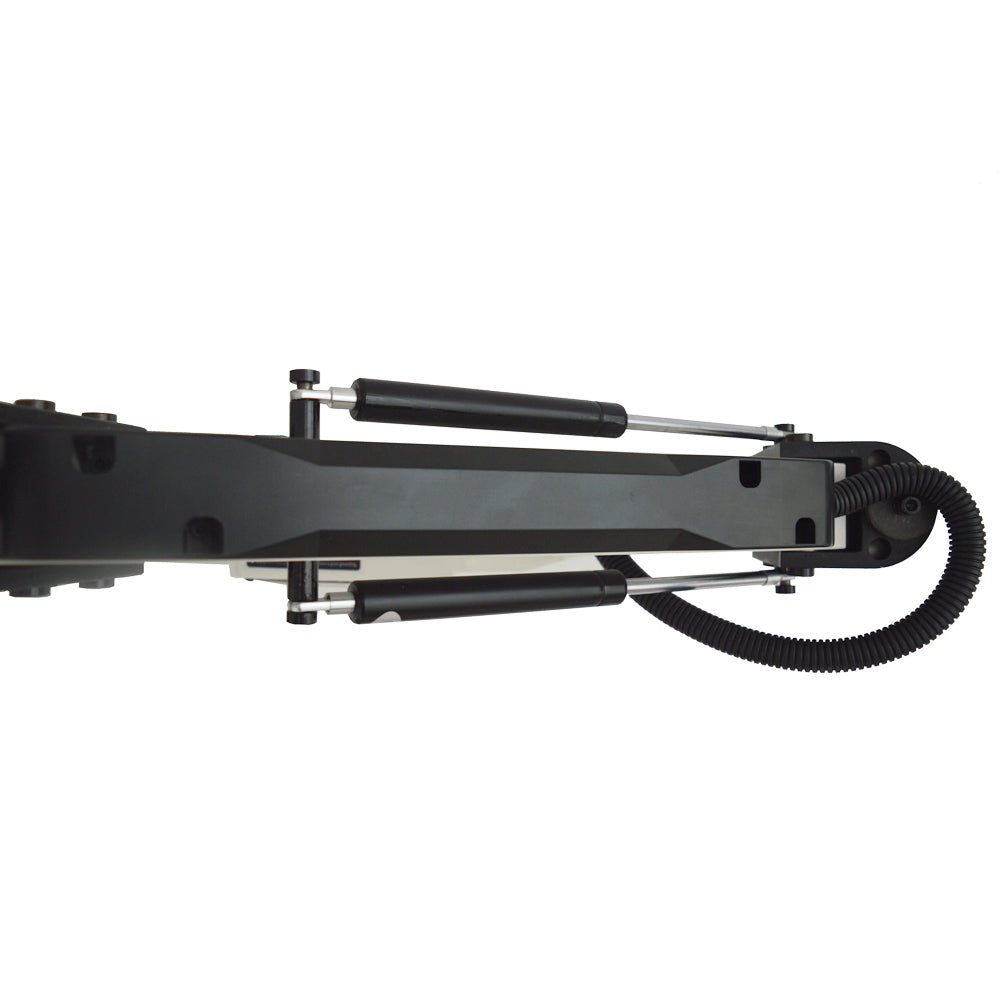

1.Intelligent electric universal tapping machine, advanced professional arm design.

2.Tapping can be positioned in many ways.

3.Quick, accurate and convenient positioning.

4.This machine is multi-purpose, suitable for tapping steel, aluminum, plastic and wood.

5.The machine is touch-screen panel with clear and intuitive interface and simple operation. There are three tapping modes, which can be switched between Chinese and English.

6.The machine has three tapping modes: manual tapping mode, automatic tapping mode and vibration tapping mode.

7.The machine has stepless speed regulation function.
　

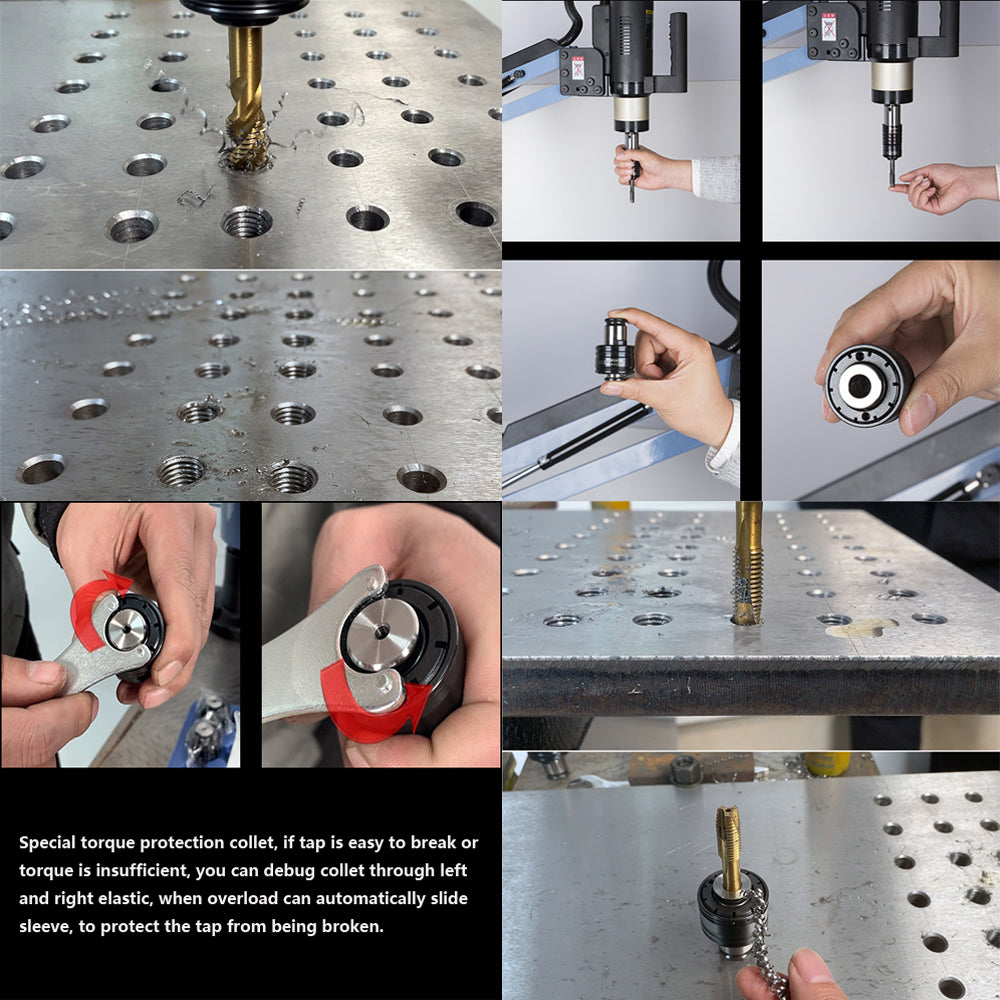

8.Double torque protection.

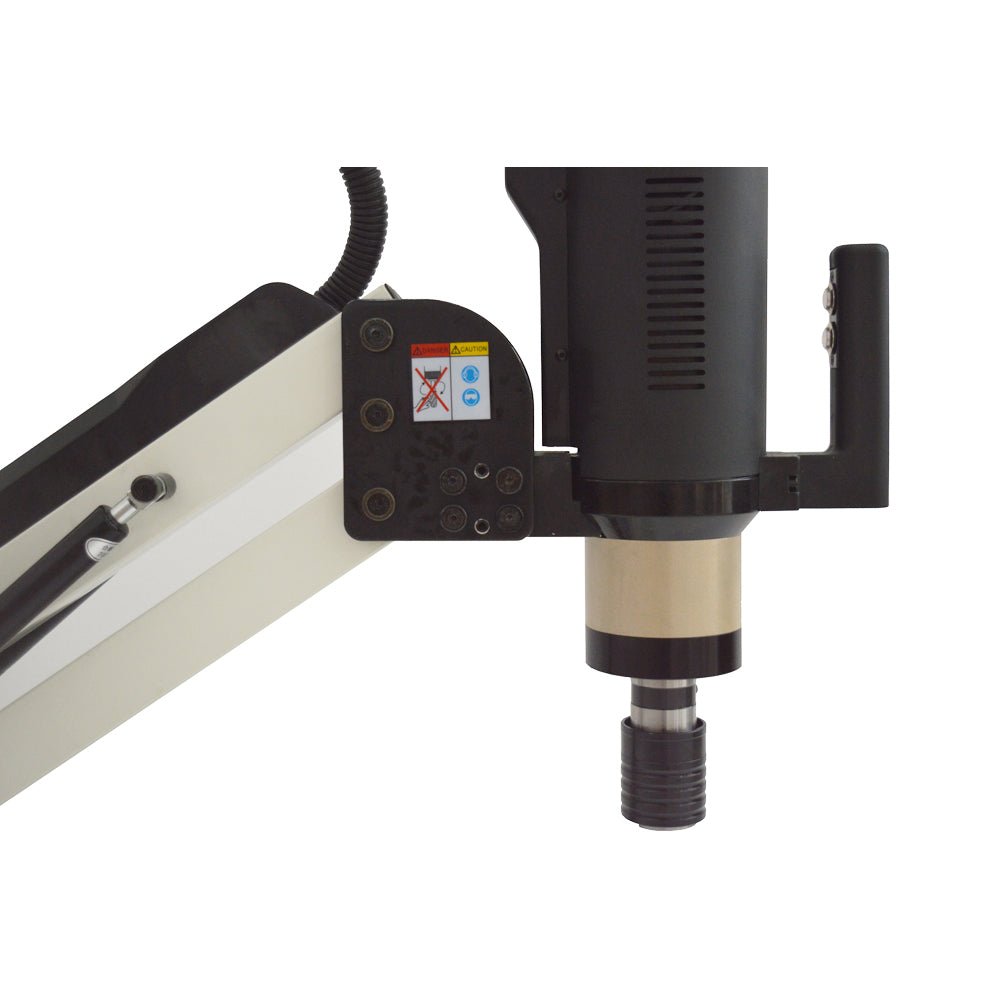

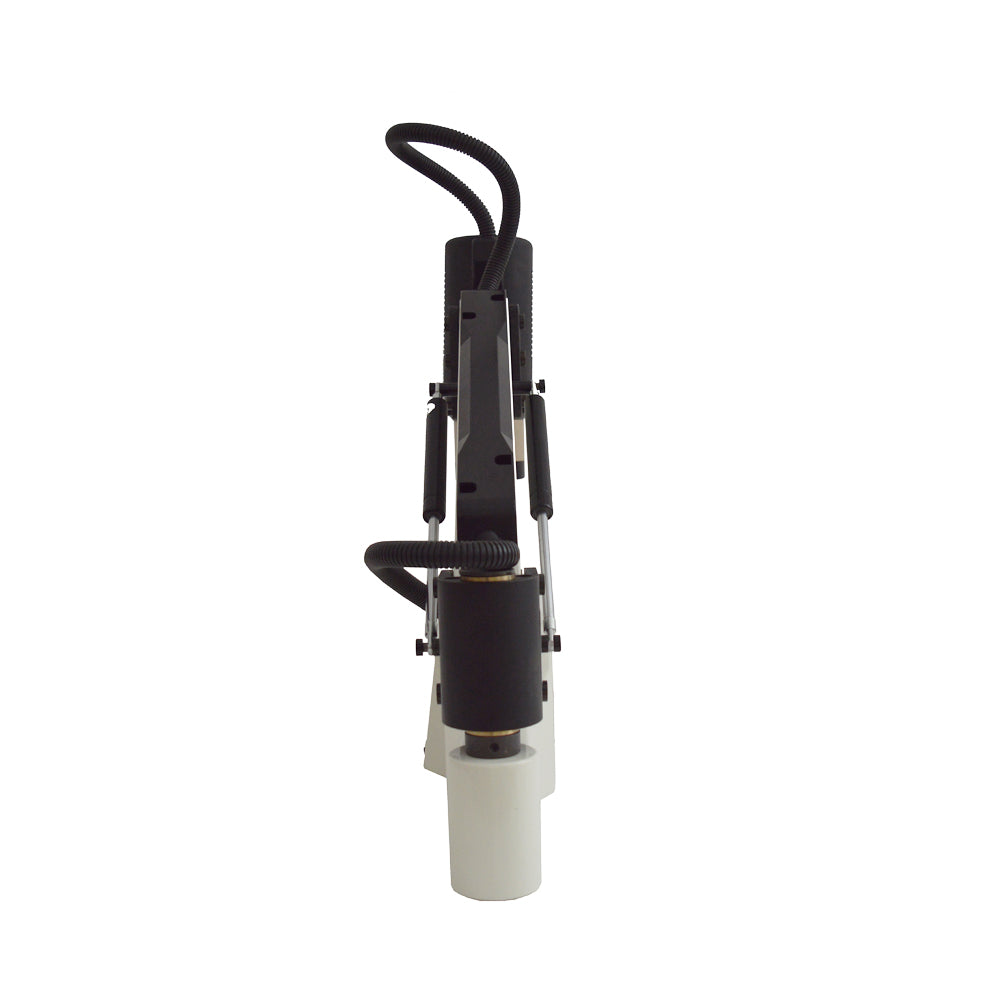

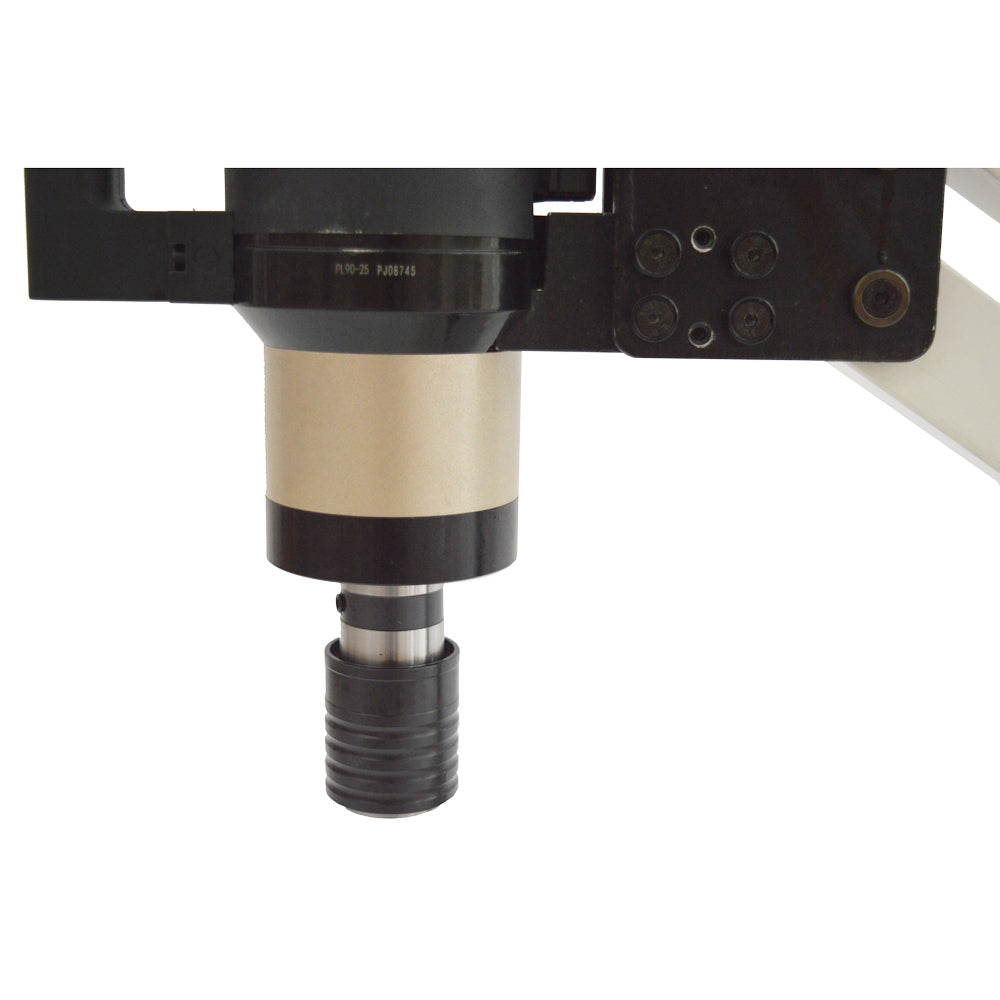

Product Presentation & Details
