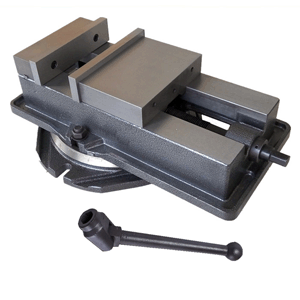

6" Milling Machine Vise with Base

Description

This product is main attachments to precision millings grinders nc machines.
When active mouth of the tongs level migration, above it half sphere can have a vertical downward pressure, therefore the clamp work piece cannot surface the boat.
The mouth of the tongs opens the opening to be possible to act according to four firection changes.

Specifications

Product Code:?QM160
Mouth of the tongs width: 160mm
Mouth of the tongs altitude: 45mm
Biggest clamping force: 29KN
Localization width of key: 18mm
Screw rod six square head widhts: 19mm
Diameter of bolt: M16
Foundaton scale interval: 1°
Chassis two set groove center distances: 275mm
External dimensions: 450*298*157mm(L*W*H)
Weight: 31KG
