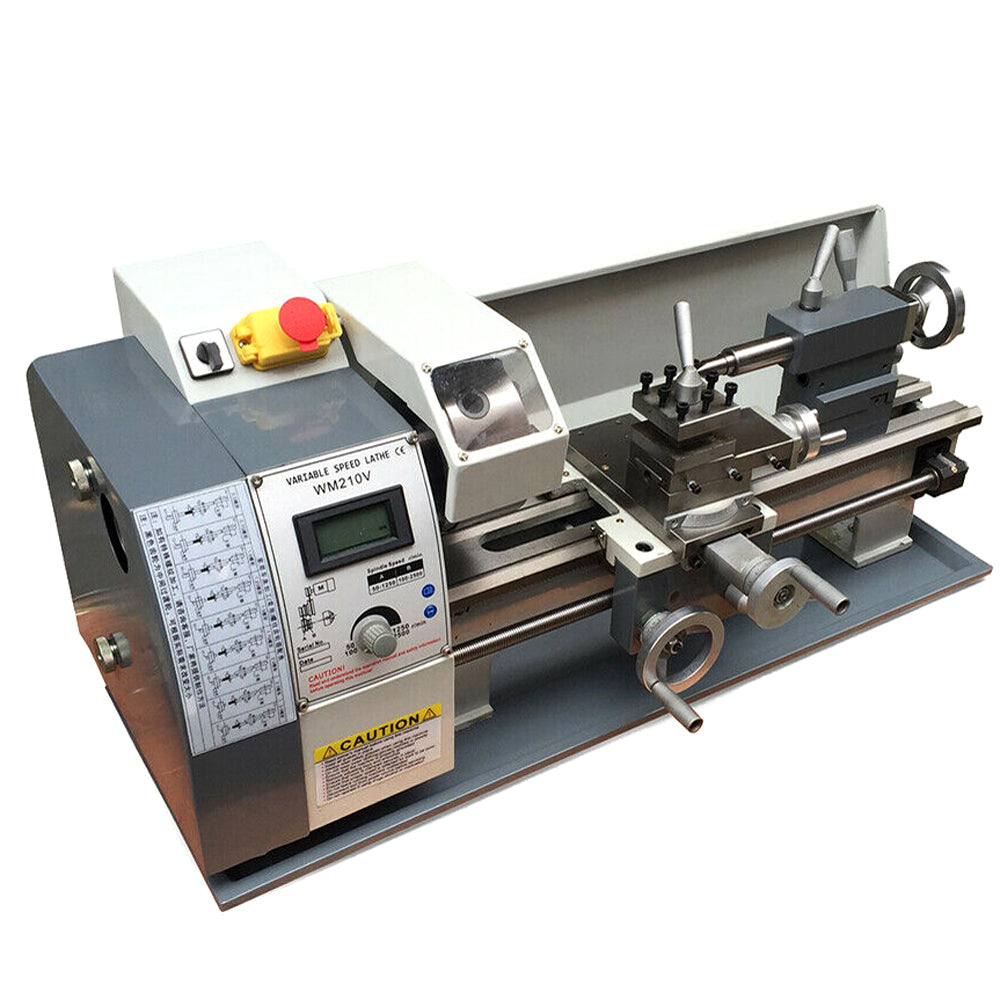

WM210V Metric Precision Metal Bench Lathe 900W
WM210V Metric Precision Metal Bench Lathe 900W
Regular price
$1,289.00 USD
Regular price
Sale price
$1,289.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
|

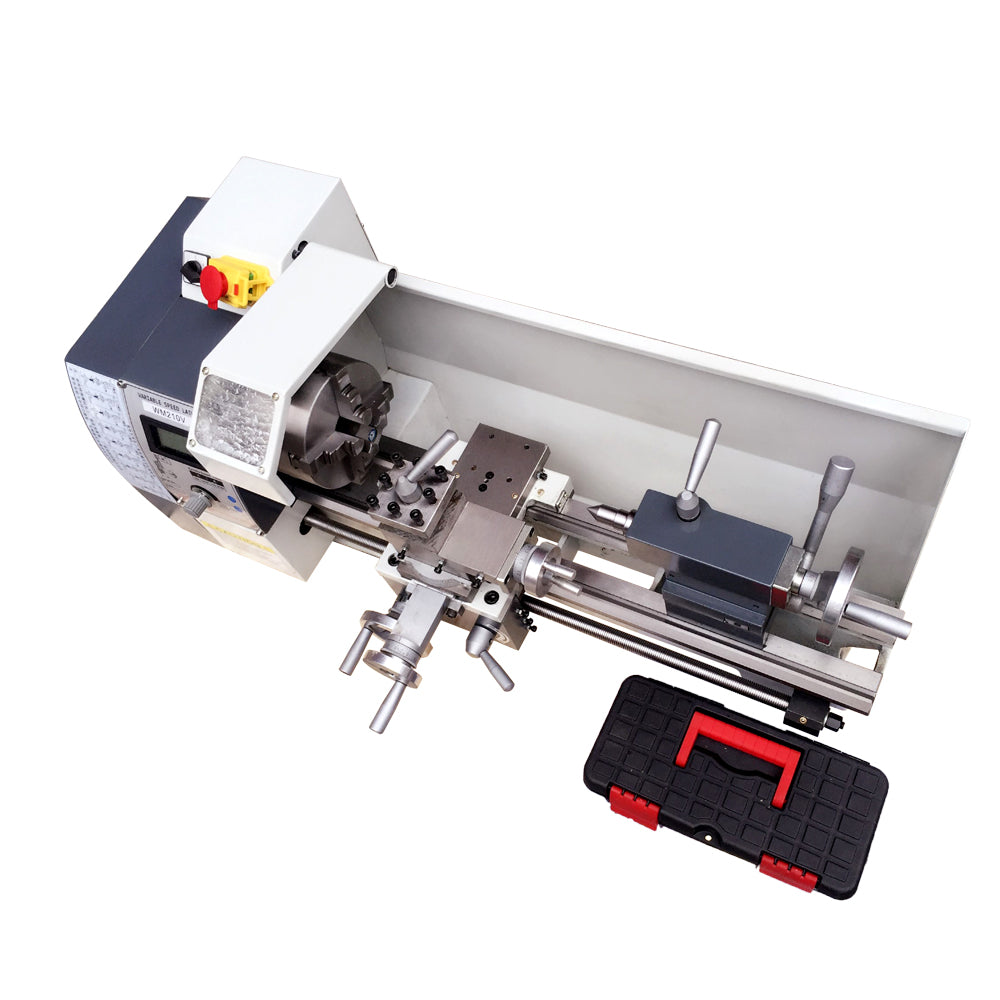

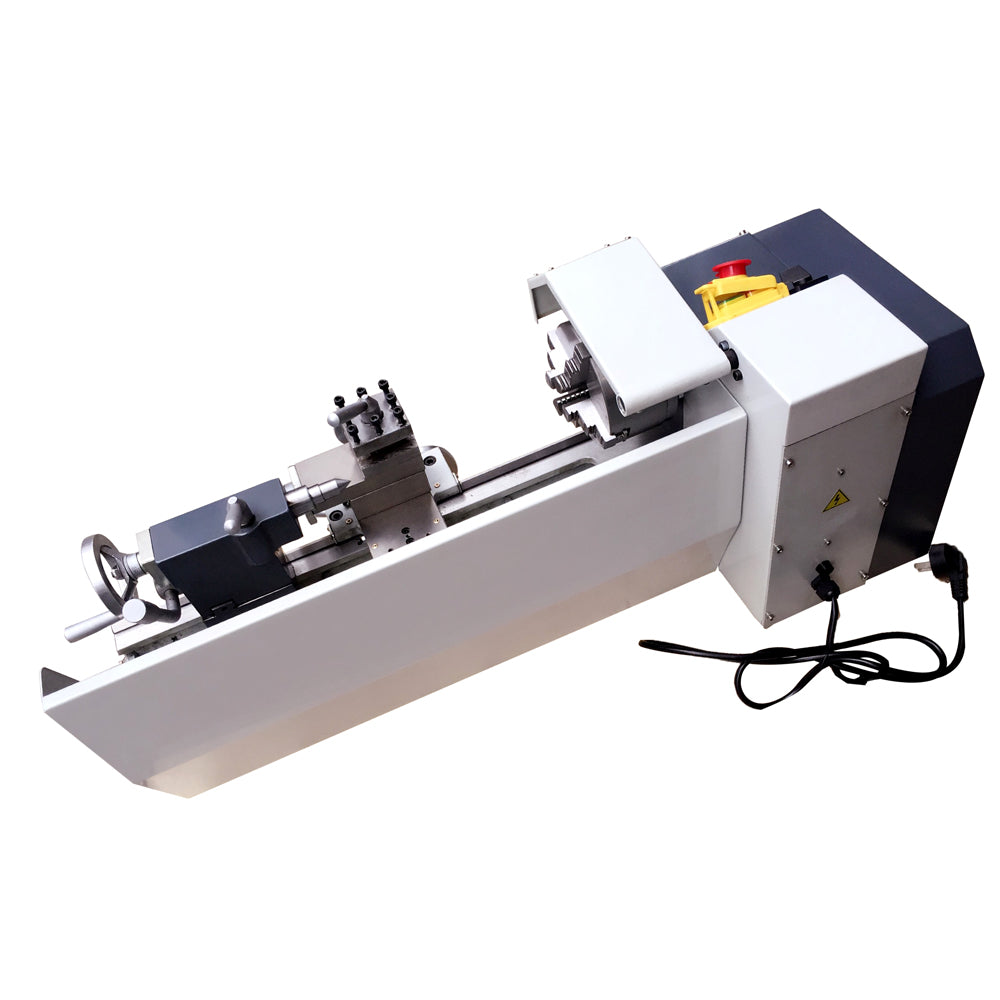

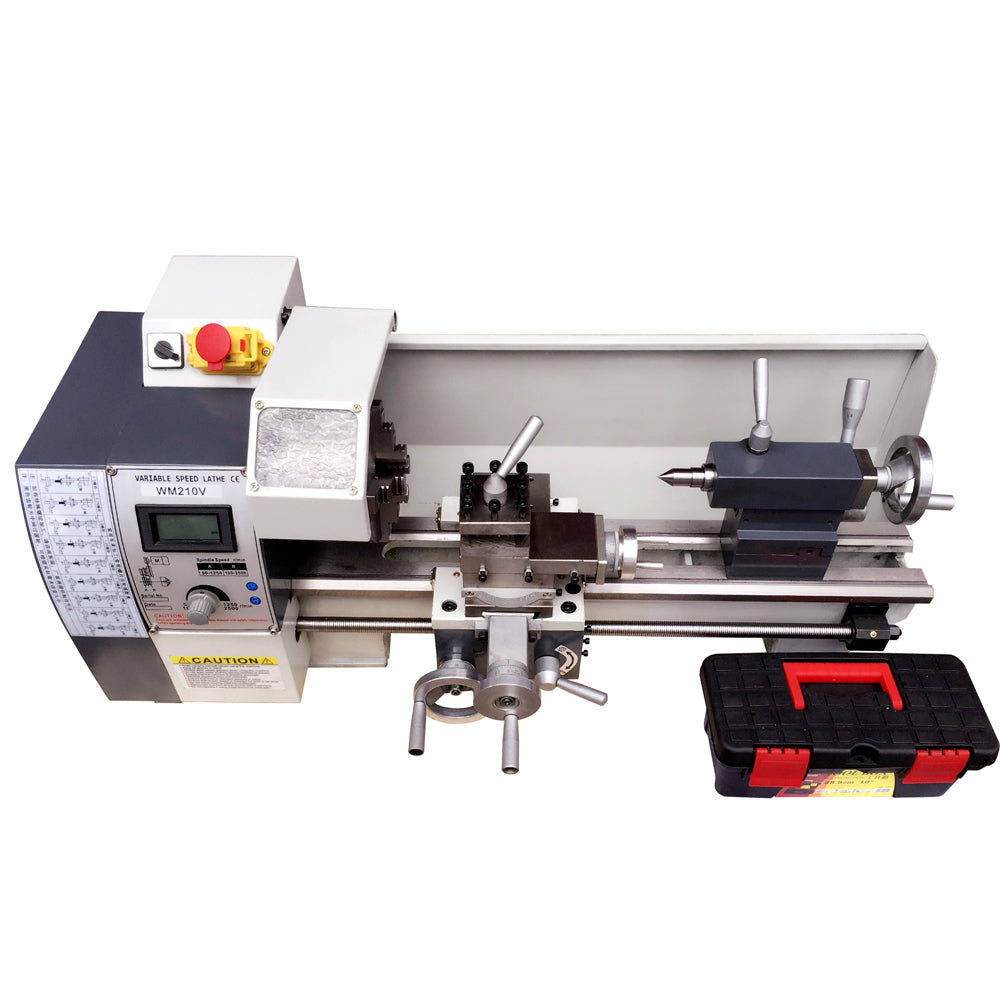

WM210V Metric Precision Metal Bench Lathe 900W |
| Product Overview |
| Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread. |
| Product Parameters |
| Model: | WM210V |
| Motor: | 110V brushless motor |
| Voltage: | AC110V 50/60Hz |
| Power: | 900W |
| Length of center: | 15.7"（400mm） |
| Swing Over Bed: | 8.3"（210mm） |
| Rotary diameter of tool rest: | 5.51"（140mm） |
| Spindle bore: | 1.50"（38mm） |
| Diameter of chuck: | 4.92"（125mm） |
| Width of lathe bed: | 3.94"（100mm） |
| Number of Spindle Speeds: | Infinitely variable speeds |
| Spindle taper: | MT5 |
| Knife rest labour: | Horizontal four-station |
| Spindle rotation speed: | 50-2500rpm |
| Range of metric threads: | 0.5-3mm |
| Range of Inch Threads(optional accessory ): | 10-44T.P.I |
| Precision of the spindle: | 0.01mm |
| Automatic feed range: | 0.1mm-0.2mm |
| Maximum stroke of tool rest plate: | 2.16"（55mm） |
| Maximum stroke of middle plate: | 2.95"（75mm） |
| Maximum stroke of bottom plate: | 10.87"（276mm） |
| Maximum stroke of tailstock sleeve: | 2.36"（60mm） |
| Tail frame taper: | MT2 |

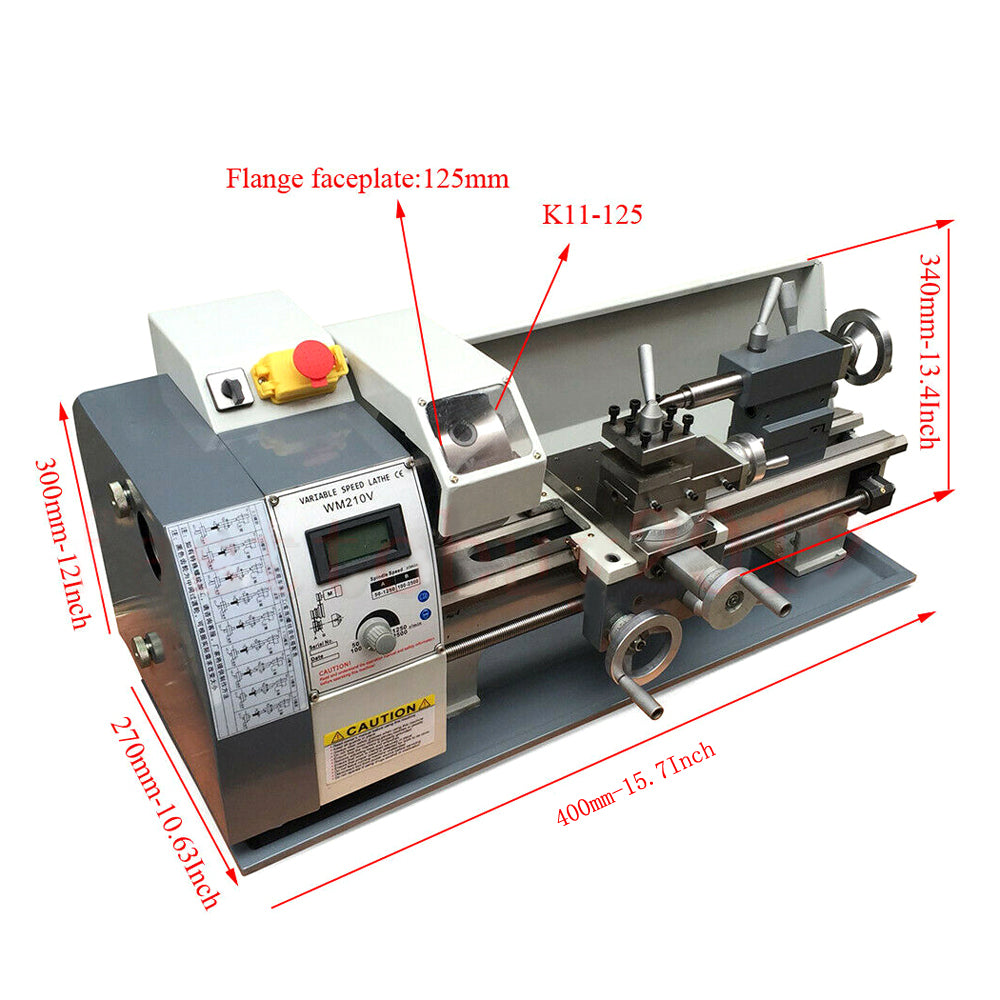

| Lathe sizes: | 31.9"*11.8"*13.8"（81*30*35cm） |
| Package size: | 35.4"*19.3"*17.7"（90*49*45cm） |
| Gross weight: | 141lb（64kg） |
|
Note:*We provide optional parts for this lathe. If you need, please contact us*. |
|
| Features & Advantages |

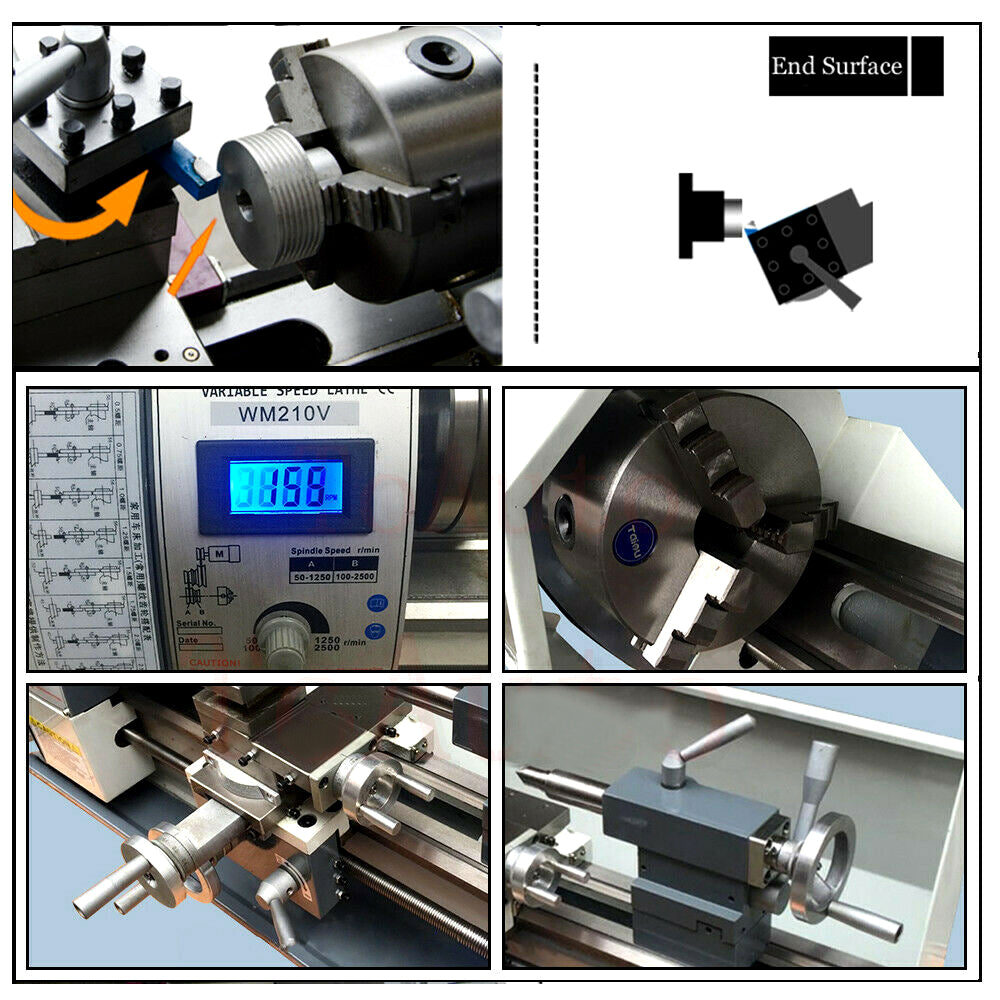

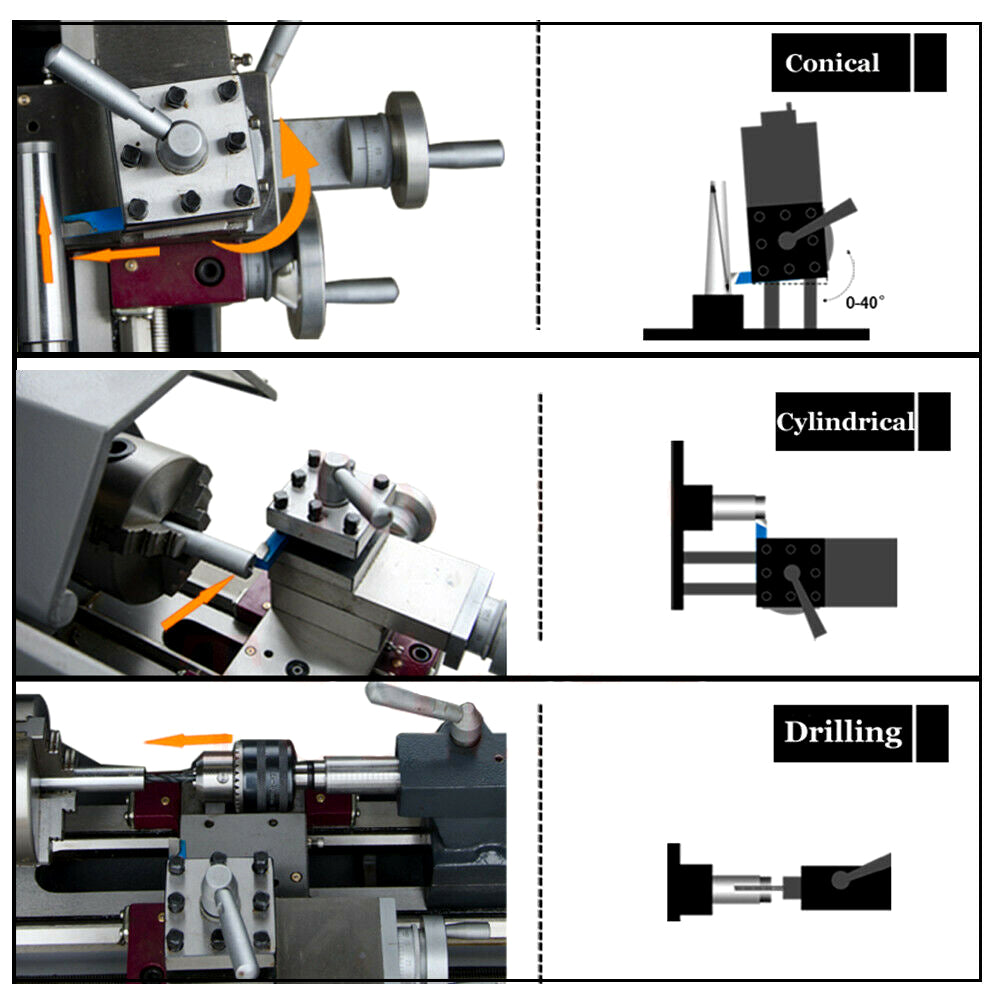

| Product Presentation & Details |
| Item Included（028284） |
| WM210V lathe * 1 | Chuck Jaw * 3 | Gear *4 (40/50/60/72) |
| The Screwdriver * 2 | Open spanner *2 | Hexagon Wrench *5 |
| Oil can * 1 | The Fuse * 1 | Chuck Spanner *1 |
| English Instruction Manual *1 |
