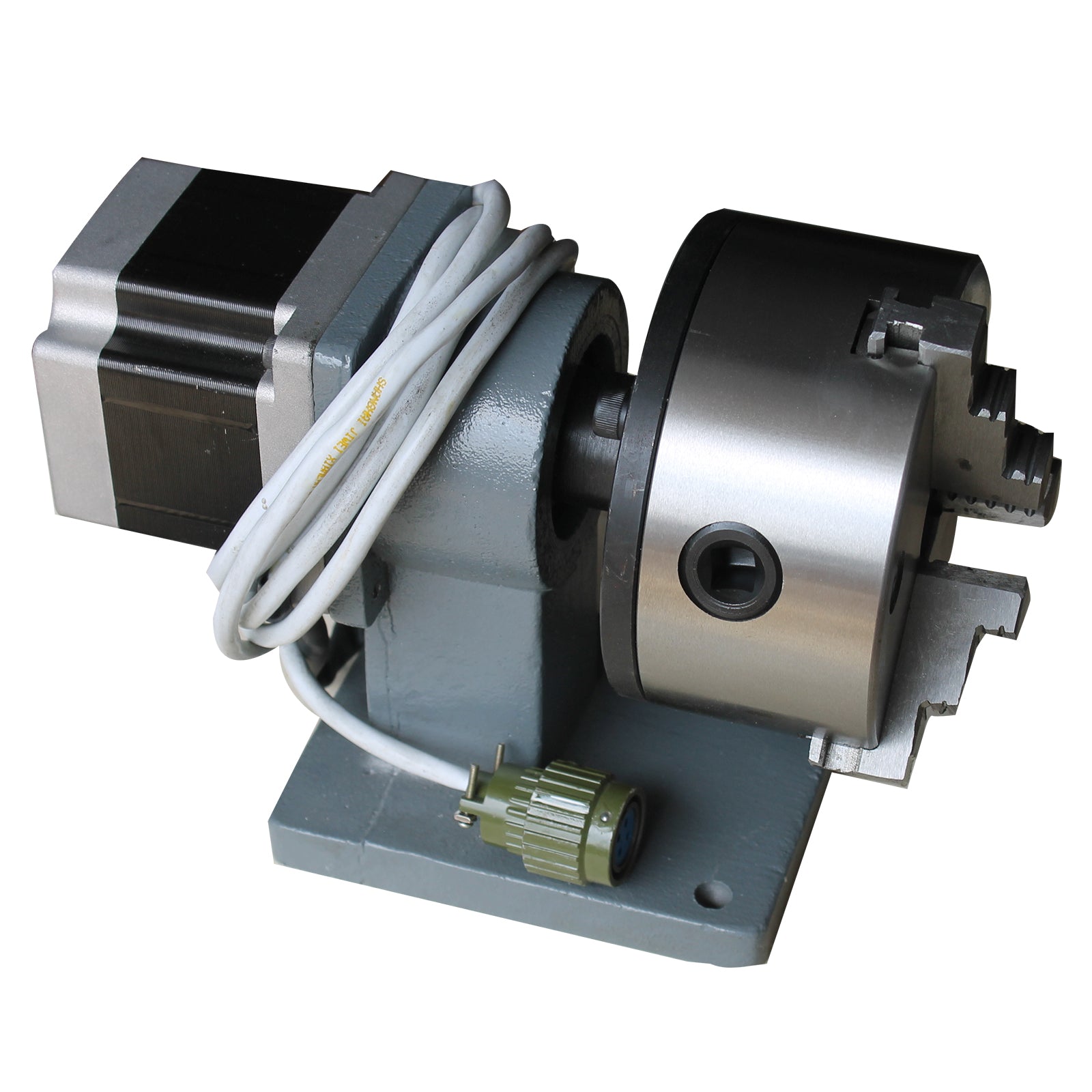

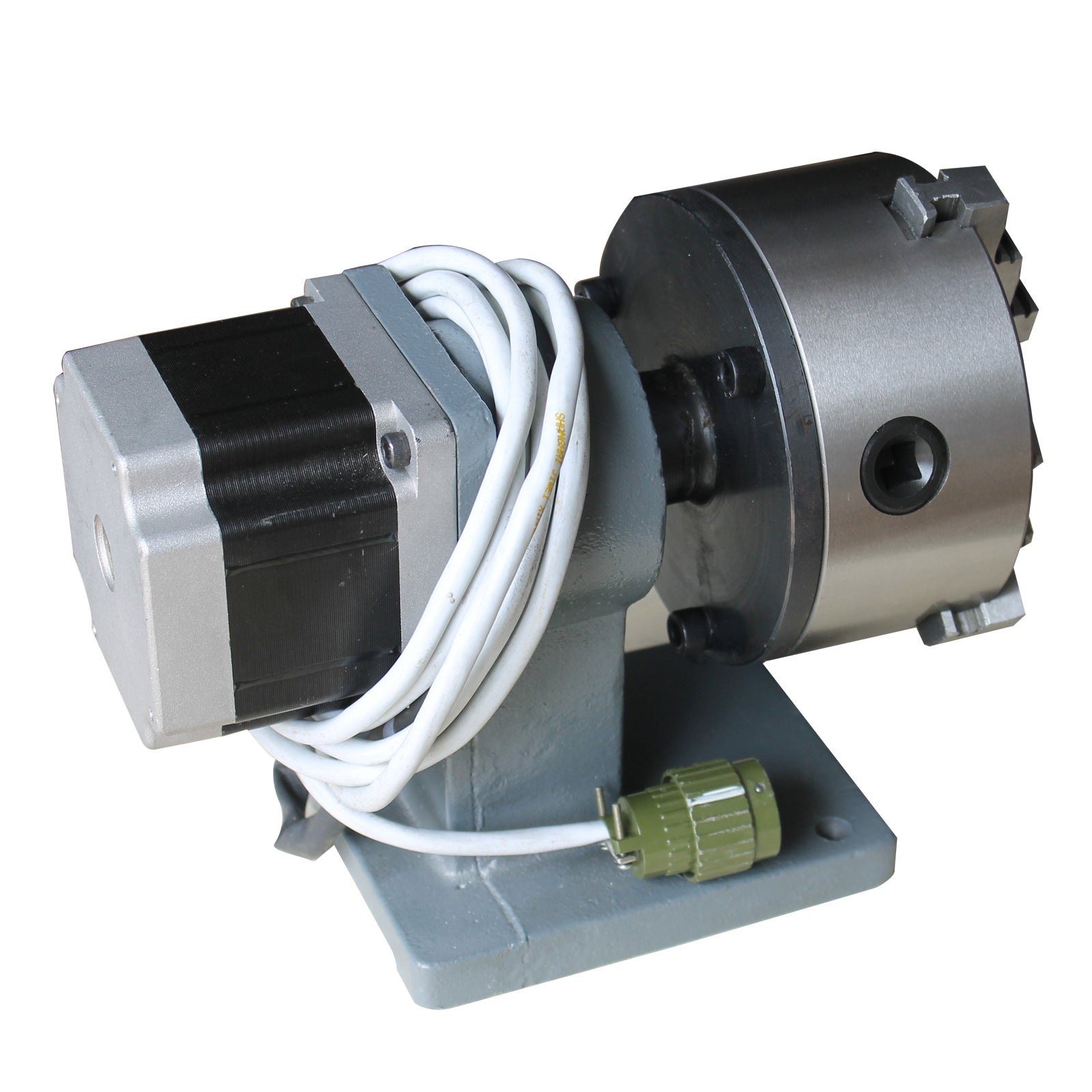

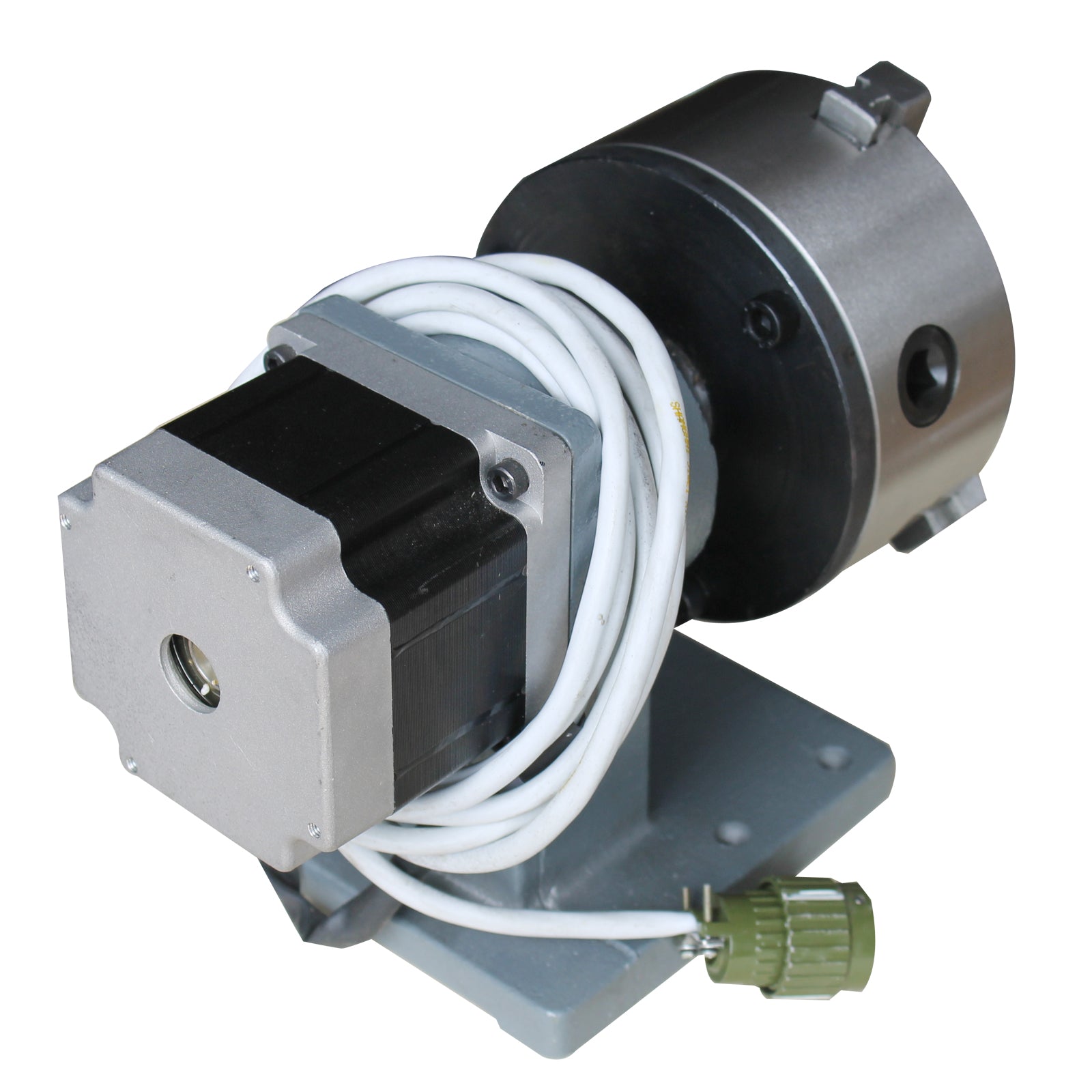

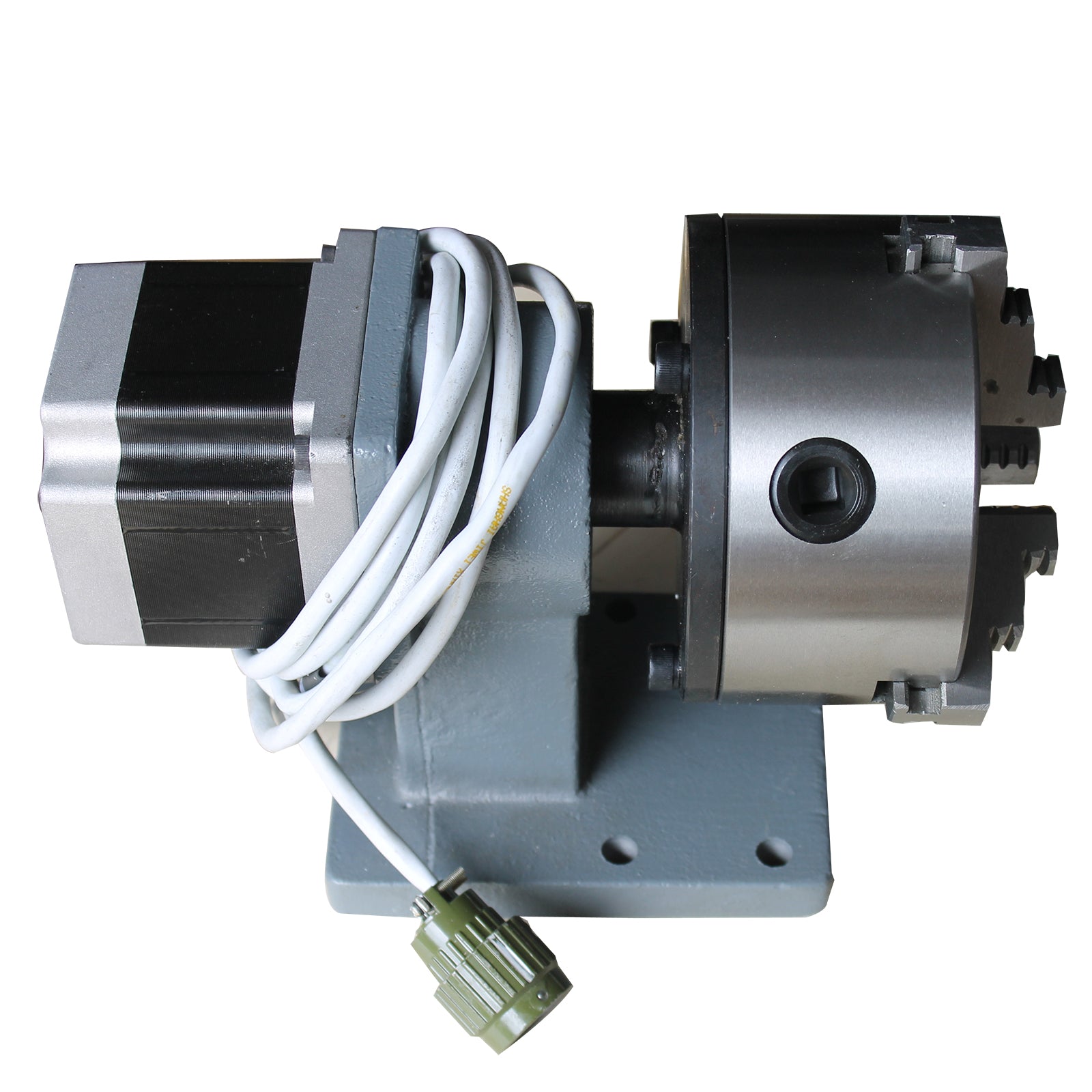

Rotation Axis Of Marking Machine
Rotation Axis Of Marking Machine
Regular price
$319.00 USD
Regular price
Sale price
$319.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| Rotation Axis Of Marking Machine | |
| The Max Load is 5KG It is easy to use this rotary, easy install, easy control, when marking flat items, just take it off, when mark cylinder item, put it together. | |
 |
 |
 |

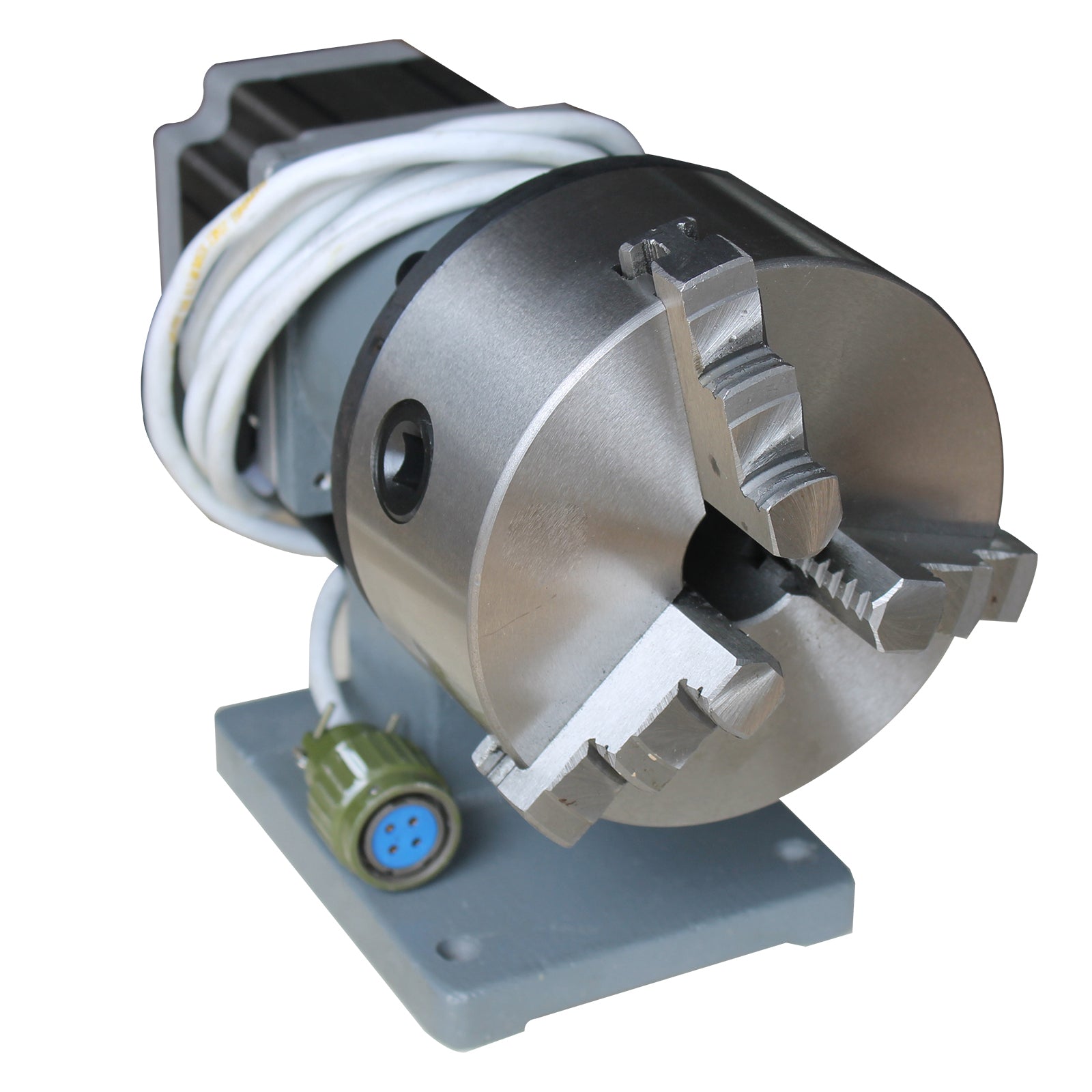

Rotary Tool Connection #1 connect to #4 #2 need to be fixed to #10 #3 can be adjusted to control #9 to hold different items #9 clamp to hold items(0-140MM) |
 |
Control Box Connection #4 connect rotary tool #5 connect marking machine #6 connect to computer by USB #7 connect to computer by serial line # connect to power |
 |
|
 |
Software setting manual �� After connecting hardware, open the software, input some words, just like the left picture �� Find ��Rotate setting��#12 and click it �� #13 choose ��Rotate mark�� �� #14 choose ��Y is subtitue to Z�� �� #15 choose "Two arix rotate mode" �� #16 set the diameter of marked item |
