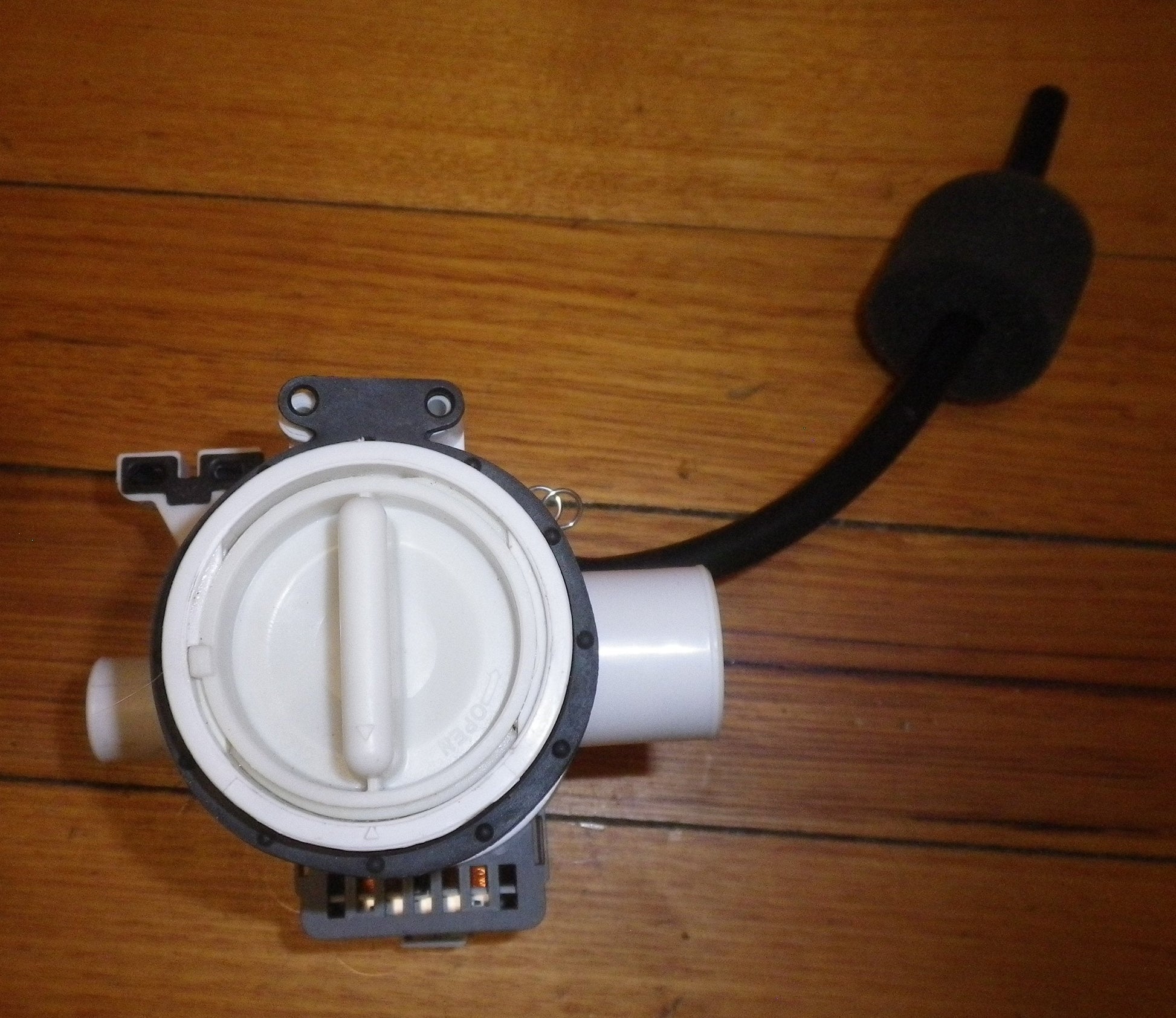

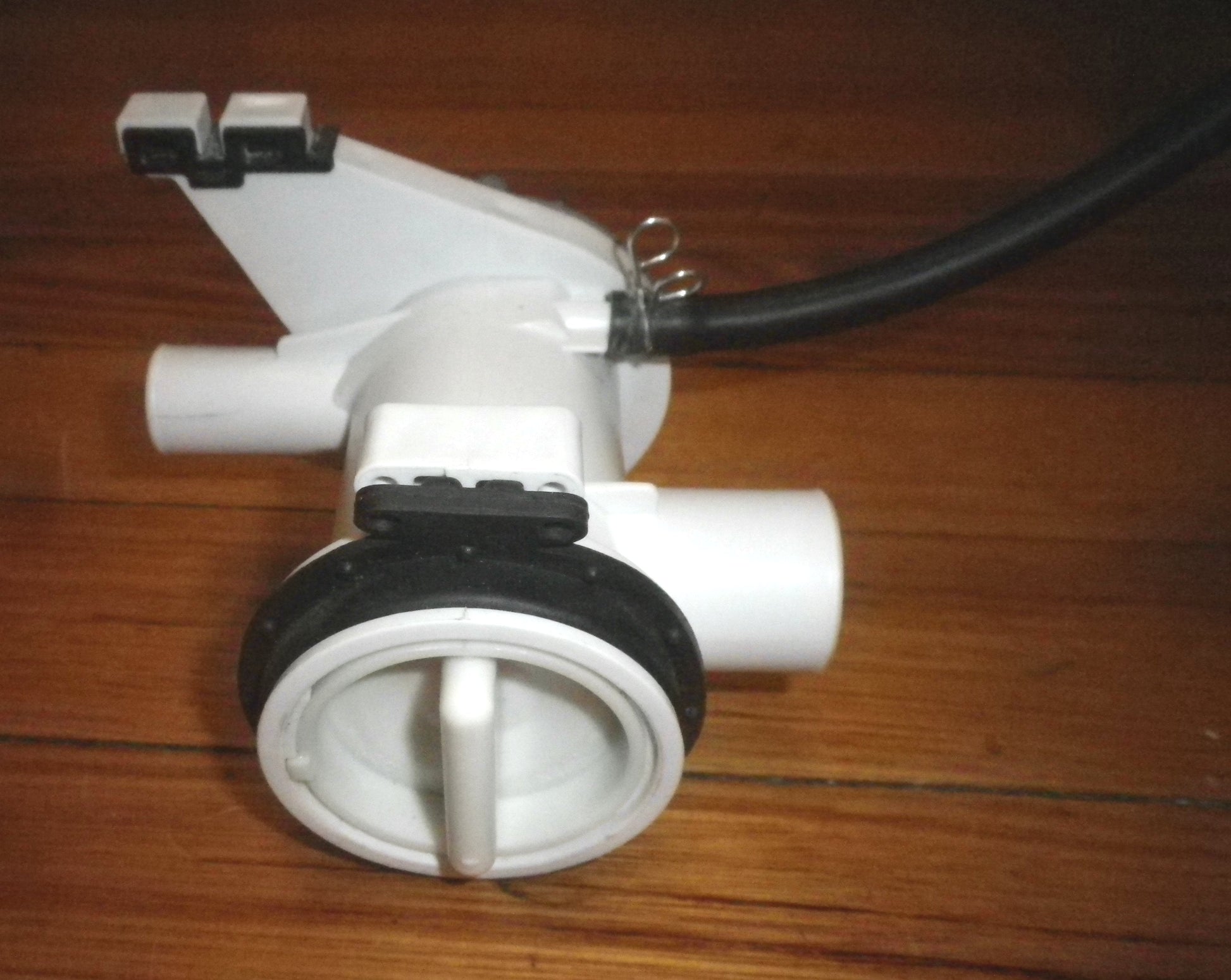

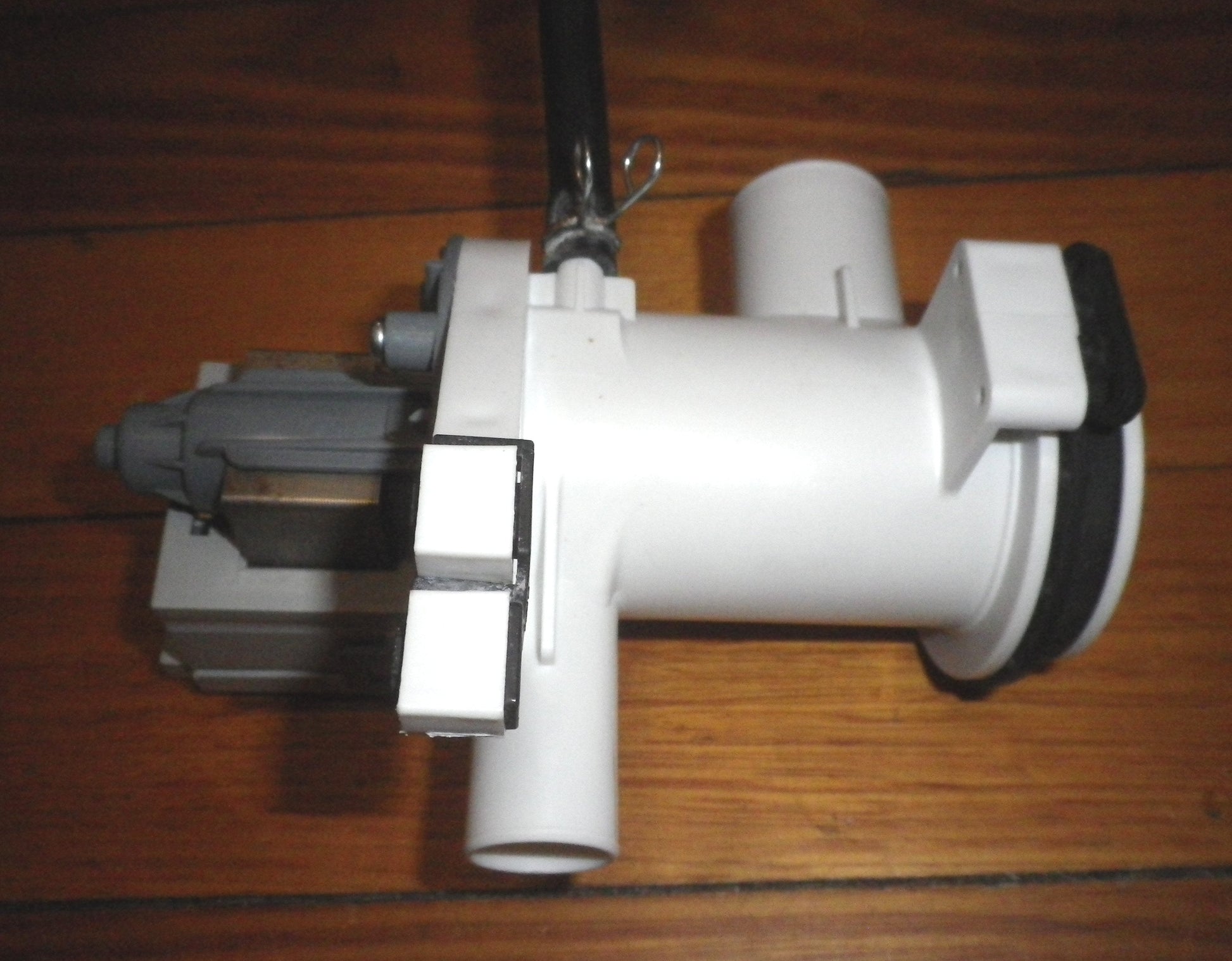

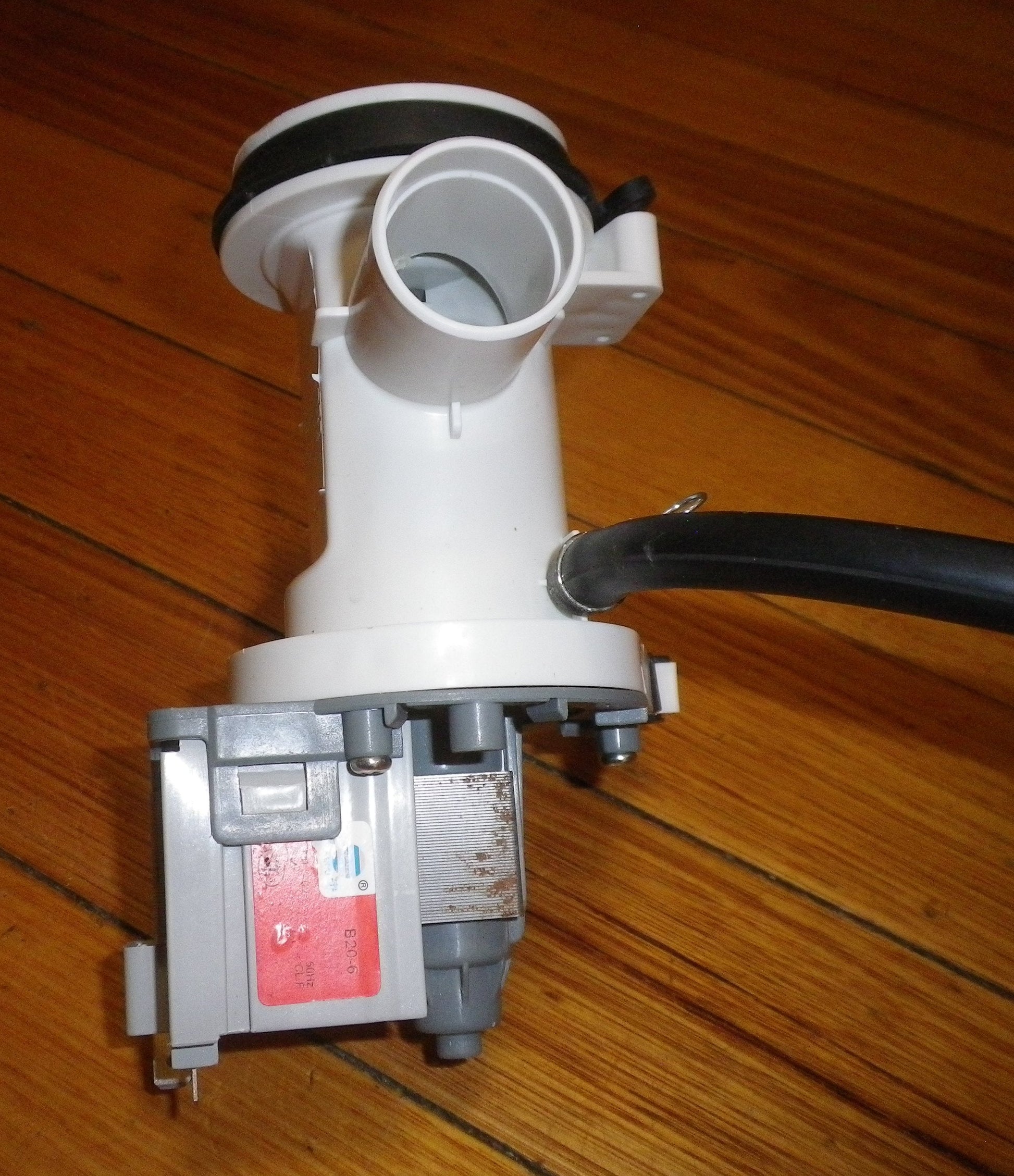

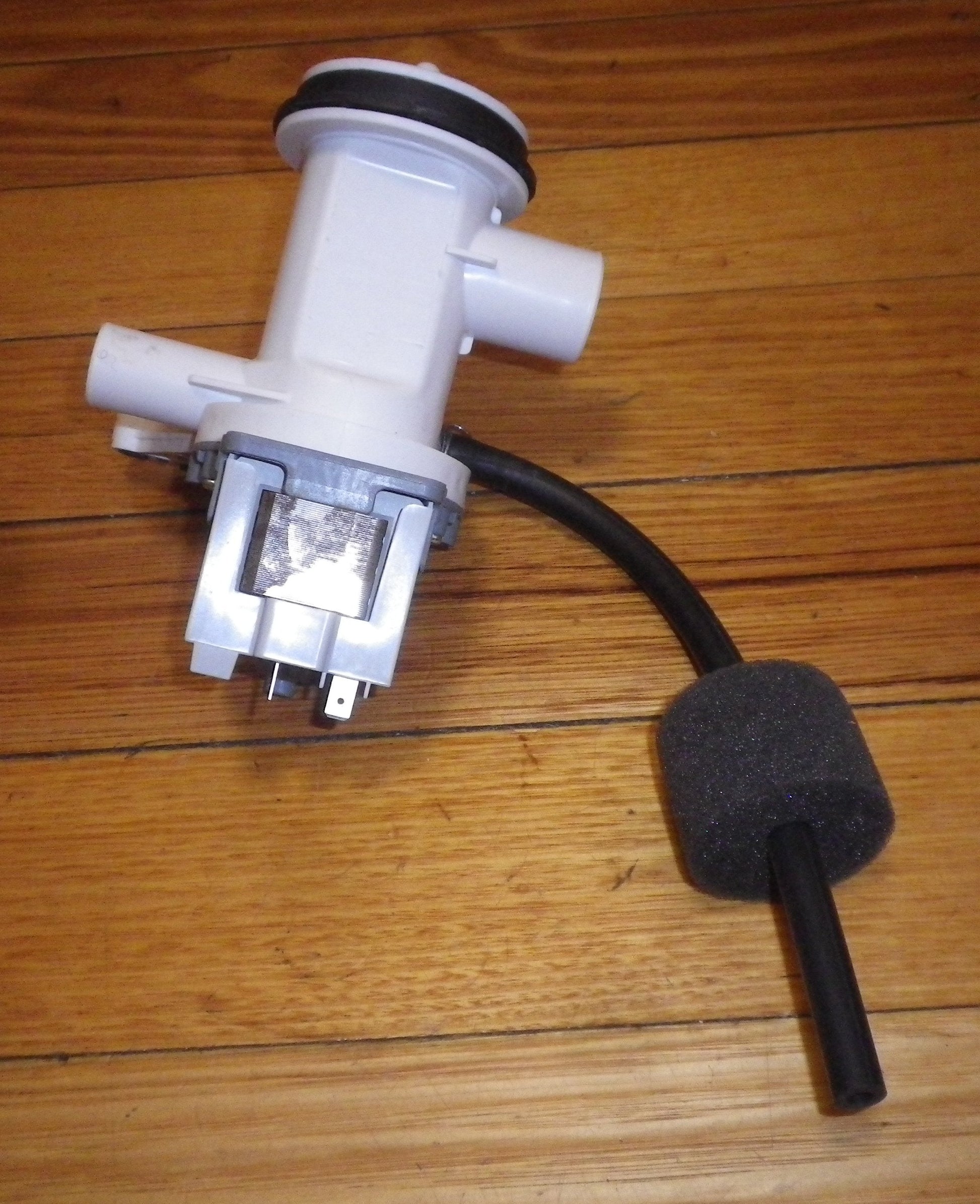

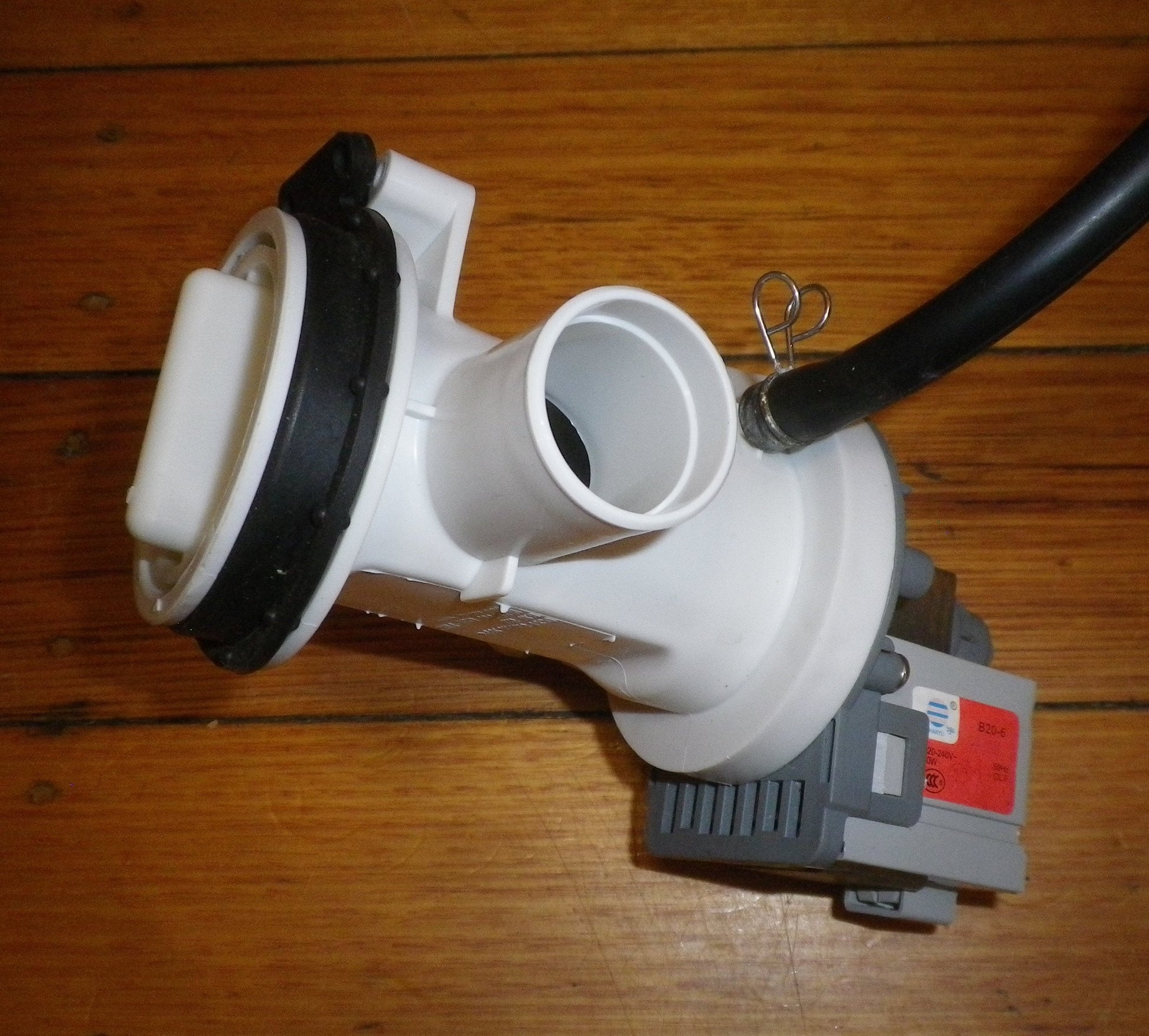

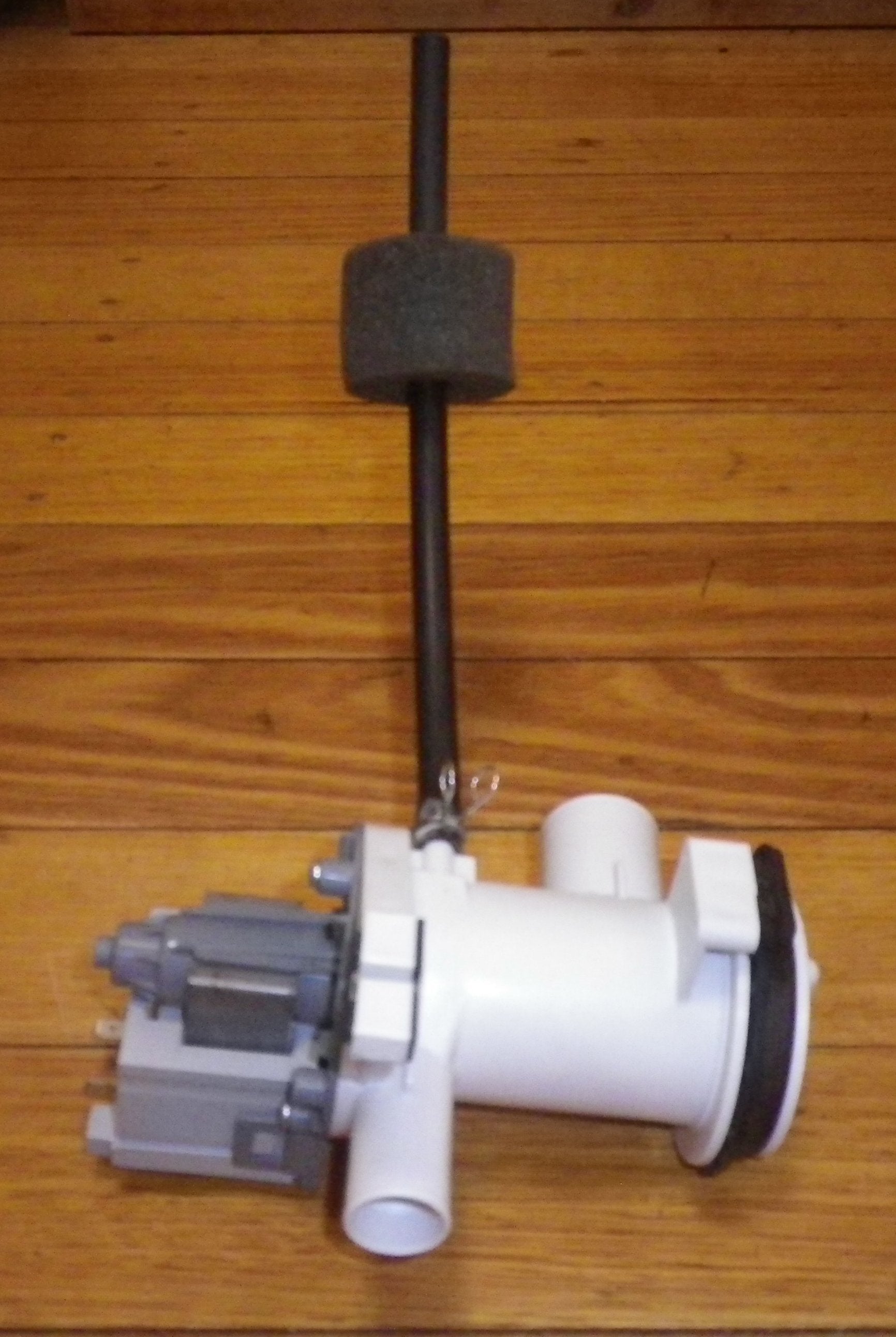

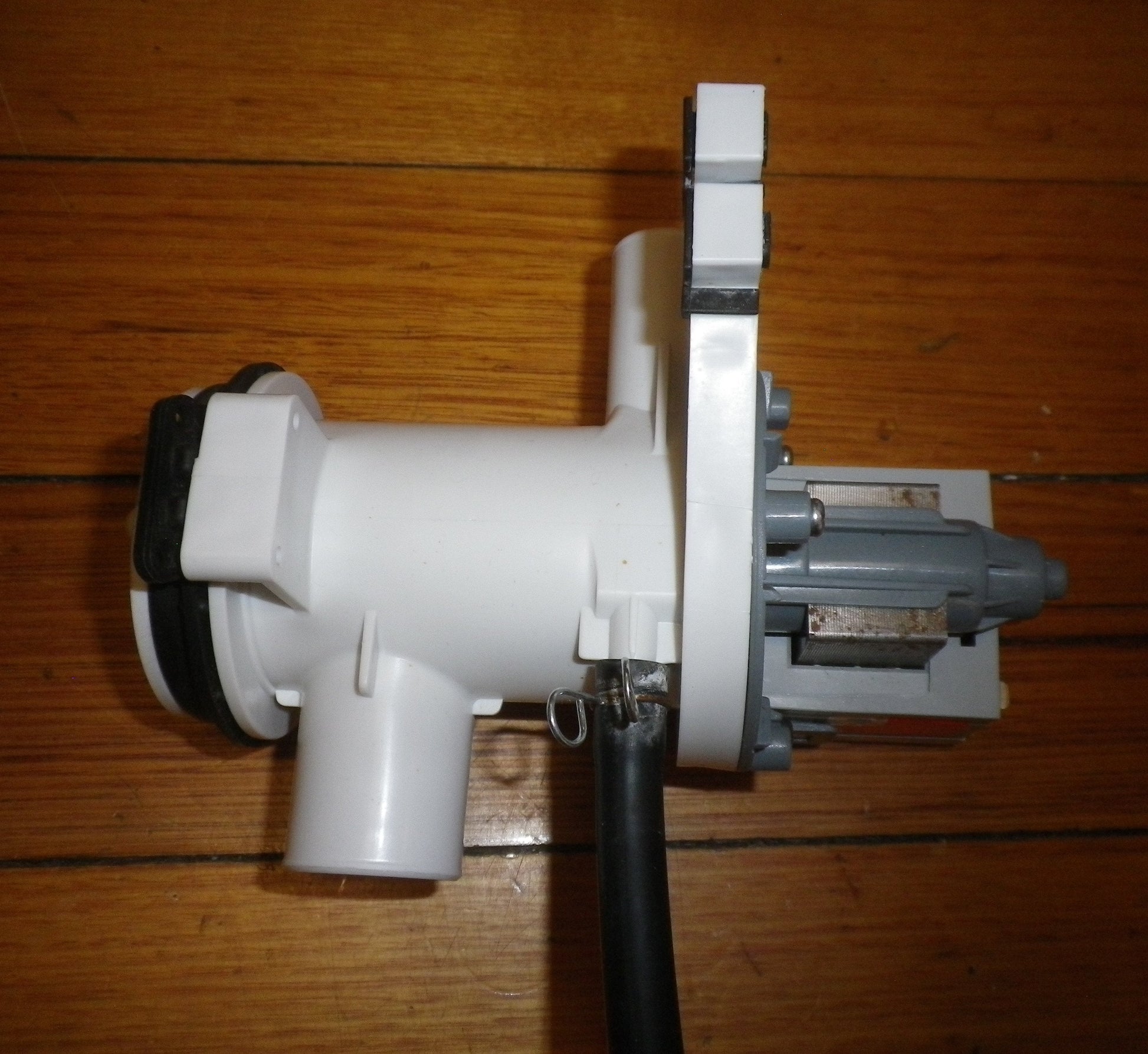

Samsung Front Load Washing Machine Electric Pump with Button Trap.
Genuine Part No. DC96-01533B.
Hanyu B20-6.
Other Part Nos. 1655097, 10300874.
Magnetic pump to suit some Samsung front loader washing machines.
Inlet and outlet are 180degrees apart. Inlet diameter - 32.6mm, outlet diameter - 24.2mm.
Button trap diameter - 66mm. 2 mounting holes -24mm apart.
6.4mm spade terminals. 220-240VAC, 30W.
Suits Samsung models Suits Models: WD8704EGA/XSA, WF8802RPF, WF8802RPF/XSA, WF8802RPF1/XSA, WF8802RSW, WF8802RSW/XSA, WD8704EJA/XSA, WF8750LSW, WF8750LSW/XSA, WF8750LSW1/XSA.
Easy to fit. Fully guaranteed.
