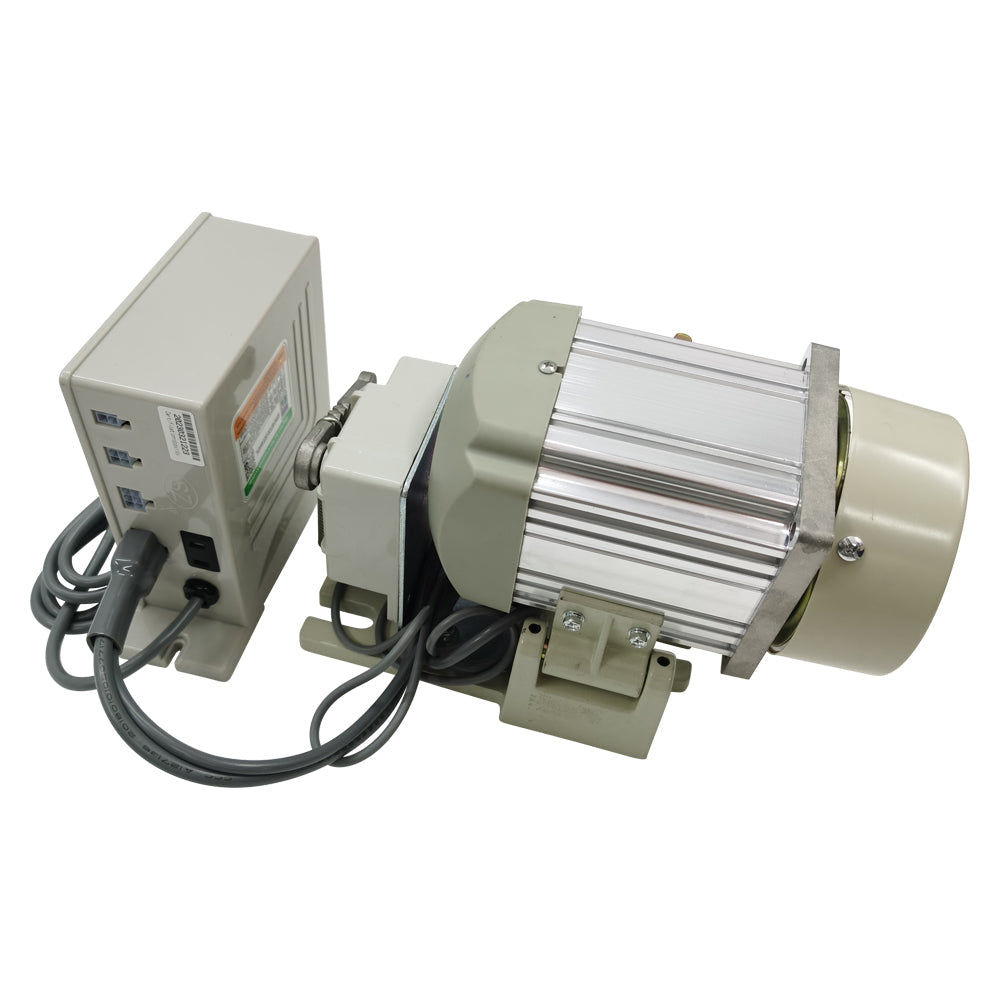

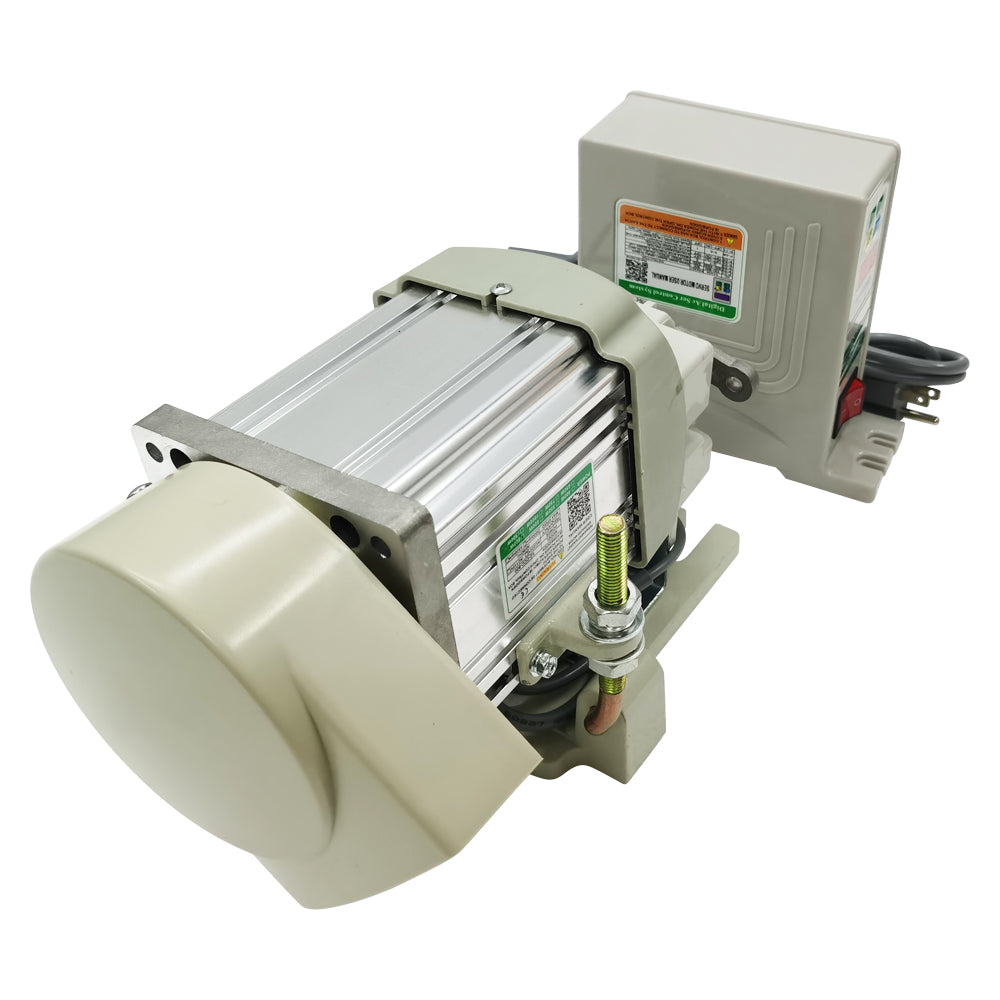

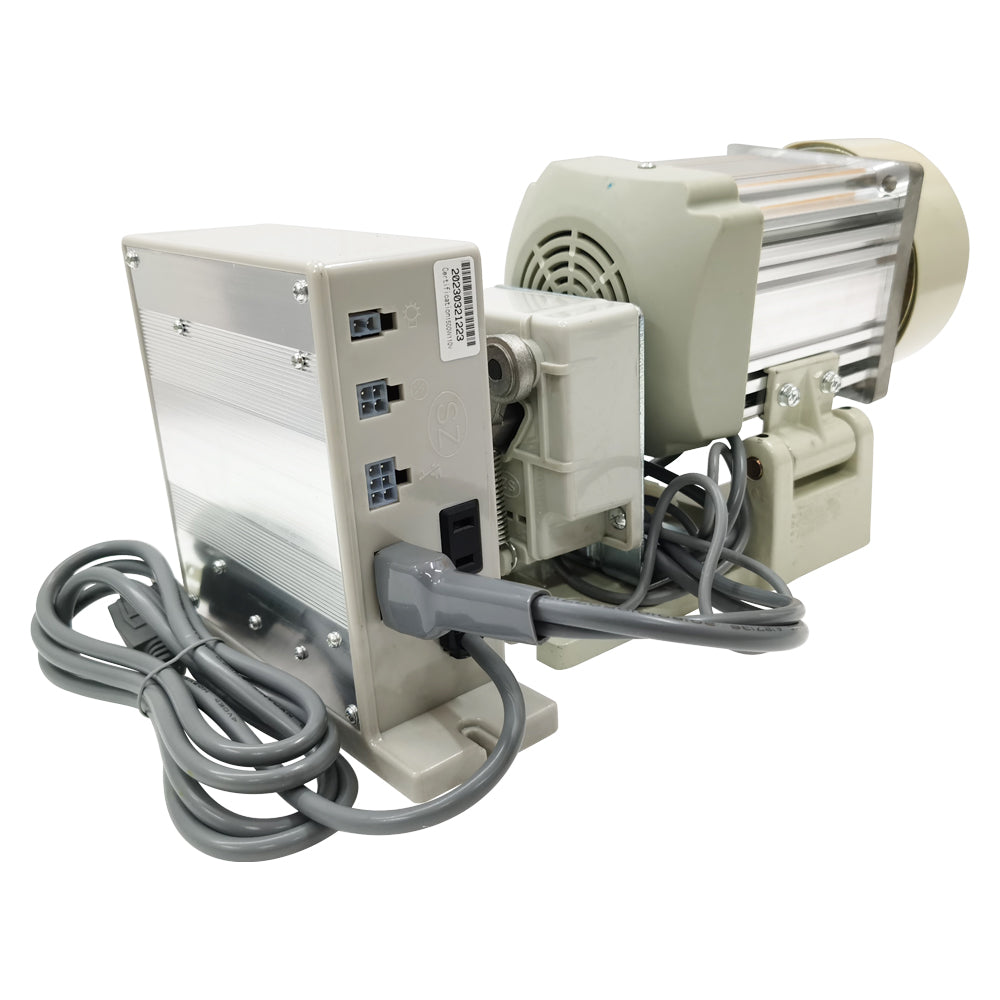

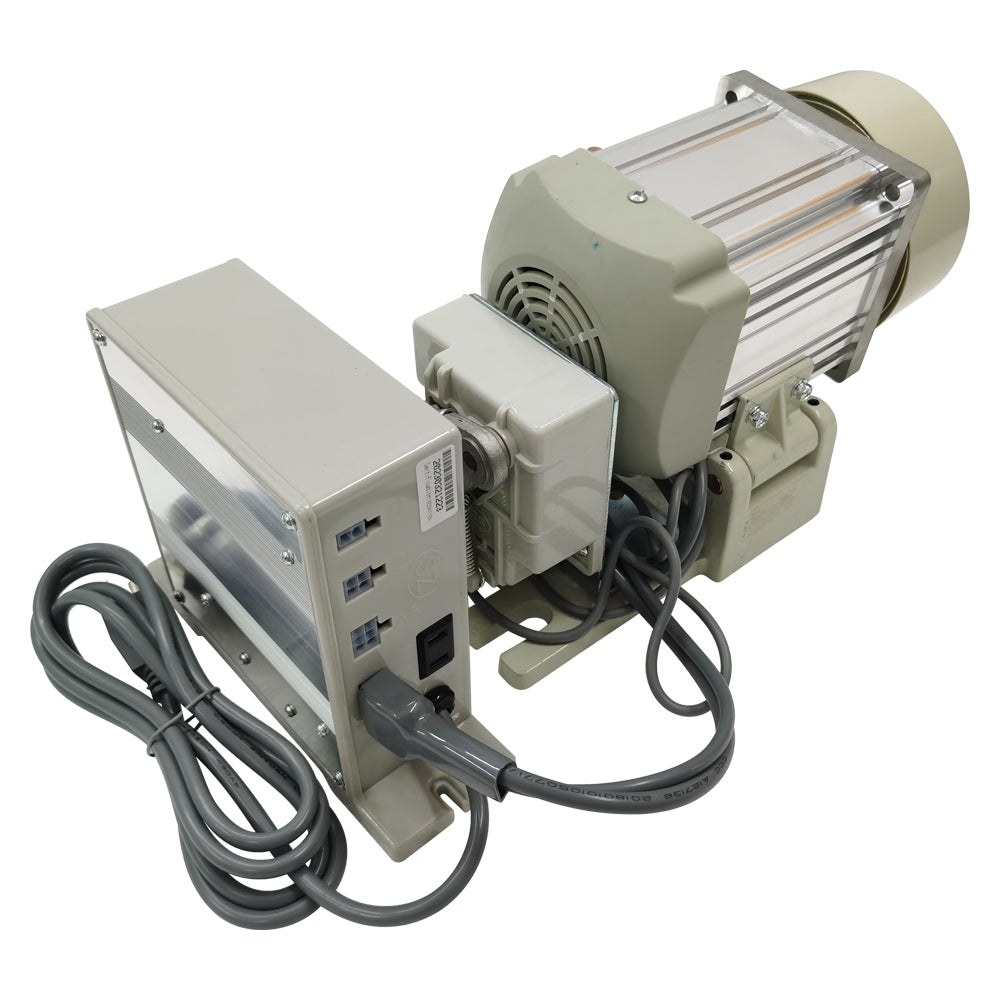

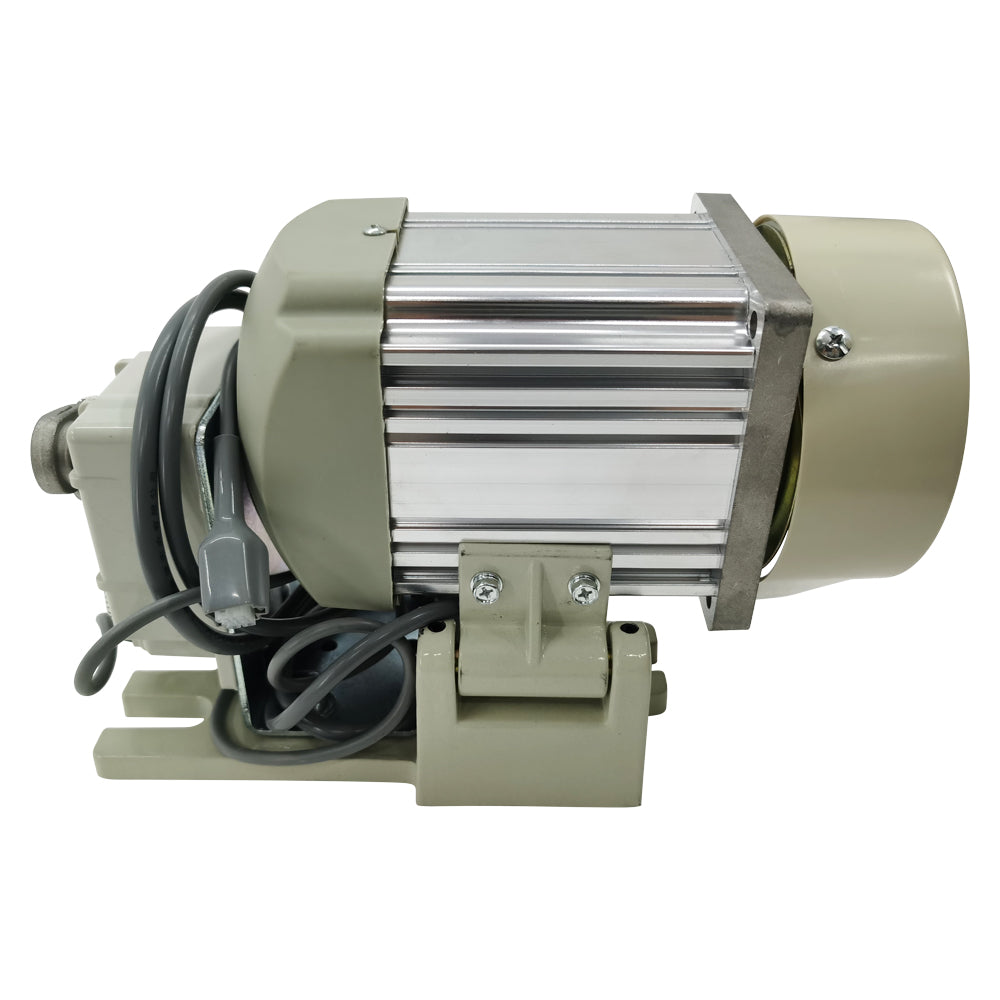

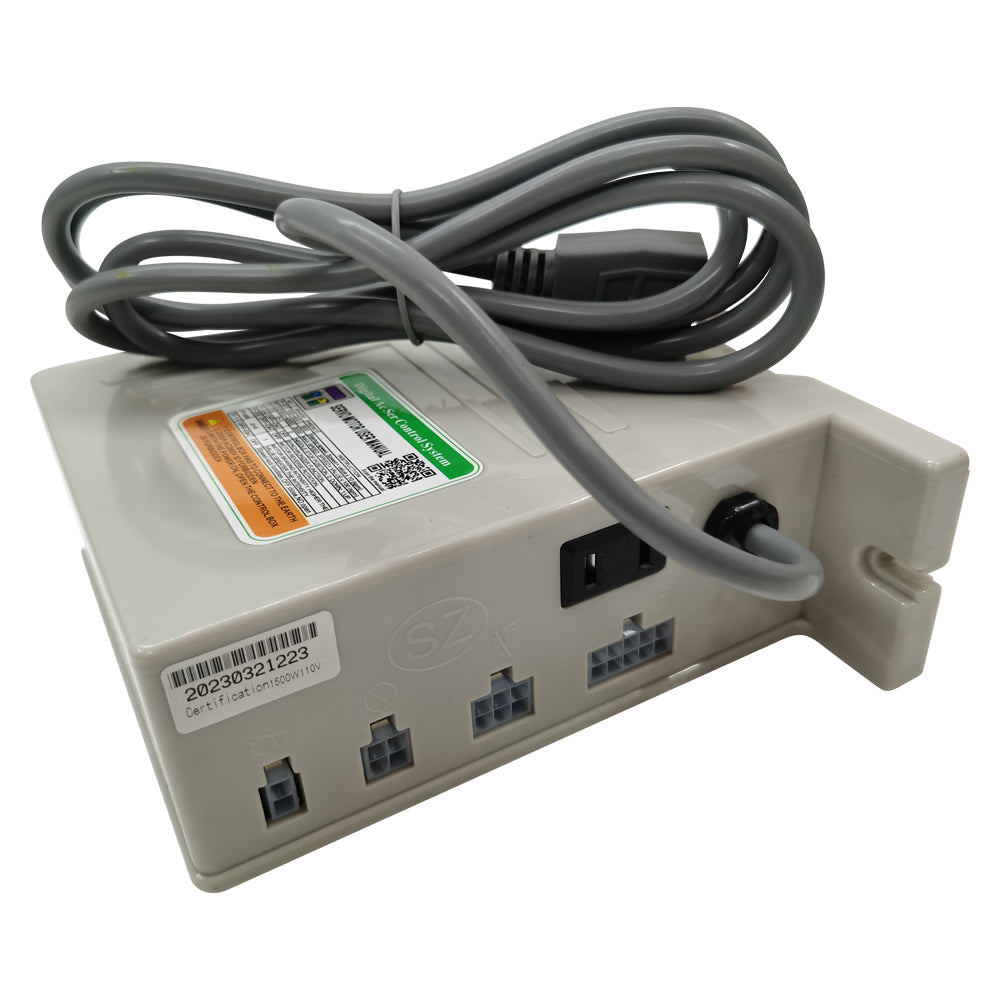

Sewing Machine Servo Brushless Motor
Sewing Machine Servo Brushless Motor
Regular price
$239.00 USD
Regular price
Sale price
$239.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
|
110V Sewing Machine Needle Position Servo Brushless Motor 1000W |
|
| Product Overview |
| Energy Efficient - Saves up to 70% Electricity. Draws minimal electricity when machine is not running.High Torque D.C. Electronic Servo Motor,1.3HP, 1000 Watts Powerful Heavy-Duty electric servo motor for any type of industrial sewing machines and small equipment.It can be applied to a variety of industrial sewing machines. For industrial sewing machines such as Brother, SINGER, ZOJE, Sunstar, GEMSY, Yamato, Morimoto, Duke, Mitsubishi, Toyota, FEIYUE, JACK. |
| Product Parameters |
| Voltage: | AC110V 50/60Hz |
| Power: | 1.3HP(1000W) |
| Speed adjustment range: | 500-2500rpm |
| Diameter of external shaft of motor: | 0.59"(15mm) |
| Torque: | 12N.m |
| Package size: | 12.6"*11.4"*8.7"(32cm*29cm*22cm) |
| Net weight/Gross weight: | 13.4LB(6.1kg)/14.4LB(6.55kg) |
| Product Features & Advantages |
| - Support needle positioner Function,
motor will run with or without the synchronizer.(the Needle

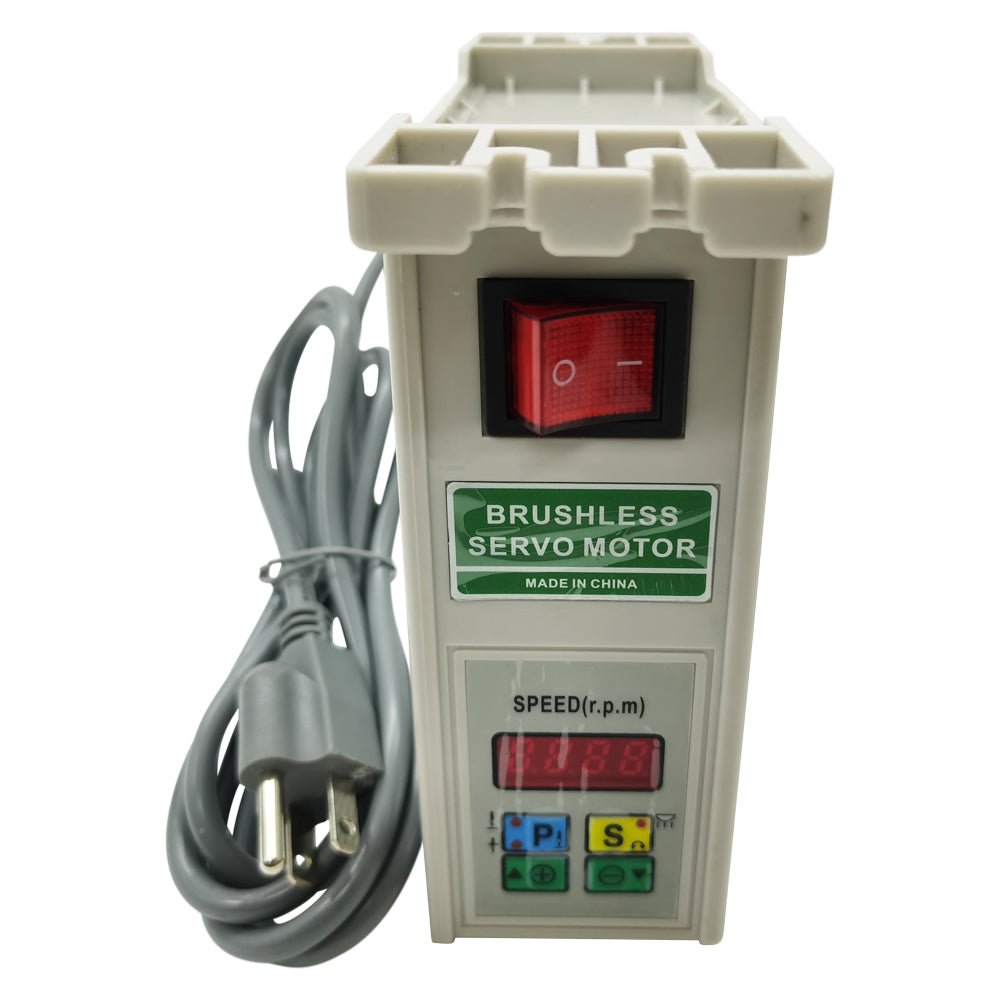

Positioner need to buy extra) - Pure copper brushless motor with copper content up to 99.5%, low vibration and noise. - Spring multigear infinitely variable speed adjustment, brake sensitive.Adjustable belt tightener. - Strengthen the thickened motor base, three screws bi-directional fixed motor, more firm and not easy to loose. - With LED lamp socket, display real-time display speed, convenient operation.The separate structure can be installed according to the actual situation. |
| Product Presentation & Details |
|
|
|
|
|

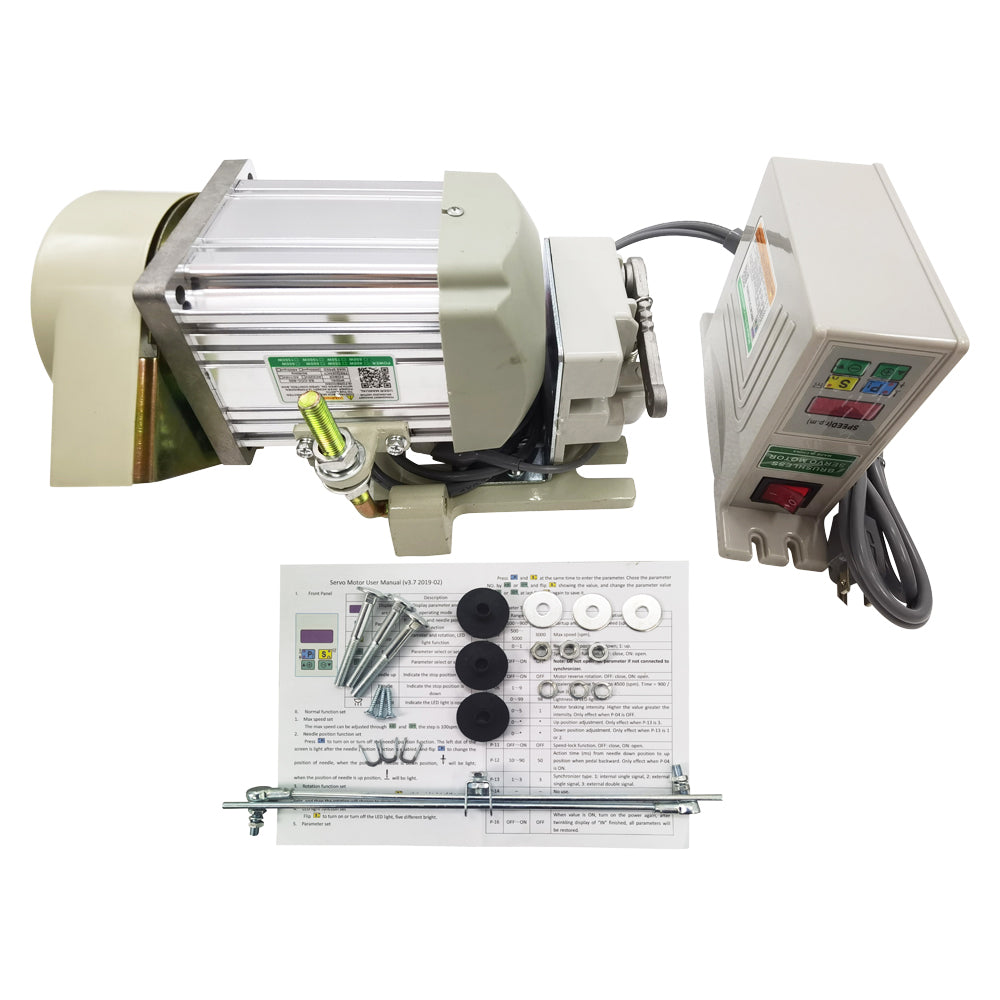

| Item Included(056792) |
| Sewing machine servo *1 | Pull rod *1 | Gasket *3 |
| Fixing screw *3 | Nut *3 | Flat pad *3 |
| Line buckle *3 | Self-tapping screw *3 | English manual *1 |
| Cushion *3 |
|
You can
make order with no worry. |
