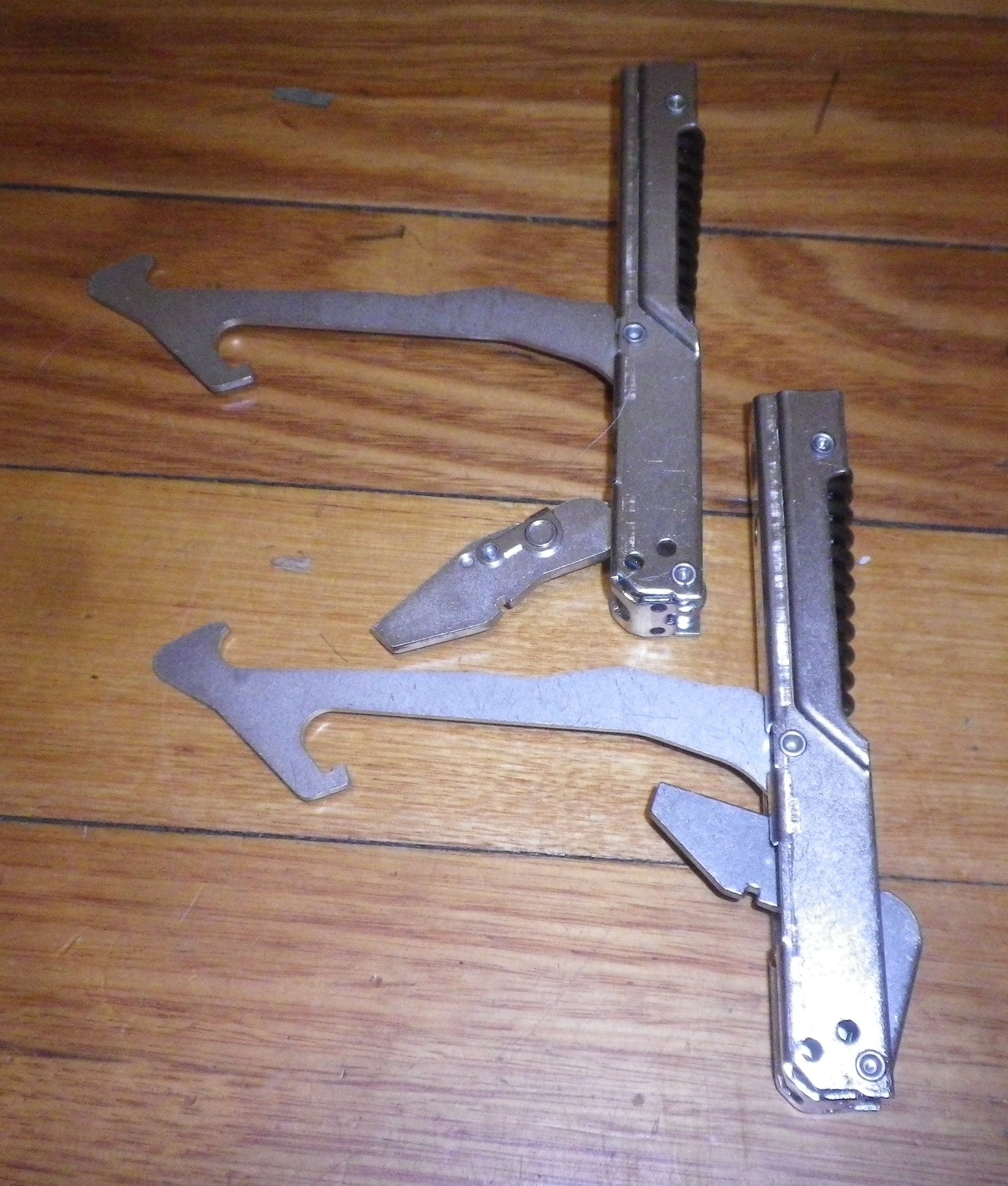

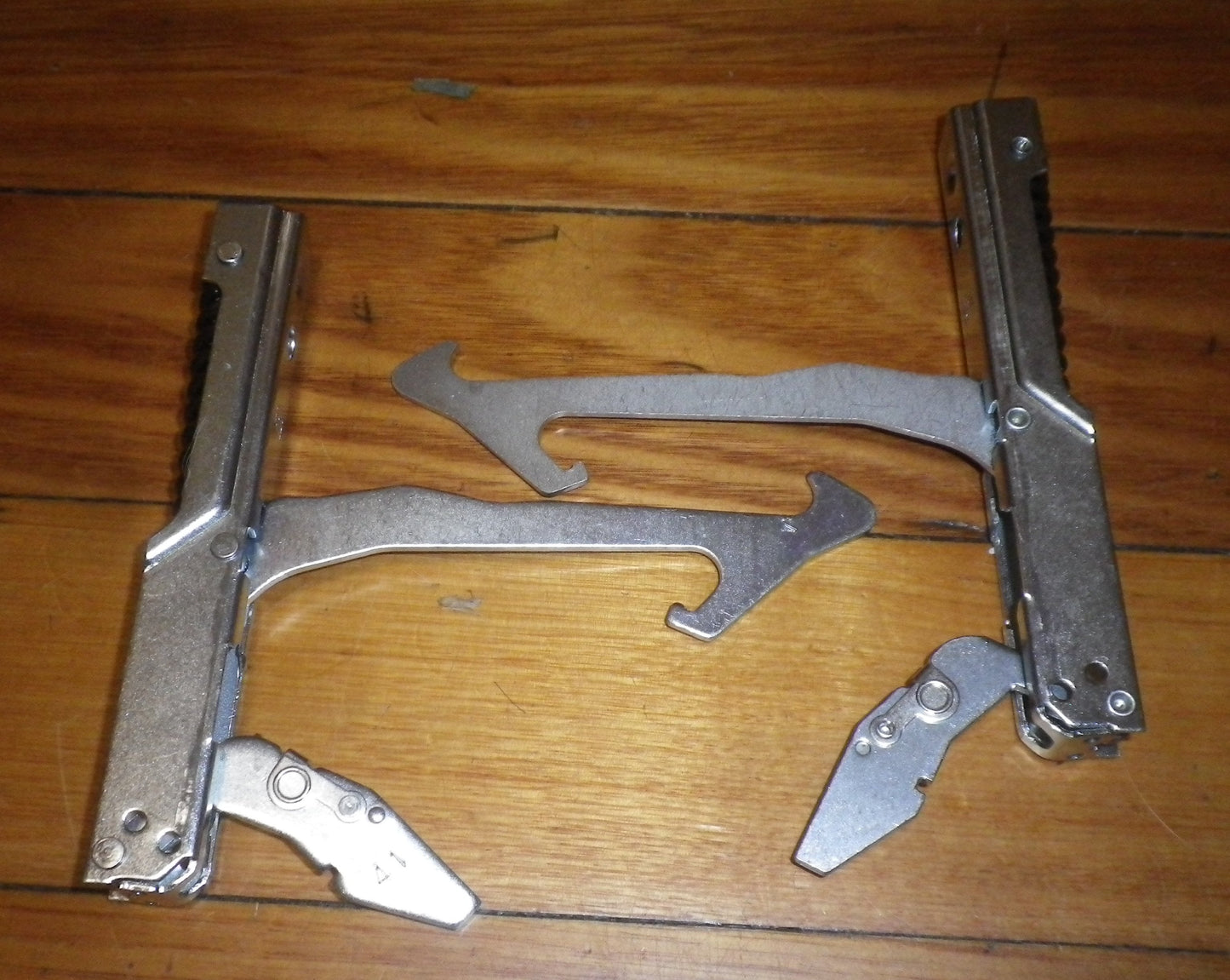

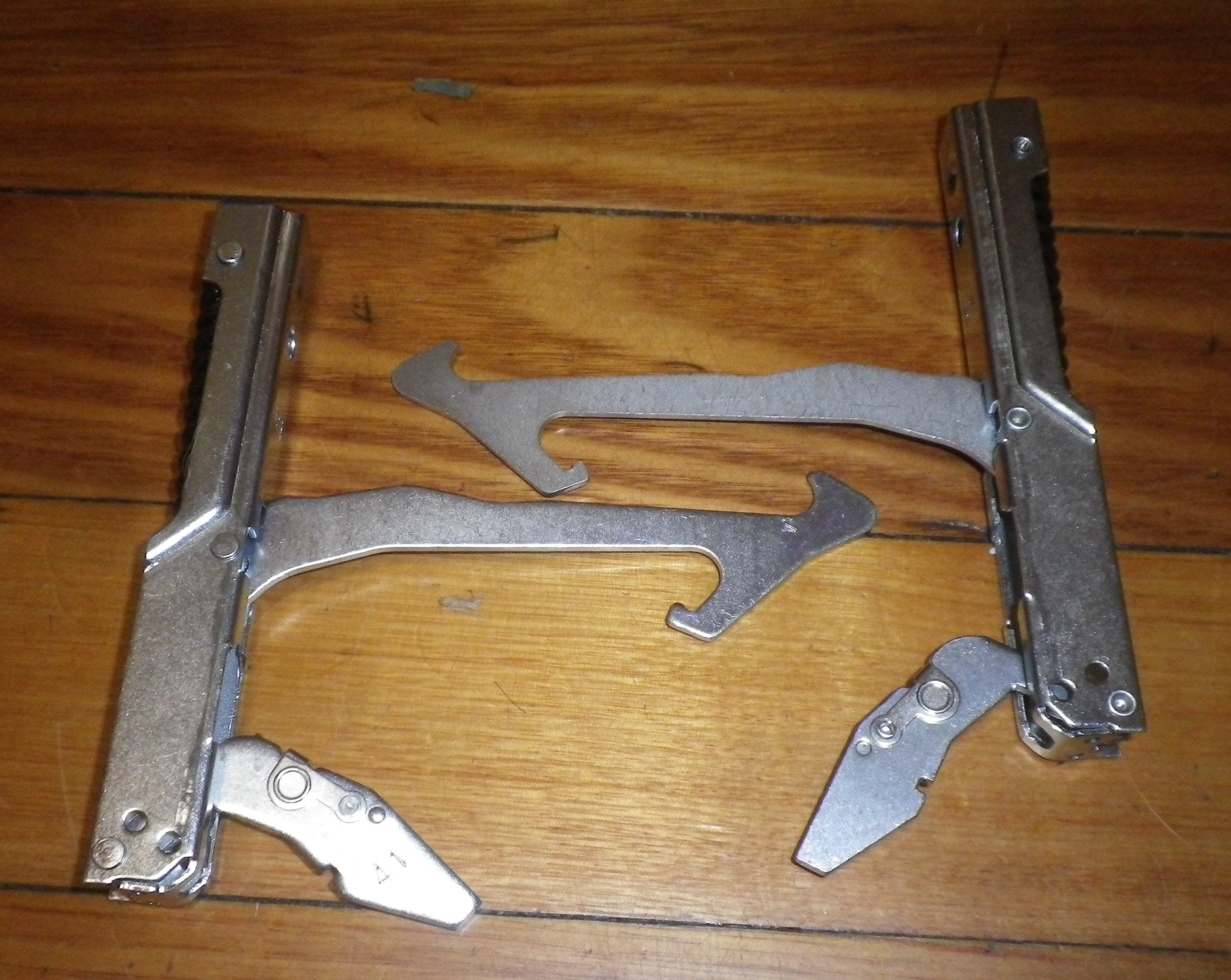

Smeg Oven Door Hinge Assembly (Pr).
Part No. SE260ASP, SE260.
Replaces genuine Smeg Part No. 931330551.

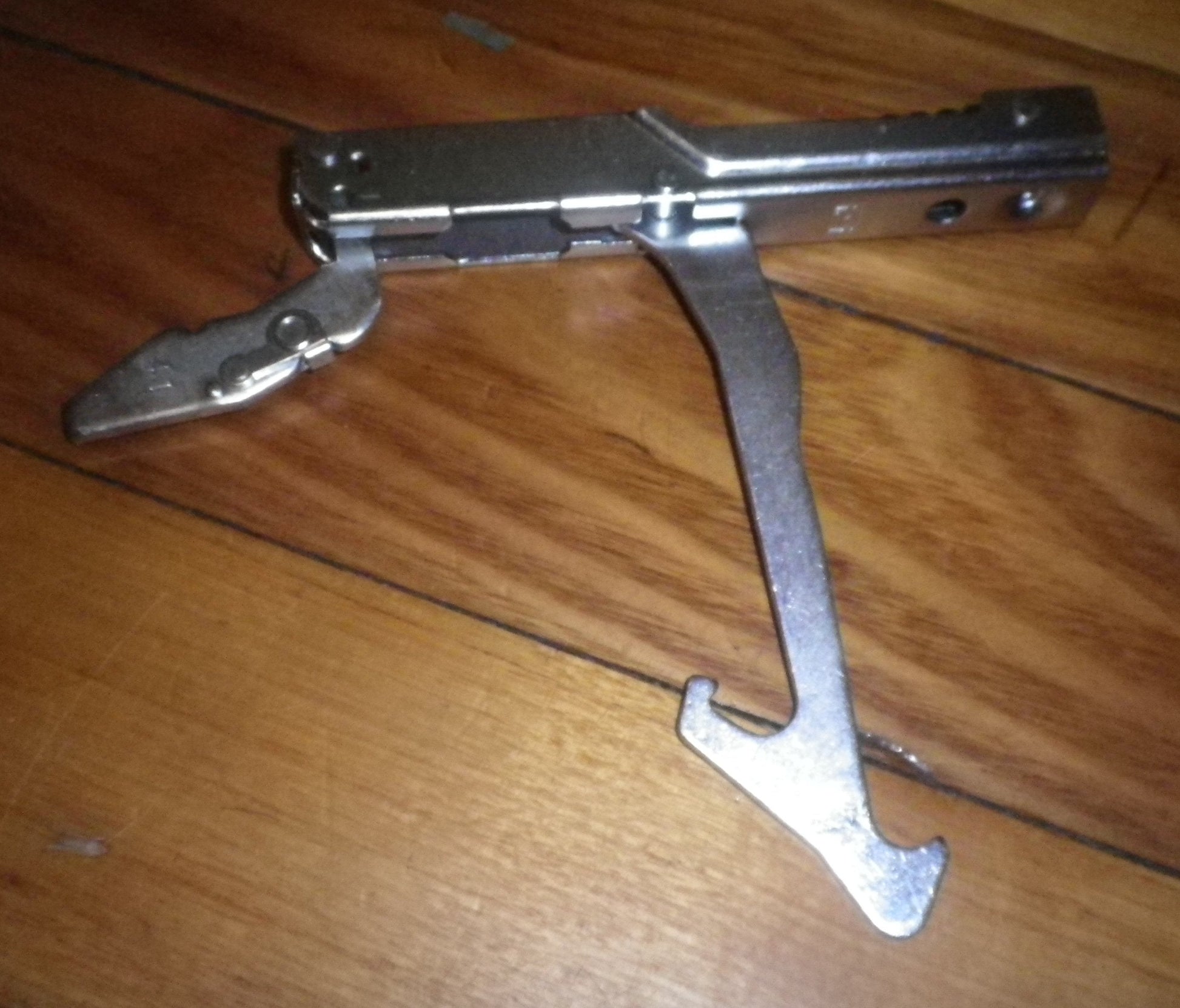

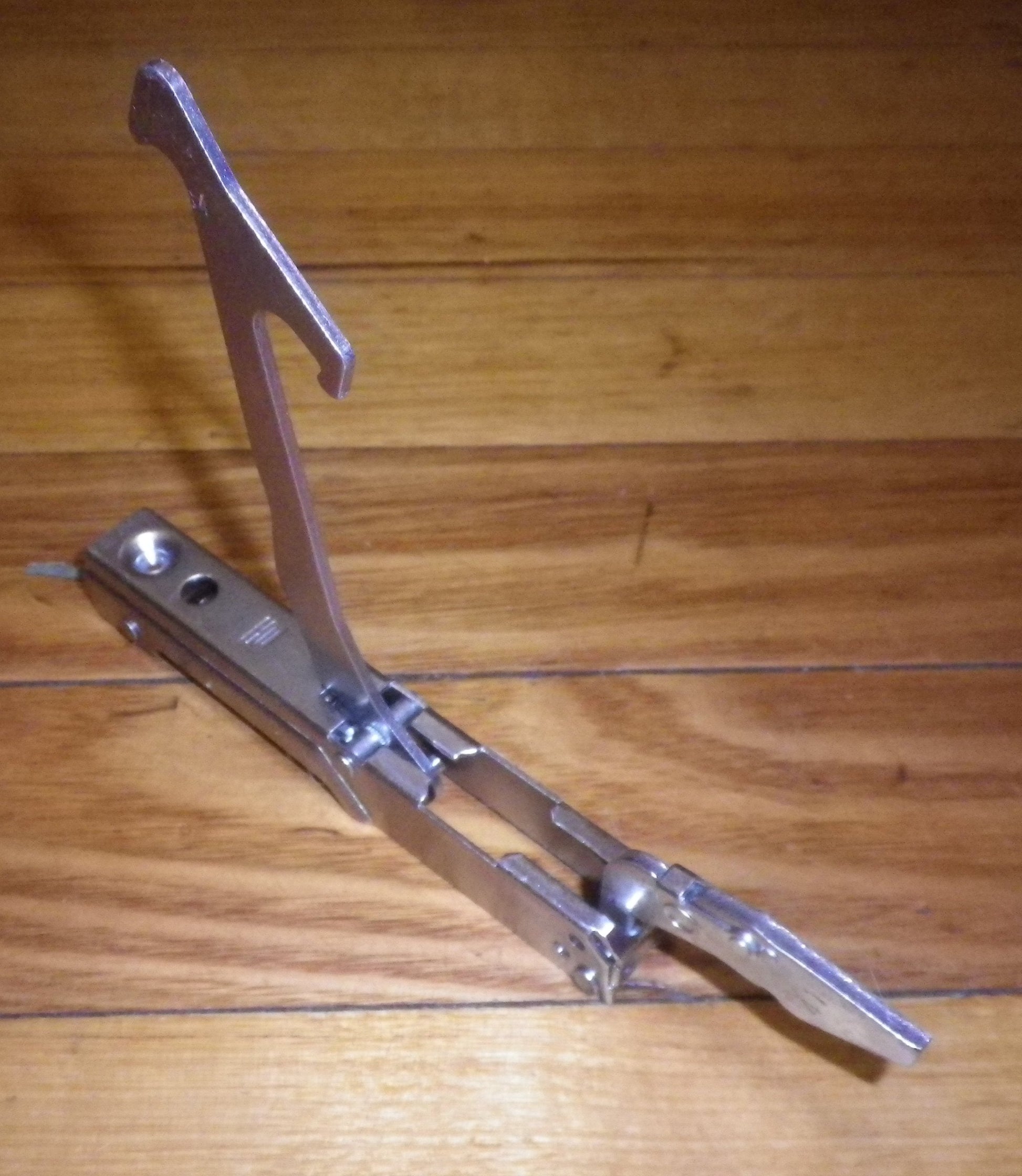

Hinge has "41" stamped on the small hinge arm and "B4" stamped on the large hinge arm. The mounting screw hole is recessed into the front of the hinge bracket.

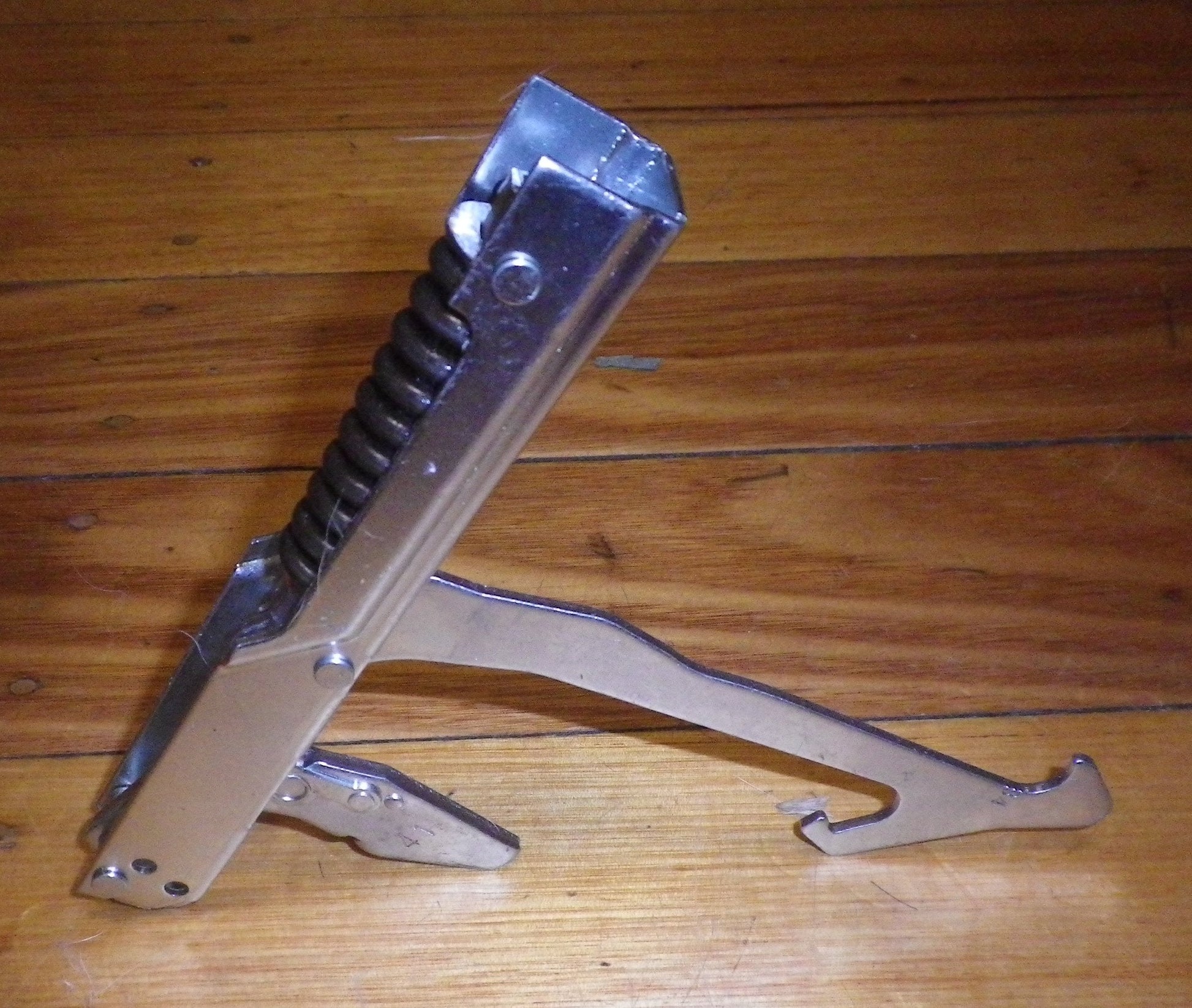

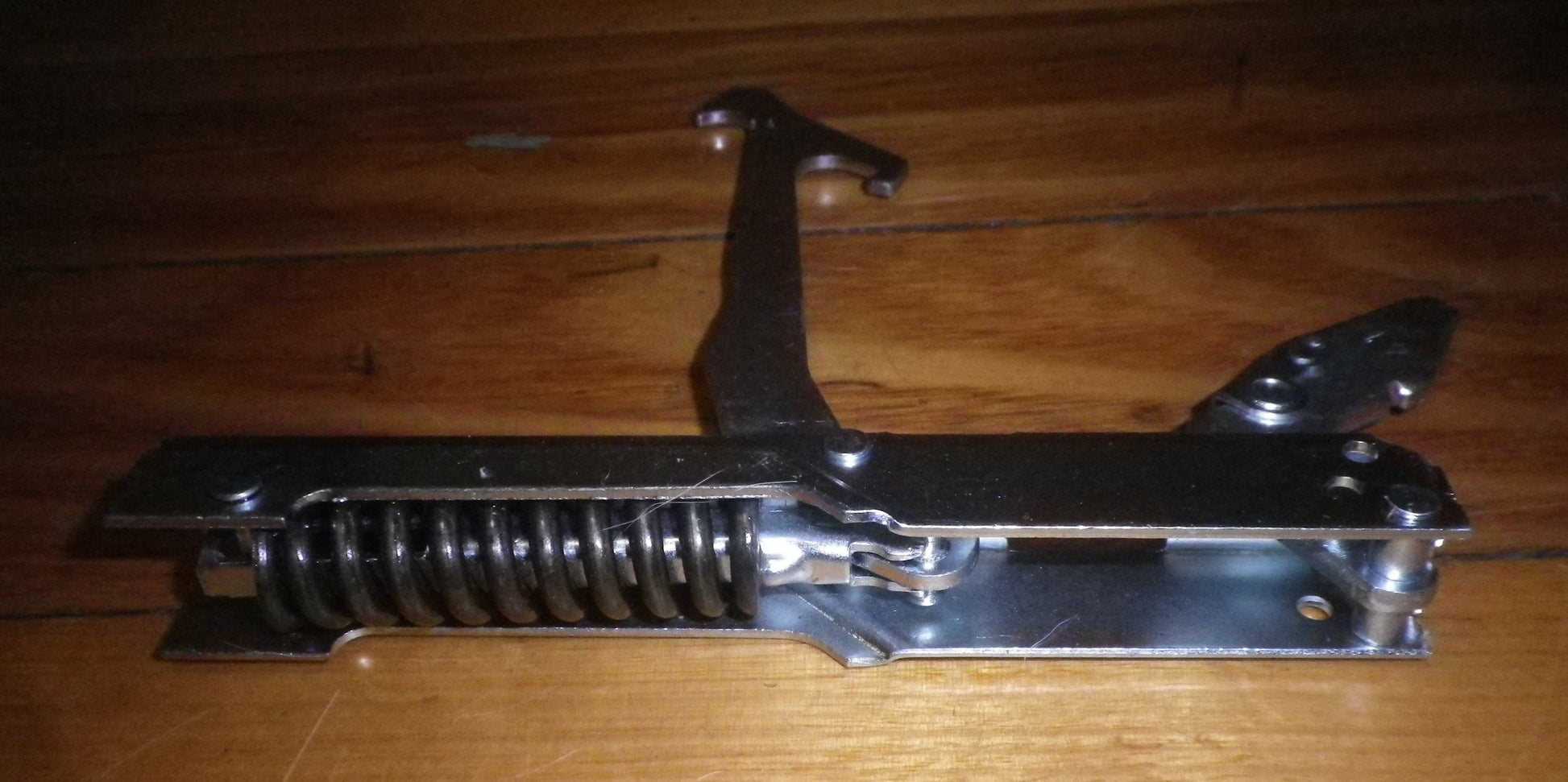

When looking at the side of the hinge, the cutaway section near the spring where the frame reduces in size, is 5mm high and the bracket is 15.2mm thick.

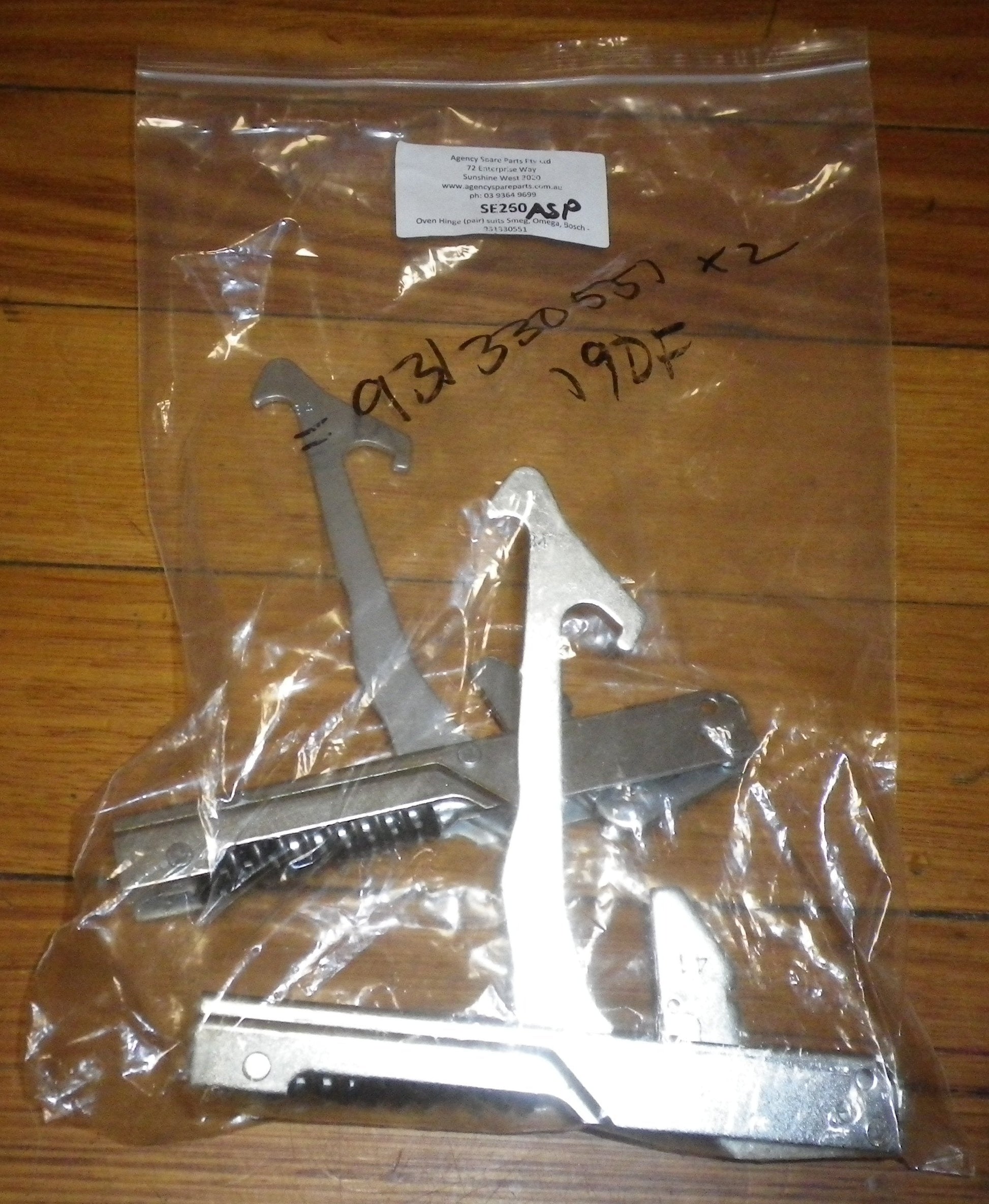

This listing is for a pair of hinges.
Suits some Smeg 90cm wide ovens including the following models:-
AP91CKDW1, AP91CKDX1, B90CMSX5, B90MFX5, B90MSX5, BI91AJ, BI91WJ, BI91XJ, C8GMXNL, C91GMX, C91GMXAT, C91GMXNL, C9GMB, C9GMBNL, C9GMN, C9GMNNL, C9GMR, C9GMRNL, C9GMX, C9GMXA, C9GMXD, C9GMXNL, C9GMXNLB, C9GVXBE, C9GVXNL, C9IMX, CE9CMX, CE9CMXA, CE9IMX, CE9IMXA, CG90X, CS15-5, D91SPMF5, DE91SPMF5, DS96MFX7, F170P, F170P-5, FI170P, FI170P-5, FP140X, GSE9000, ISO610, JGB92XD1W, JGB95XD1S, JRP30GIBB, JRP30GIBS, JRP30GIBW, LF96105SS, LF98100SS, LF98105SS, LF98110SS, NL91SPMF5, NL91SPMF6, NL91SPVG, NL91SPVG6, OF901XA, OF902XA, S1065MF1, S1065MF5, S1065MFB1, S1065MFB5, S1065MFX1, S1065MFX5, S1085MF1, S1085MFA1, S1085MFA5, S1085MFP1, S1085MFP5, S1085MFV1, S1100MF5, S1100MFB5, S1100MFX5, S2010MF1, S2010MF-5, S2010MFB1, S2010MFB5, S2010MFP5, S2010MFX1, S2010MFX5, S285PMF5, S285PMFB5, S285PMFX5, SA1010MFX, SA1010X1, SA1010X-5, SA81VG, SA9058X, SA9065, SA9065LPG, SA9065XNG, SA9065XS, SA9066, SA9066AS, SA9066CER, SA9066LPG, SA9066XNG, SA9066XS, SA91VJIR, SA93VJME, SB81VGY, SB91IR, SB91ME, SB91VG, SB91VGMA, SB91VGY, SB91VJME, SB93VGY, SB93VGYMA, SC2010MFB, SC2010MFW, SC2010MFX, SCB90GX, SCB90MFX, SCB90MFX5, SCB91GX, SCB91MFA5, SCB91MFN5, SCB91MFX, SCB91MFX5, SCD81MFX, SCD81MFX5, SCD90CMX5, SCD90GX, SCD90MFX5, SCD90MFX7, SCD91CMA5, SCD91CMX5, SCD91MFA5, SCD91MFX, SCD91MFX5, SCD93GX, SCD93MFX, SCD93MFX5, SCE90GX, SCE90MFX, SCE90MFX5, SCE91GX, SCE91MFX, SCE91MFX5, SCN91CMX5, SDK1055X, SDK91CMX5, SE1045, SE1045B, SE1055X, SE1065MF, SE1065MFB, SE1065MFX, SE1066MFX, SE1066MX5, SE1085MA5, SE1085MF, SE1085MFA, SE1085MFB, SE1085MFP, SE1085MFV, SE1085MP5, SE2010MAZ, SE2010MBL, SE2010MF, SE2010MFB, SE2010MFP, SE2010MFX, SE2010MVA, SE2010MVS, SE2010XK, SE285PMF, SE285PMFB, SE285PMFX, SI2010MFX, SI2011MX5, SIL91MFA, SKD91MFX5, SNL81GX, SNL81MFX, SNL81MFX5, SNL90D, SNL90D7, SNL90DA, SNL90DA7, SNL90DNE, SNL90DNE7, SNL90MFC6, SNL90MFX5, SNL90MFX6, SNL91GX, SNL91MFA6, SNL91MFN6, SNL91MFX, SNL91MFX5, SNL91MFX6, SNZ106VML, SNZ90MFX, SNZ91MFA, SNZ91MFA1, SNZ91MFX, SNZ91MFX1, SO66PMFA, SO66PMFA5, SO66PMFP, SO66PMFP5, SO66PMFX, SO66PMFX5, SP106VGL, SP106VJM, SP106VLIR, SP106VLME, SP106VML, SSA91MFA, SSA91MFA1, SSA91MFP1, SSA91MFX, SSA91MFX1, SUK61MFA, SUK61MFX, SUK81MBL5, SUK81MFA, SUK81MFA5, SUK81MFX, SUK81MFX5, SUK90MFX, SUK91CMX5, SUK91MBL5, SUK91MFA, SUK91MFA5, SUK91MFX, SUK91MFX5, SX81VG, SX81VM, SX91ME, SX91SPVM6, SX91VG, SX91VGL, SX91VGMA, SX91VJ, SX91VJB, SX91VJIR, SX91VJM, SX91VJME, SX91VLIR, SX91VLME, SX91VLSA, SX91VM-5, SX91VML, SX91VML-5, SX91VMS-5, SX91VMSDK, SX92VJME, SX93VG, SX93VGMA, SX93VJME, SX93VMD, UK1065X, UK1065X-1, UK1065X-5, UK2010X, UK2010X-1, VA91XVG, W81SXVG, W91SXVG. Also suits Omega models OF901XA, OF901XZ, OF902XA, OF902XZ.
The pivot points on the hinge assembly wear causing the oven door not to shut properly.
If you are not sure about the suitability of this part, please contact us with your model number as there are several different hinges which look very similar.
Easy to fit & fully guaranteed.
