Welding Tank Turning Rolls

Welding Tank Turning Rolls

$960.00 USD
$960.00 USD
Sale Sold out
Shipping calculated at checkout.

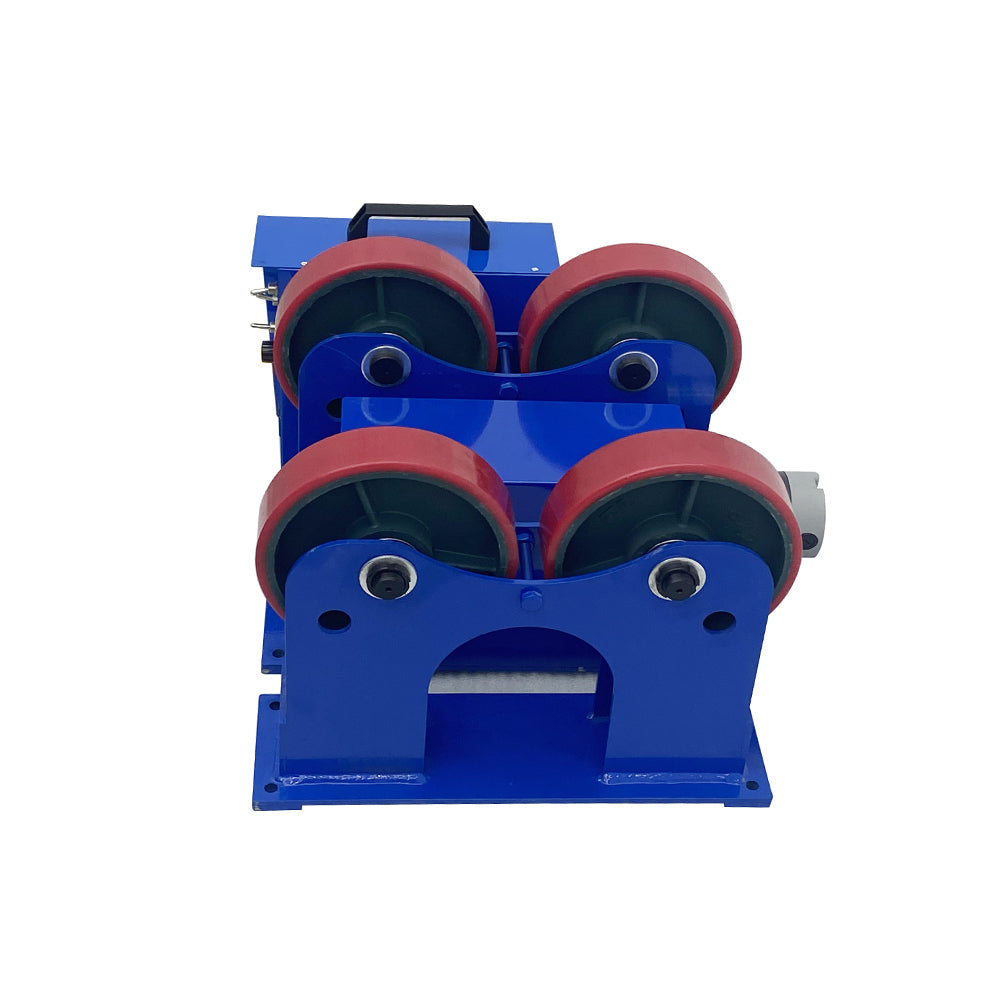

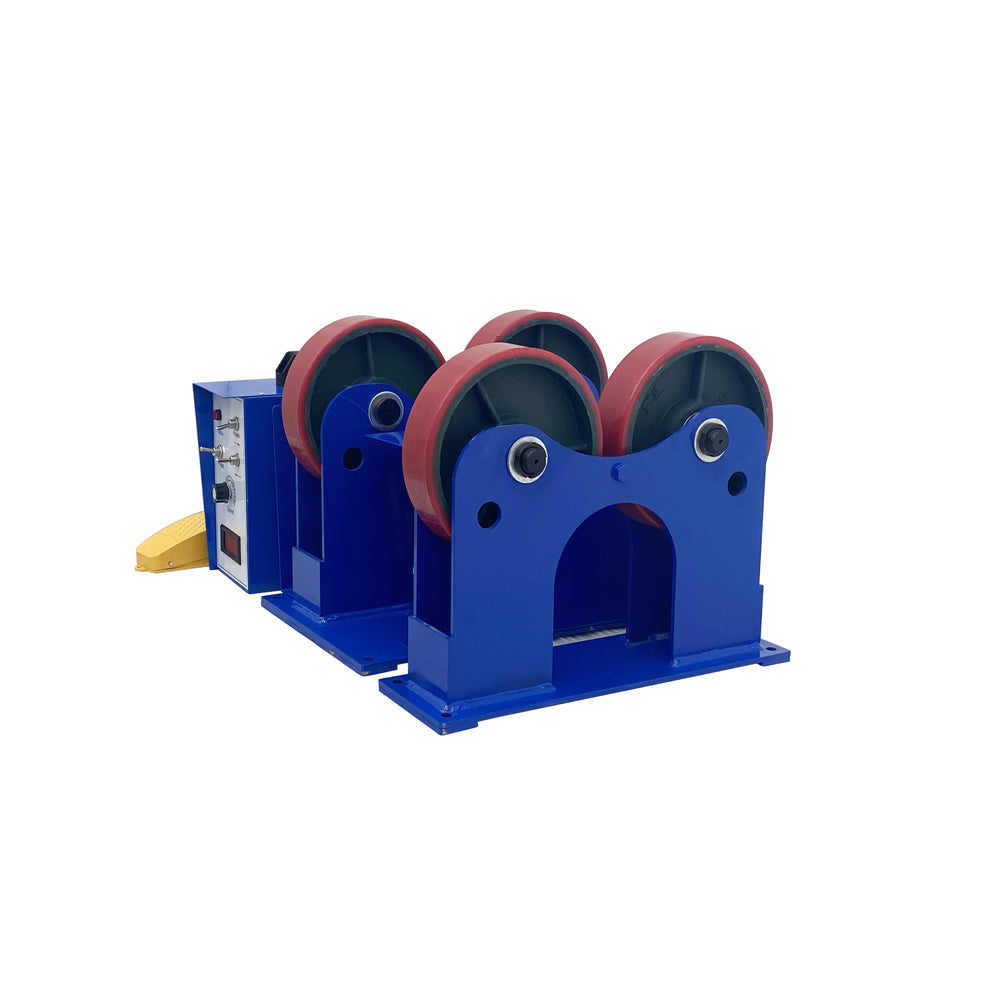

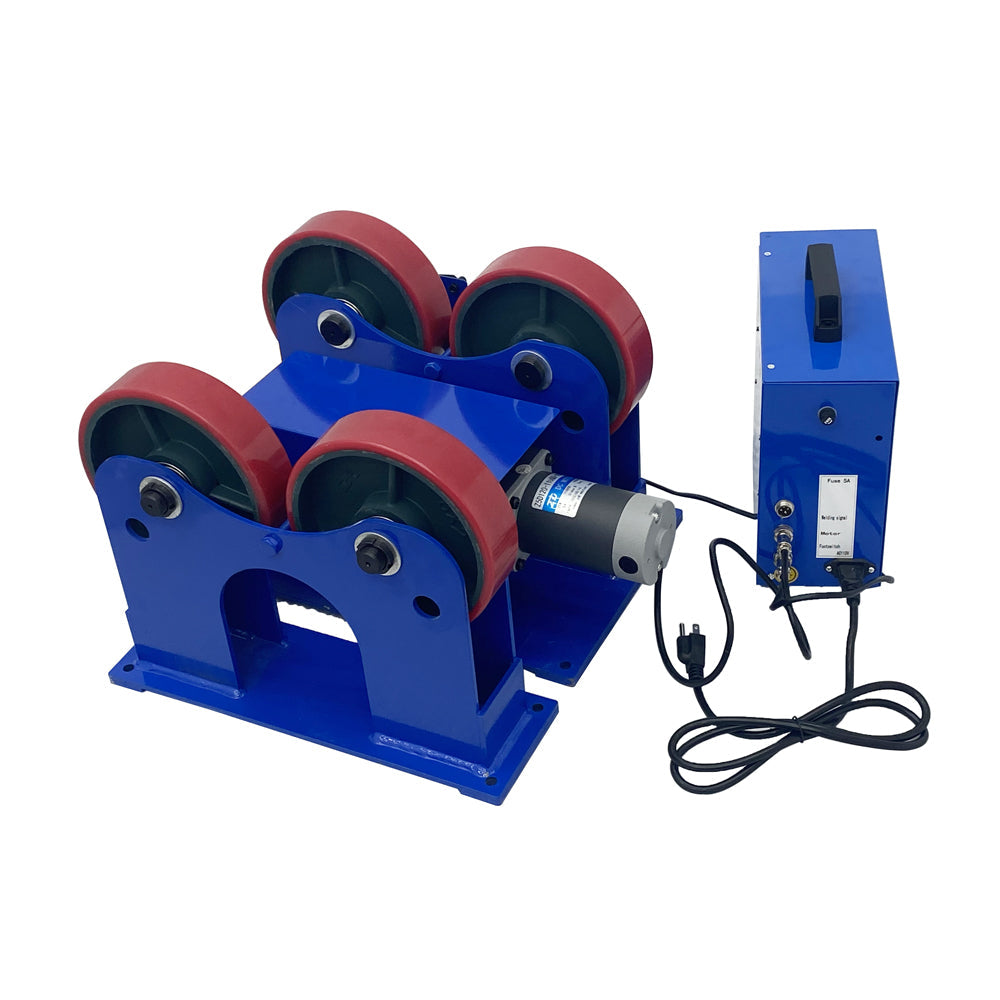

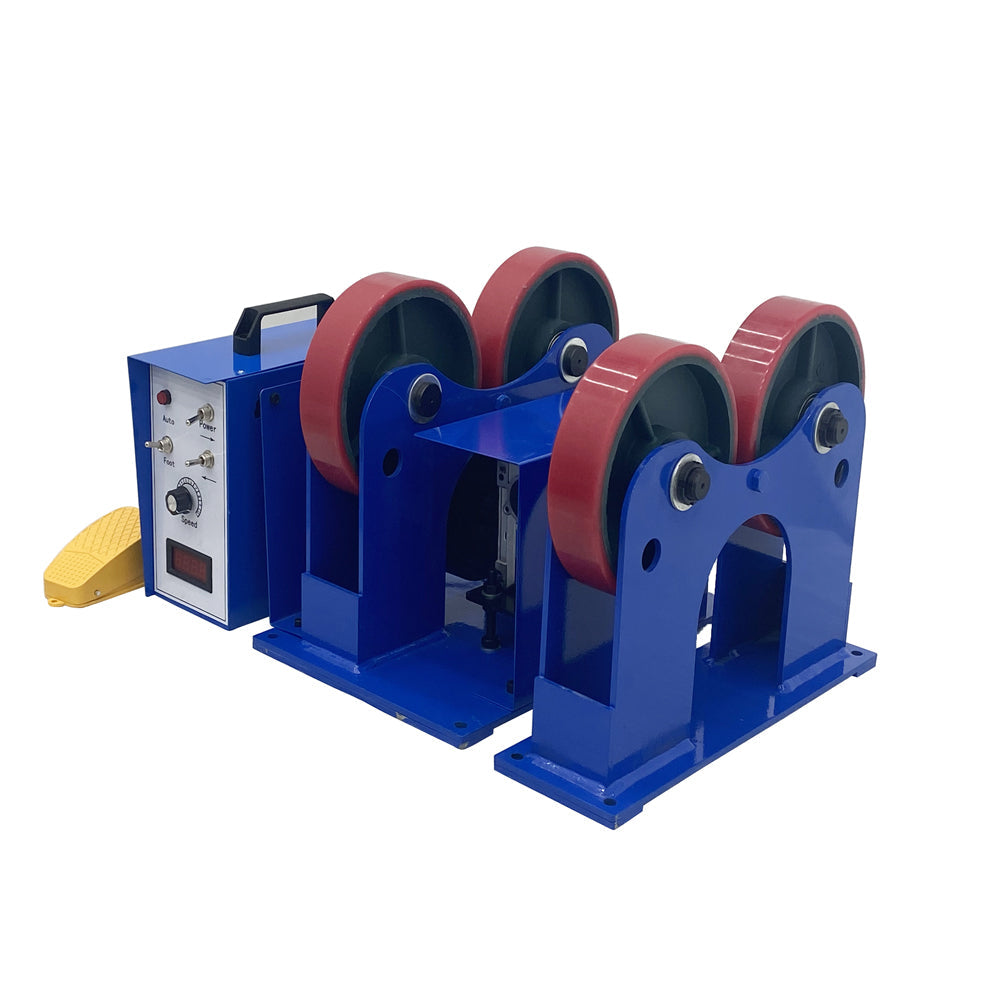

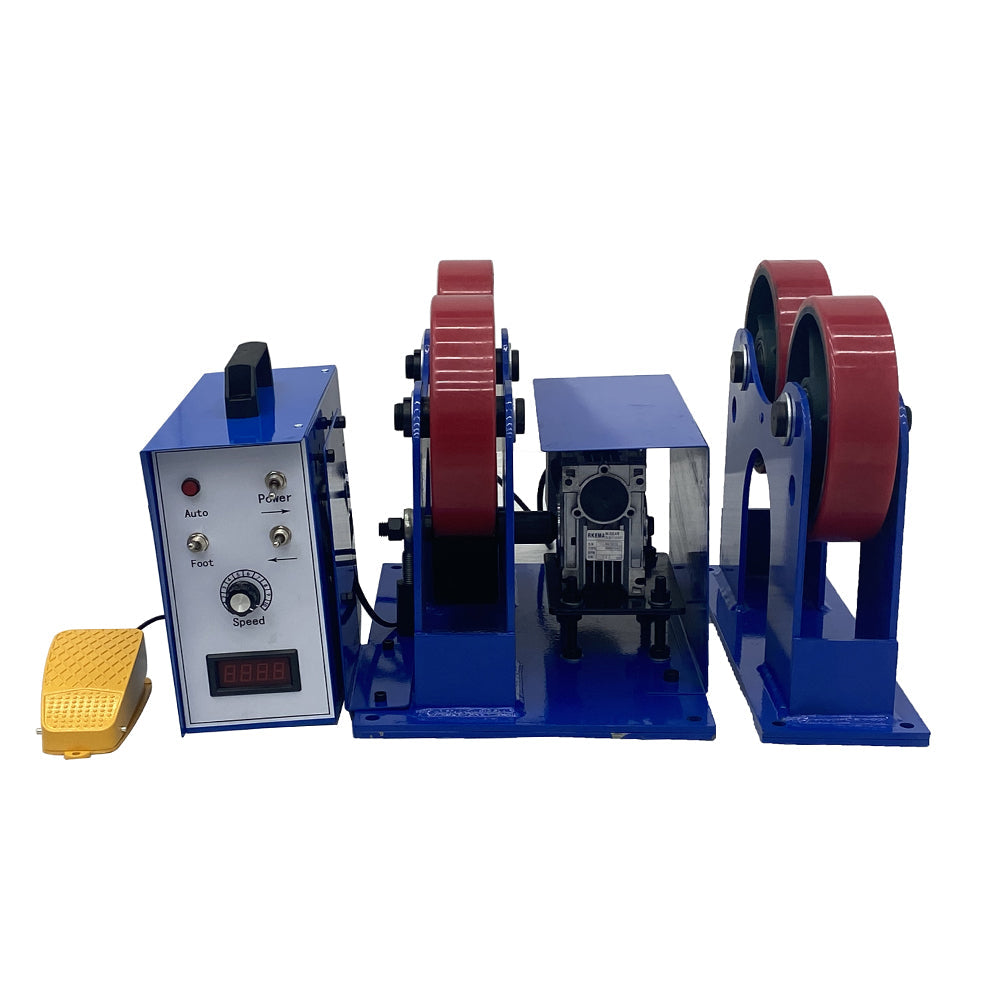

Welding Turning Rolls

Connected Welding Roller Rack is professional welding  assistant equipment, can be matched to welding operation  machine and submerged arc welding machine, etc. The machine  mainly applied to pipeline welding include inside and  outside of the pipe.
Parameter
Model XH-1T-A
Working Voltage AC 110V 60Hz
Power 125W
Load Capacity 2200 LBS
Speed Range 80～1100  mm/min
Diameter Range 50～600mm
Roller Type 50mm(W)×200mm(D)
Operation Method Control Box Operation
Active Wheel Size 430*300*400mm
Net Weight (Active/Driven) 65KG
Features

Digital Display Control System

　

    • A control box and a pedal pump for speed control. And they can save you a lot of time and energy because you can control the machine with several easy steps.

  • The control box is digital display and it can be hung on the left side of the machine for easy operation.

  • It can show the speed of the wheel.

　

Adjustable Roller

　

    • You can adjust the roller distance to suit different sizes of pipes.
  • Range: 50～600mm.
  • 50-260mm  Inner Hole
  • 260-600mm  Outside Hole

    　

　

Motor & Polyurethane Wheels

　

    • Equipped with a powerful motor providing a large driving force, stable and reliable operation. And no shock during startup.

  • The wheels are coated with a layer of polyurethane to increase friction. Strong and reliable.

  • It can powerfully grasp the workpiece and make it turn with the wheel.

　

Wide Application

　

    • The Turning Rolls Linkage Roller can be matched to a welding operation machine and submerged arc welding machine, etc.

  • The machine mainly applied to pipeline welding including inside and outside of the pipe.

　
Package Content(022083)

Welding Turning Rolls 2200LBS*1 Set

Foot Switch*1 Set

Control Box*1 Set
Diameter of Work piece
