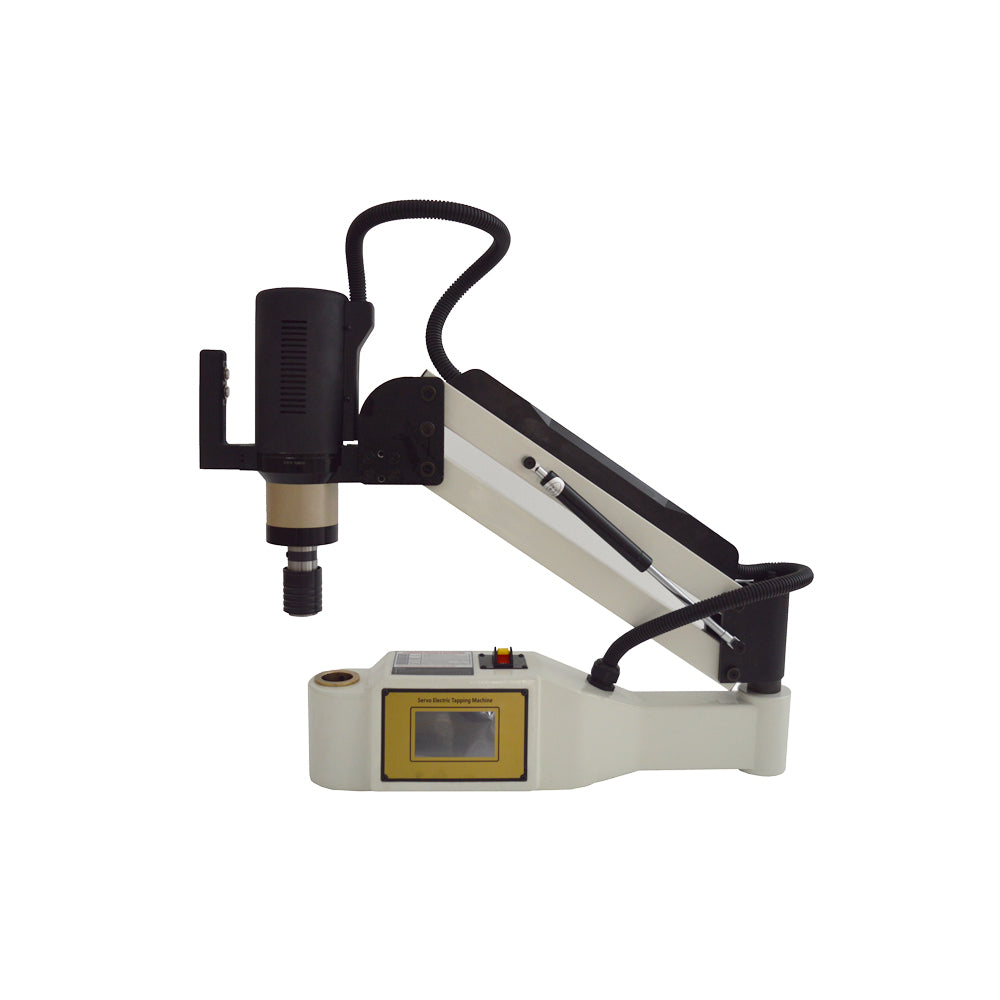

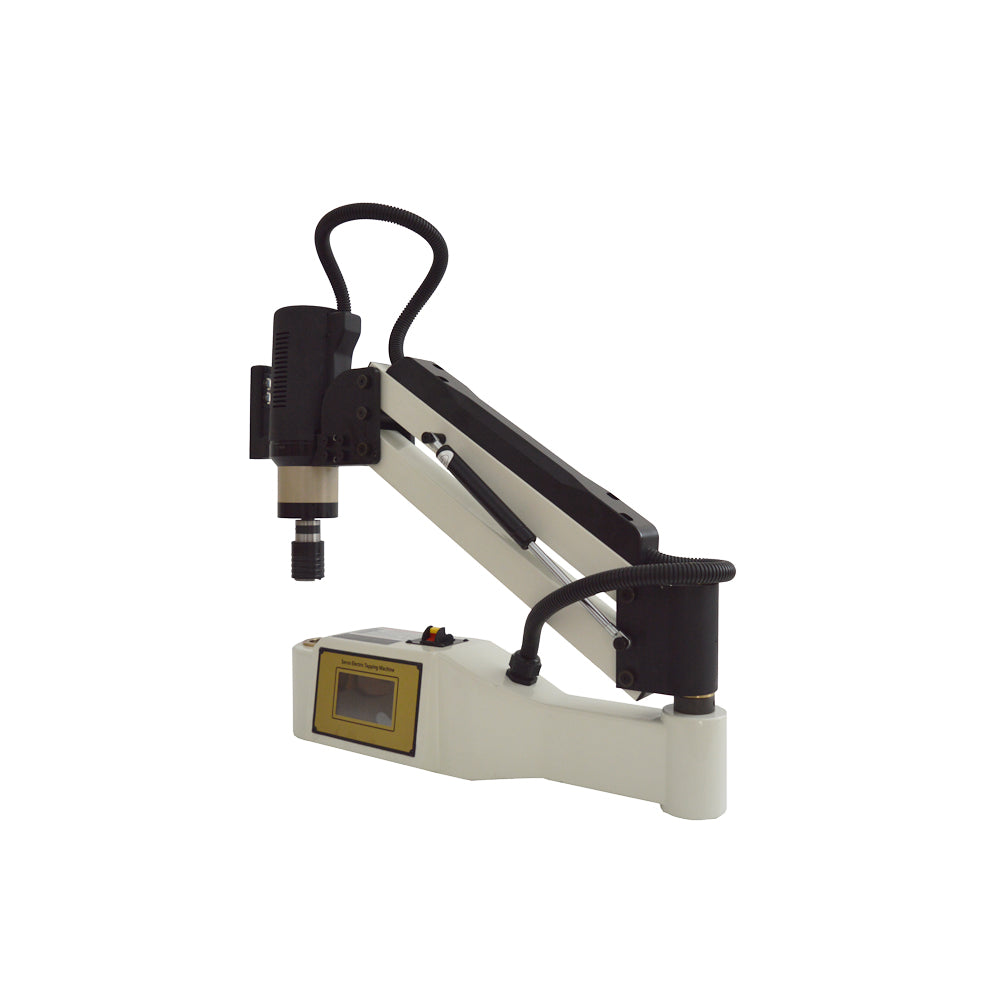

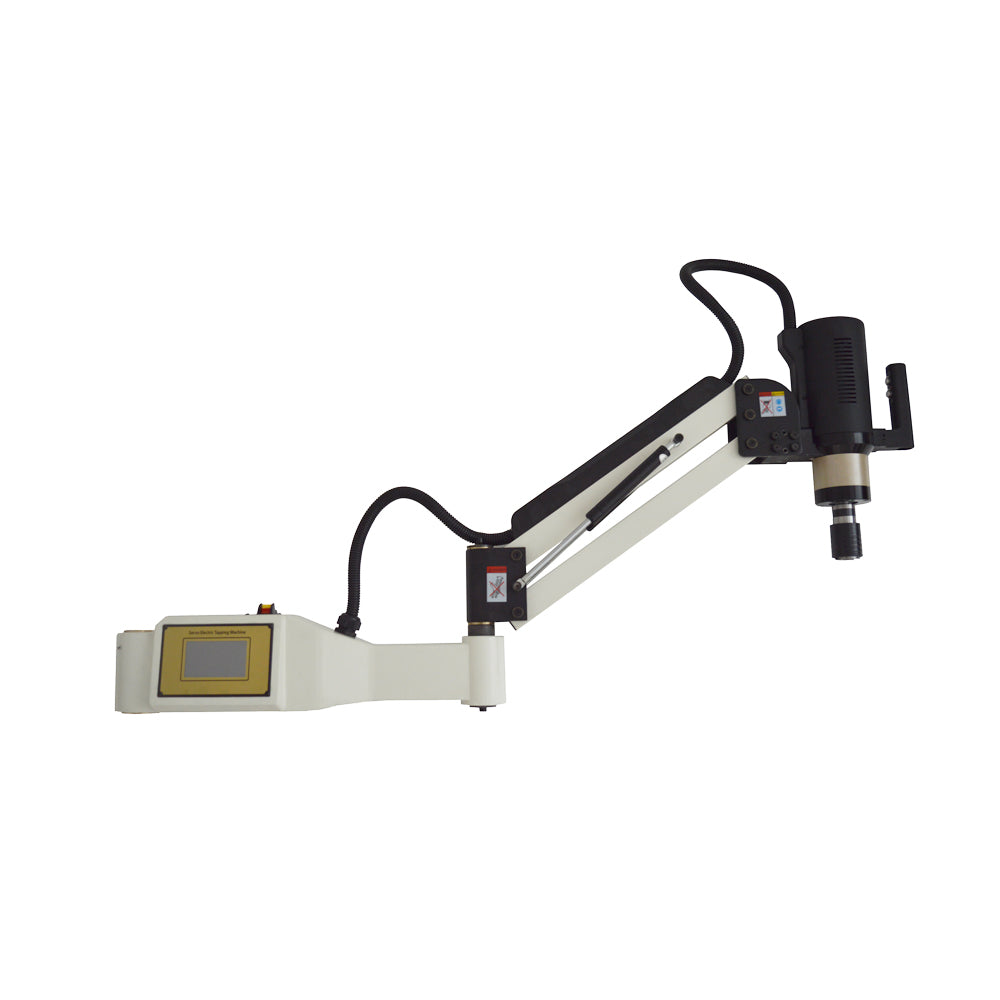

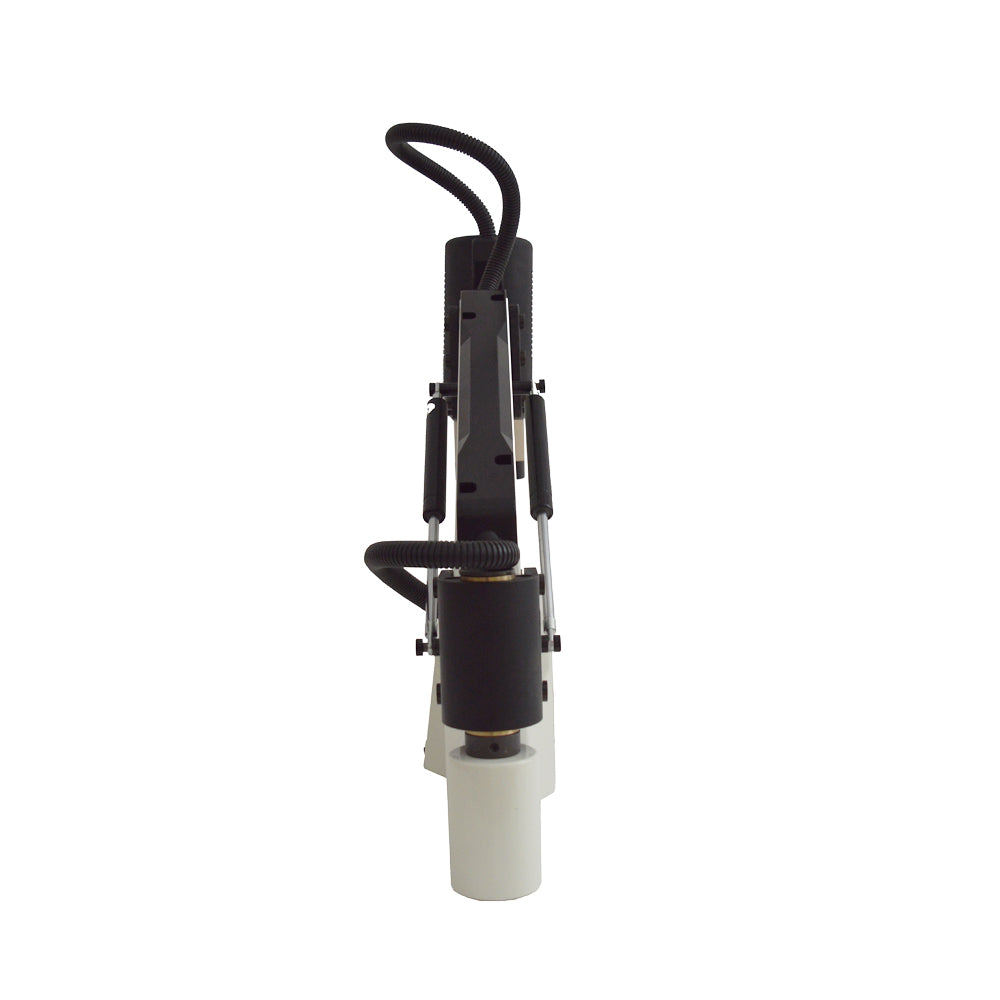

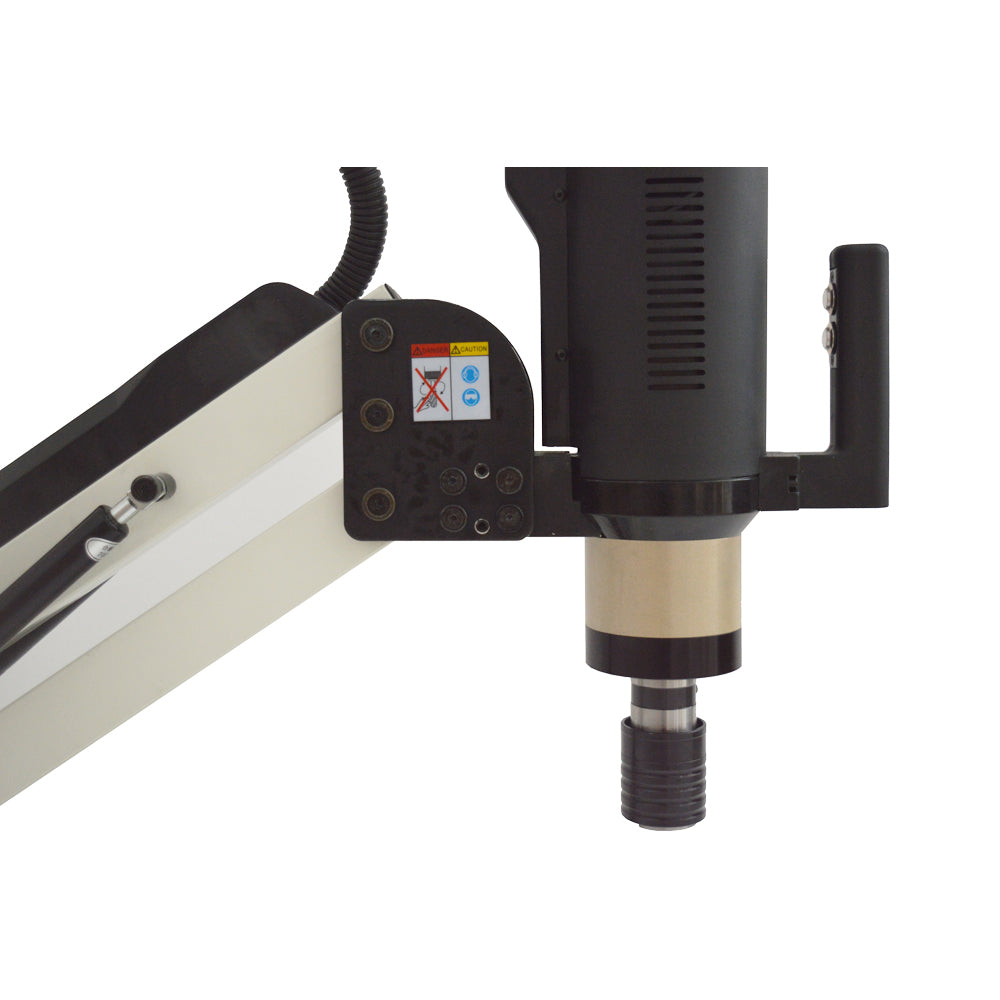

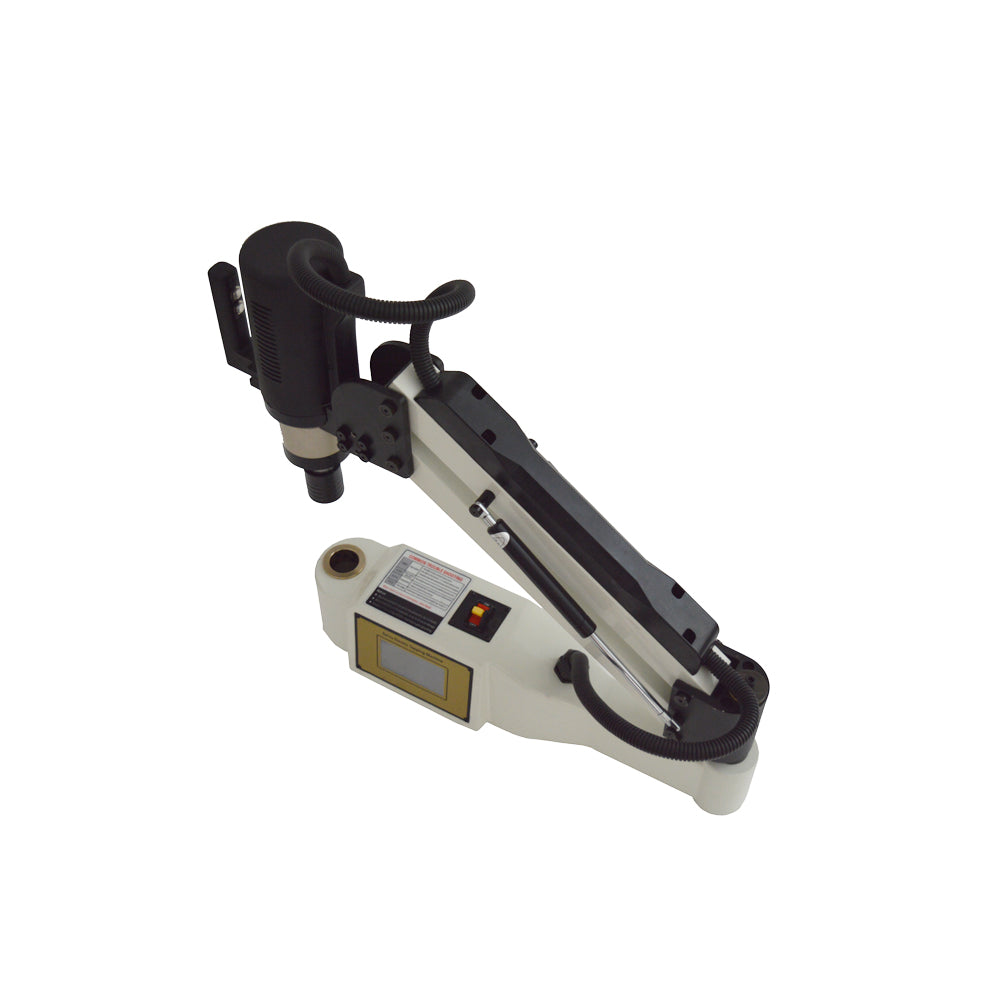

M6-M30 Universal 360° Electric Touch Tapping Machine
M6-M30 Universal 360° Electric Touch Tapping Machine
Regular price
$1,389.00 USD
Regular price
Sale price
$1,389.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
|
M6-M30 Universal 360° Electric Touch Tapping Machine 220V |
| Product Overview |
| This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice. |
| Product Parameters |
| Tapping capacity： | M6-M30 |
| Voltage \ power： | 220V\1200W |

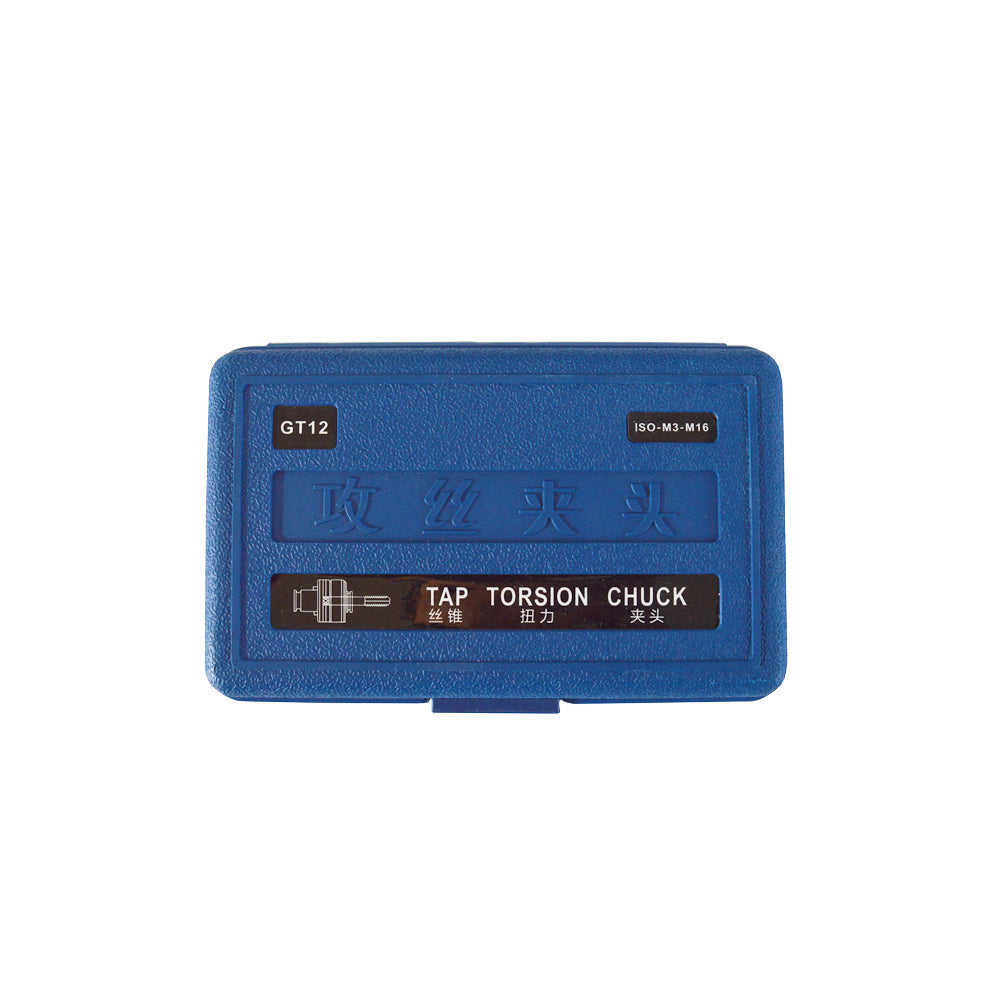

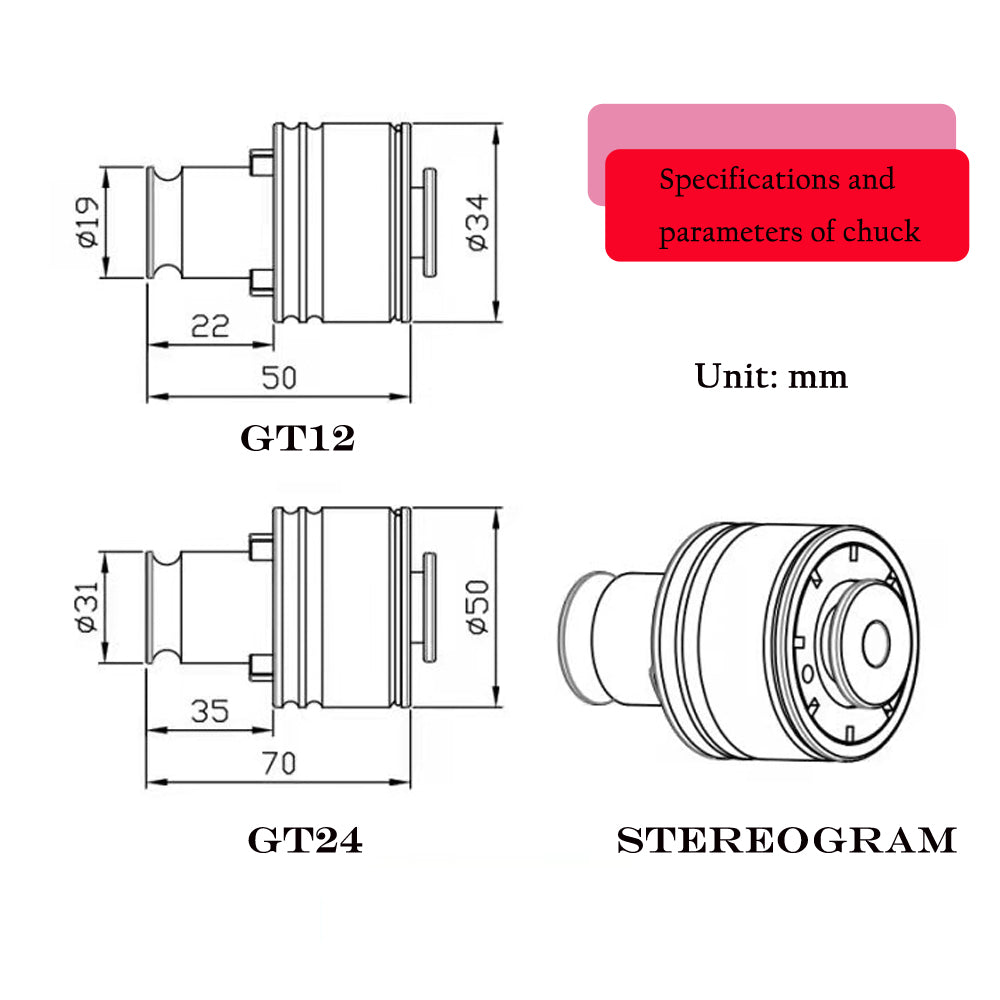

| Chuck type: | GT24 |
| Available inch tap specifications: | 5/16、PT1/8、1/2、9/16、5/8、3/4、7/8、PT1/2 |
| Maximum speed： | 200rpm |
| Horizontal stretch： | 1.2m(3.9ft) |
| Vertical extension： | 0.55m(1.8ft) |
| colour: | white |
| Tapping angle： | universal |
| Weight： | 100lbs |

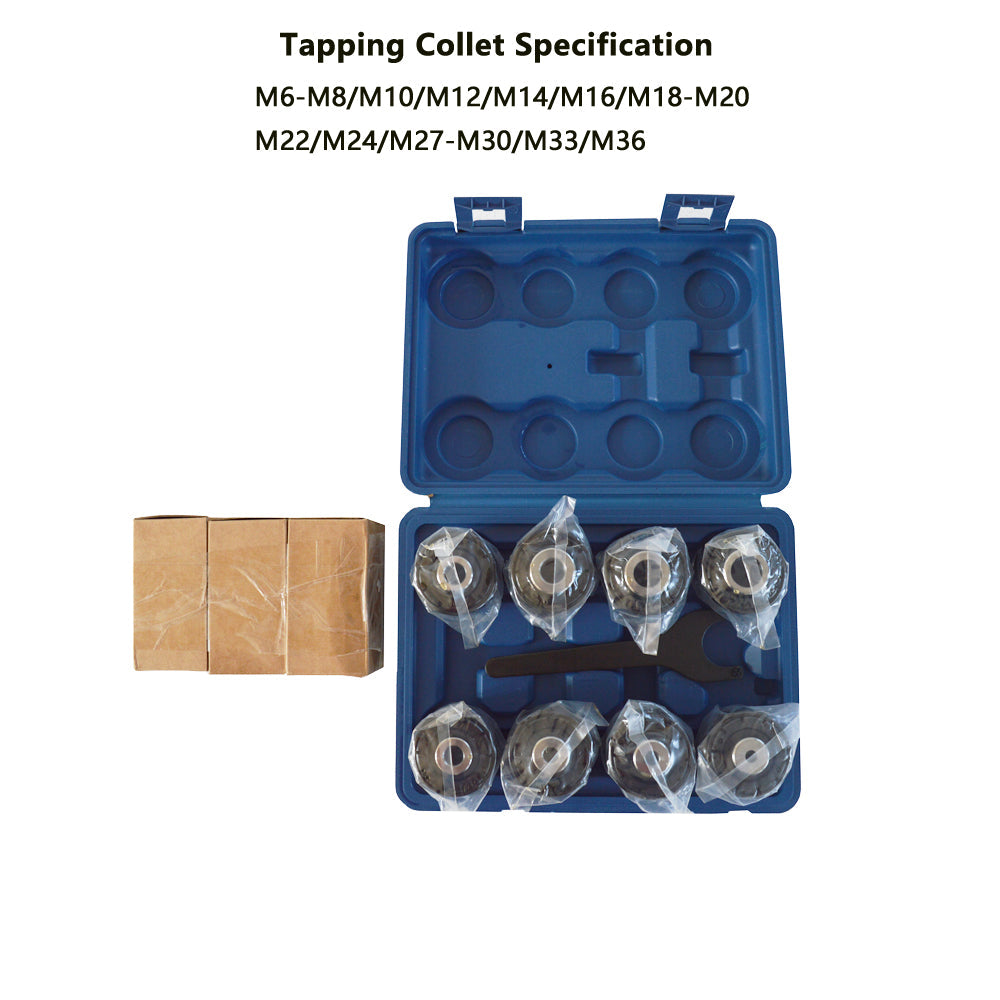

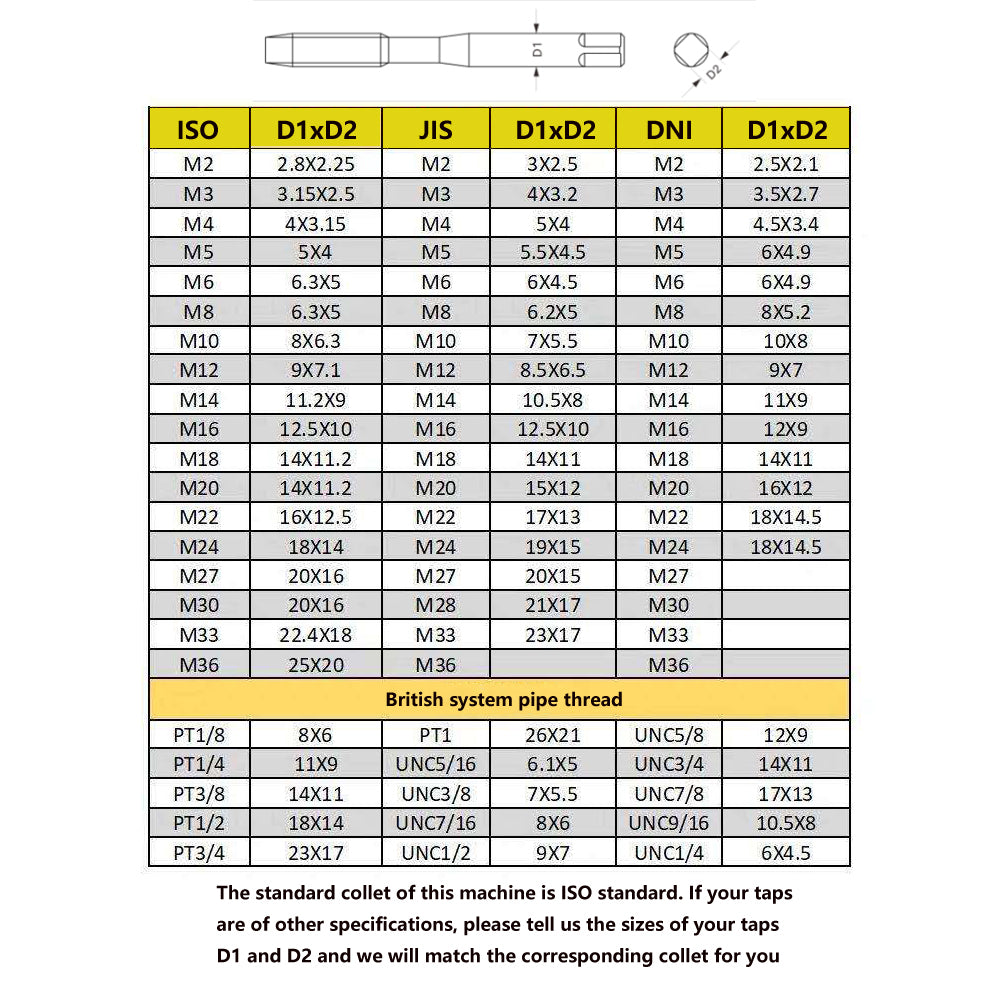

| Corresponding to Tap Specifications |
| Metric tap specifications | British system tap specifications | D1*D2（mm） |

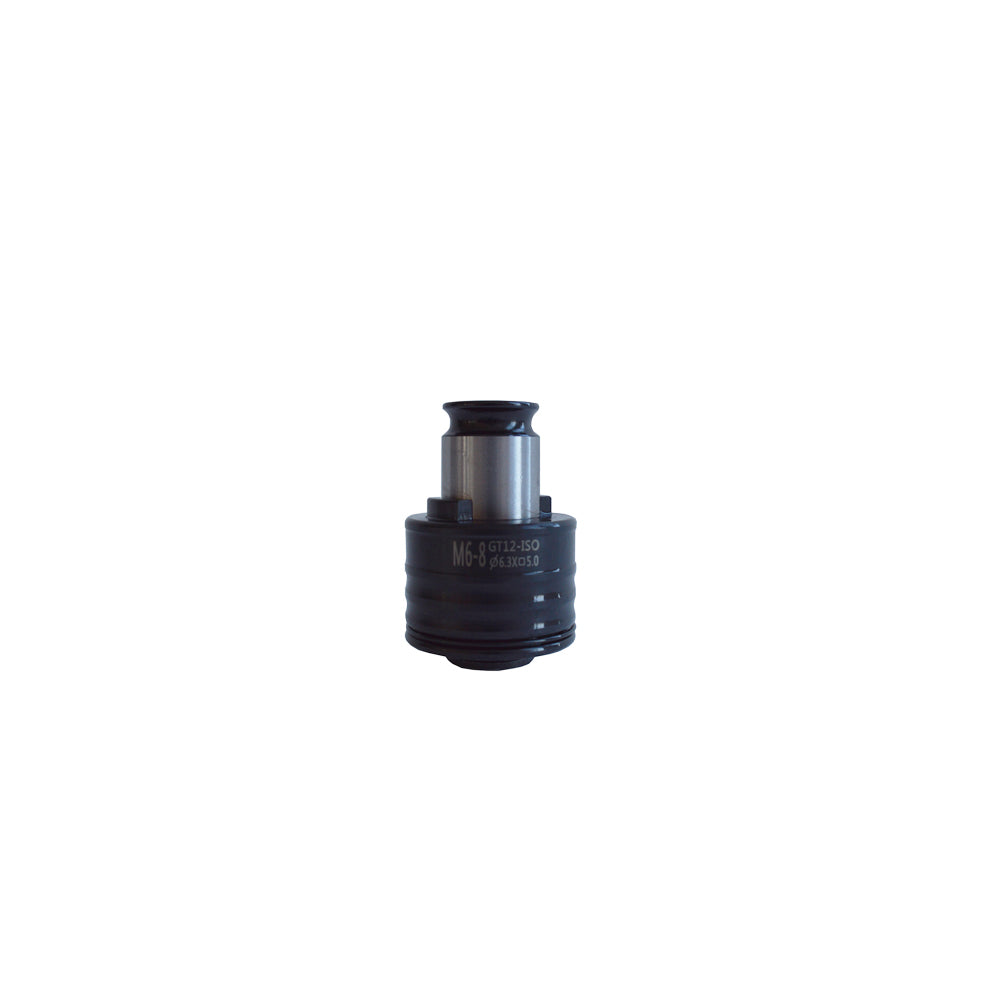

| M6-M8 | 5/16 | 6.3*5.0 |
| M10 | PT1/8 | 8.0*6.3 |
| M12 | 1/2 | 9.0*7.1 |
| M14 | 9/16 | 11.2*9 |
| M16 | 5/8 | 12.5*10 |
| M18-M20 | 3/4 | 14.0*11.2 |
| M22 | 7/8 | 16.0*12.5 |
| M24 | PT1/2 | 18.0*14.0 |
| M27-M30 | 20.0*16.0 |
| Product Features & Advantages |
|

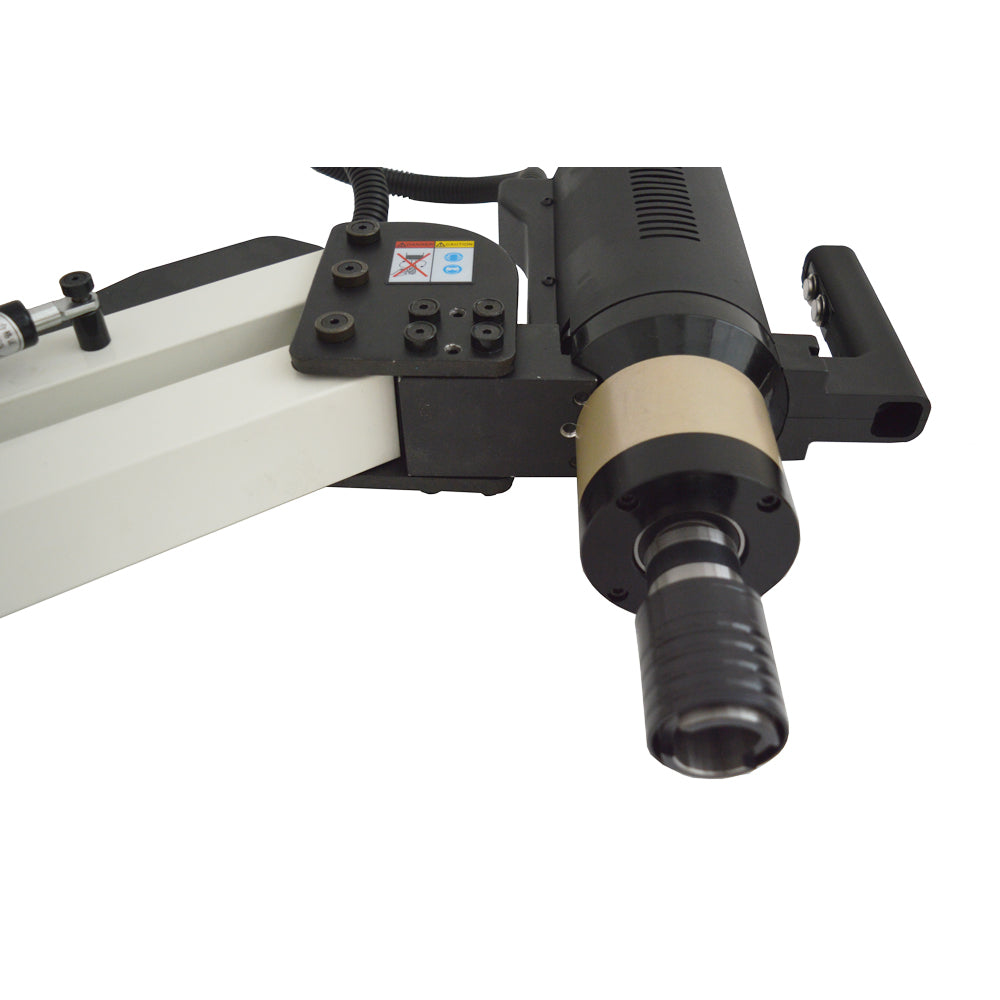

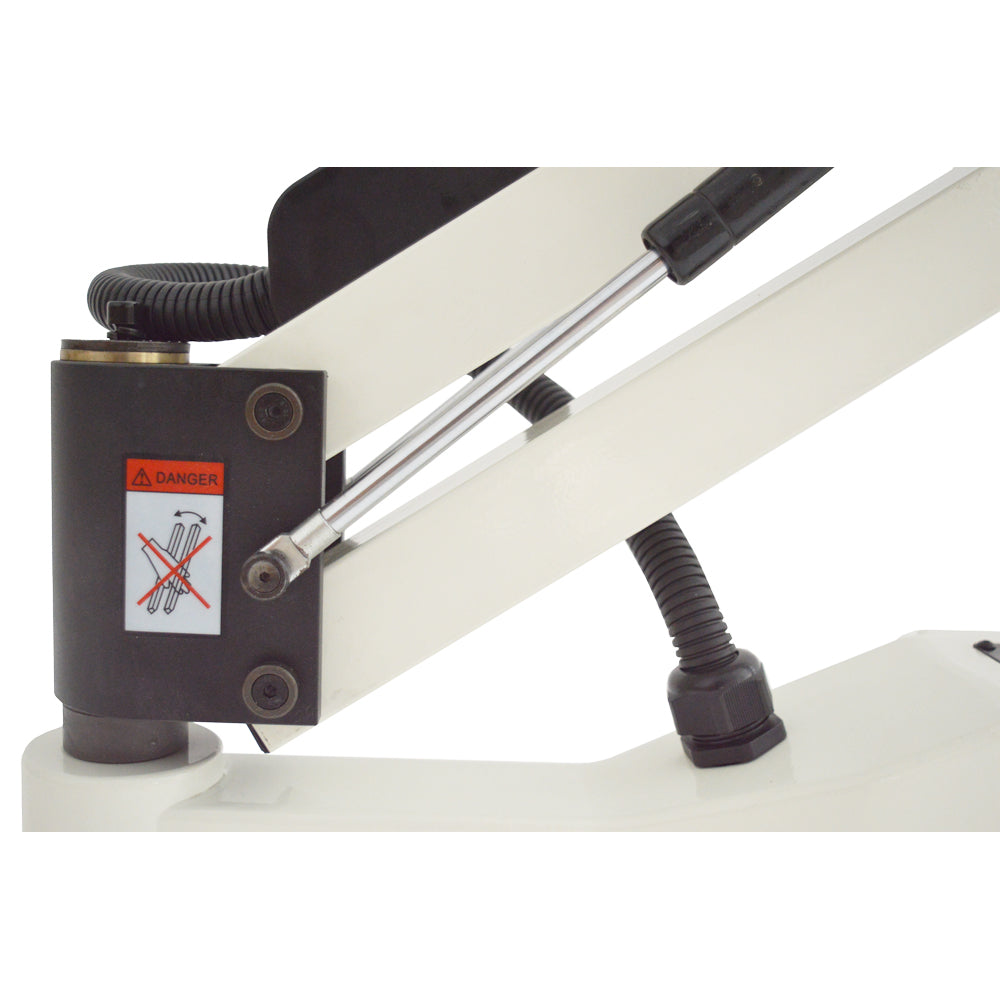

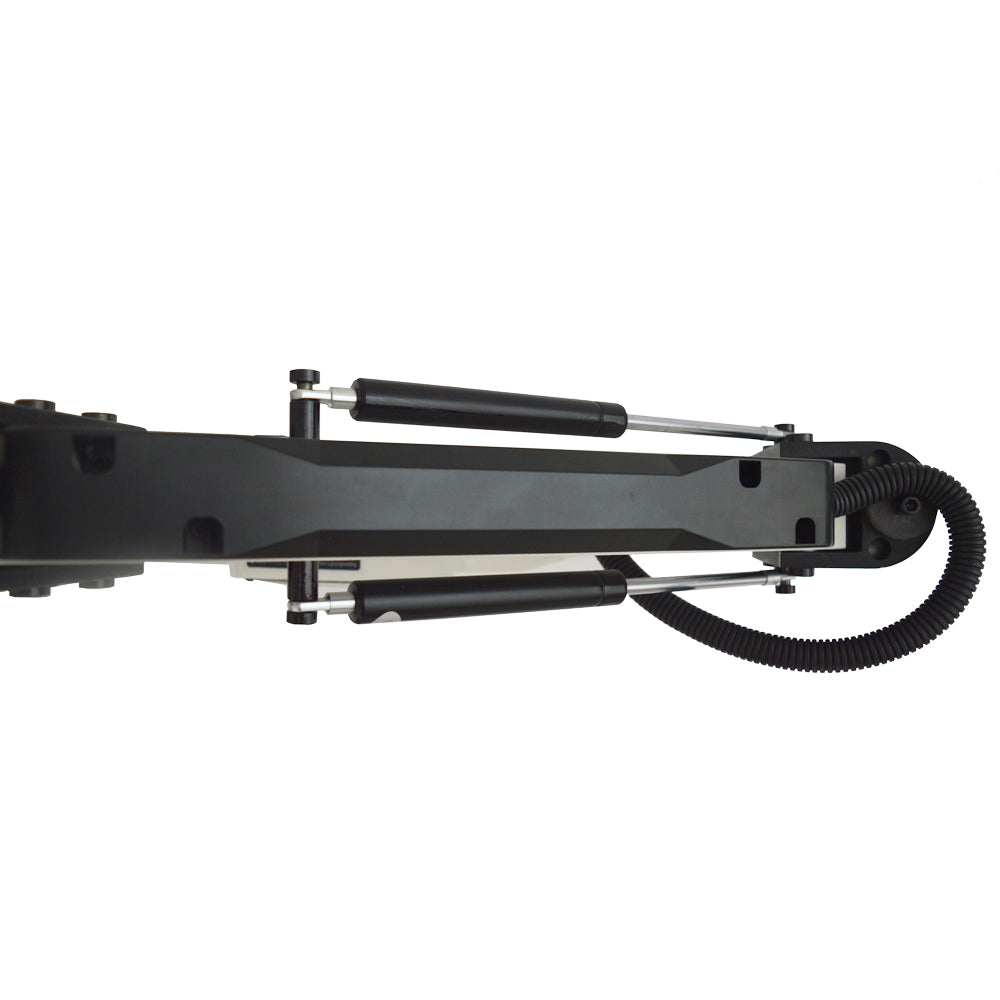

1.Intelligent electric universal tapping machine, advanced professional arm design.

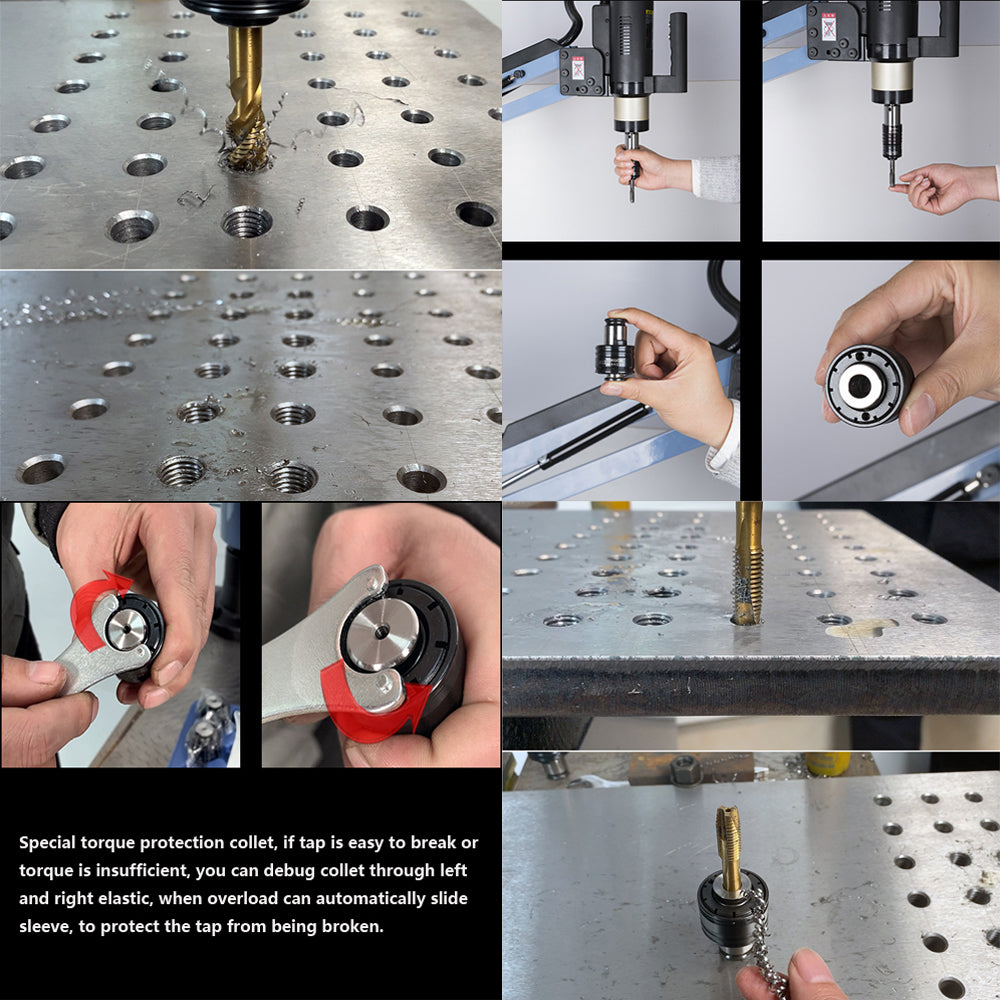

2.Tapping can be positioned in many ways. 3.Quick, accurate and convenient positioning. 4.This machine is multi-purpose, suitable for tapping steel, aluminum, plastic and wood. 5.The machine is touch-screen panel with clear and intuitive interface and simple operation. There are three tapping modes, which can be switched between Chinese and English. 6.The machine has three tapping modes: manual tapping mode, automatic tapping mode and vibration tapping mode. 7.The machine has stepless speed regulation function. 8.Double torque protection. |
| Product Presentation & Details |

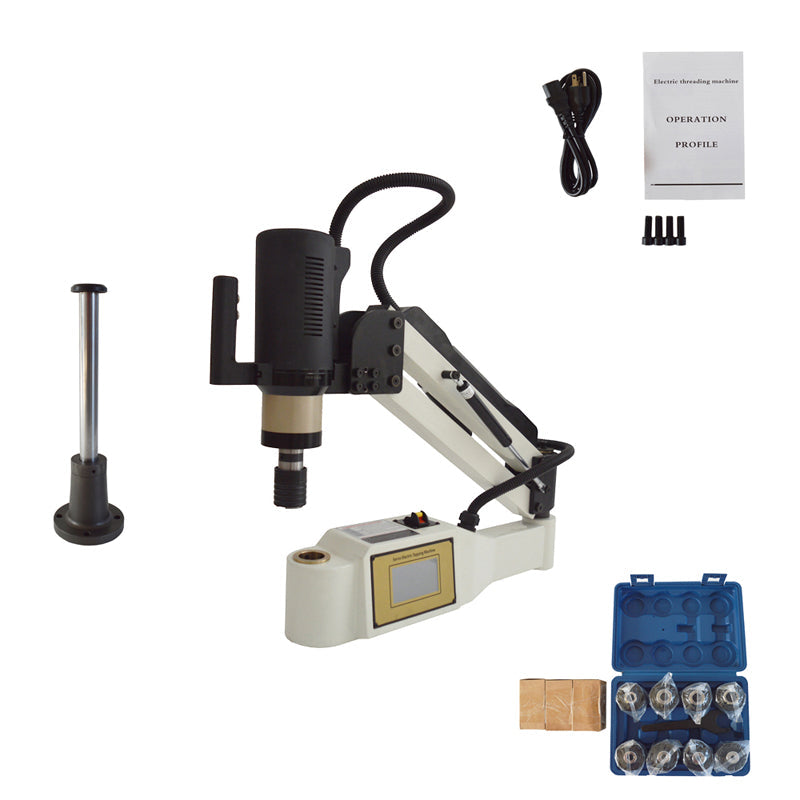

| Item Included（056343） |

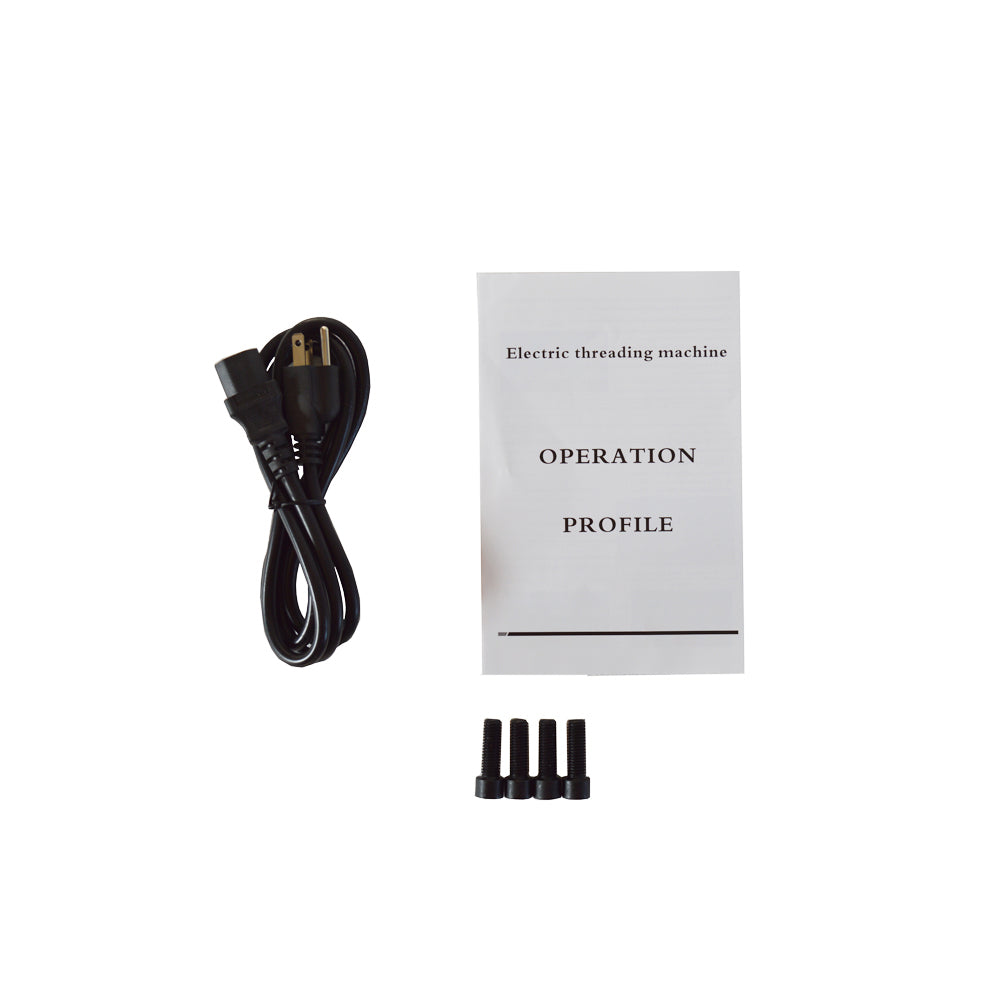

| M6-M30 tapping machine X1 Tapping clamp X1 Us standard plug X1 Wrench X1 English specification X1 |
