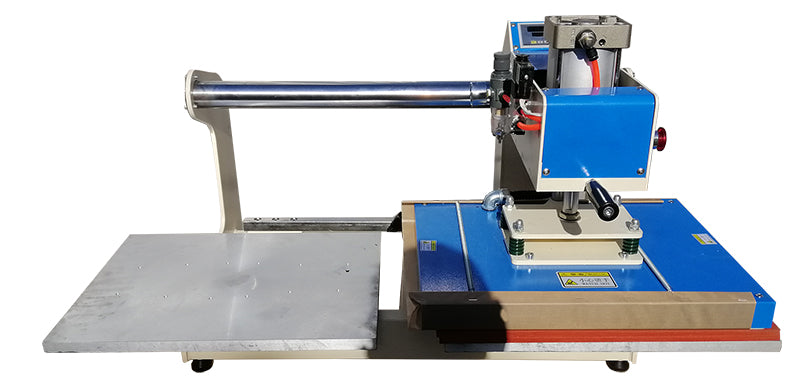

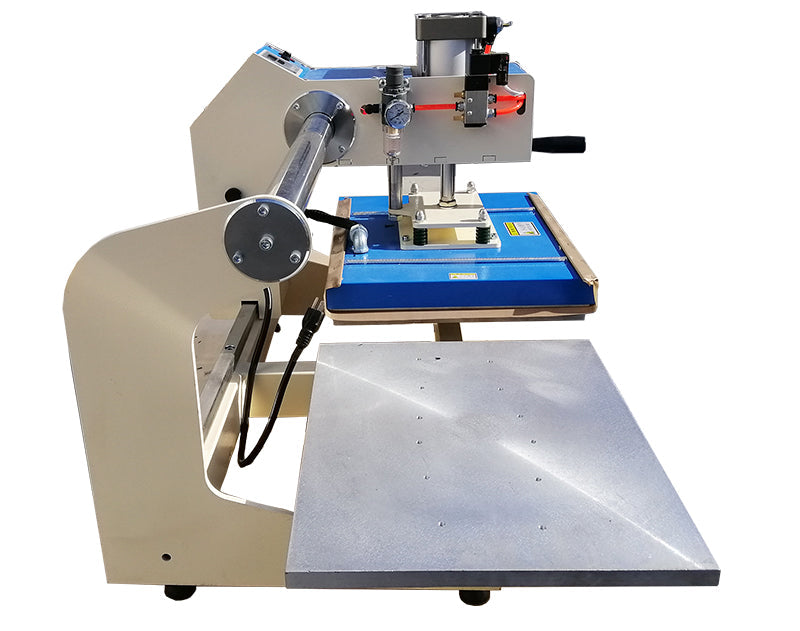

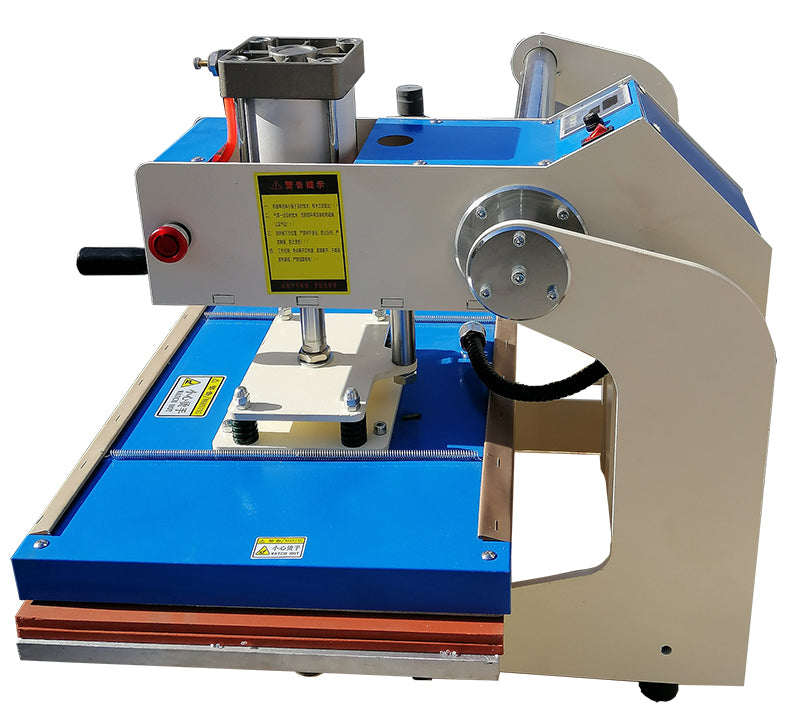

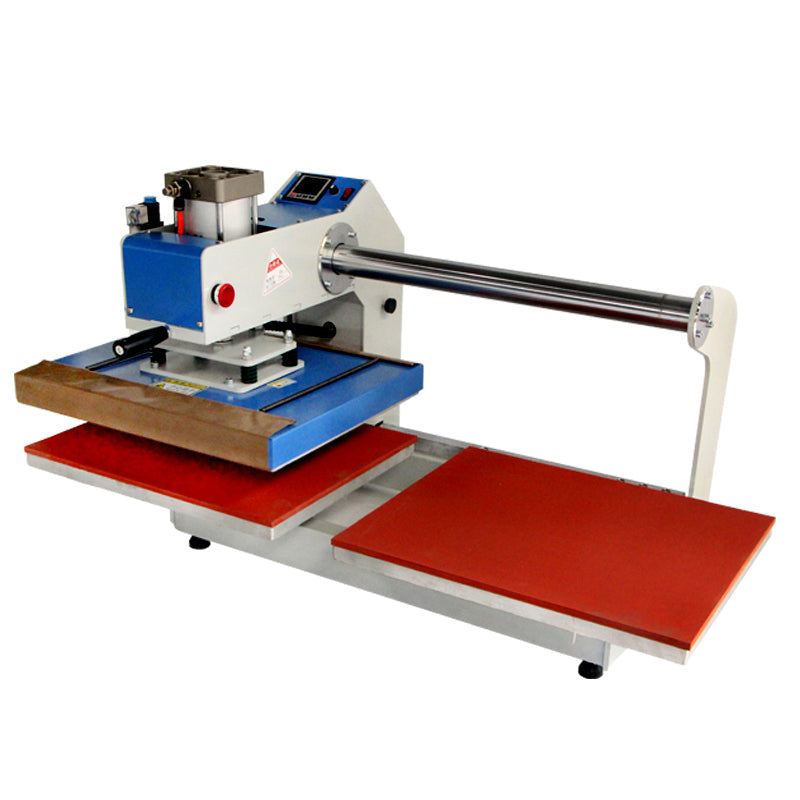

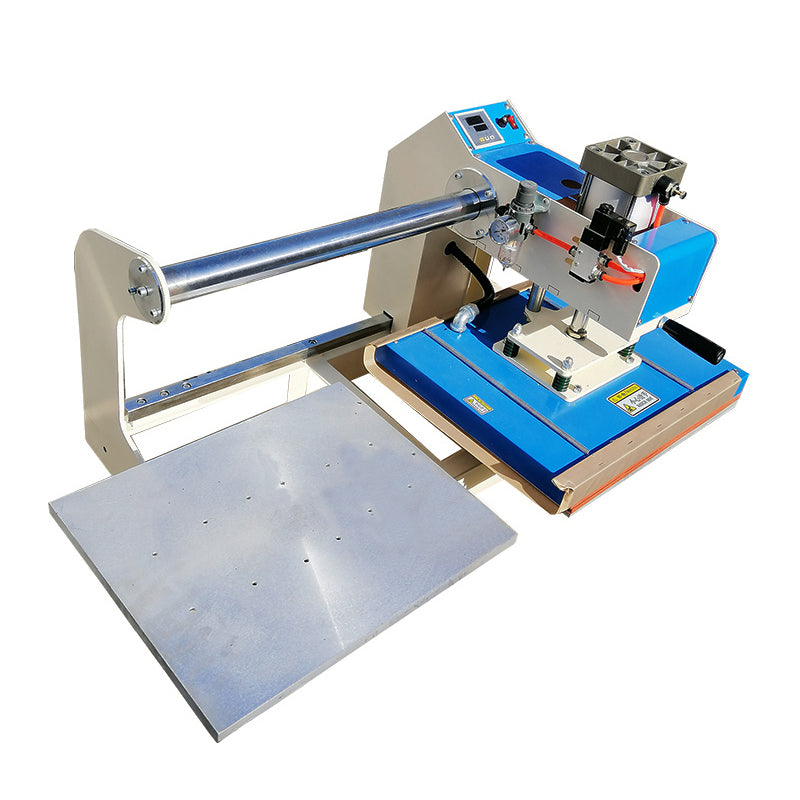

16*20" Heat Press Machine Double Station

Double Station Pneumatic Heat Press Machine 16"*20"

working system. The upper heating board moves automatically and easily. It is very efficient for advertising

use and industry use. Heating panel and working tables are specially processed and make the machine works

well and tranfer images clearly.

It's suitable for sublimation and heat transfer printing work.With CE certification .

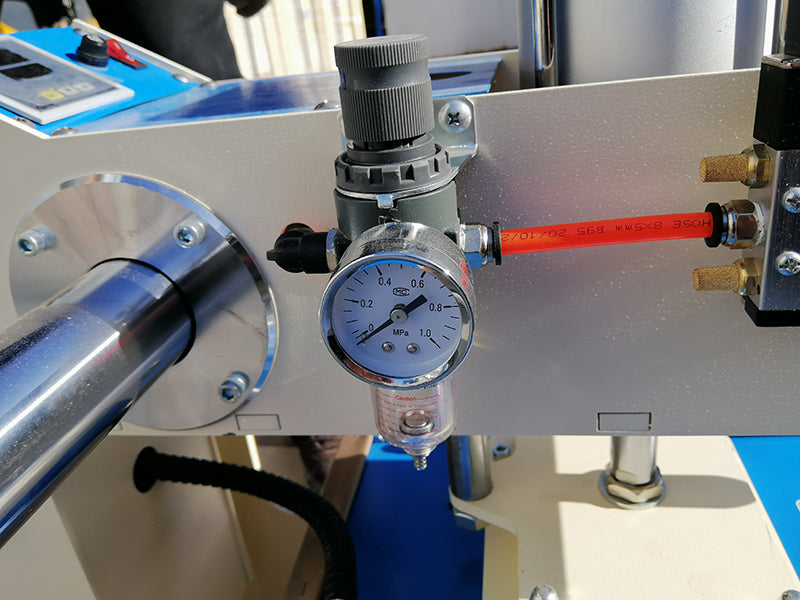

2.The machine adopted automatic pneumatic fitting pressure, it can transfer the lower pressure to higher

compress pressure. (pressure up to 8kg/cm2).

3.It contains two locations, paralleled moving the head up left and right, much more convenient and faster,

high efficiency ,save labor and time at one time.

4.This machine adopts thicken heat plate to ensure the temperature more equality and steady as to

improve the transfer quality and avoids tolerance. high accuracy, perfect heat press effect.

5.Upgraded lower platen allows room for T-shirts to be easily, placed into and removed from machine,

10cm adjustable range, produce wider products.

6.The pressure can be adjusted according to the thickness of the material you're transfering to. Including

print the ready made clothes and cut pieces ,it can be widely used in the factory mass-production and

personalized pyrograph of retail shops.

Please note: Users should operate the machine with ground wire connected for safety!
1.Plug in, turn on the power switch, the power indicator lightened.
2.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed. (Normally 5~20Second),then wait for until the temperature has reached the preset temperature.
3.Put the cloth on the silicone pad of the working table, cover the printing paper (please note the right surface of the paper).
4.Press the start switch, you will see the machine is working and the time is counting down .
5.When the time come down to over, the heating plate will raise automatically. you will find the beautiful and attractive effect!

6.If it is cold-ripping of the transfer paper, please use blackboard wiper to rub against the whole transfer paper, wait for 5-10 seconds, then rip off the transfer paper. If it is the hot-ripping of the transfer paper, you can rip off immediately after printing.

clothes material ,even thetype of printing paper,all will affect the performance of printing .Any

kind of sublimation paper need test before mass production.

You can make order with no worries.

Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.

Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from

Monday-Friday; Not on the weekends & public holidays.

Warranty: 6 months' warranty for the machines, not for the consumables.

We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or

technical support from us with low cost.
