110V Exposure Unit 25*28"

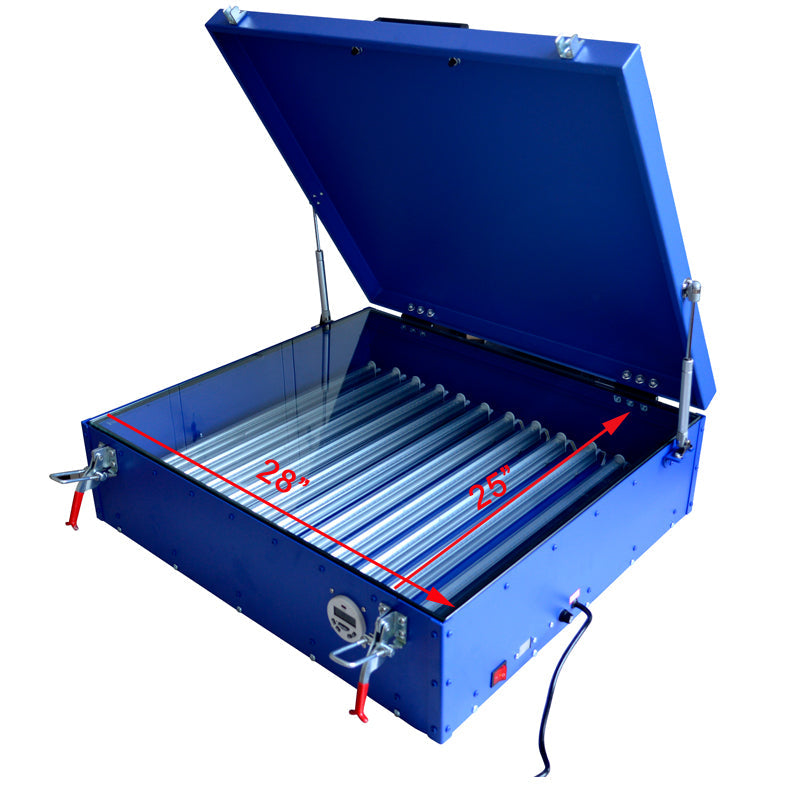

1. Max screen frame size: 25 X 28 inch (71x64 cm external diameter)

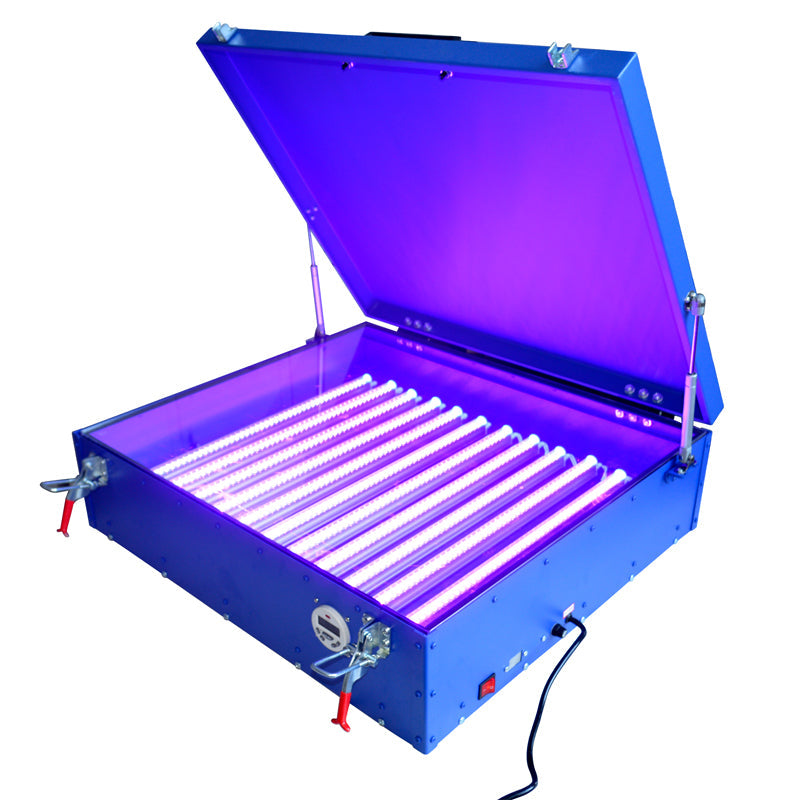

2. With 12 pcs LED ultraviolet light,

3. Equipped with 8mm tempered glass , keep safety when it was broken.

4. Timer will turn off the light automatically according to the setting. It will keep
this setting and repeat use unless you change the exposing time.

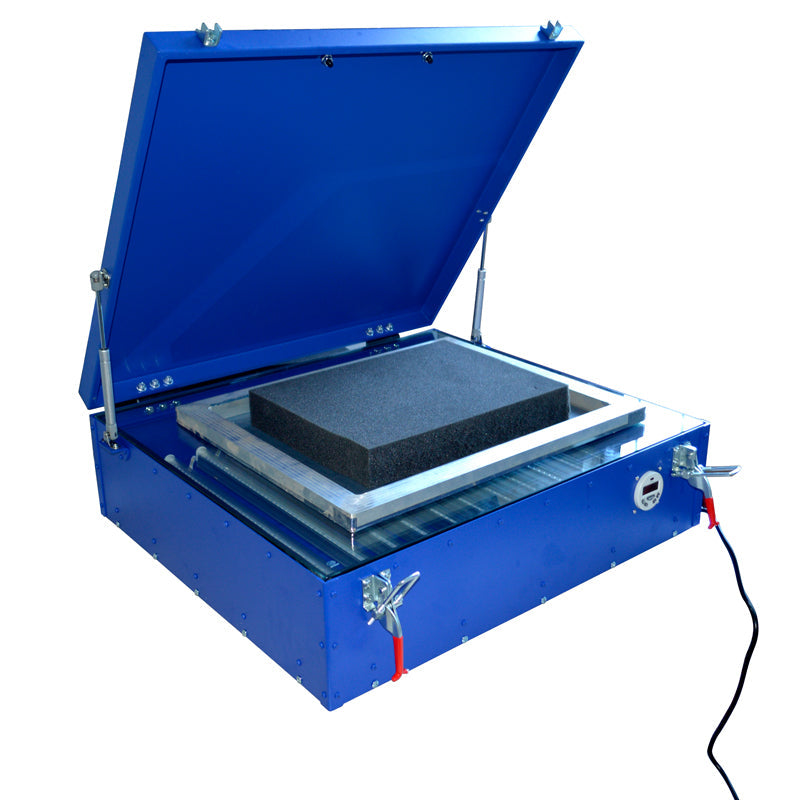

5. Send 2 pcs black sponge cover on the plate to get a better exposing result.

Count range: 1 second--- 99 hours 59 minutes and 59 seconds

Working temperature: - 25 c ---- 65 c

Different brand emulsion will need variety exposing time, operator need to test with
this machine and set to the best exposing time.
　

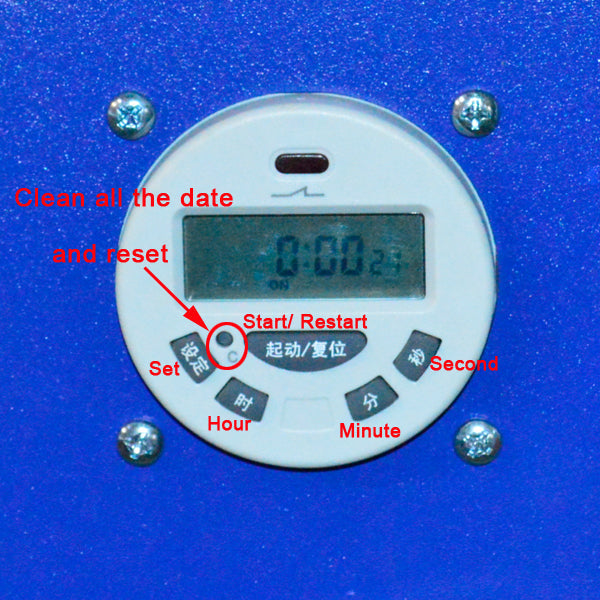

Countdown Timer Using Method

1. Before using, please press the "C" button to reset, it will display 00:00 00
and flash.

2. Press the "hour" "minute" and "second" button separately to set the countdown
time, then the screen shows "ON"

3. Press the "start/restart" button to start work.

For example:  need to set the expose time 5 minutes 30 seconds :
　

1. Press "C" button to remove the original set ;

2. Press "minute" set to "5"; press "seconds" set to "30"; Then press
"start/restart" to start machine, light on.

3. After 5 minutes 30 seconds , light will turn off automatically.

If this setting do not need to be changed, it will be saved automatically. When the machine start again, timer will start again from 5 minutes and 30 seconds.
