Welding Tank Turning Rolls

Welding Tank Turning Rolls

$999.00 USD
$999.00 USD
Sale Sold out
Shipping calculated at checkout.

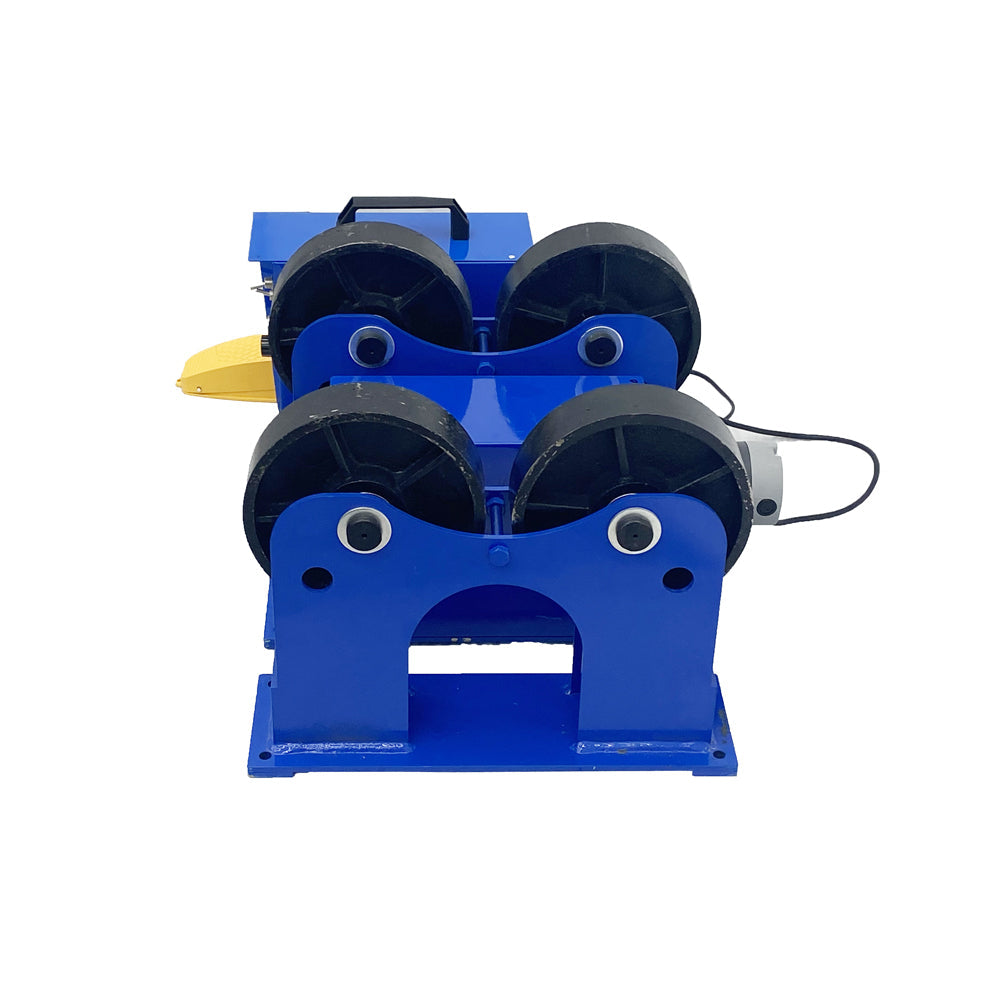

Iron Wheel Welding Turning  Roll

Connected Welding Roller Rack is professional welding  assistant equipment, can be matched to welding operation  machine and submerged arc welding machine, etc. The machine  mainly applied to pipeline welding include inside and  outside of the pipe.
Attention

Before operating the unit, please read this instruction book thoroughly, and retain it for future reference.

1. Machine should be placed in dry, clean, ventilated position, the operation of the machine placed in a horizontal position and smooth. Keep away from flammables and explosives.

2. For safety reasons, must be connected to a reliable safety grounding device must have three feet with ground connection.

3. Unplug the power cable/cord, if the machine will not be used in a long time.
Parameter
Model XH-1T-A
Working Voltage AC 110V 60Hz
Power 125W
Load Capacity 1000KG
Speed Range 80～1100  r/min
Diameter Range 50～600mm

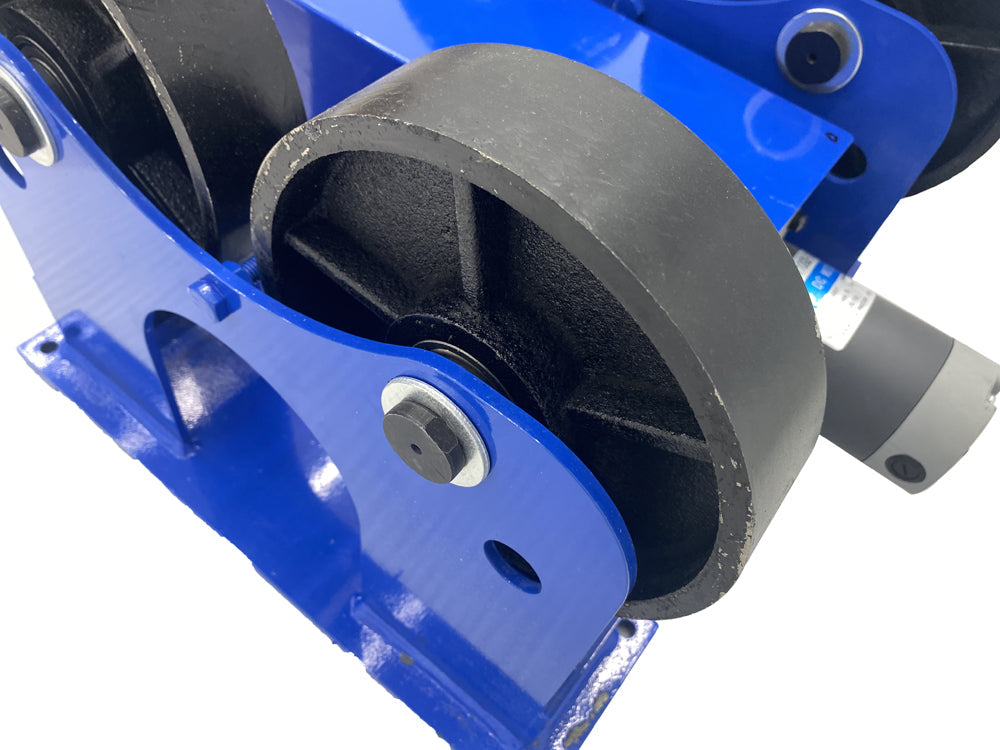

Roller Type 50mm(W)×200mm(D)
Operation Method Control Box Operation
Net Weight (Active/Driven) 56.5KG
Diameter of Workpiece: 50-260mm  Inner Hole
Diameter of Workpiece: 260-600mm  Outside Hole

Maintenance Information

Users are responsible for the proper operation and maintenance of  the equipment they use. Some equipment will quickly become damaged  and unsafe if abused or subjected to improper demands. If equipment  is regularly maintained and not abused, you will get the maximum  safety and service performance from your casters.

  • Do not overload equipment

  • Do not use overcharged voltage

  • Do not use hands to stop the roller when the machine is working

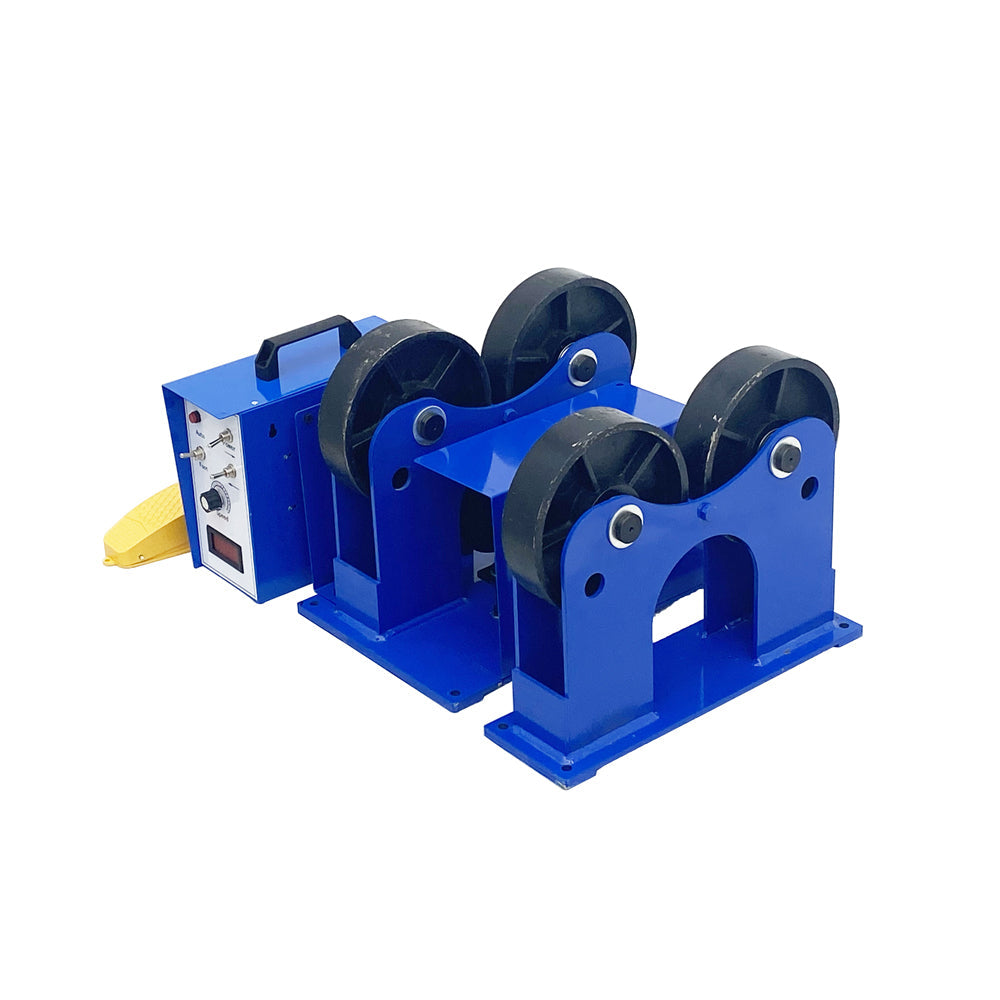

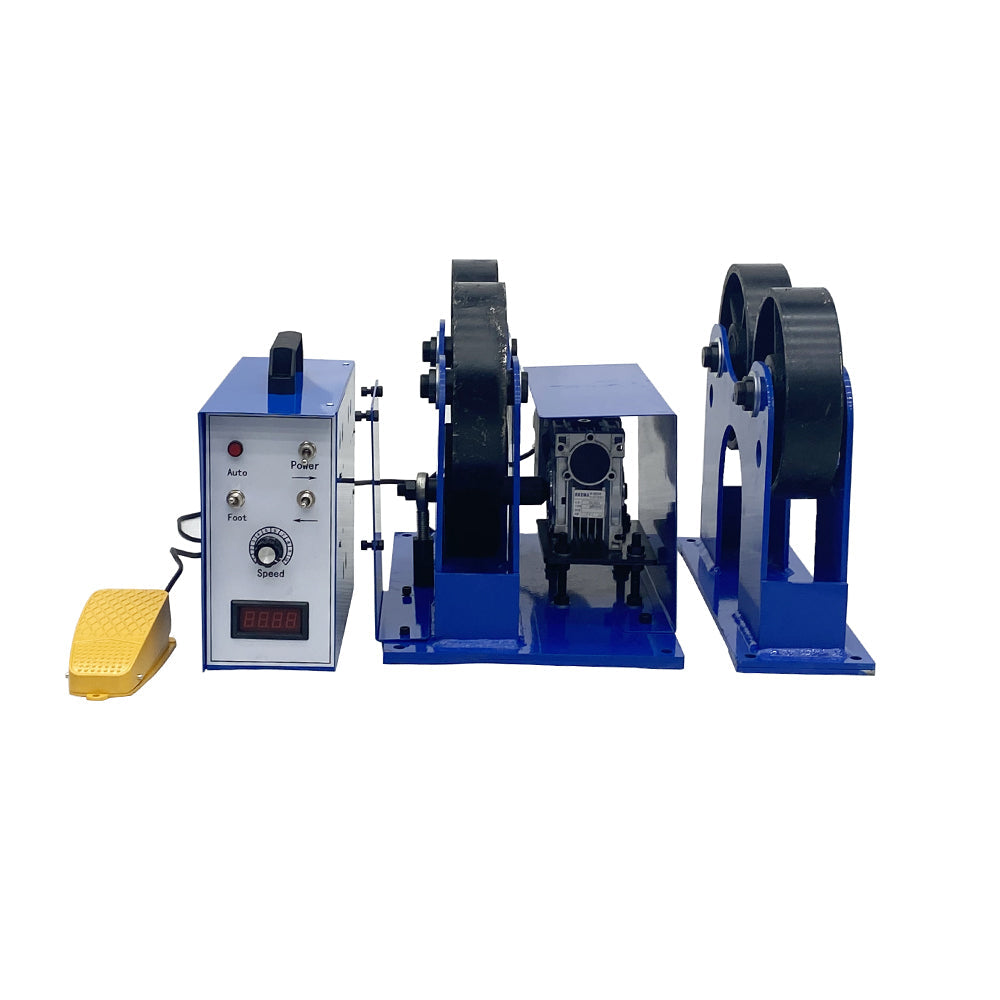

Package Content(022192)

Connected Welding Roller Rack*1

Foot Switch*1

Control Box*1
Diameter of Workpiece
