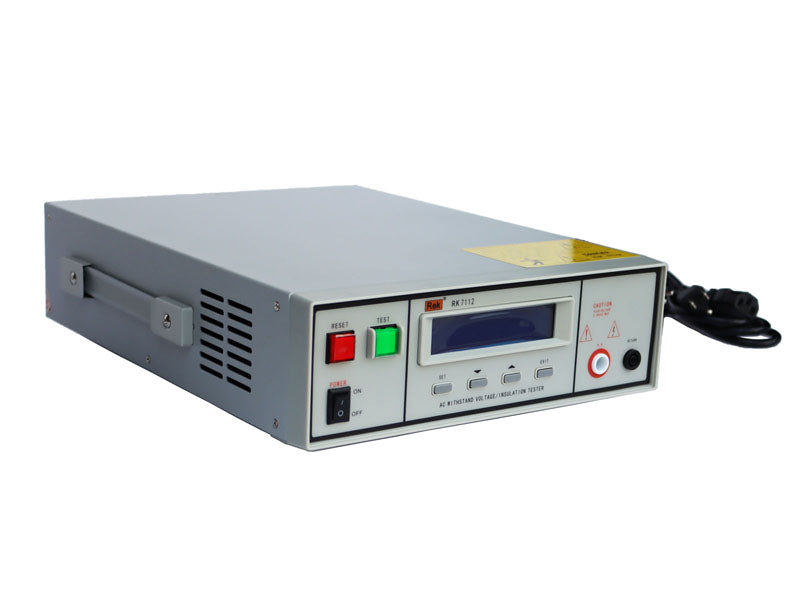

Rk7112 Withstand Hi-Pot Tester 110V/AC5KV
|
RK7112 series voltage withstand test instruments are for general- purpose HV test operation. It can be widely used for voltage withstand test in electrician’s assistant instrument,rubber-wooden facility,voltage convertor,wires , power meter, motor, power supply plug, cables and all kinds of electronic and electric products. As the launch of the national security standard, Voltage withstand instrument has become one of necessary withstand test instruments to the radio and electronic products manufacturer.
Operating request: Environmental temperature 0~40℃
Relative humidity≤75%
|
|
|
parameter
| Model |
RK7112 |
| Advantage |
5 sets of data can be set
Insulating test |
| Input |
single-phase47-63HZ,115V/230V AC±15% |
Output
frequency |
Range：50Hz/60Hz Optional |
| Slow rise |
Range：0.1--999.9s，0.1s/Step |
Output
ripple |
Sine wave THD
<2%(Crest Factor)>1.3<1.5 |
| Test time |
Range：0.2--999.9s，0.1s/Step 0=continuity |
| Input Voltage (Power) |
110V |
ARC
Detector |
Range: Level 1-9 can be set |
|
|
|
|
Details
Calibration
The instrument has been carefully calibrated before they go out, completely conform to the
requirements of the index of the instrument. The instrument for at least a yearly calibration,
calibration precision of the instrument must be better than 0.5%, to ensure that the instrument
can continue after calibration is precision of the instrument should be.
Calibration of instrument and equipment
Voltmeter： Measuring range above the 0-6000 V AC
Ammeter ：Measuring range from 0-15 mA AC above
Load resistance ：500 k Ω - 800 k Ω, more than 0.5 WATT
|
|

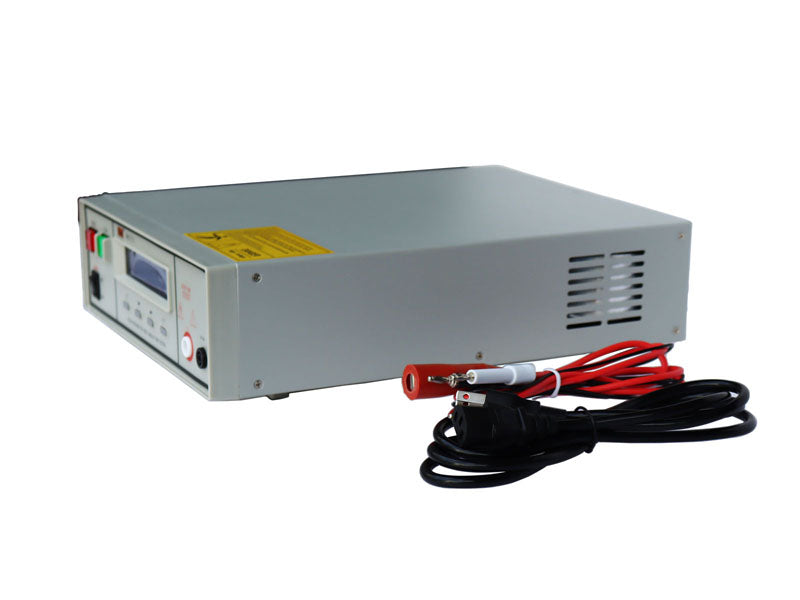

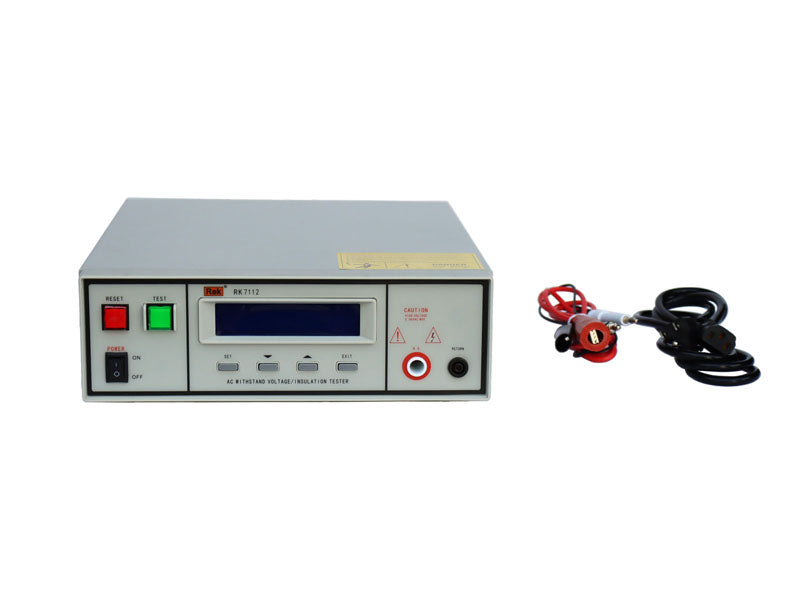

Item Included(142014)
1×Withstand Voltage TestEquipment
1×High Voltage Test Line
1×Ground Line
1×Power Cord
|
|
|
