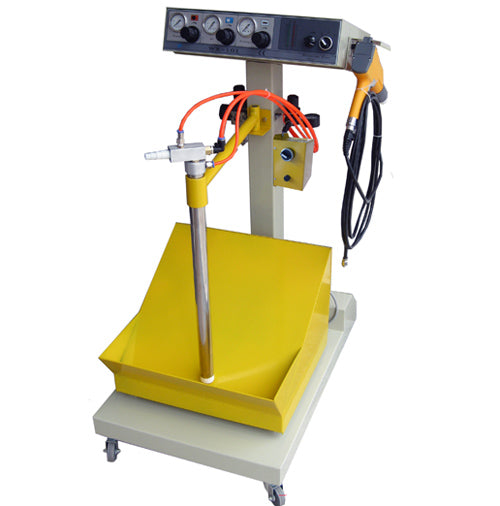

110V Vibrating Powder Coating Machine
110V Vibrating Powder Coating Machine
Regular price
$1,299.00 USD
Regular price
Sale price
$1,299.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
 |
|
Vibrating Powder Coating Machine 110V |
 |
 |
|
Powder coating is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically grounded parts. The charged powder particles adhere to the parts and are held there until melted and fused into a smooth coating in a curing oven. Before coating, the parts to be coated are first pretreated similarly to conventional liquid coated parts. The pretreatment process is normally conducted in series with the coating and curing operatios. |
| Voltage of power supply: 110V AC |
| Frequency: 60Hz |
| Total Input power: 90W |
| Output voltage: 0—100KV（Negative） |
| Maximum output current: 150uA |
| Voltage of solenoid valve: DC24V |
| Max. capacity of Powder yield : 520g/min. |
| Work Temperature range:-5℃—45℃ |
| Package Size: 50*50*70cm(20*20*28inch) |
| Package Weight: 42KG |
 |
| 1.The machine be used on powder coating production which need frequently and quickly change colors, it's designed use original powder box, minimal color change times, save time. |
| 2. For direct transport from the original powder box, no need use powder hopper. Complete emptying of powder box on the vibrating table. |
 |
 |
 |
 |
| Item included: |
| One Set Vibrating Powder Coating Machine 110V(251041) |
